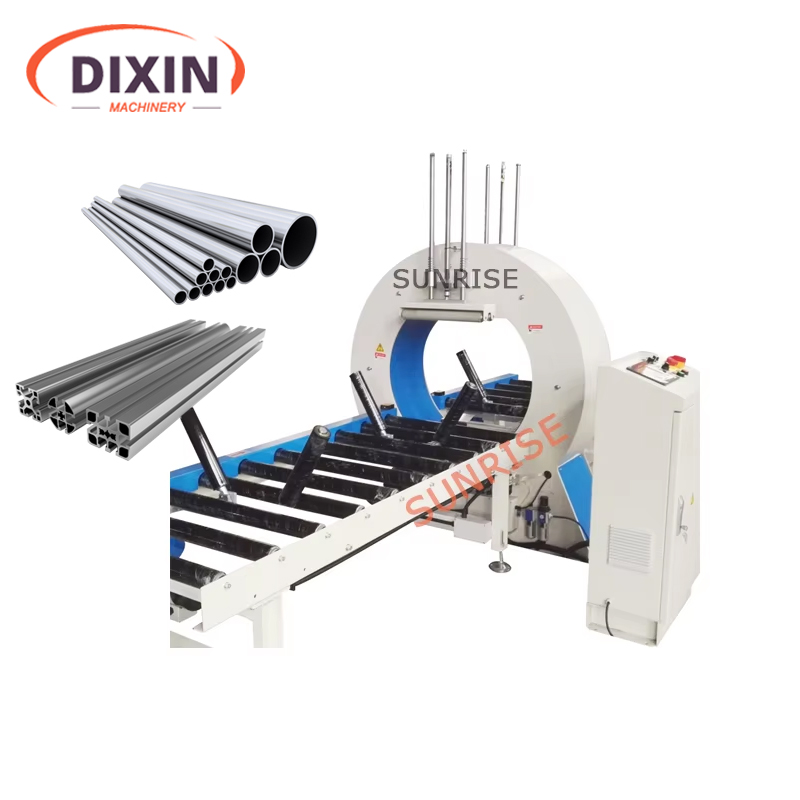

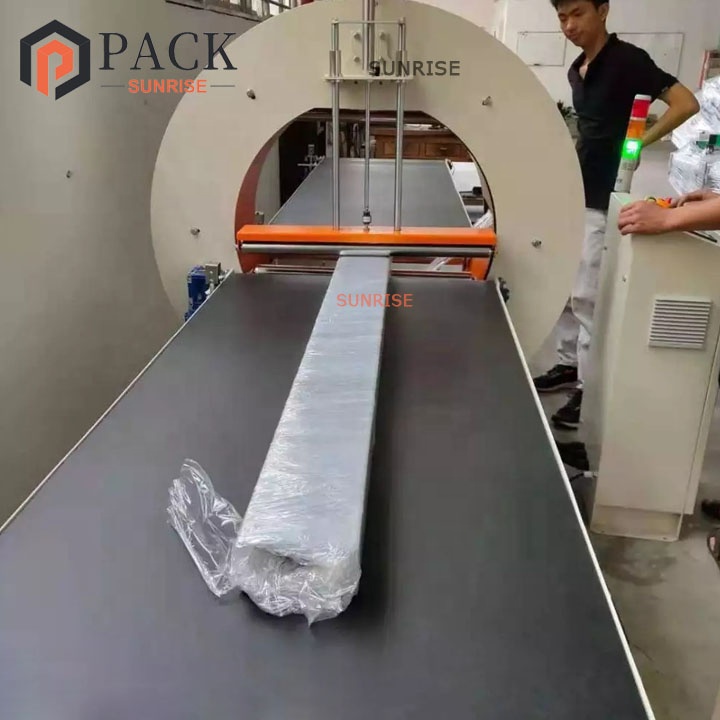

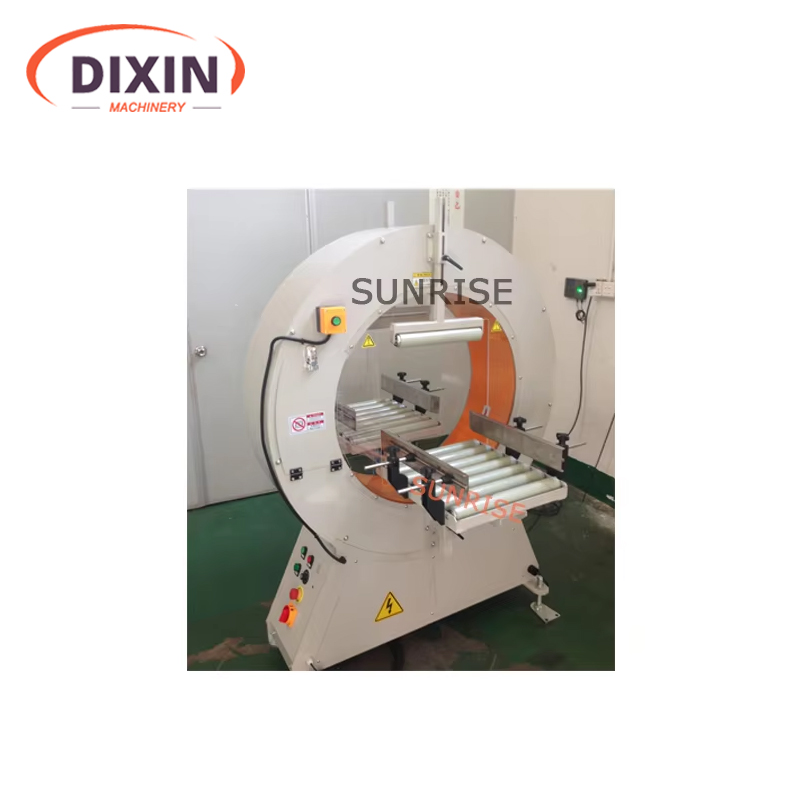

Orbital Wrapping Machine for Plastic Extruded Profiles, Cupboard, Wood, Panel & Frames Horizontal Stretch Packing Machine

1 / 5

Orbital Wrapping Machine for Plastic Extruded Profiles, Cupboard, Wood, Panel & Frames Horizontal Stretch Packing Machine

Send Inquiry

Product Description

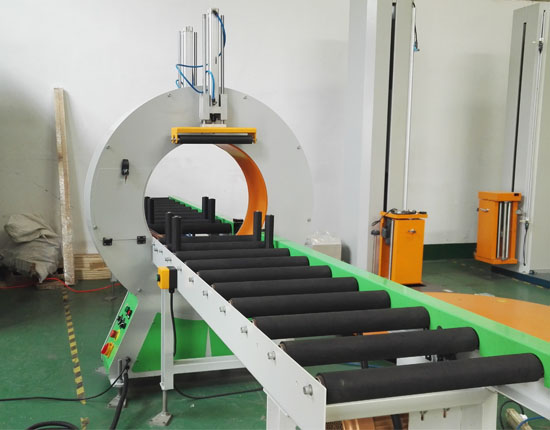

Wrapping processing

The orbital wrapping machines by SP wrap and protect your products of dirt, dust and humidity during the transport and storage.

Presentation: Improve the product presentation.
Flexibility: Allow to wrap products of several lengths, diameters and shapes without any adjustment.
Output: High working speed and labor saving.

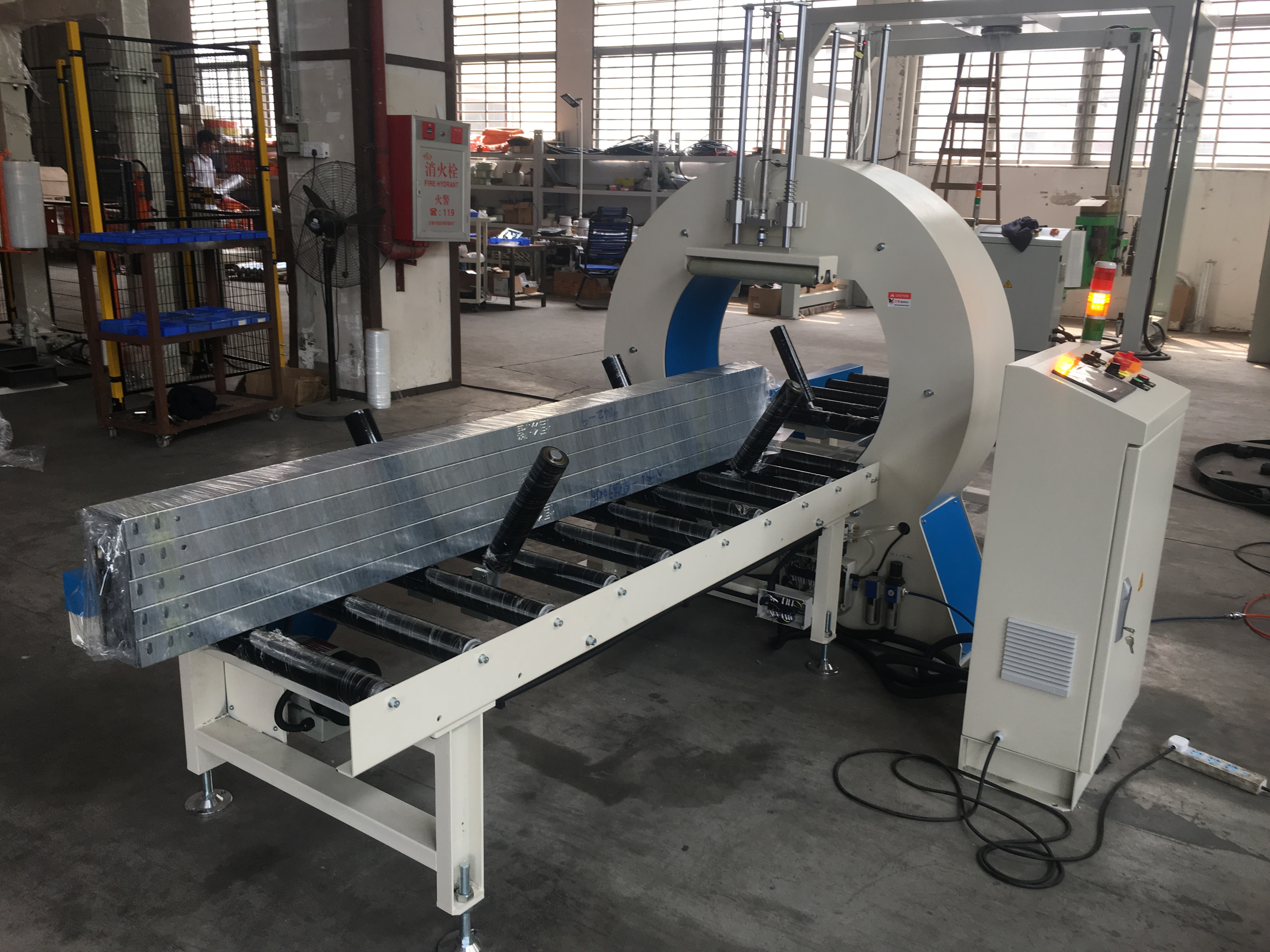

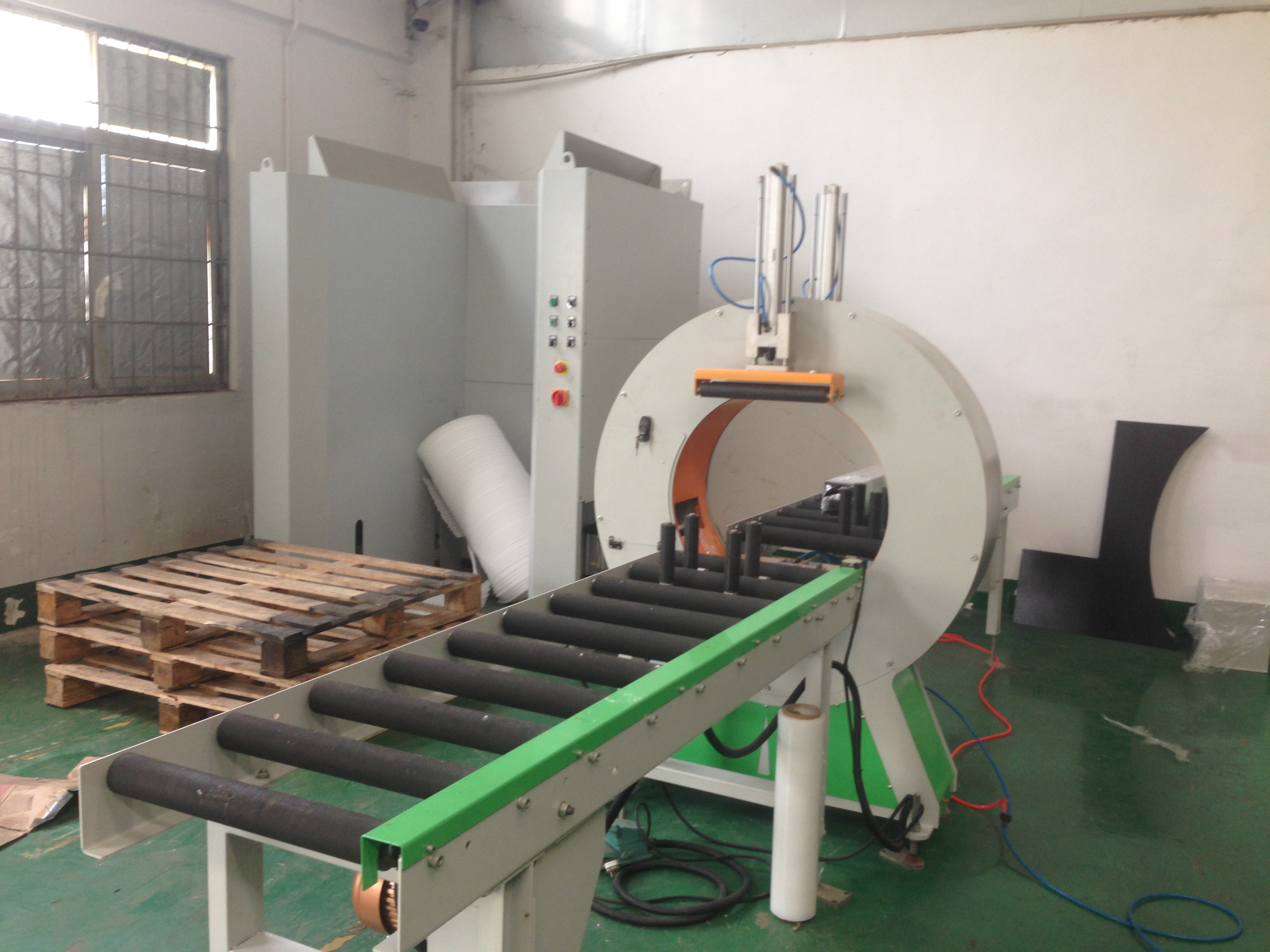

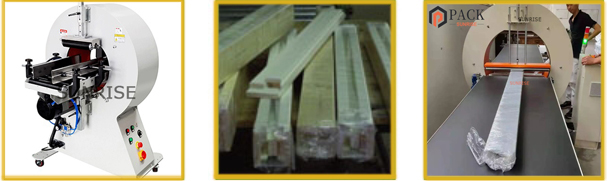

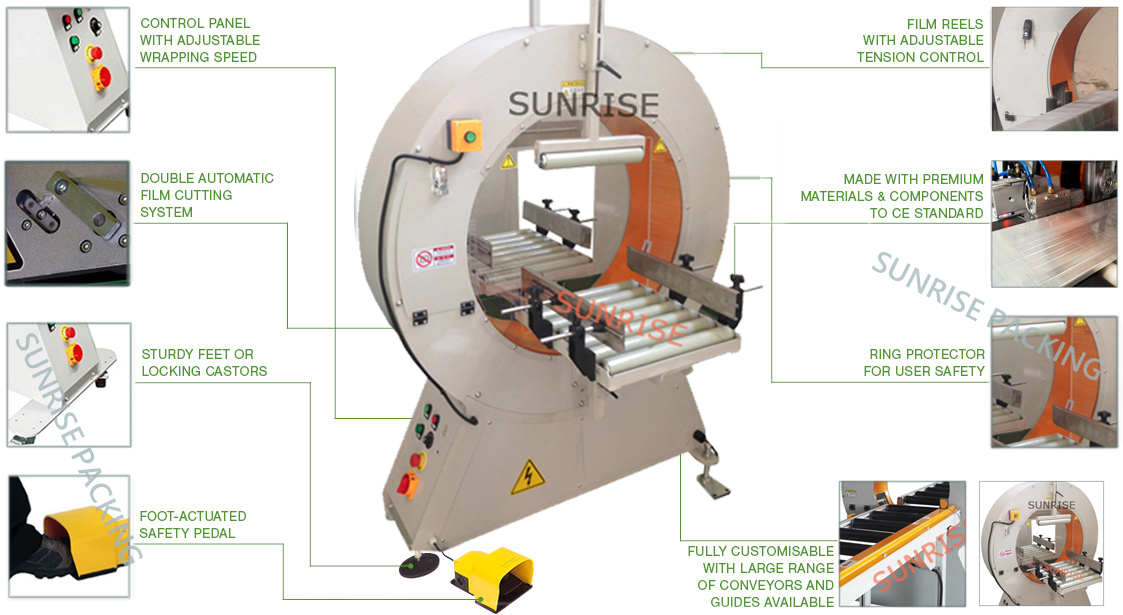

Automatic orbital wrapper

Used for bundling product with stretch film. Also known as a horizontal stretch wrapper, this machine is ideal for warehouse and manufacturing use. It automatically loads products and threads, wraps, and cuts stretch film. The model SP-40HR is ideal for products like wood molding, flooring, profiles, aluminum bars, pipes, tubes, blinds, or any other small product needing to be bundled.

The wrapper could be used to wrapping a product or banding at certain locations.
Automatic film clamp and cut. It could be combined with current product line to achieve fully automatic packing.
Product is stabilized by pressure rollers at infeeding and outfeeding locations.
Film tension could be adjustable.
Wrapper adopts PLC control. Easy and fast to set wrapping parameters.
Stretch film overlapping adjustable.
Machine could be either started by foot pedal, from a button or a infeeding signal.
Quality components for machine reliability.

Product Lineup

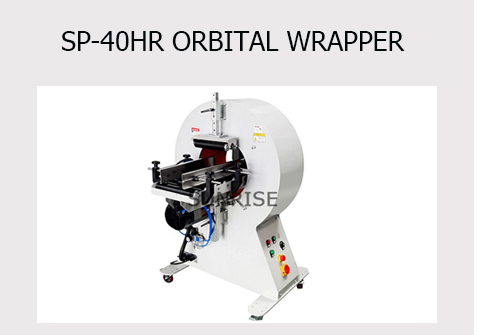

SP-40HR Orbital wrapper

The model 40HR is an automatic horizontal bundling machine with 400mm ring. wide opening for small wrapping applications including wood molding, flooring, tubes, & metal profiles.

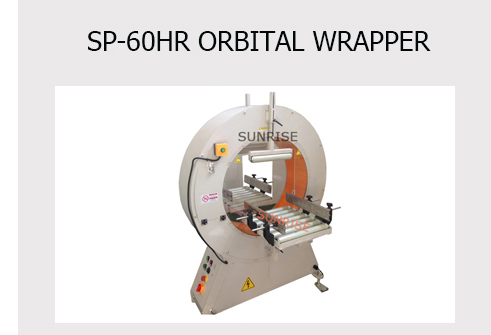

SP-60HR Orbital wrapper

The model 60HR is an automatic horizontal bundling machine with 600mm ring. wide opening for small wrapping applications including wood molding, flooring and aluminum bars.

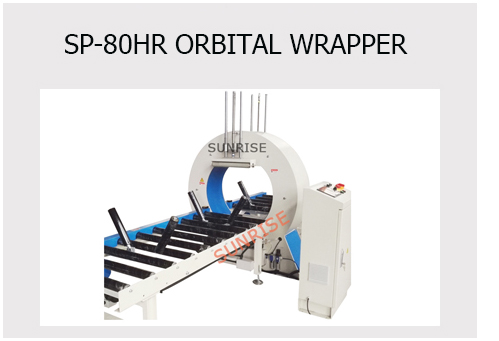

SP-80HR orbital wrapper

The model 80HR is an automatic horizontal bundling machine with 800mm ring. wide opening for medium size wrapping applications including wooden, box cabinets and doors that need grouping and protection.

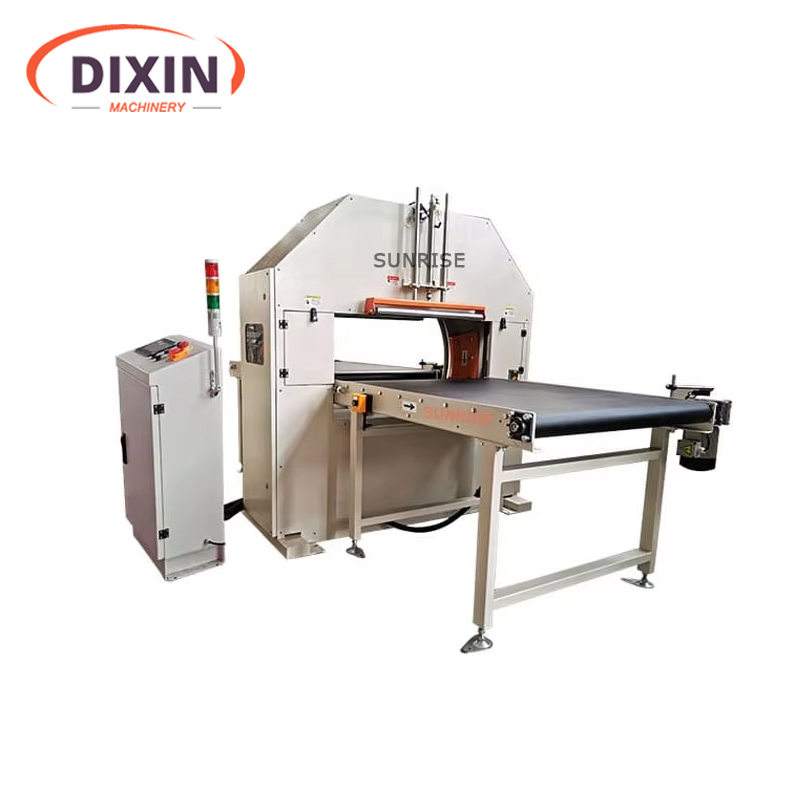

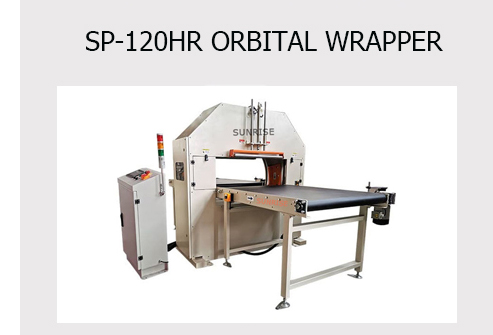

SP-120HR orbital wrapper

The model 120HR is an automatic horizontal bundling machine with 1200mm. wide opening for larger applications including windows, frames, kitchen, furniture and other bulky loads that need grouping and protection.

Specification

BASIC FEATURES:

Excellent collections. Quality and well-known brands are adopted for main components.
The overlap of packing material can be adjusted by converter.
Packing material tension is adjustable.
Difference packing material can be choose.
Rollers to protect the coils from shaking and fix the position. The rollers are wrapped by polyurethane for long time use.
Protective guard of ring part for safe operation.
Both manual and automatic working mode can be chose.
Converter is adopted to adjust the overlap of the packing tape according to needs.
Soft start and soft stop functions for safety operation.
Both electric limitation and mechanical limitation for operation system.
The friction between wheels and ring is adjustable.
Special brake for the tape release device to avoid material folding.
Packaging tension of the material is adjustable.
Independent electrical control cabinet for easy operation and maintenance. Indicator alarms automatically when trouble occurs.

STANDARD OPTIONS:

Pneumatically driven top pressure, and/or device at infeeding and outfeeding location.
Conveyor could be customized according to specific requirements. Conveyor type could be rubberized roller, belt or chain.
Combined with an auto PE sealing machine, it could achieve Total Close Wrapping. Bubble film could also be used to enclosed the product for cushioned protection.
Bridge device in the wrapper for smooth conveying of short products.
Dual film carriage system.
Carriage device could be customized to accommodate other packing materials from stretch film, such as woven bags.
Roping device for banding purpose.
Block insertion device to insert wooden blocks to under the product for easy transport.

Parameter Name		Value details
Model		SP-60HR
Ring diameter		600mm
Rotating speed		0-80RPM, soft & start, speed adjustable by inverter
Maximum product size		W400*H340mm, Max width 550mm
Product length		≥600mm
Material spec		LLDPE Stretch film, W200mm max, ID76mm, OD 200mm
Top pressure device		manually adjustable
Conveyor		(Standard) power rubberized roller conveyor, infeeding and outfeeding conveyor each 500mm L
Power		1PH, 110/220V, 50/60Hz
Air pressure		0.4-0.6Mpa

Packing & Delivery

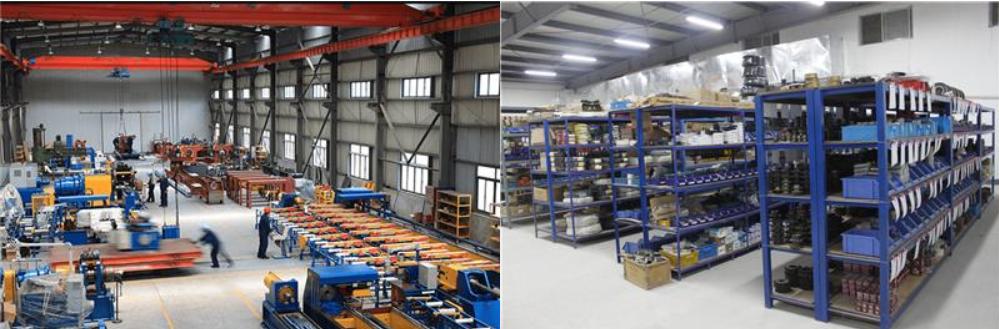

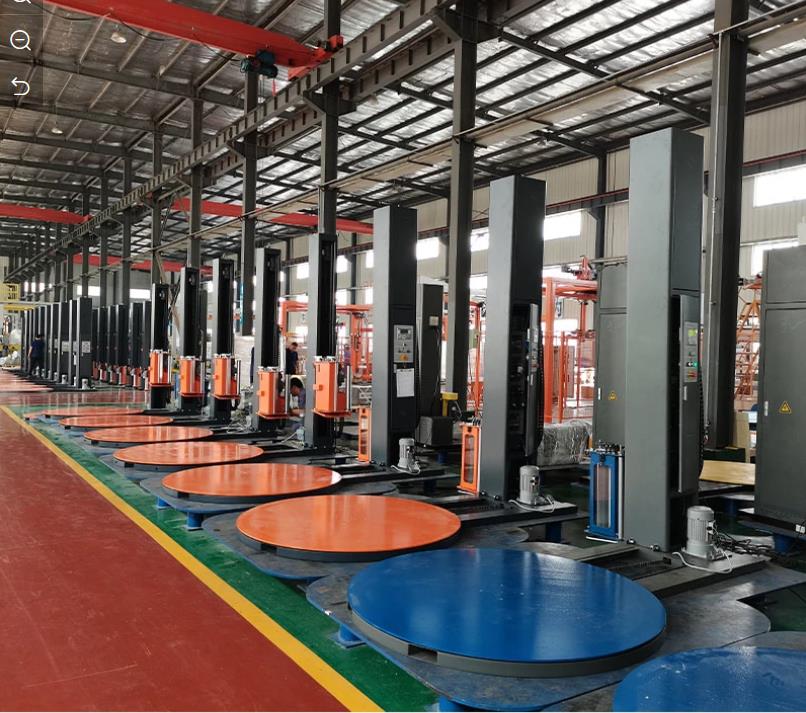

Company Profile

Service

Frequently Asked Questions

What is an automatic orbital wrapper?

An automatic orbital wrapper, also known as a horizontal stretch wrapper, is a packaging machine designed for bundling products horizontally with stretch film. It features an automatic system that loads products, threads the film, wraps it around the moving item, and automatically cuts the film upon completion.

What kinds of materials and products can be wrapped?

It is highly suitable for long, elongated, or bulky items. Common applications include wood molding, flooring, aluminum bars, metal profiles, plastic tubes, pipes, blinds, windows, frames, and furniture components that require efficient bundling and scratch protection.

How do I choose between different models like SP-40HR, SP-60HR, SP-80HR, and SP-120HR?

The main differentiator is the ring diameter, which restricts the maximum product cross-section size. Choose the SP-40HR (400mm ring) or SP-60HR (600mm) for smaller applications like floorings and narrow tubes. The SP-80HR (800mm) or SP-120HR (1200mm) models are designed for larger loads like box cabinets, windows, and doors.

Is the wrap overlap and film tension adjustable?

Yes. The overlap rate of the packaging tape/film can be customized and controlled by the built-in frequency inverter. The film tension release mechanism is also fully adjustable to accommodate different structural shapes and material sensitivities.

What safety mechanisms are built into these wrapping machines?

Safety is ensured through comprehensive protective guard rings, soft start and soft stop control programs to prevent rapid mechanical wear or product slipping, and dual electrical/mechanical limitation switches to restrict abnormal operating behaviors.

Can these orbital wrapping systems be integrated into automatic lines?

Yes, these machines are equipped with automatic film clamping and cutting units, and can receive infeeding control signals. They are engineered to integrate seamlessly into existing conveyor production lines for continuous, unmanned packaging operations.
