| ITEMS | TYPE/UNIT | SP-PU-C |
|---|---|---|
| Color Steel Sandwich Panel Specifications | mm | Width: 700 ~ 1000 Thickness: 30 ~ 150 |
| Production Line Speed | m/min | 3 ~ 8 |
| The Maximum Temperature of The Hot Air Circulation | °C | 70 |
| Total Power | kw | 300 |
| Line Dimensions (L × W × H) | mm | 86000 × 7000 × 3800 |
| The Total Installed Power Capacity | kw | 207 |
| Stove Power | kcal | 200,000 |
| Double Belt Laminated Conveyor Length | m | 24 |

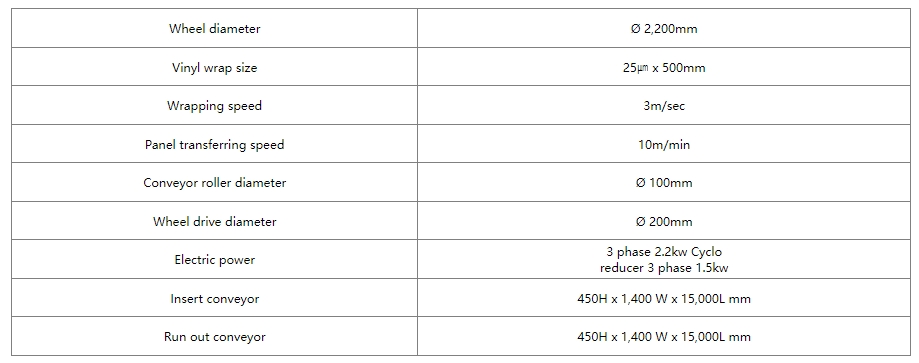

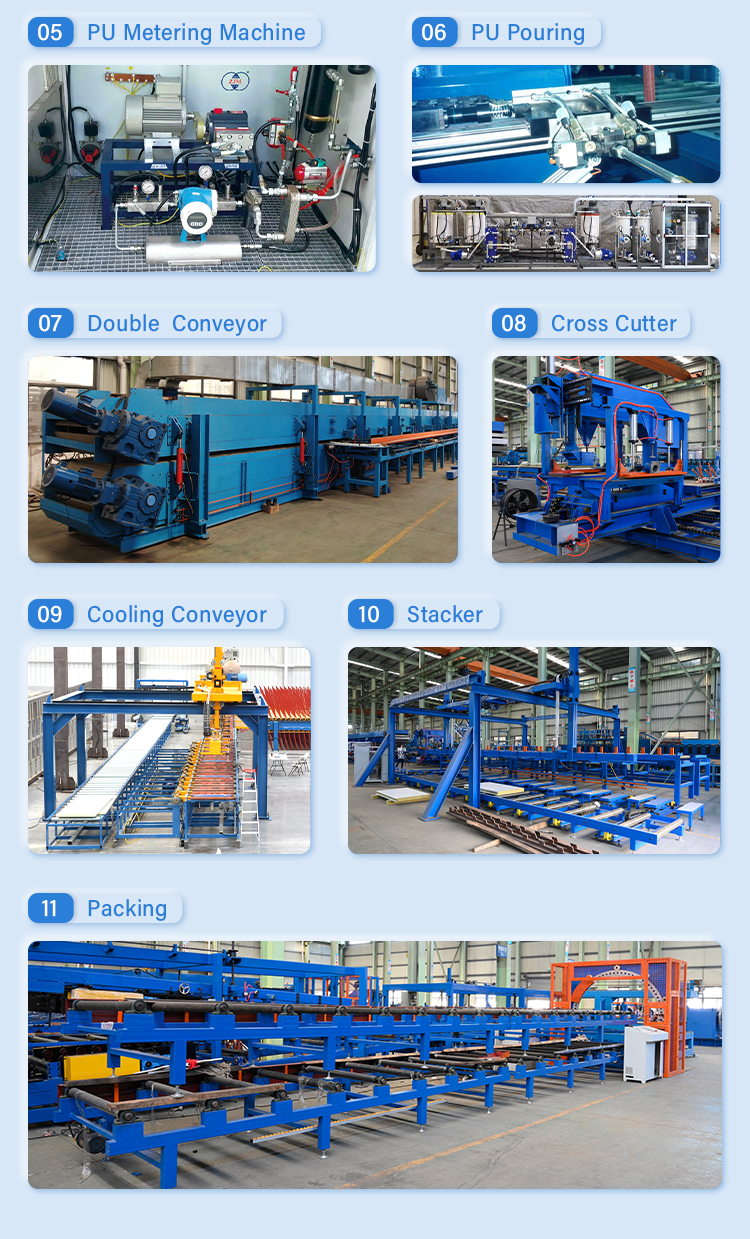

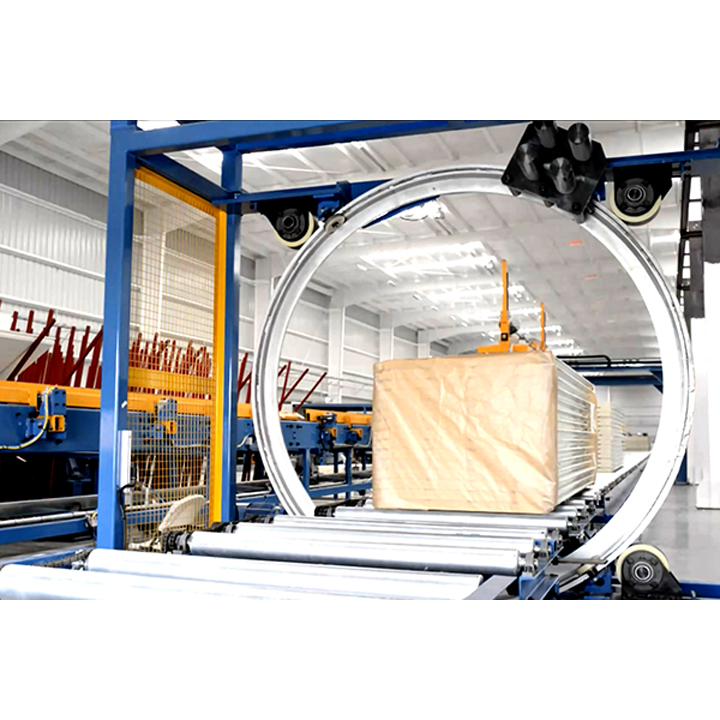

A1: The packing machine is used at the end of the sandwich panel production line. It wraps the stacked sandwich panels in PVC material to protect them during transit and handling before they reach final delivery.

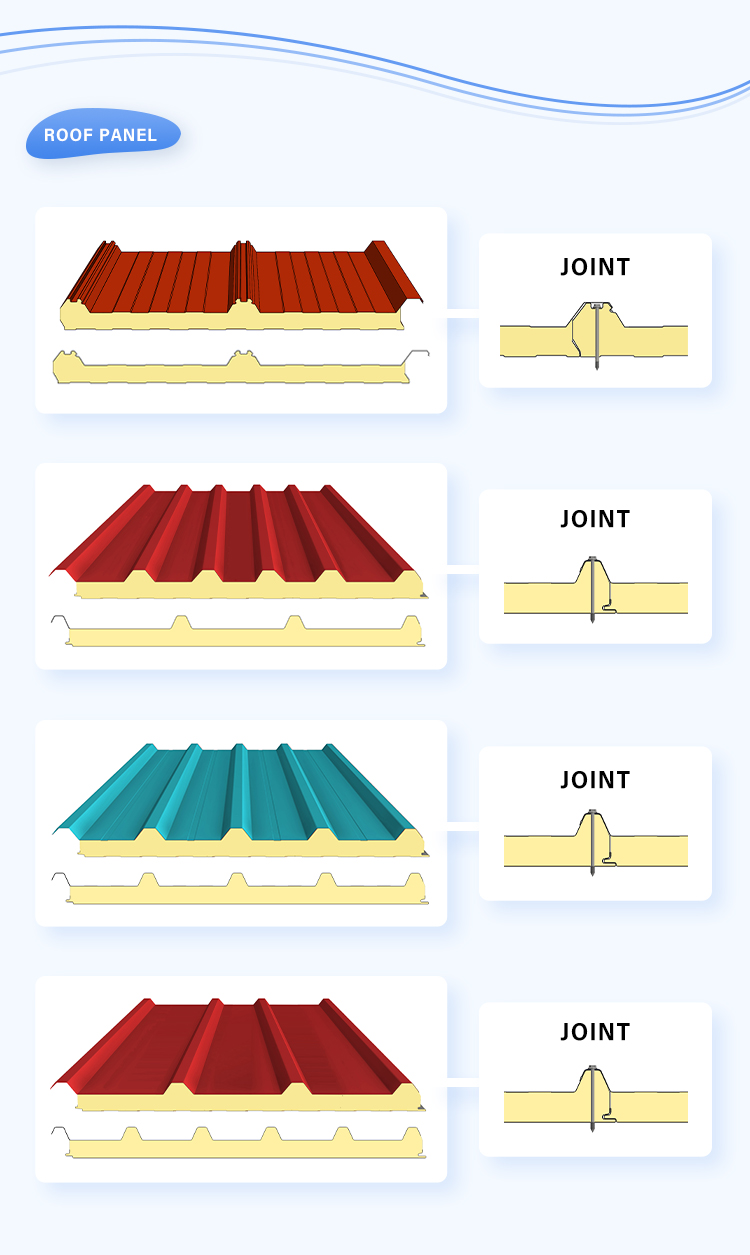

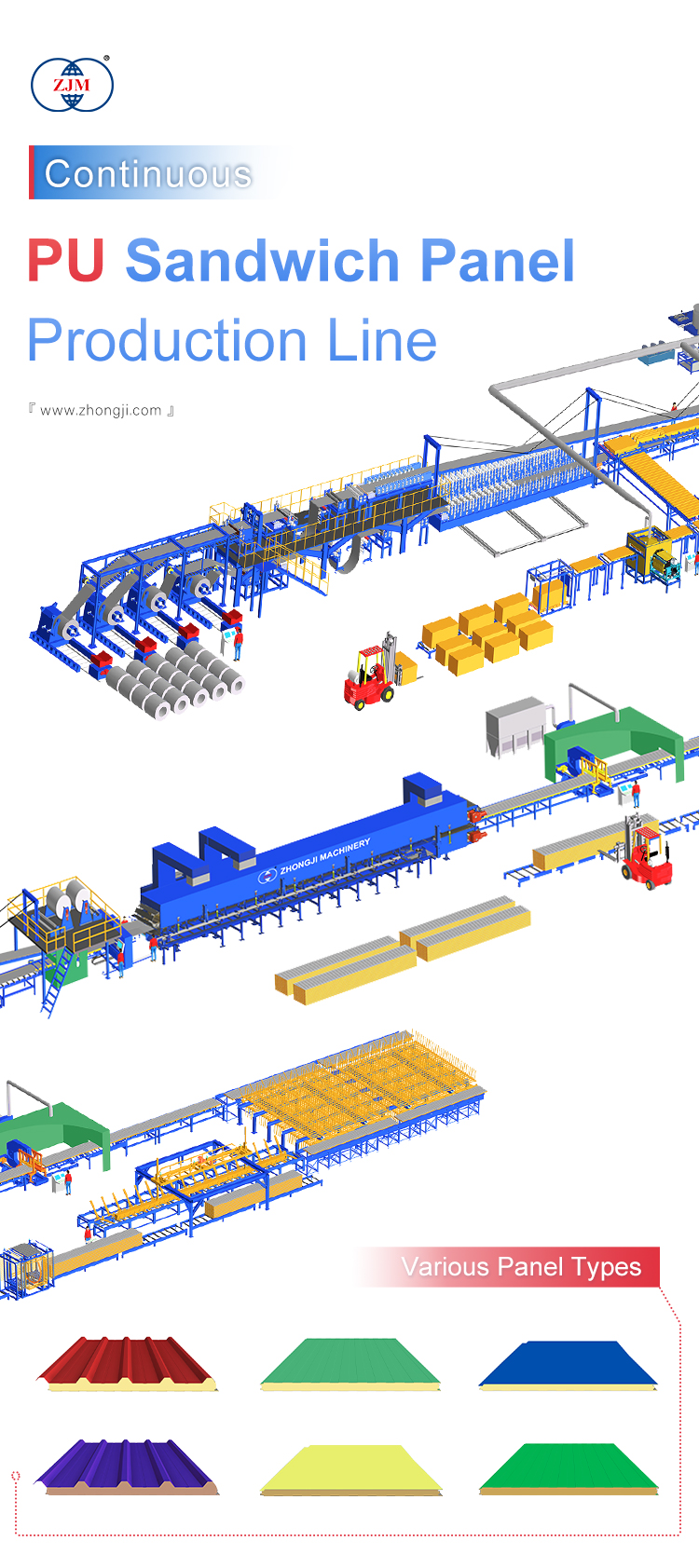

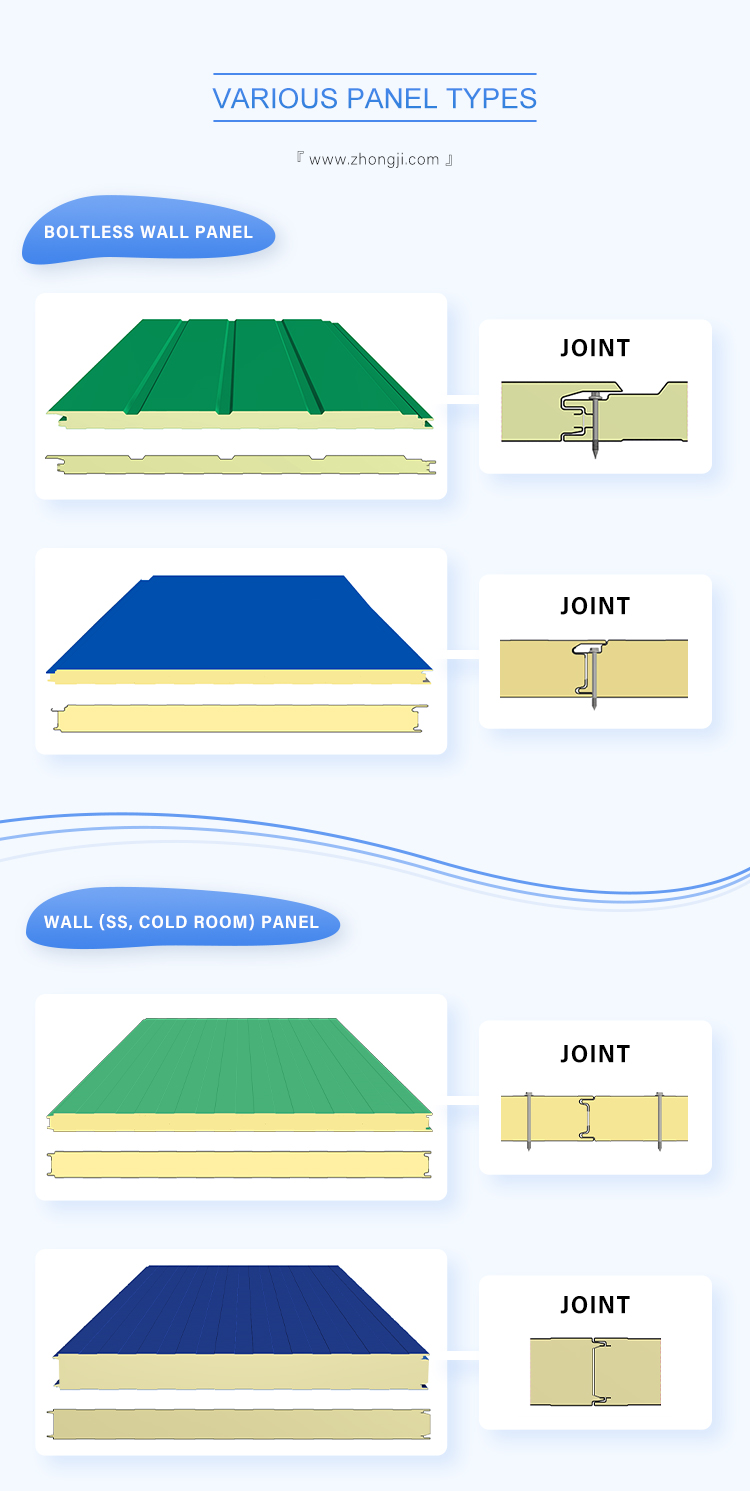

A2: The continuous production line is highly versatile and works with Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic, and EPS cores, allowing manufacturers to create a wide variety of composite panel structures.
A3: The continuous line produces panels with lengths ranging from 3 to 18 meters, valid widths of 900 to 1200 mm, and thickness values spanning 20 to 150 mm.
A4: We send specialized engineers to manage the physical layout, setup, and initialization testing on-site. Additionally, we run structured technical programs covering equipment structures, operation controls, and minor troubleshooting.
A5: We respond to initial reports within 2 hours. If our technical team cannot solve the issue remotely through phone or video instructions, field engineers will be dispatched to resolve the concern on-site.

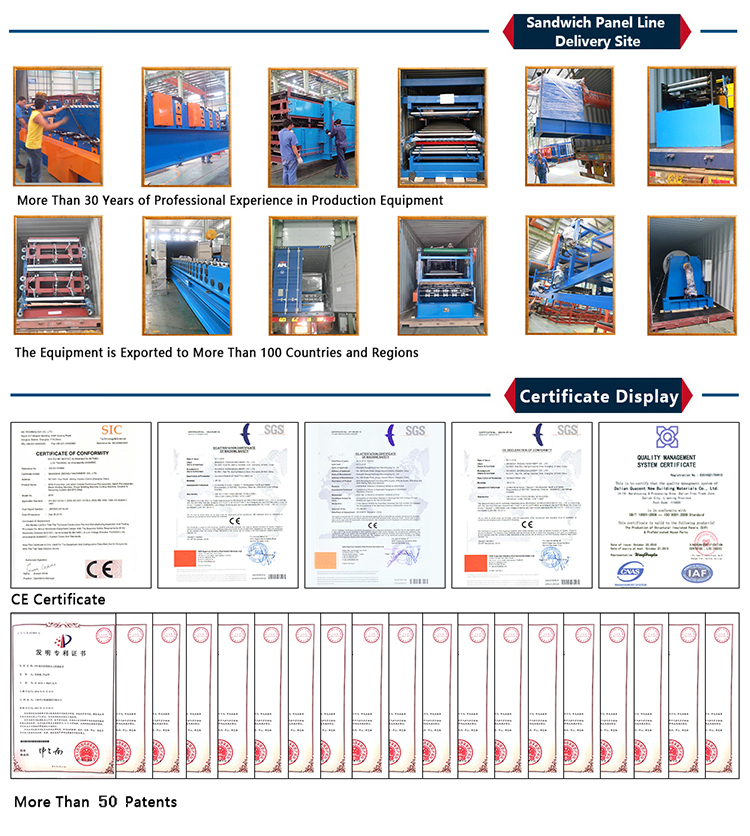

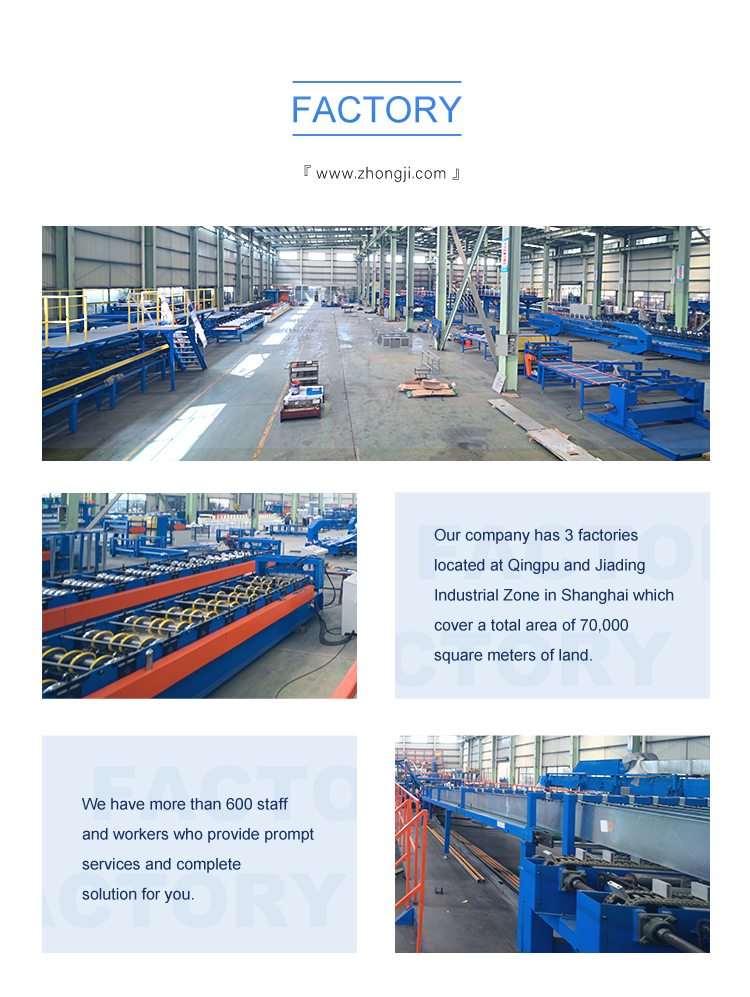

A6: All production lines carry official CE certification, are backed by over 100 national patents, and are produced under strict international industrial standards in our 40,000 square meter facility.
