Vertical Automatic Web L Sealer and Heat Shrink Wrapping Machine
Vertical Automatic Web L Sealer and Heat Shrink Wrapping Machine
Vertical Automatic Web L Sealer and Heat Shrink Wrapping Machine
Vertical Automatic Web L Sealer and Heat Shrink Wrapping Machine
Vertical Automatic Web L Sealer and Heat Shrink Wrapping Machine
1 / 5
Vertical Automatic Web L Sealer and Heat Shrink Wrapping Machine
Vertical Automatic Web L Sealer and Heat Shrink Wrapping Machine
Vertical Automatic Web L Sealer and Heat Shrink Wrapping Machine
Vertical Automatic Web L Sealer and Heat Shrink Wrapping Machine
Vertical Automatic Web L Sealer and Heat Shrink Wrapping Machine

Vertical Automatic Web L Sealer and Heat Shrink Wrapping Machine

Send Inquiry

Product Description

Product Description

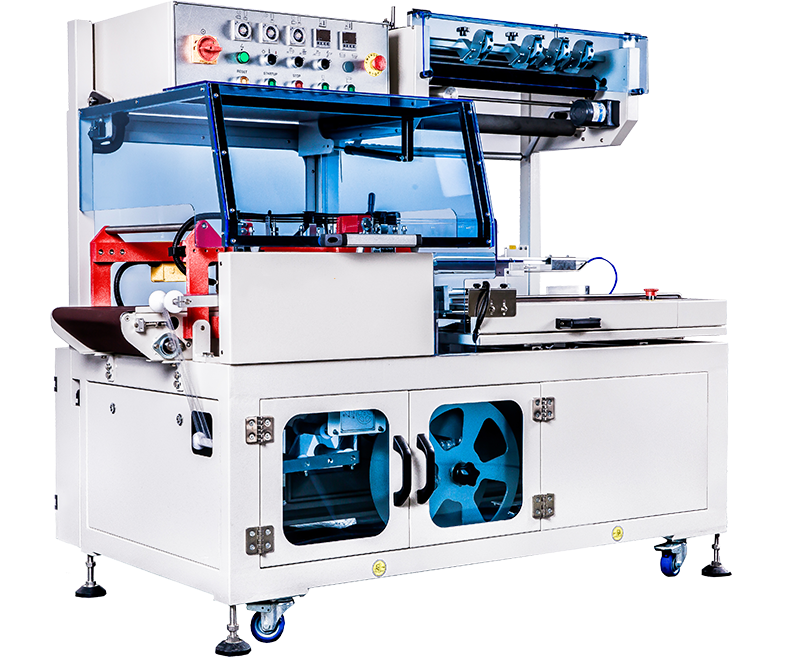

Automatic L-Bar Sealer
Automatic L-Bar Sealer

Automatic L-Bar Sealer is an entry-level automatic sealer which provides an economical, durable and easy-operated solution for packaging. It is also widely applicable to various industries such as toys, cosmetics, tools, foods, stationeries, daily commodities, electric appliances, etc. With the uniqueness of the perforation system, it has been successfully granted us a leading position in the industry.

Features
  • A broad spectrum of products can be packaged
  • Cost-effective Automatic packing solution
  • Safety protection and alarm attached
  • The sealing system is capable of performing smooth and firm sealing line.
  • Easy operation and maintenance
Features Detail
Specification
Model LB-726 LB-728 LB-729
Machine Size
LxWxH(mm)		 2000x1190x1480 1795×990×1570 1890x1335x1290
Packing size
LxWxH(mm)		 (100~530)×(60~400)×(5~120) (100~450)×(60~350)×(5~120) (60~560)×(60~400)×(10~160)
Sealing bars size
LxW(mm)		 640x512 565×460 630x520
Maximum Films Width
(inches)		 22" 23" 27"
Power 220V, 1P, 3.5Kw 220V, 1P, 3Kw 220V, 1P, 3Kw
Packing capacity
(packs/min)		 Max. 26 (Depends on products)
Pneumatic
(Nl/min)		 60 (6bar) 80 (8bar) 80 (8bar)
Video
🎬
LB728 BOX PACKAGING
Optional Value

We also provide a range of optional upgrades for the machines. Let's find out what extra value you may need.

Kissing conveyor
Kissing conveyor
The distance between the front and rear conveyor belt can get closer for packing small products. When sealing happen, the rear conveyor will pull back for sealing bar to go downward.
Conveyor speed control
Conveyor speed control
This option offer user can adjust the front and rear conveyor speed on L-bar sealer. When dealing with unstable or slippery surface product (such as bottles and a pile of books), the inertia of conveyor may affect the product alignment. Slow down the conveyor speed can improve this problem.
Stainless steel version
Stainless steel version
Stainless steel machine are available allow the machine to be working stably under high moisture and low temperature working condition.
Eye-mark sensor
Eye-mark sensor
To use with color printed films for ensure preset bag length per pack.
Automatic grouping and feeding device
Automatic grouping and feeding device
Feeding devices with grouping function are specially designed to feed products to form a multi packing. Several products can drive together on the same time to prohibit misalignment happen. Packaging quality is improved because of this. It can increase production speed compare to feed multi products by hand. Connecting to the existing production line can accomplish a fully automatic production.
Flight bar conveyor
Flight bar conveyor
A guide rail pushing system is employed to pushing product in muti-packs format. Depends on products height and shape, different guide rail pushing systems are available.
Finger conveyor
Finger conveyor (lug conveyor)
Finger conveyor contains quick change flight lugs with stainless steel surface. With product guide rail, it is mostly used for driving a cluster to fit a wide range of products. Program connected to subsequent shrink wrapper and missing products detection is provided. Tailor made in different specifications are available.
Automatic Feeder
Automatic Feeder
It is designed for handling all kind of booklets, mail pieces, phone card, magazine, etc...products can be fed individually to other conveyor for subsequent process. Feeding speed can control independently for variety of usage. Systematically connect with shrink wrapper forms a complete automatic packing line.
Product Gallery
Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Frequently Asked Questions
What industries is the Automatic L-Bar Sealer suitable for?
The Automatic L-Bar Sealer is widely applicable to various industries including toys, cosmetics, tools, foods, stationeries, daily commodities, and electrical appliances.
How does the conveyor speed control option help with product alignment?
When packaging unstable or slippery surface products like bottles or stacked books, the inertia of the conveyor can cause misalignment. The conveyor speed control allows you to slow down the speed to prevent this problem.
Can the machine operate in high moisture or low-temperature environments?
Yes, we offer an optional stainless steel version designed specifically to work stably under low temperature and high moisture working conditions.
What is the function of the Kissing Conveyor option?
The Kissing Conveyor closes the distance between the front and rear conveyor belts to safely package small products. During the sealing phase, the rear conveyor pulls back to allow the sealing bar to move downward.
What are the power requirements for the L-Bar Sealer models?
All models (LB-726, LB-728, and LB-729) operate on a 220V, 1-Phase power supply. The LB-726 model requires 3.5Kw of power, while the LB-728 and LB-729 models require 3Kw.
How does the Automatic Grouping and Feeding Device improve production speed?
It feeds multiple products simultaneously to form multi-packs without misalignment. This speeds up production significantly compared to manual feeding and can be integrated into existing lines for fully automatic production.
