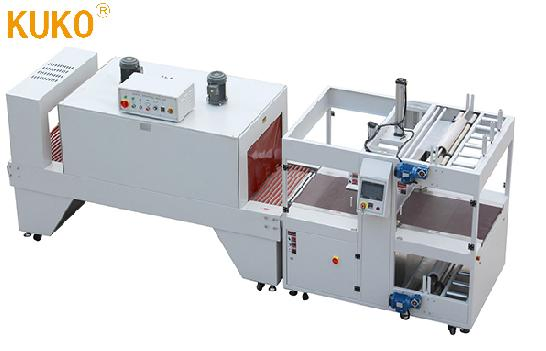

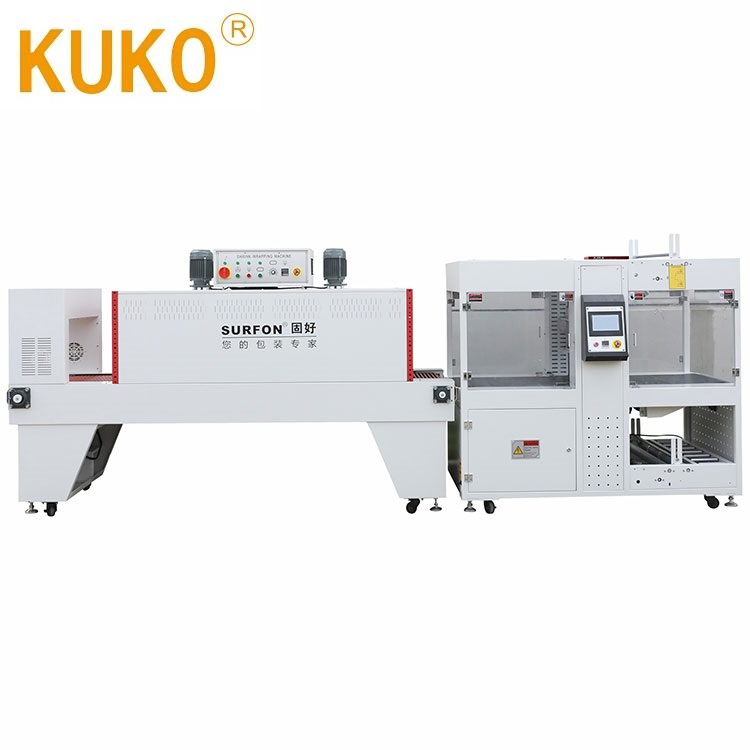

Automatic Sleeve Type Heat Shrink Film Packaging Machine Shrink Pack Packing Wrap Wrapping Seal Sealing Tunnel Equipment

Customization: Available
After-sales Service: Online Technical Support/ Video Installation Guide
Warranty: 1 Year for Machinery Warranty

Product Description

Overview
Product Description
Detailed Photos
Product Parameters
Certifications
Packaging & Shipping
Company Profile
Clients
FAQ
Overview & Basic Info
Basic Specifications
Model NO.GH-6030AZ+SF-6040E
Applicable GoodsFilm
TypeAutomatic Wrapping Machine
Driven TypeElectric
Automatic GradeAutomatic
Inclusion DegreeSleeve Wrapping Machine
StructureShrink Wrapping Machine
Film Frame StructureShrink Wrapping Machine
Operational Parameters
Max Packing SizeL(Unlimited)*500*300mm
Shrink FilmPE
Power Supply24kw 220V/380V 50Hz
CertificateISO, CE
Blade Length670mm
Seal/Shrink Temp.0-300℃
Height of Worktable850±50mm
Production Capacity100 Sets/Month
Application Scope

Beverage, Food, Medical, Chemical, Textile, Electrical & Electronics, Machinery, Hardware, Commodity, Different Boxes.

Packaging & Delivery Details
Transport PackageWooden Boxes
Specification1780*1328*2100mm
HS Code8422303090
Package Size178.00cm * 132.80cm * 210.00cm
Package Gross Weight420.000kg
Product Description
  • GH-6030AZ+SF-6040E fully-auto Straight Feeding Sleeve Sealer & Shrink Tunnel adopts a unique linear design and compact structure. It is highly suitable for limited spaces and does not require adjusting the forward direction of packaging. There are no product length limits.
  • It can work independently and also connect directly with production lines to realize an unmanned assembly line with the functions of automatic feeding, film wrapping, sealing, shrinking, cooling, and stereotypes.
  • Advanced technology and strict production processes ensure highly stable performance.
  • Siemens "PLC" programmable process controller achieves mechanical, electrical, and pneumatic integration.
  • After special modification, light and small products can also be packed efficiently.
  • Offers speed and seamless line connection advantages compared to standard side-feed machines.
  • The sealing line is solid without cracking during cutting and anti-sticking is ensured by a specially coated blade.
  • Two groups of imported level photoelectric devices are utilized for highly accurate positioning.
  • The imported conveyor belt is highly durable and its speed is controlled via a frequency inverter.

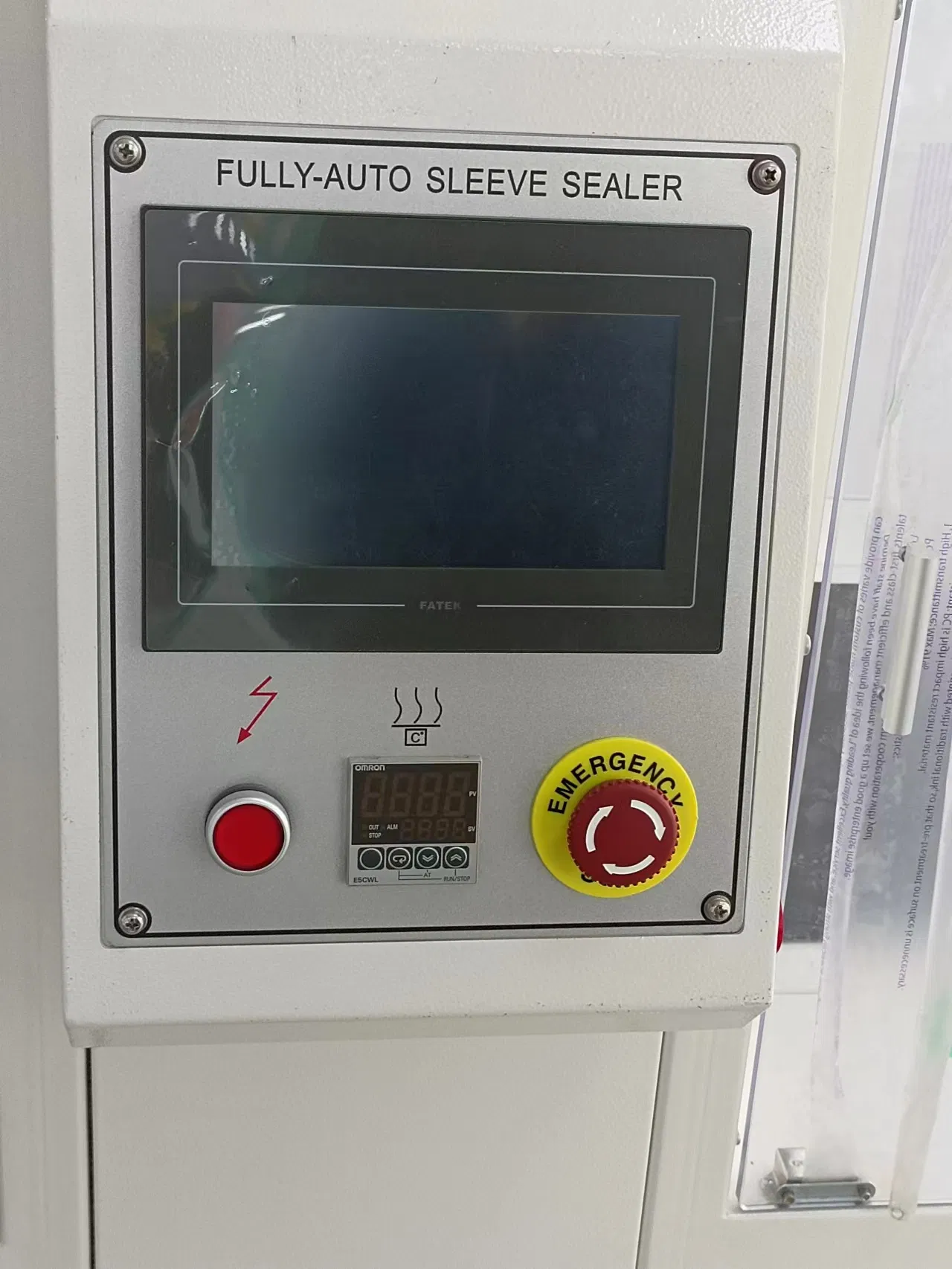

  • The user-friendly control box makes the operation simple and intuitive.
  • The pressure device equipped behind the sealing mechanism ensures that light products remain in a stable position during processing.
  • SF-6040E shrink tunnel adopts an imported double recycling motor, keeping the hot air in the tunnel even to achieve a beautiful shrink finish.
  • An outside security cover can be installed according to specific customer requirements.
  • The chain conveyor made of solid steel covered with imported silicone tubing is extremely durable. Different conveyor options are available depending on product shape and material.
  • A frequency inverter controls the speed of the conveyor belt.
  • A separate control box ensures electrical components maintain good ventilation.
  • This machine is primarily applied to longer products, such as cartons or paper trays containing beverages, beer, water, cans, glass bottle collections, or single shrink-wrapped packages.
Detailed Photos

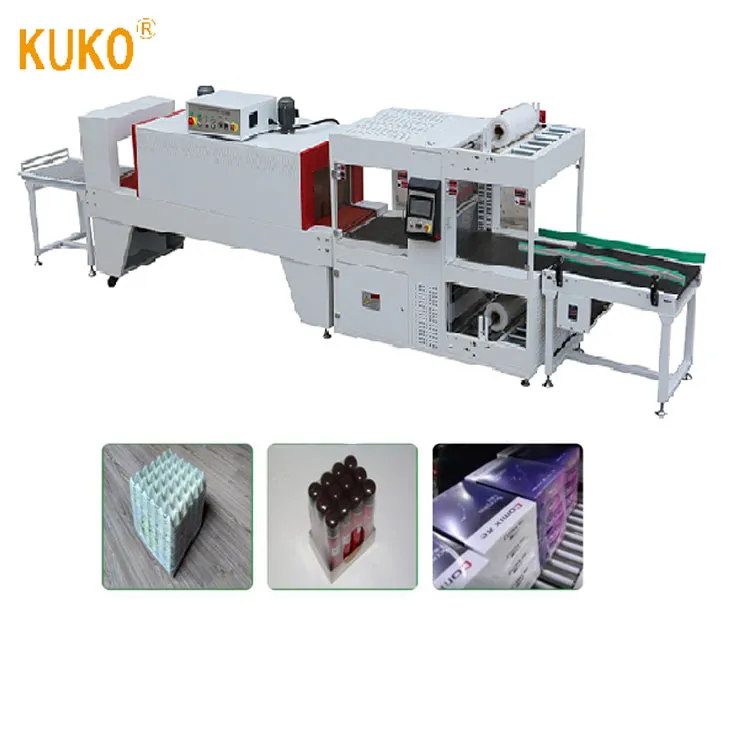

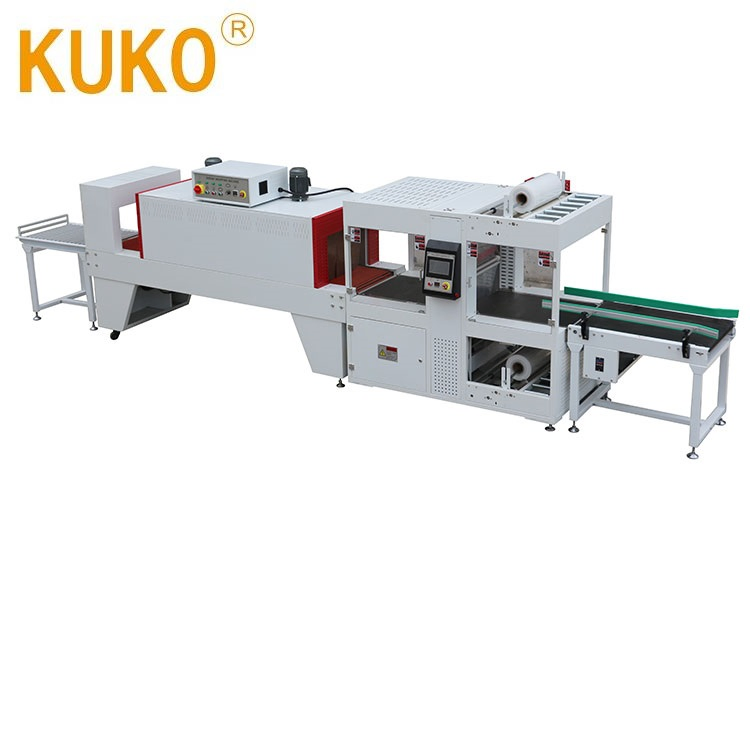

Sleeve Type Heat Shrink Packaging Machine Details

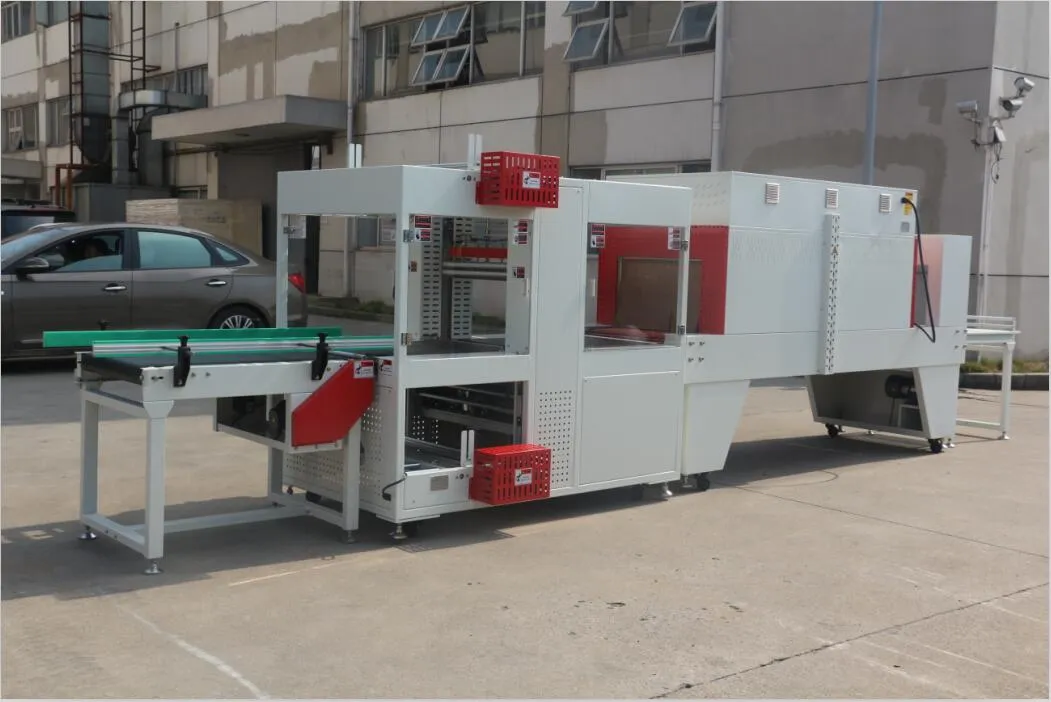

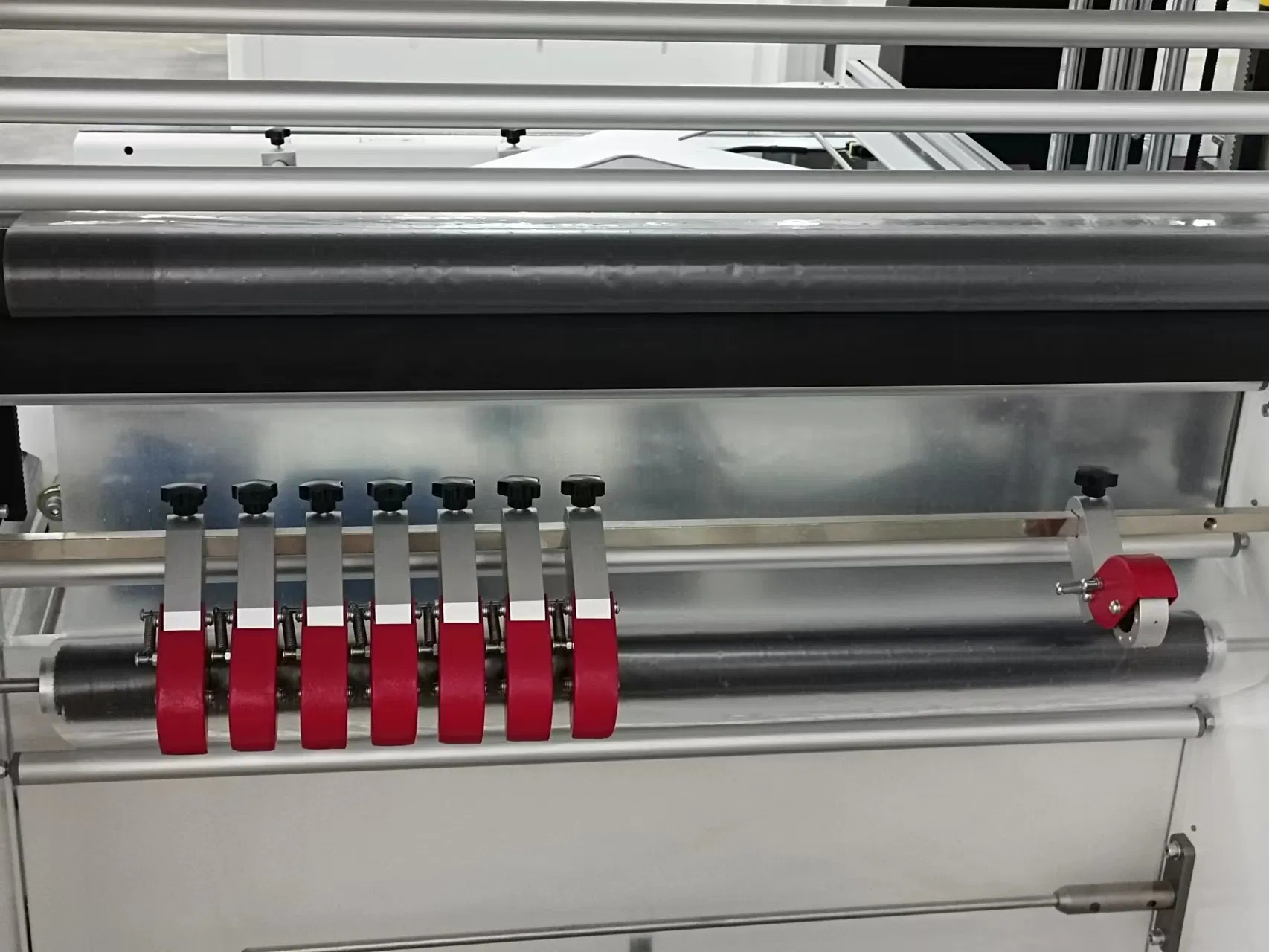

Sleeve Sealer Detailed View

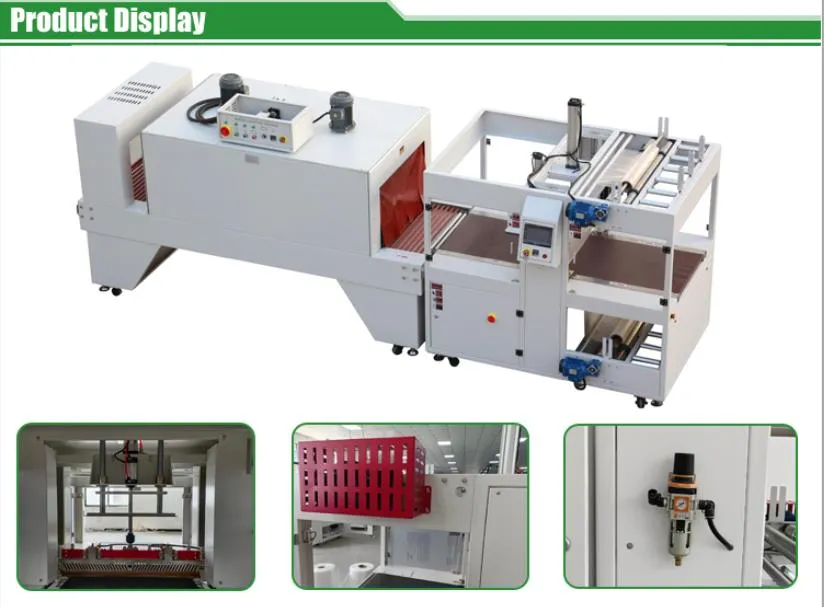

Shrink Tunnel Sealing Process
Heat Shrink Sealing Section
Product Parameters
Model GH-6030AZ SF-6040E
Power 2kw 22kw
Power Supply AC 380V 3 PH 50Hz AC 380V 3 PH 50Hz
Max Packing Size L×W×H L(unlimited)*500*300mm W500*H300mm
Tunnel Chamber Size L×W×H / 1800*600*400mm
Blade Length 670mm /
Seal/Shrink Temperature 0-300ºC 0-300ºC
Working Board Height 825±25mm 825±25mm
Packing Speed 15m/min. 0-15m/min
External Air Source 6-8kg/cm2 /
Applicable Shrink Film PE PE
Machine Size L×W×H 1780*1328*2100mm 2800*950*1750mm
Crate Size L×W×H 1830*1378*2250mm 2850*1000*1900mm
G./N. Weight 420/380kgs 625/565kgs
Certifications
Quality Compliance Certificate
CE Standard Certification
Packaging & Shipping
Wooden Box Protective Packaging
Secure Machine Loading
Export Shipping Dispatch
Company Profile
Manufacturing Factory Floor

Professional manufacturer of shrinking wrapping machinery established in 2004. Our purpose is to help customers improve work efficiency, save manpower and material resources, and reduce enterprise production costs. At present, we focus on automatic sealing and cutting film shrink packaging machines. The main product line is divided into more than 200 types, catering to low, medium, and high-speed operation. We have successfully provided complete shrink packaging solutions for various industries. With the trust of our customers and accumulated rich industry experience, we are a professional supplier with strong international competitiveness in the shrink packaging machinery industry. We firmly believe that products deserve excellent presentation, adhering to the five leading tenets of ingenious design, mechanized production, modularized assembly, standardized debugging, and straightforward maintenance.

Our entrepreneurial spirit centers on integrity. Advocating the principle of user-first, all equipment designs are constructed with the client's interests in mind, integrating constructive feedback to optimize output. For companies with special demands, custom manufacturing is available to meet precise industrial goals. All standard products include a one-year warranty period and lifetime maintenance service. We provide innovative technology, outstanding quality, and intelligent packaging products to assist global enterprises in achieving their operational dreams.

Clients & Collaborations
Client Logo Presentation Grid 1
Client Logo Presentation Grid 2
Client Logo Presentation Grid 3
Frequently Asked Questions
Q What are the terms of payment?
We accept L/C, T/T, Western Union, Money Gram, etc.
Q How long is the warranty, and what does the after-sales service include?
The machine warranty is one year. We provide professional machine solutions and machine layout design. We deliver machines on time after debugging with wooden packages. We offer professional installation, online technical support from engineers, and spare parts services.
Q What is your standard delivery time?
In general, the delivery time is within 15-90 days after receiving payment. We make every effort to deliver as soon as possible with guaranteed quality.
Q Do you possess Mechanical Quality Certification?
Yes. We have CE, SGS, and ISO 9001: 2015 Certificates.
Q Is the machinery easy to operate?
To ensure safe transportation, we minimize disassembly of the machine so it can be easily installed and debugged once received. We also prepare a technical manual and operation videos for customers, facilitating easy installation and use.
Q Does the high heat in the shrink oven damage the packages?
No, absolutely not. Although the oven temperature can reach up to 300ºC, the heat on the shrink film surface only rises to about 40ºC. Since the product remains in the oven for a very brief duration, the high temperature does not burn the film, guaranteeing product integrity. We have successfully packaged products with low melting points, such as chocolate and ice cream, with excellent results.
