Beautiful machine, Stable quality, Safety, energy saving, patented products, domestic initiative, application to the POF PVC PP film thermal shrink packaging effect is perfect.
Key Features:
- Appearance and knot design in accordance with national standards, the fuselage uses fingerprint resistant sheet production after spray treatment.
- Control panel using programming system, 12V DC input, button switch, digital display.
- Transmission using 24v DC Motor speed control using variable frequency technology 0-9 file adjustment.
- The conveyor belt can be used wire mesh belt, chain roller, Teflon mesh belt three.
- Heating using 600W 220V far infrared quartz heating tube.
- Temperature control using high precision intelligent temperature control system, up and down temperature independent regulation.
- Hot air circulation using 220V 60W 2200 to the long axis motor with wind wheel.
- The bracket can be disassembled, and the height of the bracket can be adjusted.
Frequently Asked Questions
What types of packaging films are compatible with this shrink machine?
This thermal shrink packaging machine is designed to work perfectly with POF, PVC, PP, and PE films.
What are the electrical requirements for the L Sealer and the Shrink Tunnel?

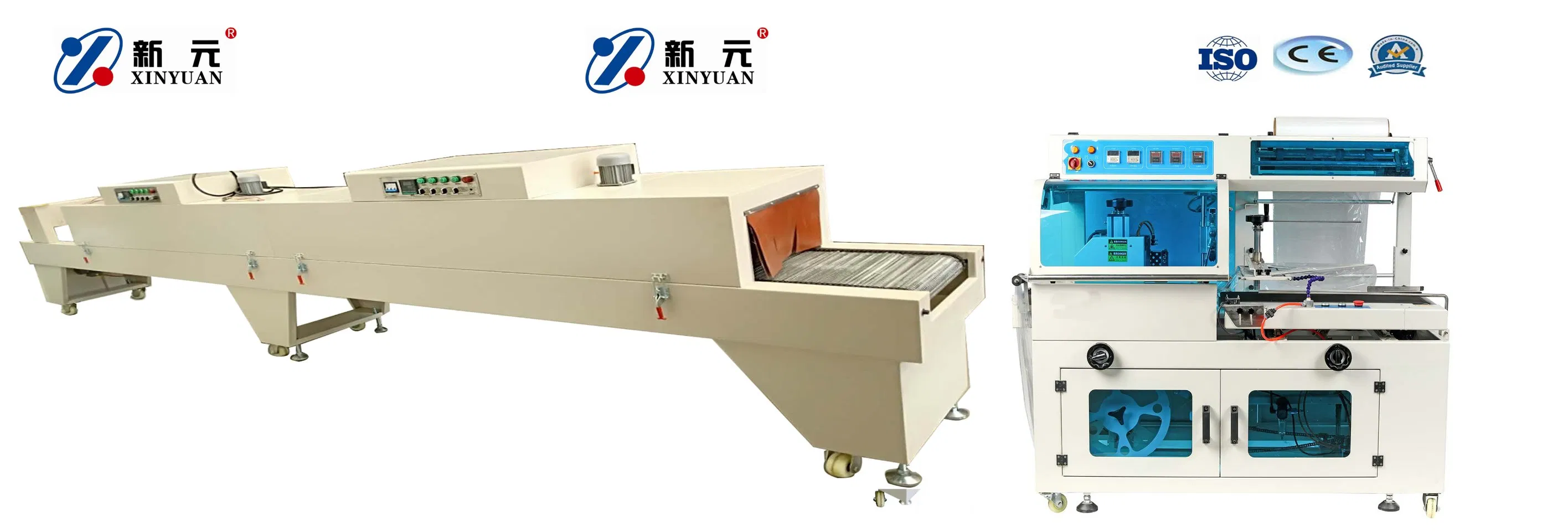

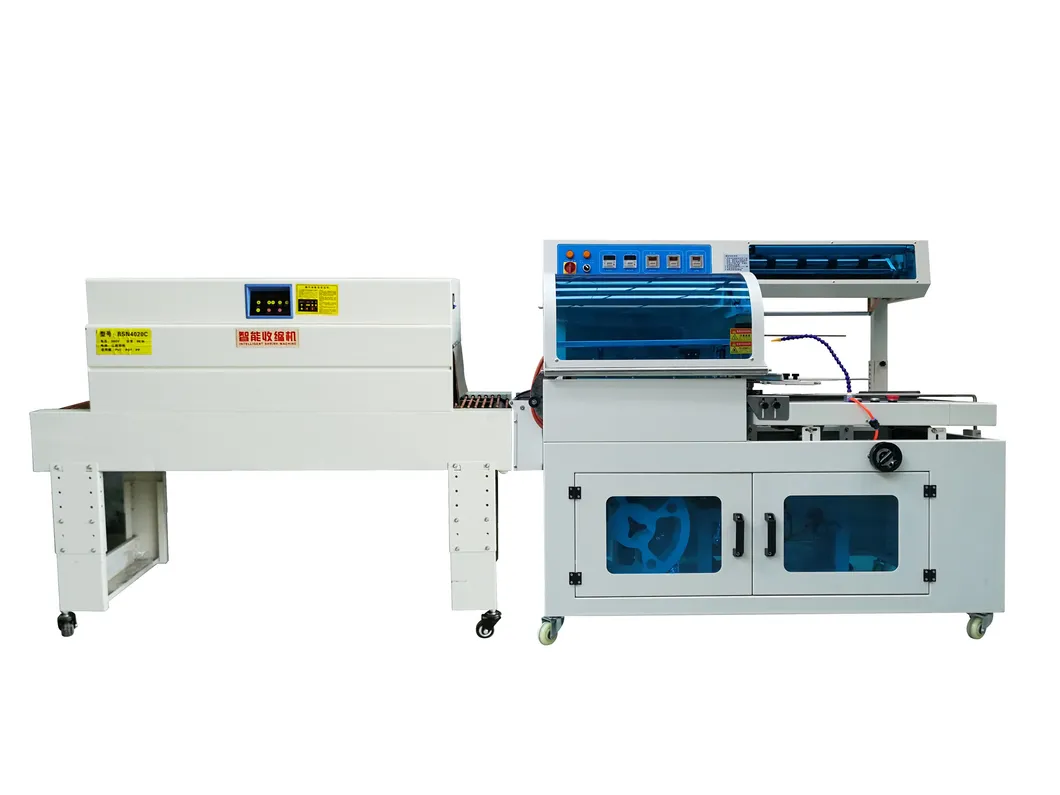

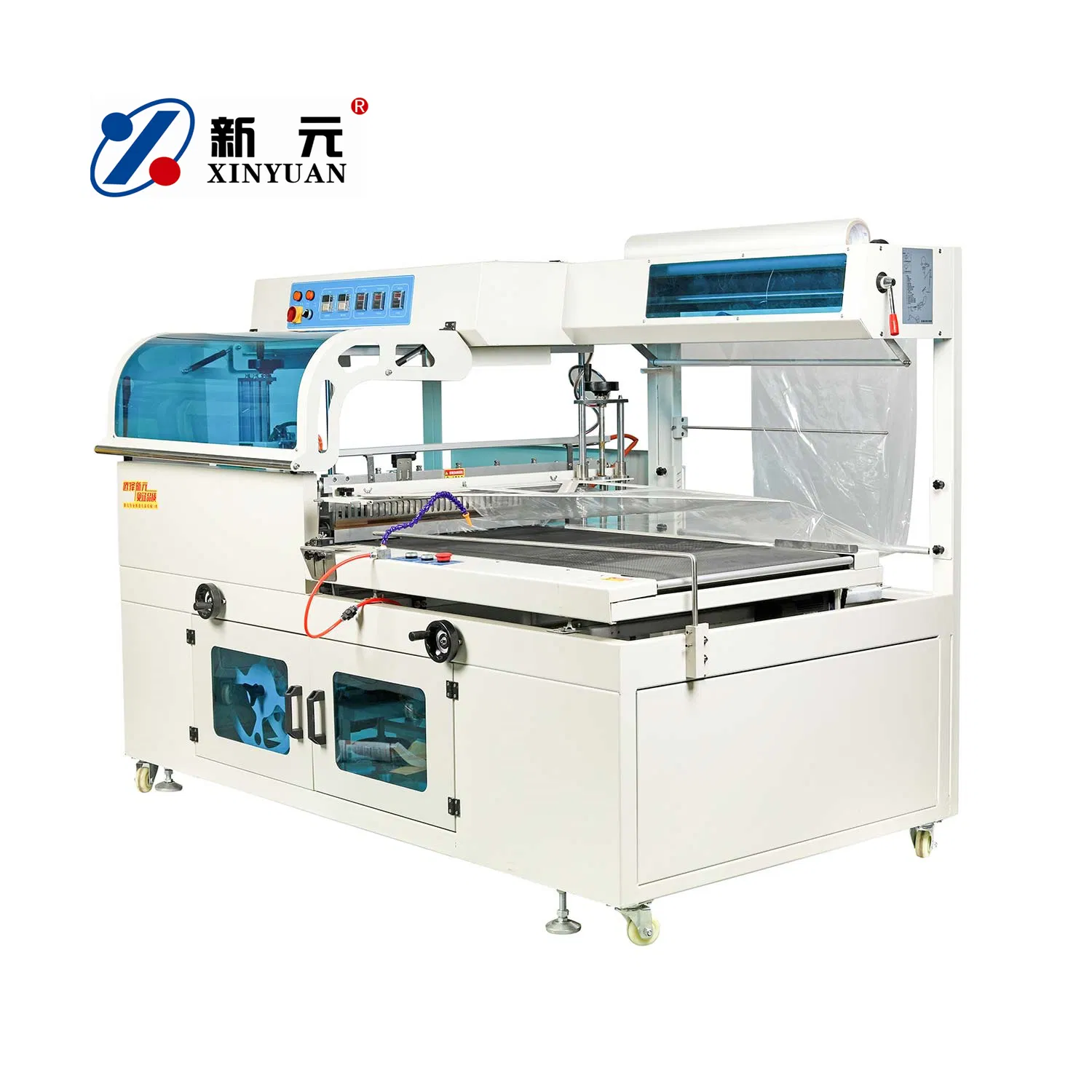

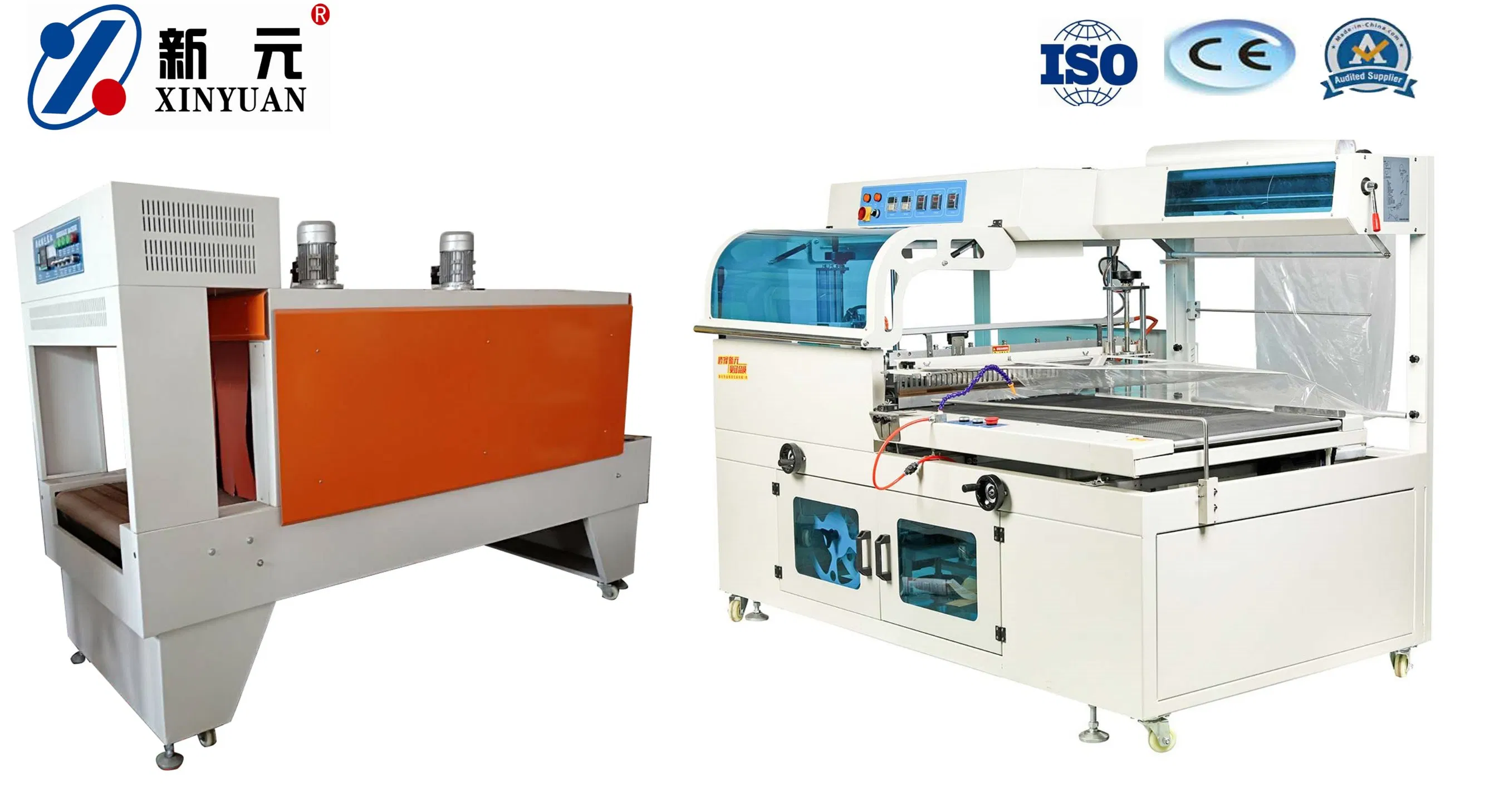

The L Sealer (FQL 450 A) requires a voltage of 220V 50-60Hz with a power consumption of 1.35KW. The Shrink Tunnel (BSN 4020C) requires 380V 50-60Hz with a power consumption of 9KW.
What is the production capacity and packaging speed of the system?
The system features a packaging capacity of 15 to 30 bags per minute, with a conveyor speed range of 0 to 15 meters per minute. The overall annual production capacity is up to 4000 sets.
What is the maximum weight and product dimensions the machine can handle?
The machine can handle a maximum conveying load of 20kg. The standard applicable product size is 350x150mm. For the L Sealer, the maximum dimension limit is L+H < 500mm and W+H < 400mm (with height H < 150mm).
How is the temperature and airflow controlled inside the tunnel?
The machine is equipped with a high-precision intelligent temperature control system, allowing independent regulation of the up and down temperatures. It features a hot air circulation system driven by a 220V 60W long-axis motor with a wind wheel, ensuring uniform shrinking.
What conveyor belt options are available for the transmission?
The transmission system is versatile and can support three types of conveyor belts: wire mesh belt, chain roller, and Teflon mesh belt.
