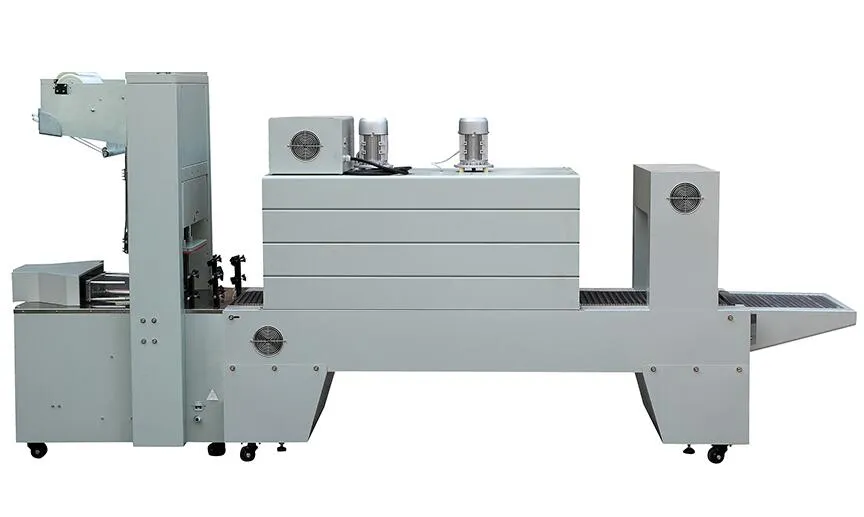

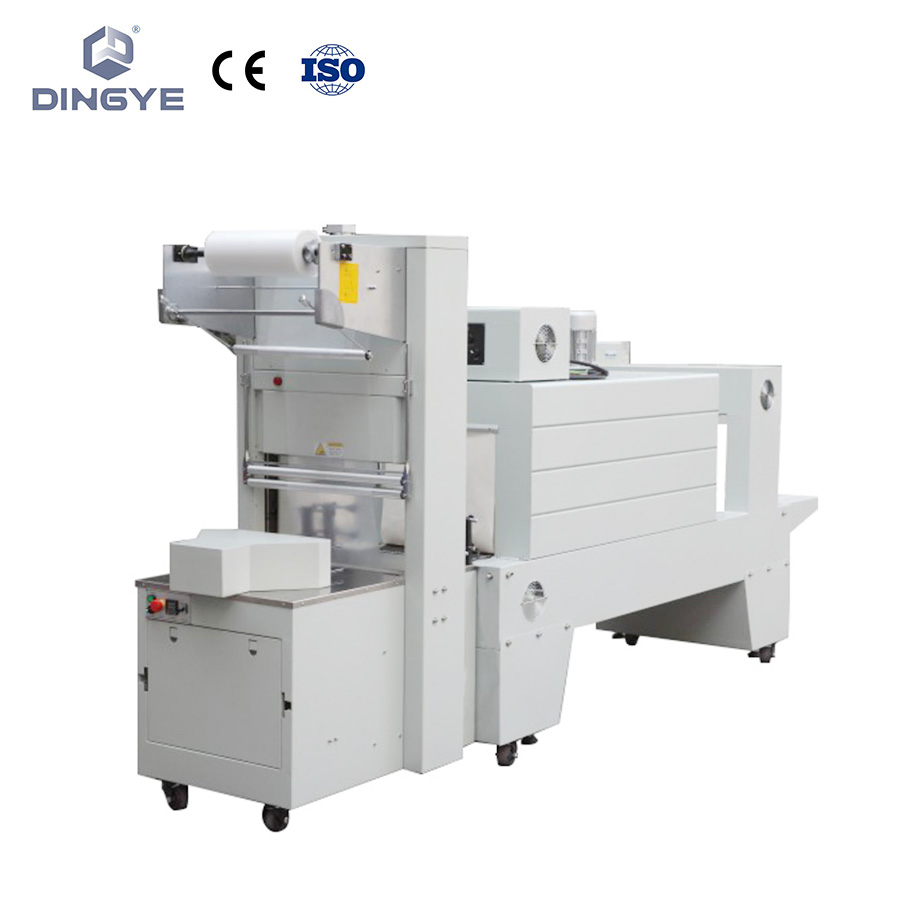

The BZJ5038B semi-auto sleeve wrapper is suitable for wrapping pop-cans, bottles, etc., either with a bottom-tray or without a bottom-tray. It works optimally in combination with the BSE-5040A jet PE-film shrink tunnel or other PE shrink tunnels like the BSE-5038. The packaging range can be expanded or customized according to specific customer requirements.
Key Characteristics & Features
Upper and down electromagnetic switches prevent sealing mistakes and protect the operator.
Very simple and easy-to-adjust configuration to match different packaging sizes.
Simple operation and low maintenance requirements combined with high packing efficiency.

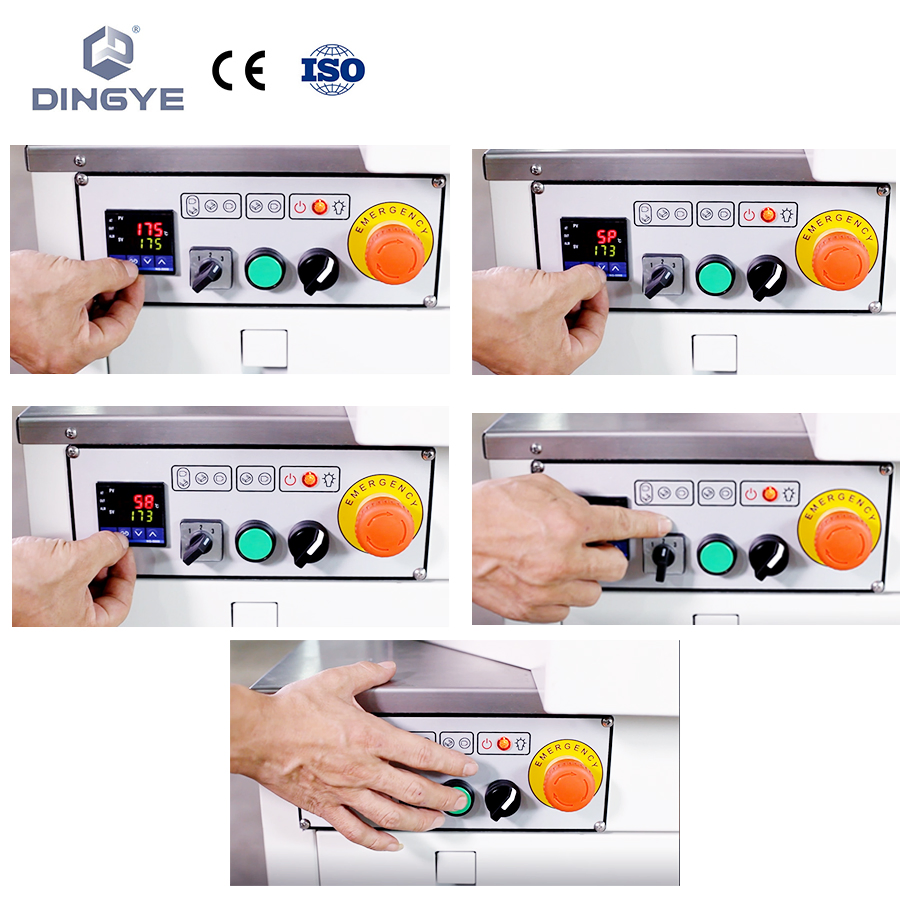

Equipped with a Schneider AC contactor and intelligent temperature controller for stable performance.
Automatic alarm security system protects both the machine and the operator during cycles.
Large power conveyor motor with stepless speed regulation ensures smooth and consistent feeding.
Two large power fans distribute the temperature of the shrink tunnel evenly, ensuring excellent shrink results.
Super cooling system quickly cools the packaging to lock in a perfect final shape.
Technical Specification
Model
BZJ-5038B (Pneumatic)
Model
BSE-5040A
Power Supply
220-240V, 50-60Hz; 1.8KW
Power Supply
3Phase 220V/380V 50-60HZ
Capacity
300-400 pcs/hour
Heater Power
20KW
Sealing / Shrink Time
0.5-1.5s, 0-0.6s
Conveyor Speed
0-10m/minute
Conveyor Loading
30kg
Tunnel Size (L*W*H)
1500 * 500 * 400mm
Film Thickness
0.03-0.12mm
Conveyor Loading
50kg Max.
Max. Packing Dimension
450 * 270 * 350mm
Machine Size
2500 * 820 * 1680mm
Min. Packing Dimension
250 * 60 * 60mm
Machine Weight
470kg
Machine Size (L*W*H)
1020 * 830 * 1980mm
Shrink Film
PE, POF, PVC, PP
Product Gallery
Frequently Asked Questions
What types of products are suitable for wrapping with the BZJ5038B?

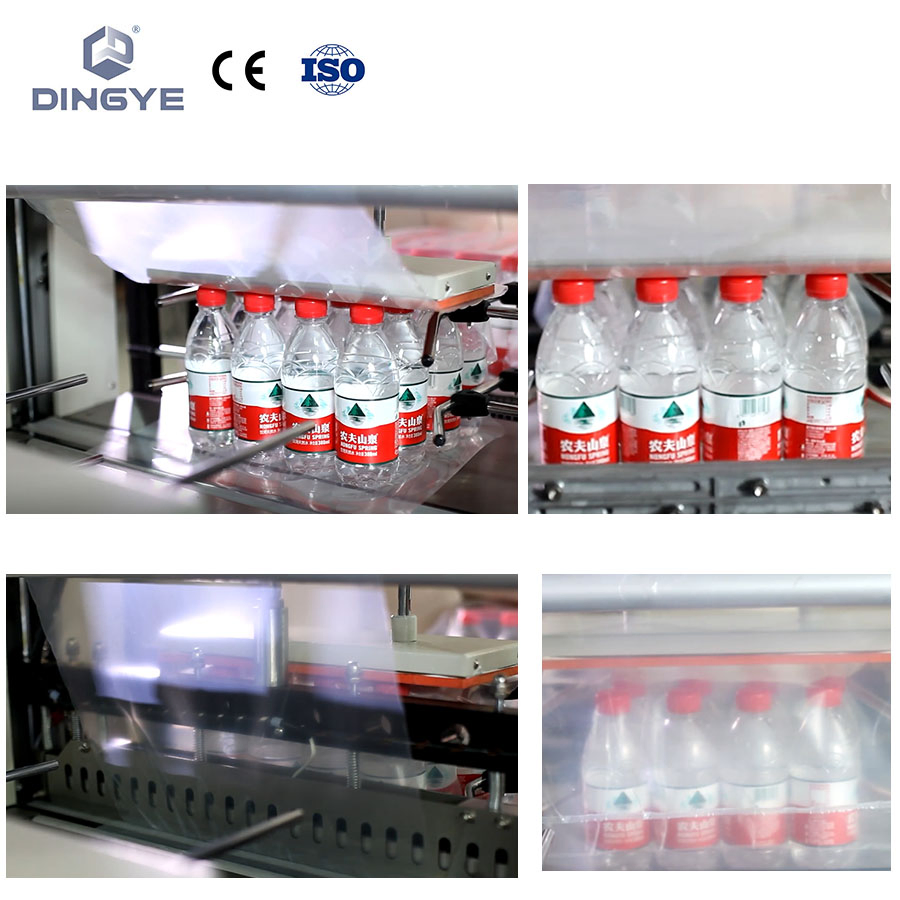

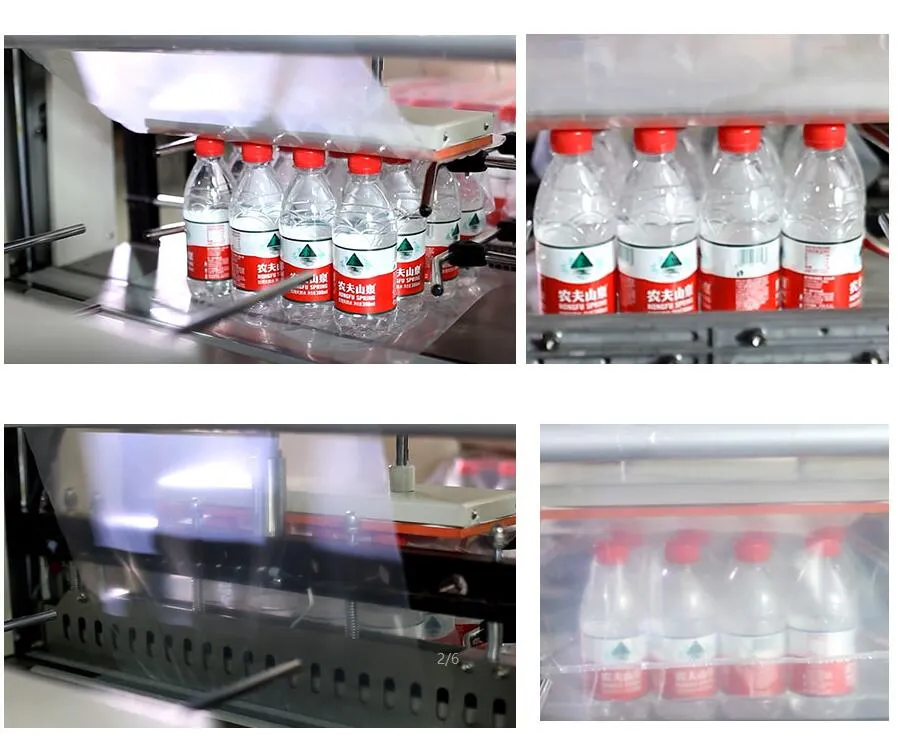

The BZJ5038B semi-auto sleeve wrapper is ideal for wrapping beverage pop-cans, glass or plastic bottles, and similar items. It can process packages either with a bottom-tray or without a bottom-tray.
Which shrink films are compatible with this sleeve wrapper?
This machine system is fully compatible with popular thermal shrink films, including PE, POF, PVC, and PP.
What safety mechanisms are built into the machine to protect operators?
The machine features an upper and down electromagnetic switch system designed to prevent sealing mistakes and protect the operator. It also includes an automatic alarm security warning system.
What are the maximum and minimum packing dimensions?
The maximum packing dimension for the BZJ5038B is 450 * 270 * 350mm, and the minimum packing dimension is 250 * 60 * 60mm.
Is the conveyor speed adjustable?
Yes, the compatible BSE-5040A tunnel features a large power conveyor motor with stepless speed regulation, allowing adjustments from 0 to 10 meters per minute for smooth feeding and high performance.
