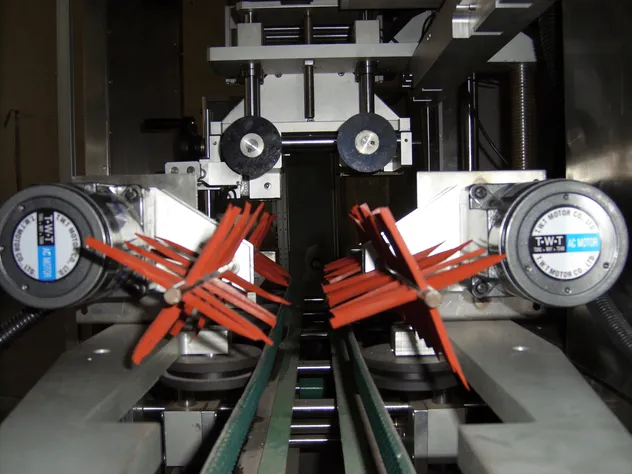

It adopts motor to up and down which enable the operation more convenient. New hot air shrinking tunnel: It adopts high pressure blower machine. Special designed hot air circle tunnel saves more energy and make the shrinked bottle more beautiful. Compare with the traditional shrinking tunnel, this kind of tunnel can do better for curved bottle.
It adopt double material shelf which enable the change of label more convenient and fast. There is label checking photoelectricity and when there is no material, it will stop automatically and give alarm light and also display on the touch screen. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label.

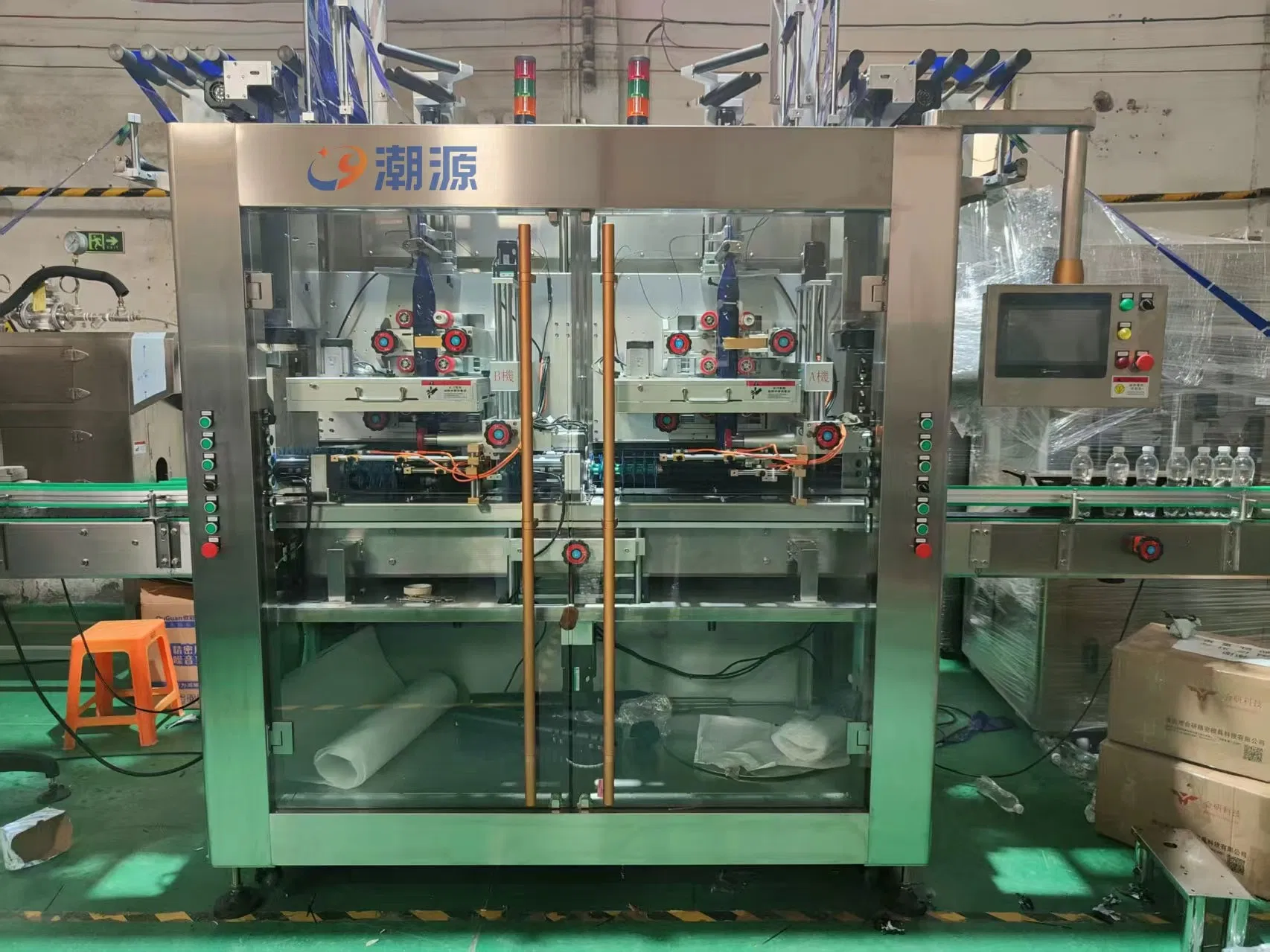

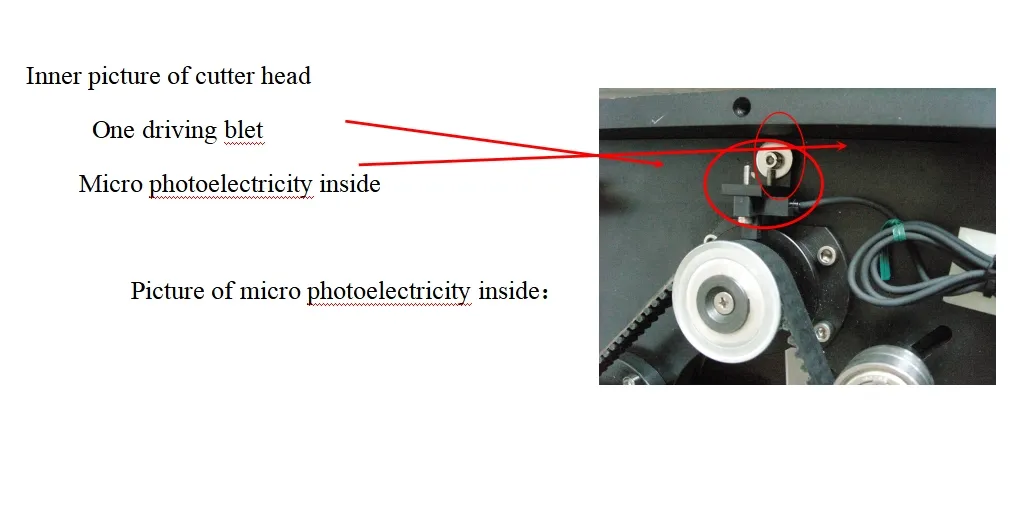

The new style cutting knife drived by servo motor, with high speed, more stable and precise, shrink perfectively. Synchronous locating device enables the tolerable error to ±1mm.Unit cutter head plane design which apply to the container of ∮30mm—∮130mm.You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you donot need to correct the synchronous belt. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products. The new design of cutter adopt step motor with high speed, stable and exact movement, trim cut place and perfect shrink. Compatible with the label synchronous location structure, the error of cutting place is within 1mm.
Synchronized transmission and drive by gear with one belt. The change of transmission belt will be finished quickly. Maintenance is simple and easy, so it doesn't influence production.

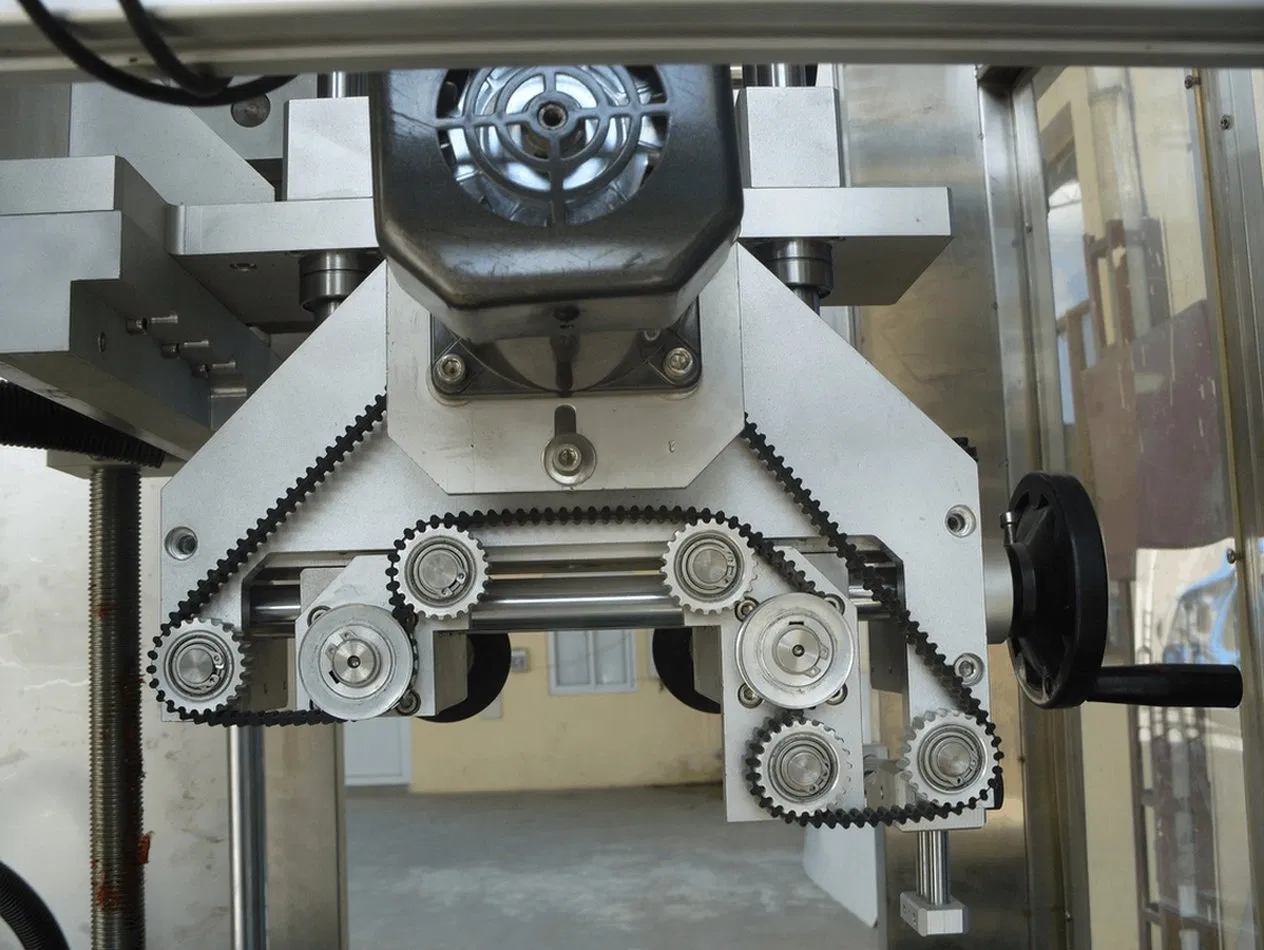

Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably.
New hot air shrinking tunnel: It adopts high pressure blower machine. Special designed hot air circle tunnel saves more energy and make the shrinked bottle more beautiful.

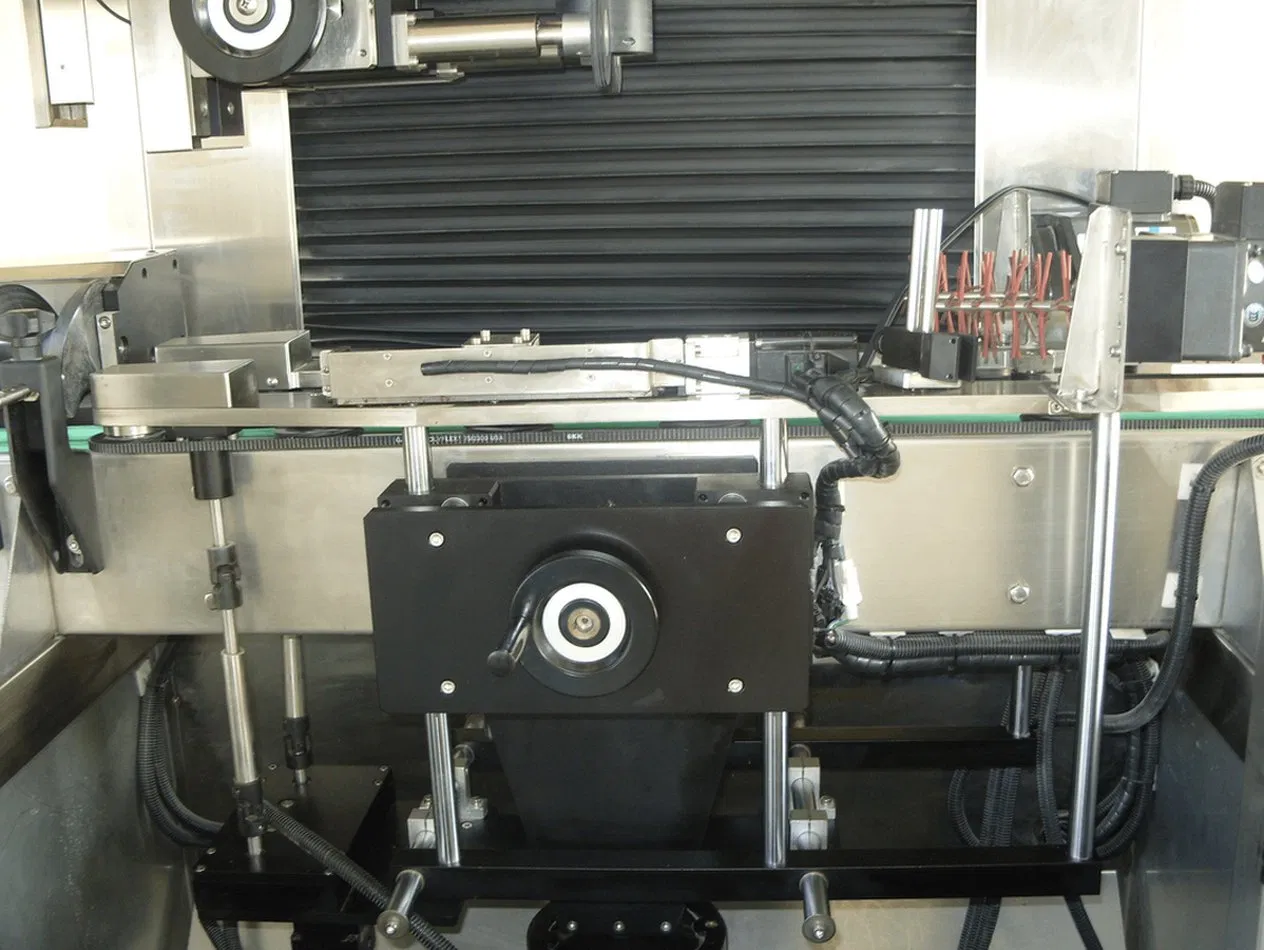

Adopted with mechanical transmission to drive the positioning belt on both sides.While changing the whole bottle carrying unit, the down and up, width are all controlled by one handwheel aiming to synchronously and swiftly adjust.

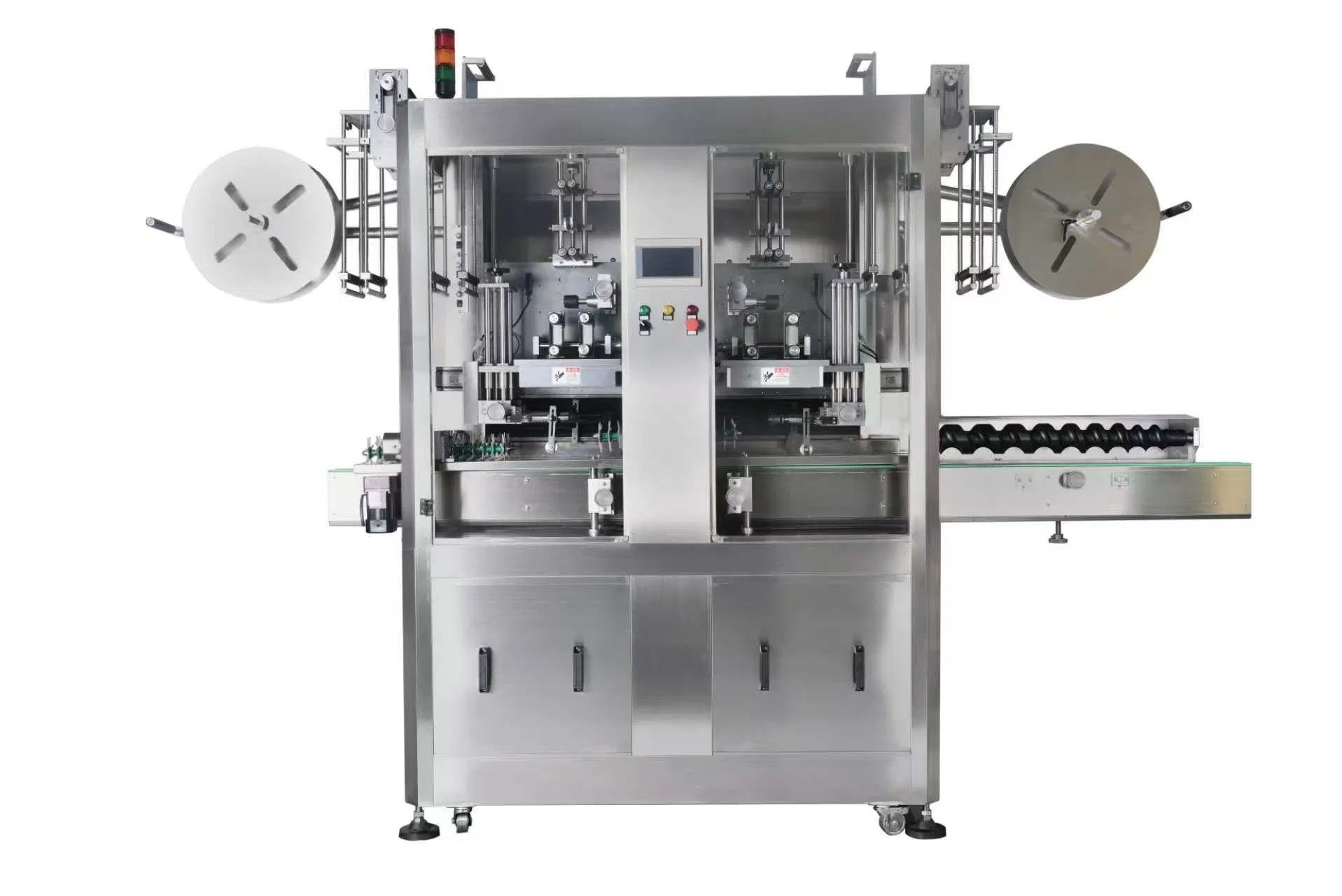

| Parameter | Specification Details (Model: CY-600B) |
|---|---|
| Model | CY-600B |
| Capacity | 30000BPH |
| Percent of pass | ≥99.8% |
| Whole line productive efficiency | ≥95% (According to 24 hours continuous operation) |
| Applicable diameter of bottle | Ø28mm - Ø125mm |
| Applicable length of label | 30mm - 150mm |
| Applicable thickness of label | 0.035mm - 0.13mm |
| Label material | PVC, PET, OPS |
| Internal diameter of paper tube | ≥76mm |
| Outside diameter of paper tube | ≤500mm |
| Voltage | AC220V, 50/60HZ, 3 Phase |
| Input power of label sleeving machine | 3.5KW |
| Input power of shrinking tunnel | 0.5KW |
| Outside dimension | Sleeving Machine Mainframe: L2700*W1100*H2000 Electric Shrinkage Furnace: L3000*W600*H1800mm |
| Total weight | 800 kg |
With the core values of "Virtue Supports Everything" and "Striving for Progress Every Day," our company adheres to independent innovation, courageously pioneering new technologies and products. We are dedicated to the continuous improvement of labeling machine technology and strive to provide our customers with cost-effective and highly automated packaging equipment.
The product is conveyed by an upper conveyor belt (or manually loaded) → then transferred to a plate chain conveyor → material distribution → photoelectric detection → the labeling mechanism receives the signal and applies the label → the label is rapidly positioned on the product's labeling area → a pressure roller applies the label → the finished product is discharged via the plate chain conveyor.
