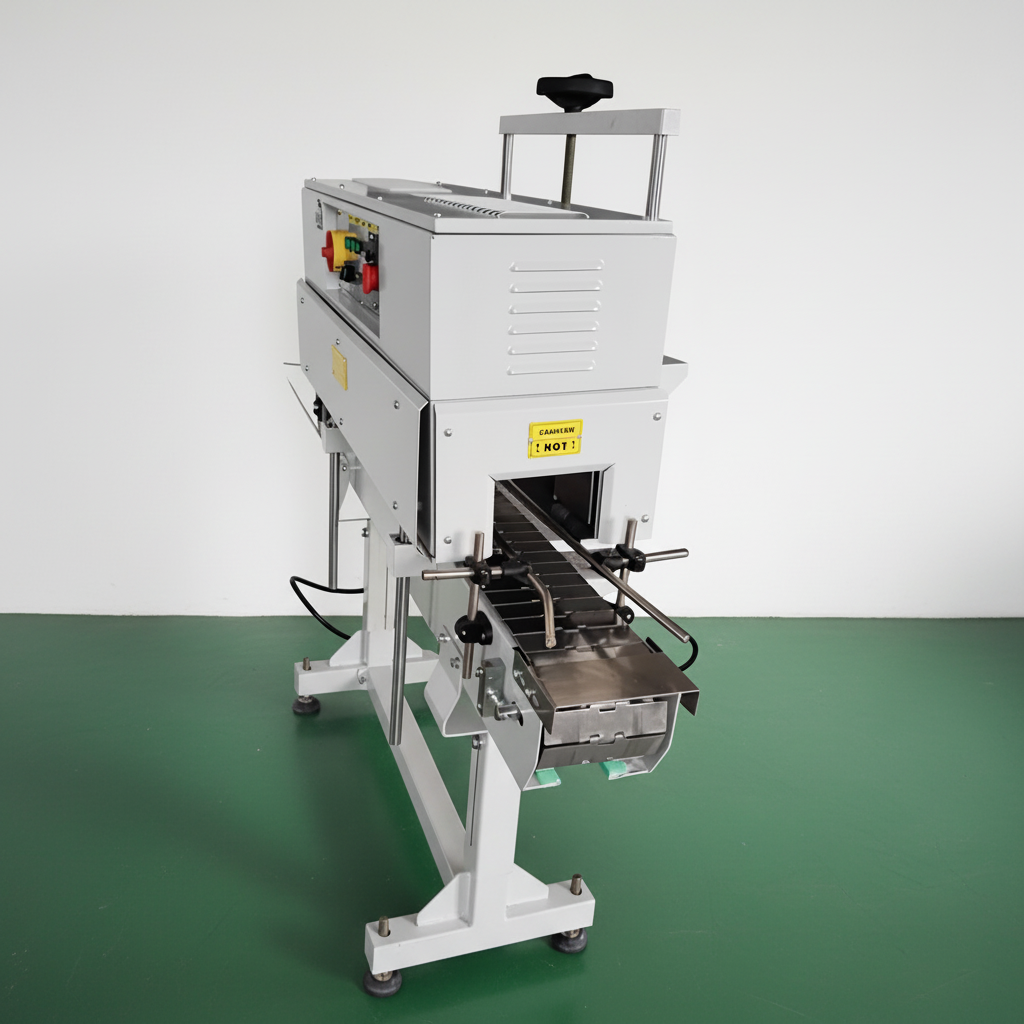

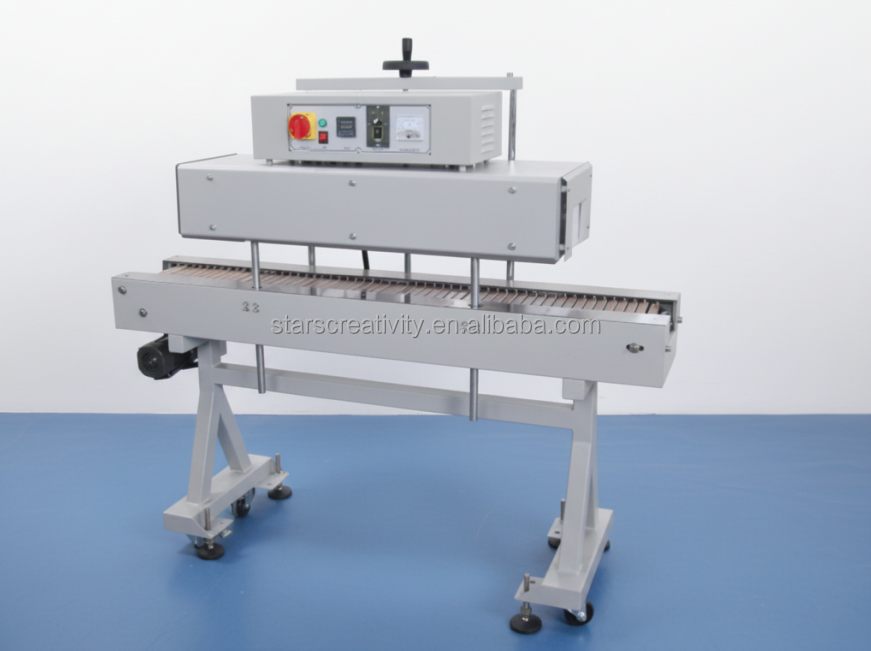

Product Description
This machine uses a high-efficiency airflow system to heat and circulate air inside its tunnel, shrinking tamper-evident labels around container lids. It is an excellent alternative for those wishing to provide an extra layer of protection to their product and consumer alike, making it evident when a product or container has been opened or tampered with. Equipped with a height-adjustable conveyor, this machine can be easily integrated into pre-existing packaging lines or used as a standalone unit.
Key Features
✔
Easy to use: Simple operation requiring minimal operator's training.
✔
Quick warm-up time: High-performance airflow system quickly and uniformly heats up the shrink tunnel.
✔
Adjustable speed: Conveyor speeds of 0-15m/min for a more personalized and efficient performance.
✔
Adjustable height: Tunnel can be lowered or elevated to adjust to your product's height for optimal results.
✔

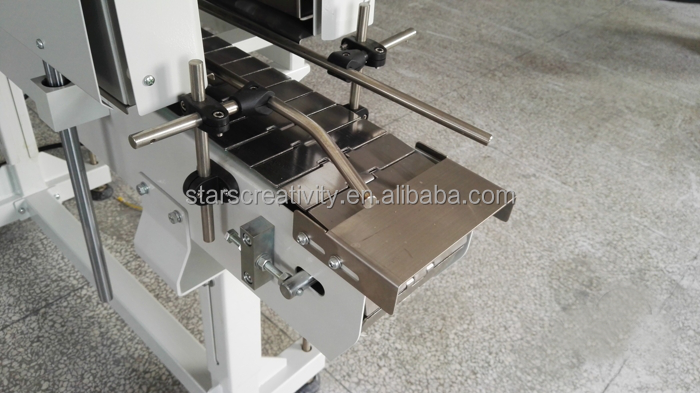

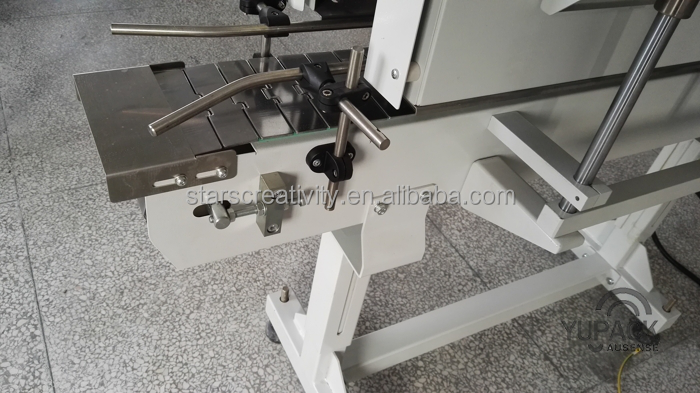

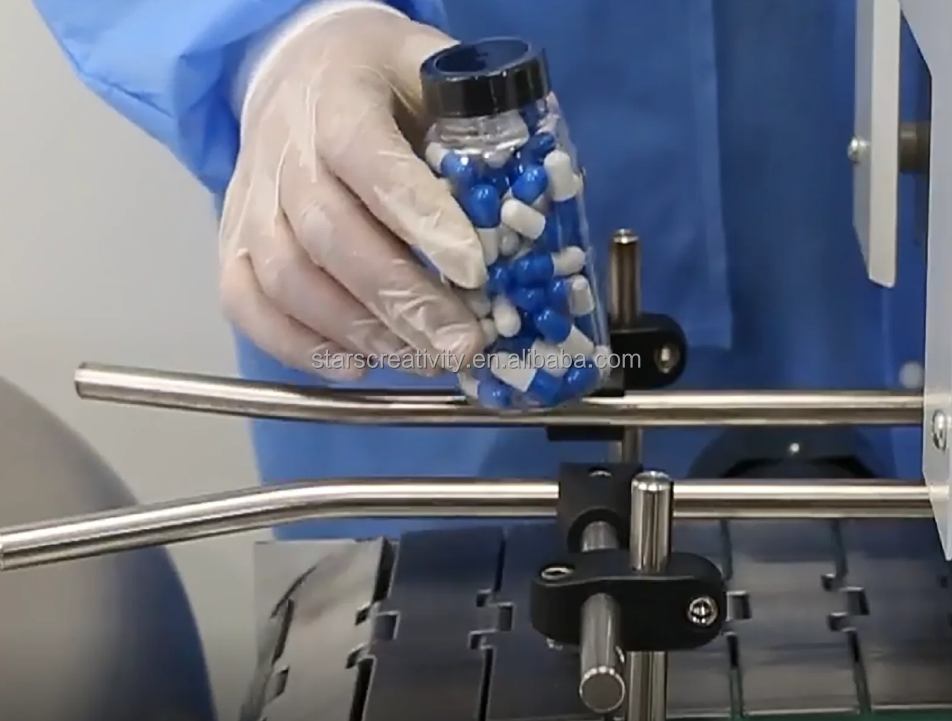

Adjustable side guides: Used to guide your product through the tunnel and keep it from falling. They can be adjusted according to the size of the containers being sealed.
✔
Rugged and durable: All-Metal Construction with corrosion-proof plastic base.
✔
Modifiable temperature: Versatile and convenient, the temperature can be adjusted according to the thickness of your tamper-evident bands.
✔
Dependable performance: Even heat distribution provides a reliable, uniform film application.
✔
High-speed capacity: Capable of sealing between 2000 and 3000 bottles per hour.
✔
Increased product protection: Tampering or container opening can be instantly recognized.
Specification
| Model |
SM1540 |
| Tunnel size |
L1000xW150xH400mm |
| Conveyor width |
180mm |
| Max bottle size |
Diameter or width 120mm x Height 280mm |
| Shrinking temperature |
0-300℃ adjust |
| Machine efficiency |
2000-3000pcs/Hour |
| Label material |
POF/PVC/PET |
| Voltage |
AC220-240V 1Phase 6.5kw 50-60Hz |
| Machine size |
L1543xW494xH1467mm |
| Machine weight |
130kg |

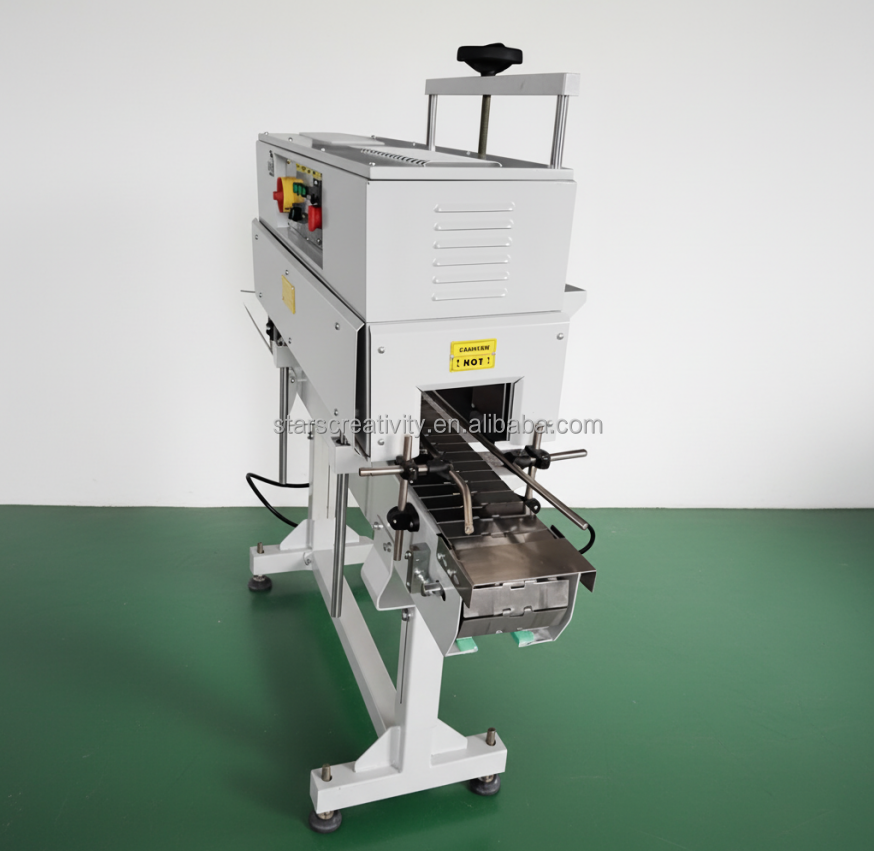

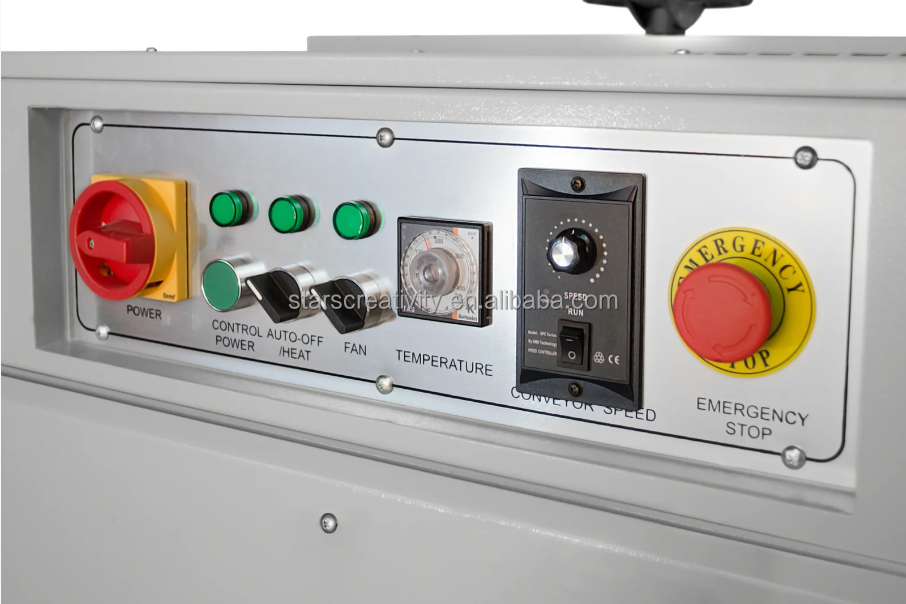

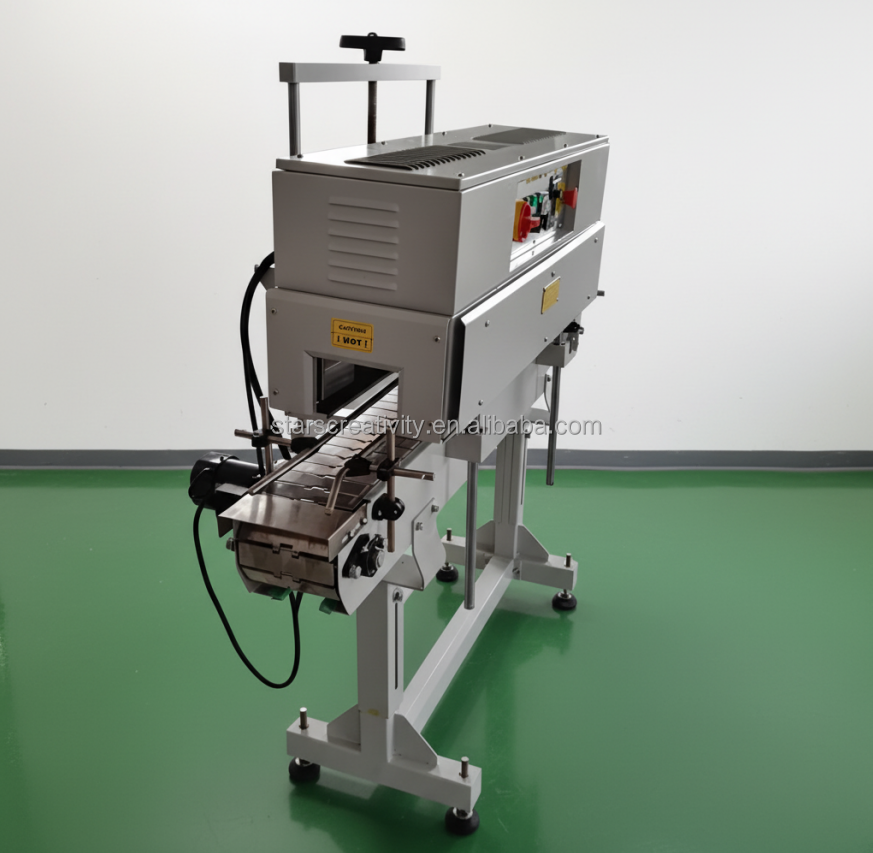

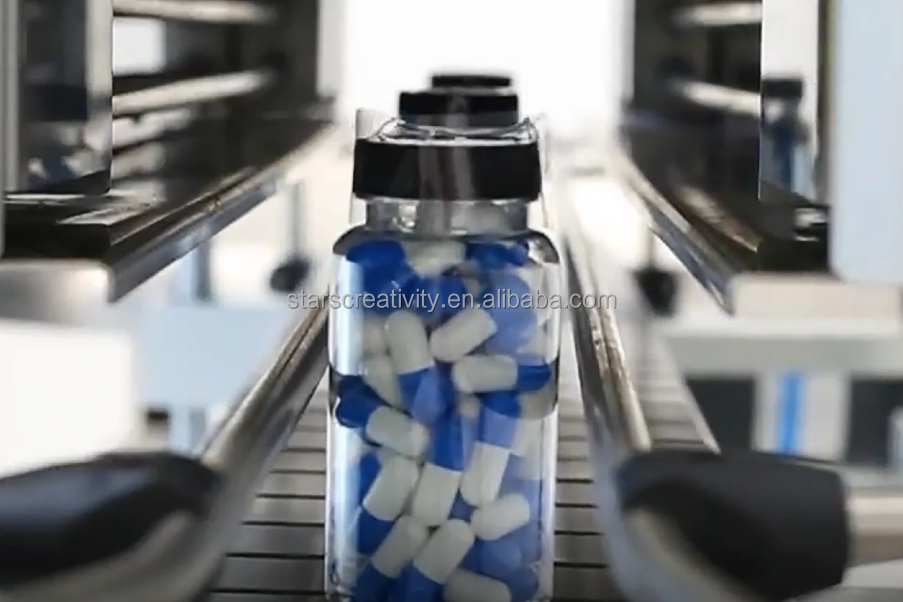

Details Images

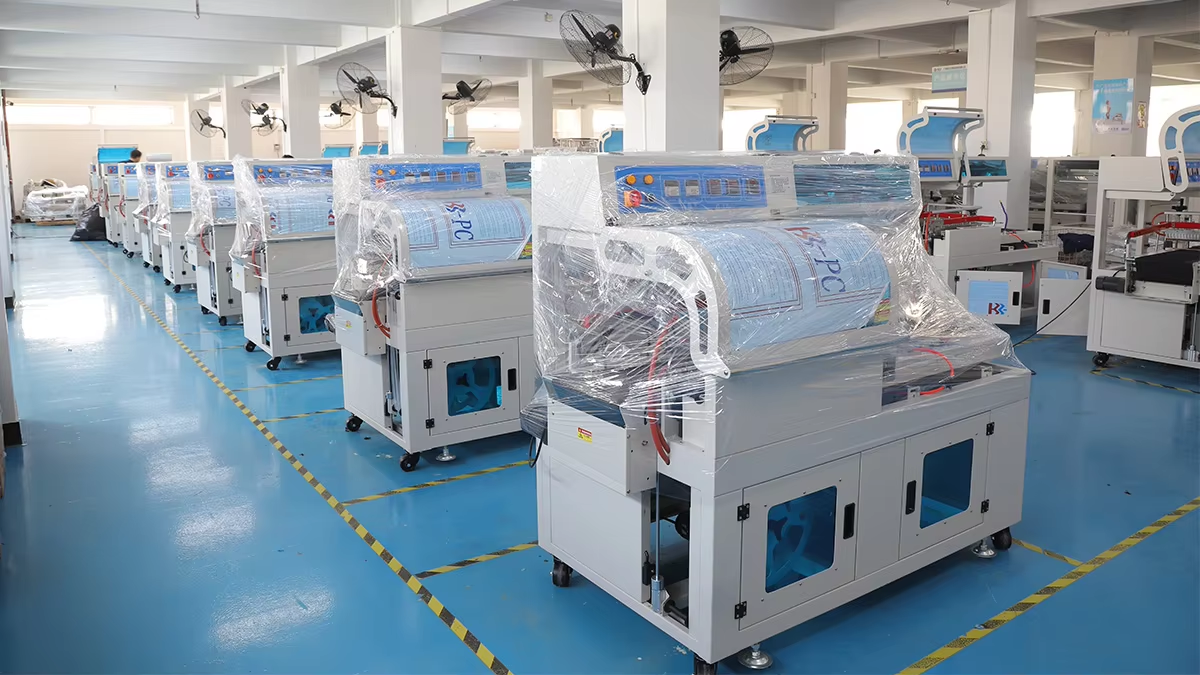

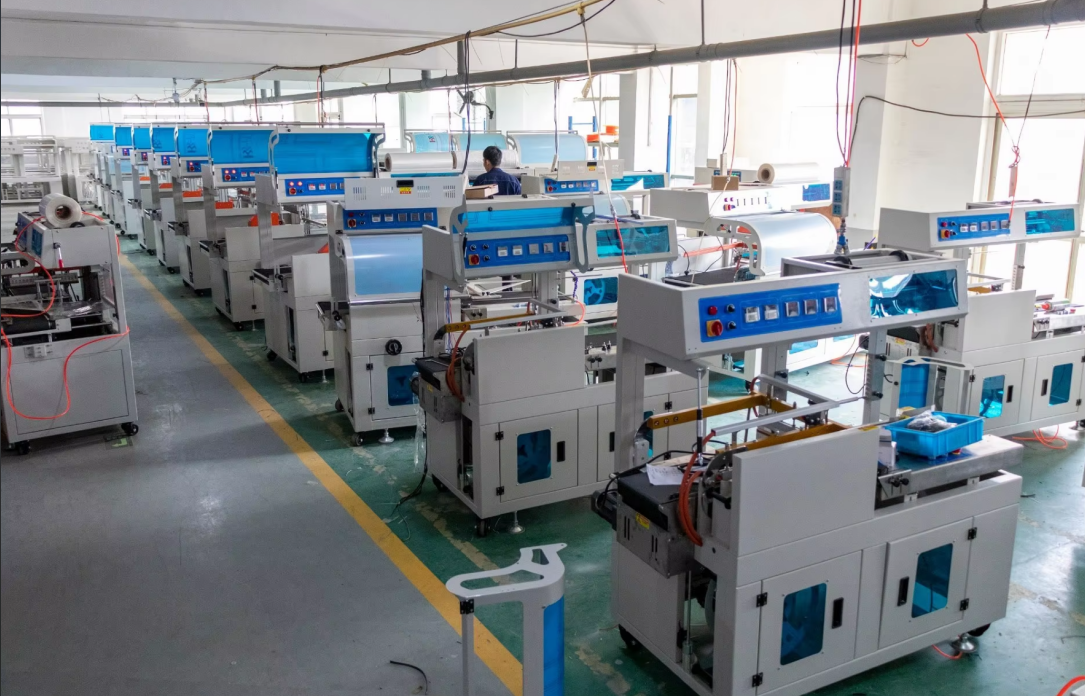

Related Products
Packing&Delivery
Frequently Asked Questions
QWhat's the MOQ if we place an order?
MOQ is 1 set.
QDo you also have other models of label shrink tunnels?
Yes, we also have steam-based label shrink tunnels.
QWhat's the lead time for a standard machine?
5-7 workdays from the receipt of payment.
QHow long is the warranty period for this machine?
12 months from the date you receive the machine.
QHow to resolve problems if the equipment malfunctions during operation?
Please take a video of the issue first. We will review it and guide you on the solution. If necessary, we will send new replacement parts.
QHas the machine passed CE certification?
Yes, the machine is fully CE certified.
