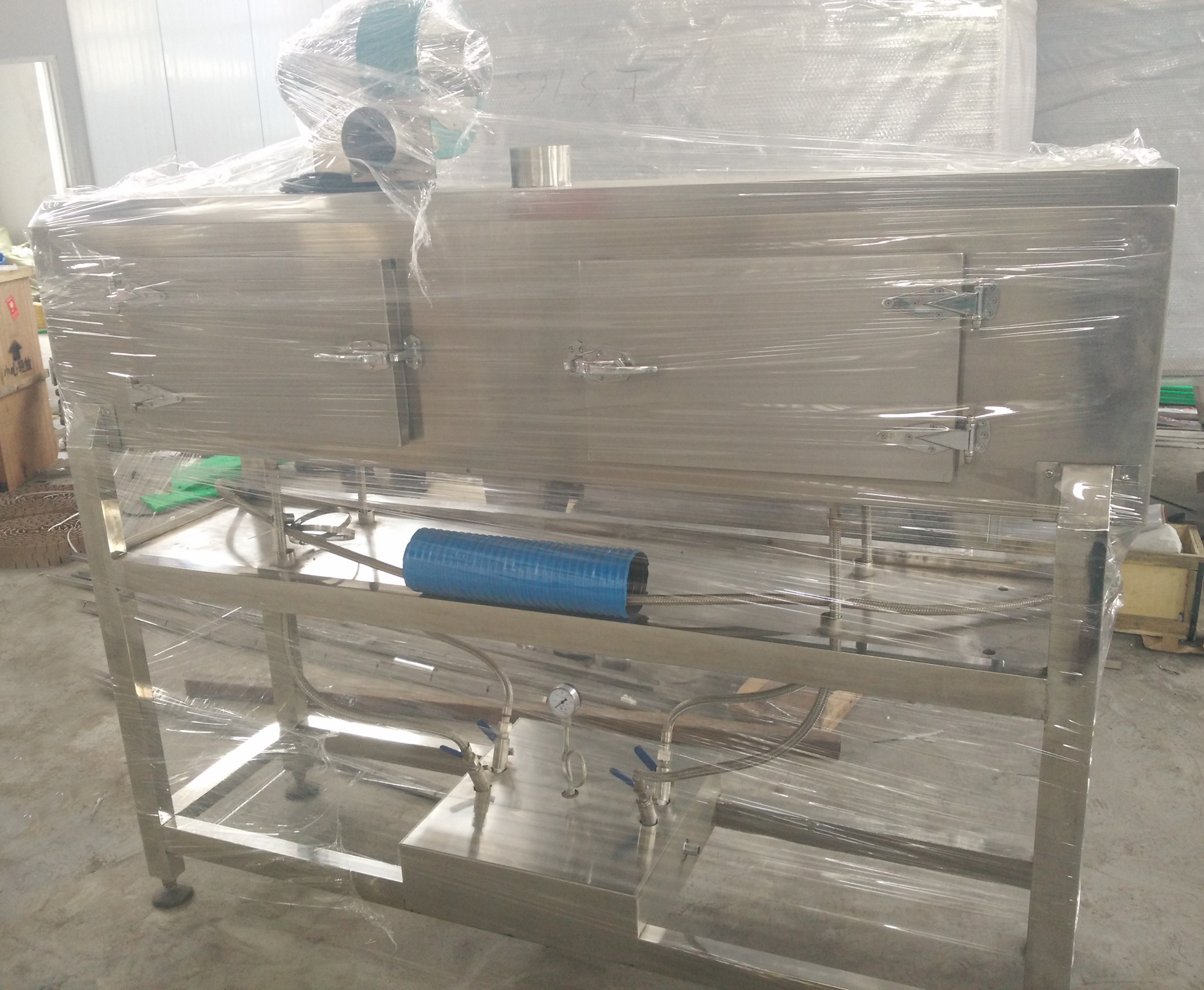

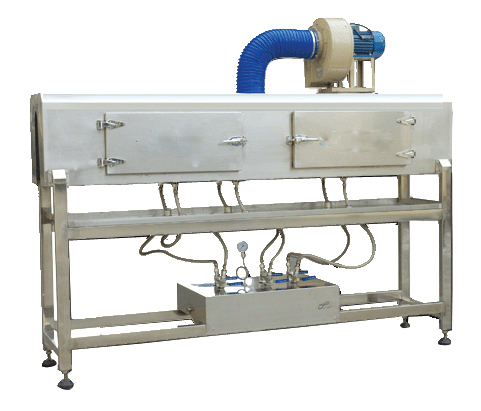

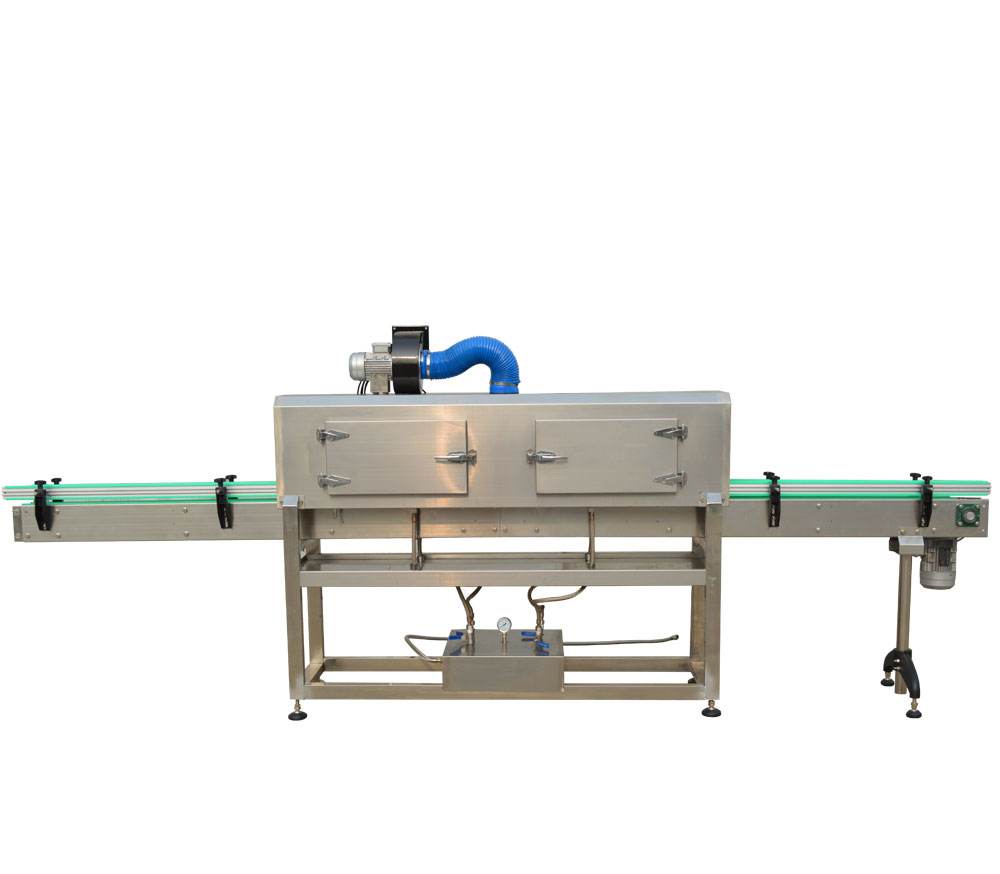

In case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. The distribution of low-pressure steam drum and spouting way of steam are uniform and designed with seamless tube.
The nozzle is divided to be adjustable three segments and the height position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation which not only saves energy but also complies with the international safety standard.
The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of operation and maintenance.
Based on the original configuration, a double layer holding furnace is manufactured to take effect on energy saving and environmental protection.
| Parameter Item | Specification Details |
|---|---|

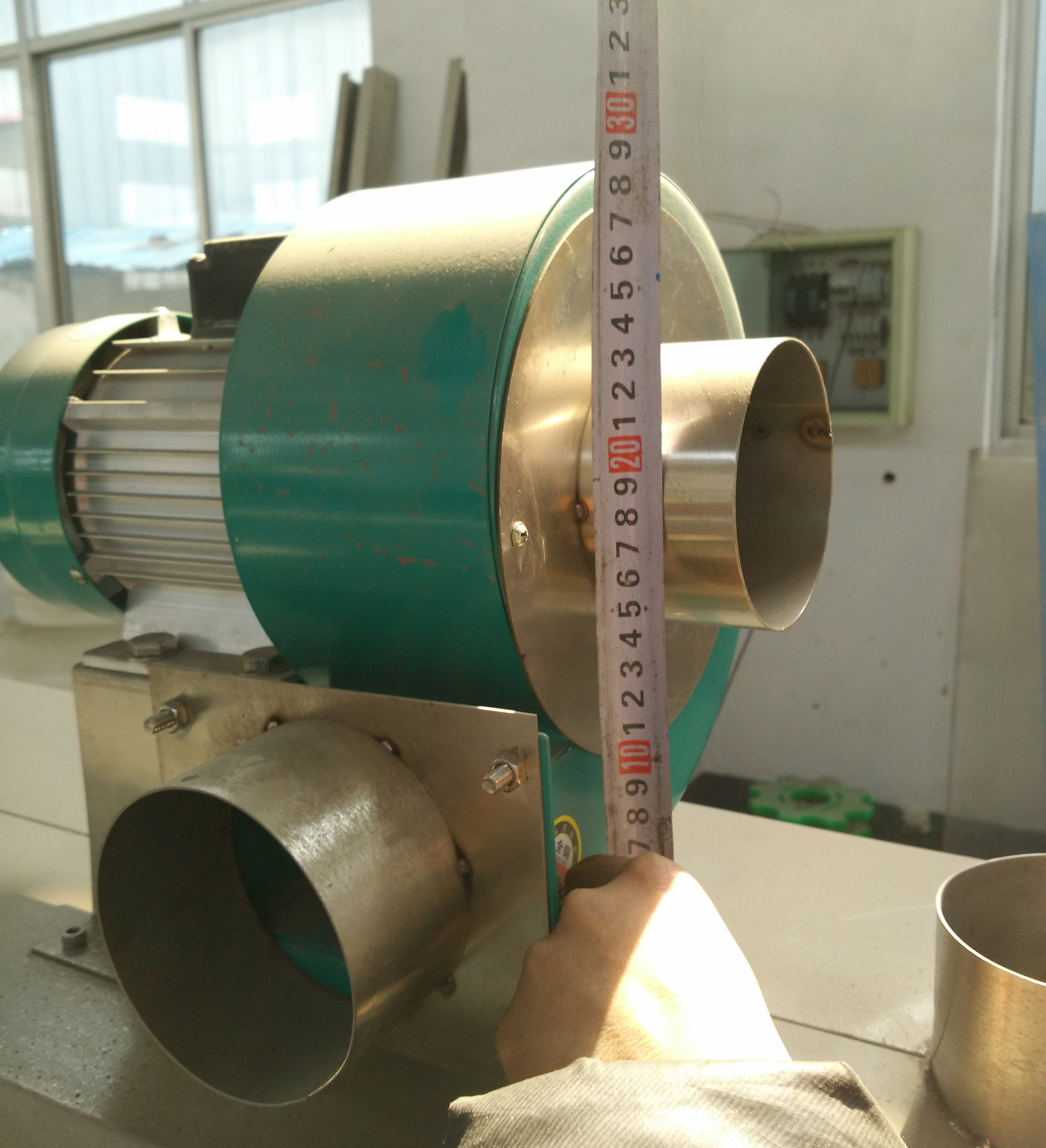

| Input Power Supply of Blower | Single phase, 220VAC 0.18Kw |
| Input Power Supply of Steam Generator | 220V, 50/60Hz |
| Working Pressure | <0.1MPa |
| Weight | 130kg |
| Steam Consumption | 15-25 (kg/h) |
| Size of Oven Body | 1800L X 450W X 1650H |
| Transporting Speed | 0~35m/min |

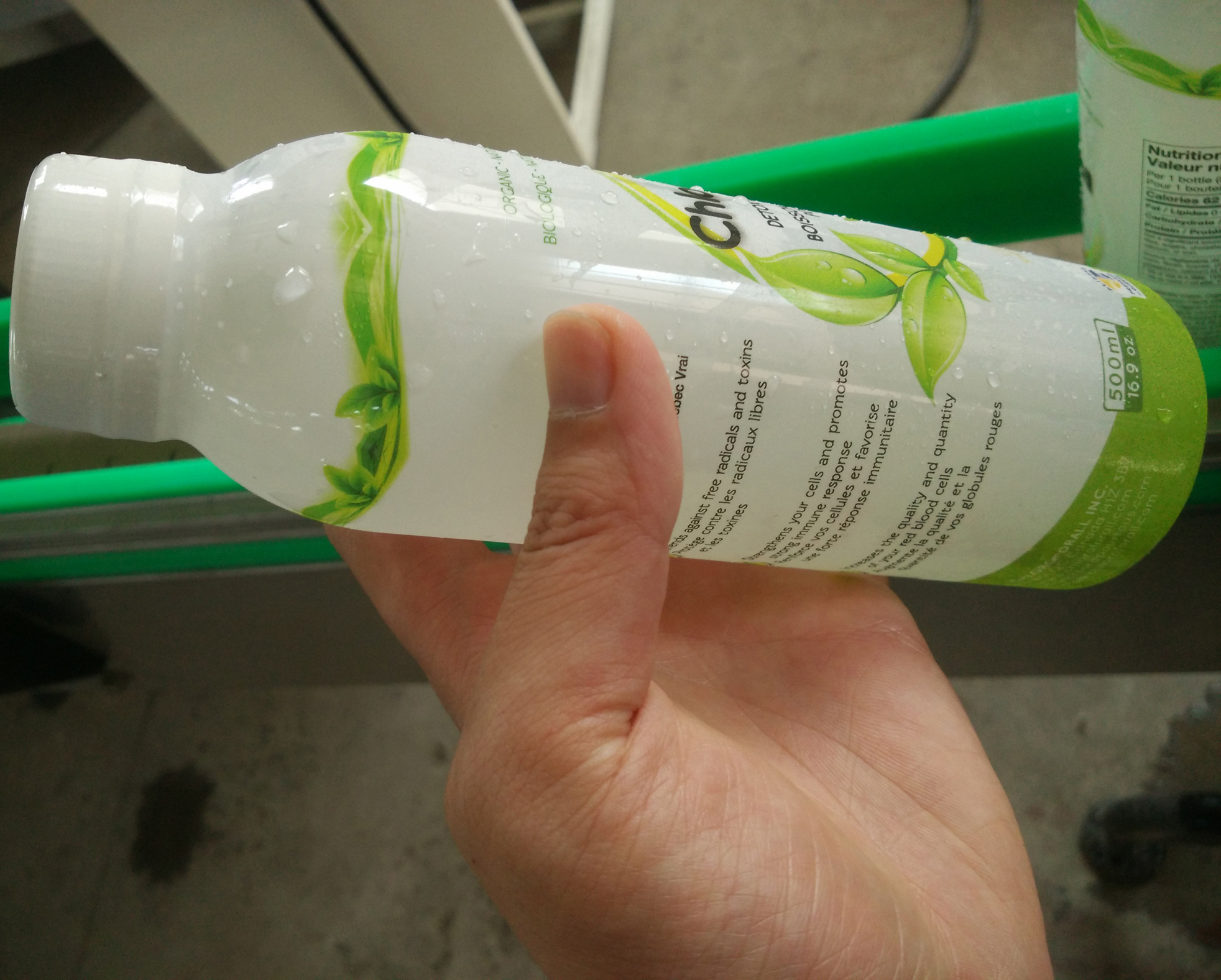

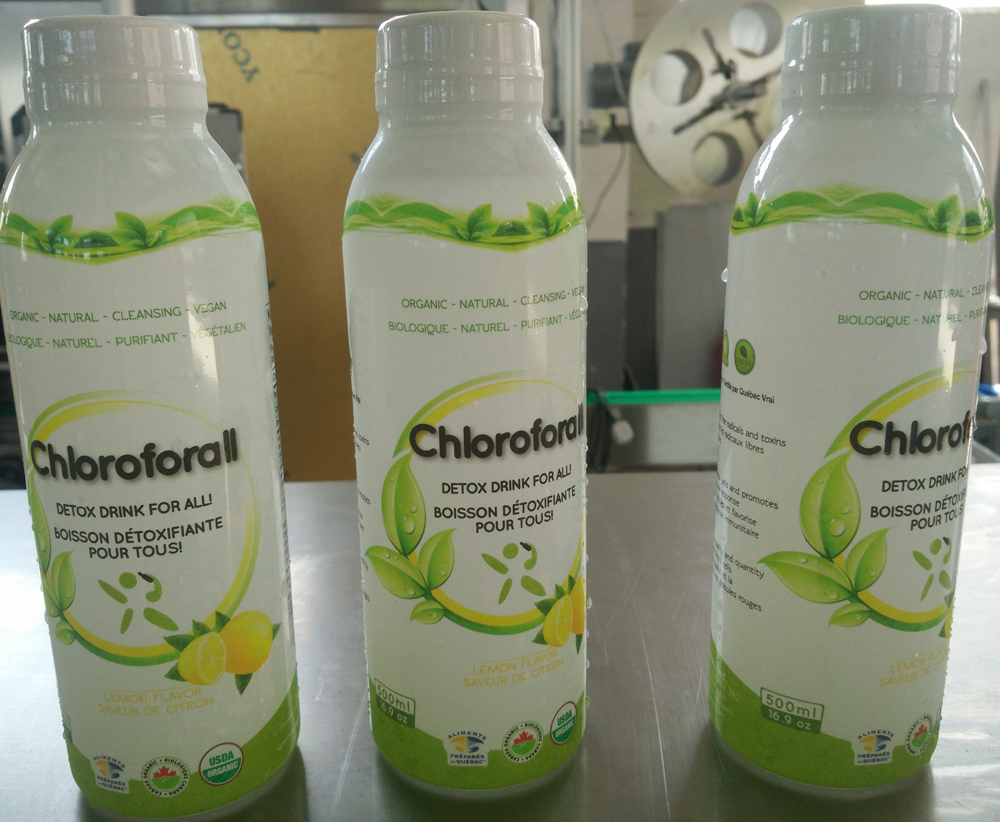

This machine is highly adaptable and designed to handle different and irregular round bottles, square bottles, flat bottles, and other unique container shapes with ease.
It features a low-pressure steam drum distribution system with a seamless tube design. The steam nozzles are split into three adjustable segments where height, position, and steam output can be individually tuned for perfect shrinking results.
Yes. The whole machine is built from high-grade stainless steel with heat preservation features. Additionally, it integrates a double-layer holding furnace specifically engineered to save energy and protect the environment.
The integrated stainless steel defrosting tray is designed to collect condensed water efficiently, keeping the operations clean and dry while preventing water-related hazards.
Key parameters include a working pressure of <0.1MPa, steam consumption of 15-25 kg/h, transporting speed of 0-35m/min, and weight of 130kg. It requires 220V power for both the blower and the steam generator.
