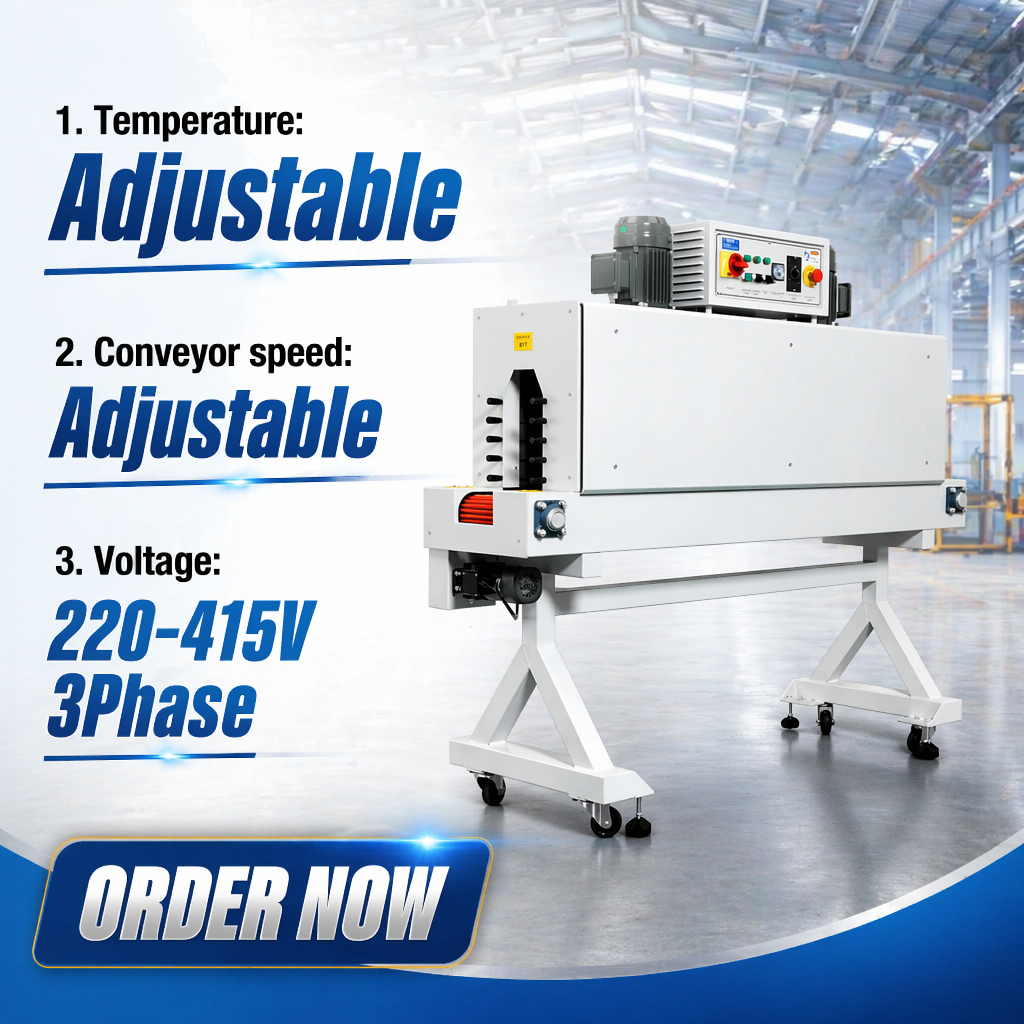

Durable SM-1230 Electric Bottle Sleeve PVC/PE Label Heat Shrink Tunnel Packaging Machine For Sale
Durable SM-1230 Electric Bottle Sleeve PVC/PE Label Heat Shrink Tunnel Packaging Machine For Sale
Durable SM-1230 Electric Bottle Sleeve PVC/PE Label Heat Shrink Tunnel Packaging Machine For Sale
Durable SM-1230 Electric Bottle Sleeve PVC/PE Label Heat Shrink Tunnel Packaging Machine For Sale
Durable SM-1230 Electric Bottle Sleeve PVC/PE Label Heat Shrink Tunnel Packaging Machine For Sale
1 / 5
Durable SM-1230 Electric Bottle Sleeve PVC/PE Label Heat Shrink Tunnel Packaging Machine For Sale
Durable SM-1230 Electric Bottle Sleeve PVC/PE Label Heat Shrink Tunnel Packaging Machine For Sale
Durable SM-1230 Electric Bottle Sleeve PVC/PE Label Heat Shrink Tunnel Packaging Machine For Sale
Durable SM-1230 Electric Bottle Sleeve PVC/PE Label Heat Shrink Tunnel Packaging Machine For Sale
Durable SM-1230 Electric Bottle Sleeve PVC/PE Label Heat Shrink Tunnel Packaging Machine For Sale

Durable SM-1230 Electric Bottle Sleeve PVC/PE Label Heat Shrink Tunnel Packaging Machine For Sale

Send Inquiry

Product Description

SM-1230 label heat shrink tunnel is a fast adjusting simple to use heat shrink device needed to follow one the shrink sleeve label applicators. Once the sleeve is applied to the container it passes through the tunnel shrinking the film to the object.
Label Heat Shrink Tunnel
Tunnel Details Shrinking Sleeve Details Adjusting Mechanisms
Machine Features
  • Suitable for shrinking whole bottle or bottle neck.

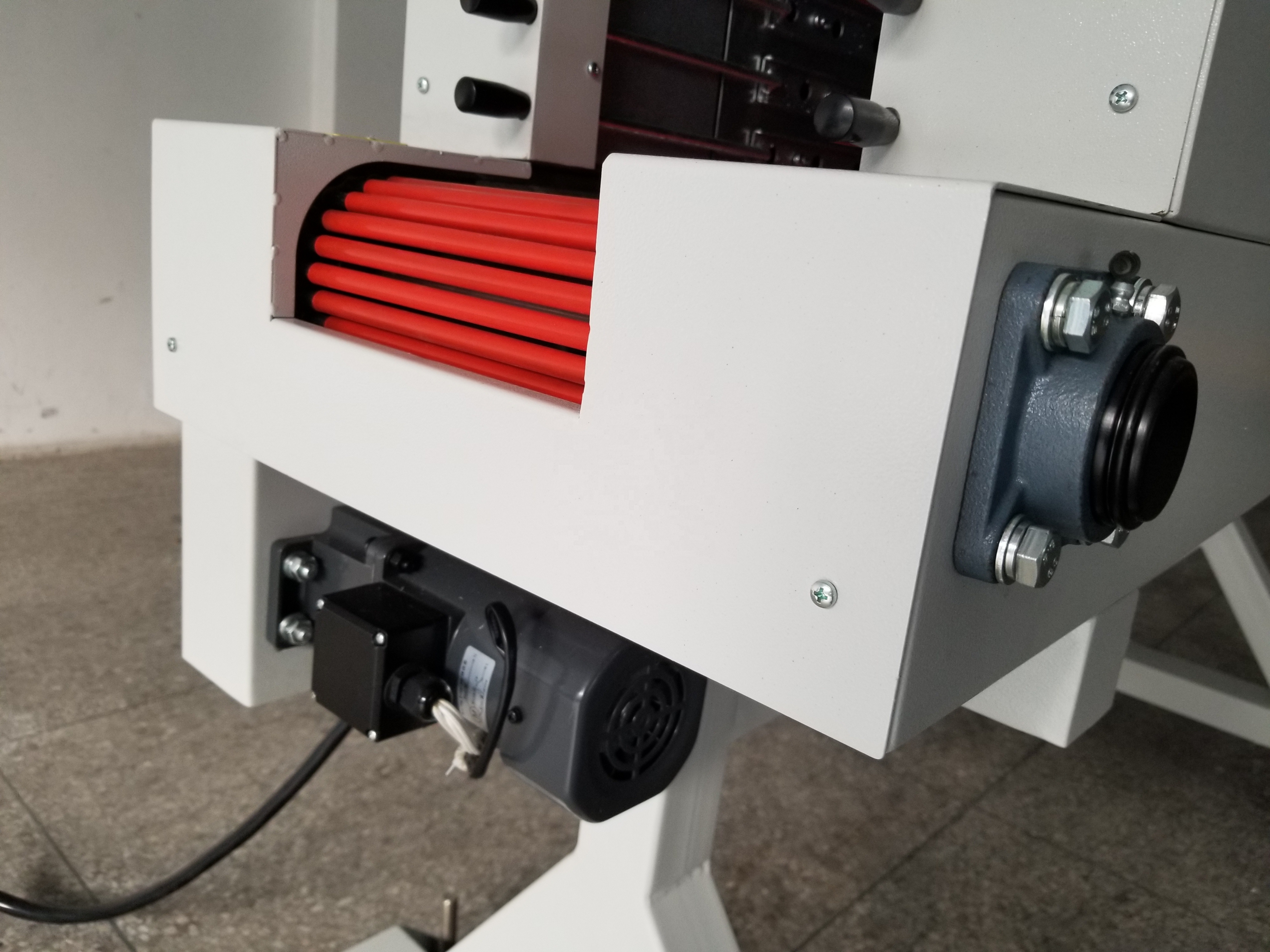

  • Stainless steel heating pipe at side wall and closely connected conveying roller on conveyor ensuring smooth & stable bottle conveying.

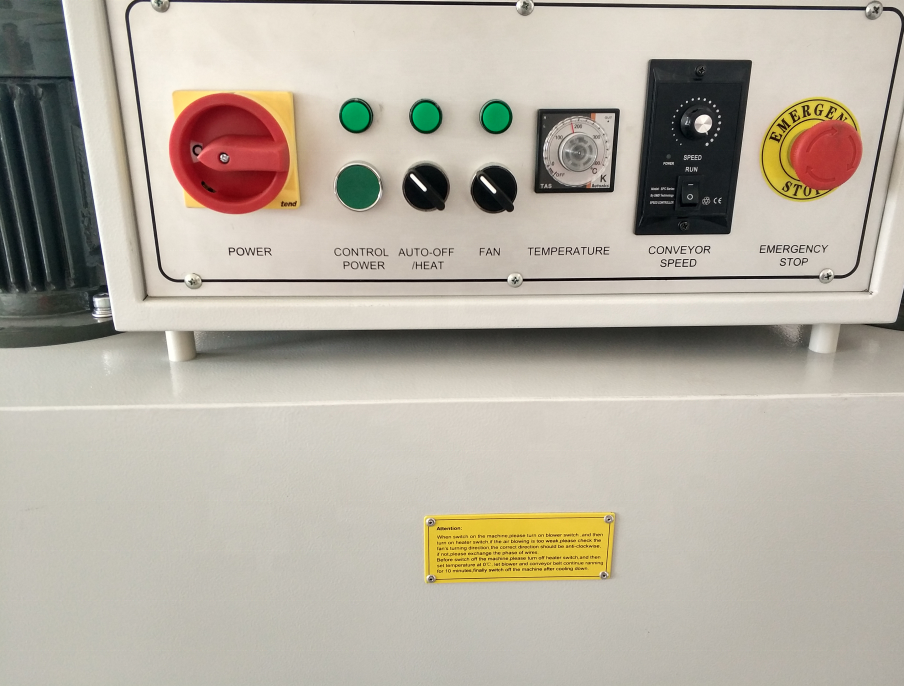

  • Temperature and speed are easily adjustable on the control panel.
  • Equipped with wheels for easy mobility and repositioning.
  • Heating tube is easy to replace when damaged, simply slide it out from the machine ends.
  • Uniform heating distribution delivering excellent and reliable shrink effects.
  • Multiple heaters mounted on each side of the tunnel chamber to direct heat precisely toward containers.
  • Intuitive handles available to quickly adjust the heater positioning.

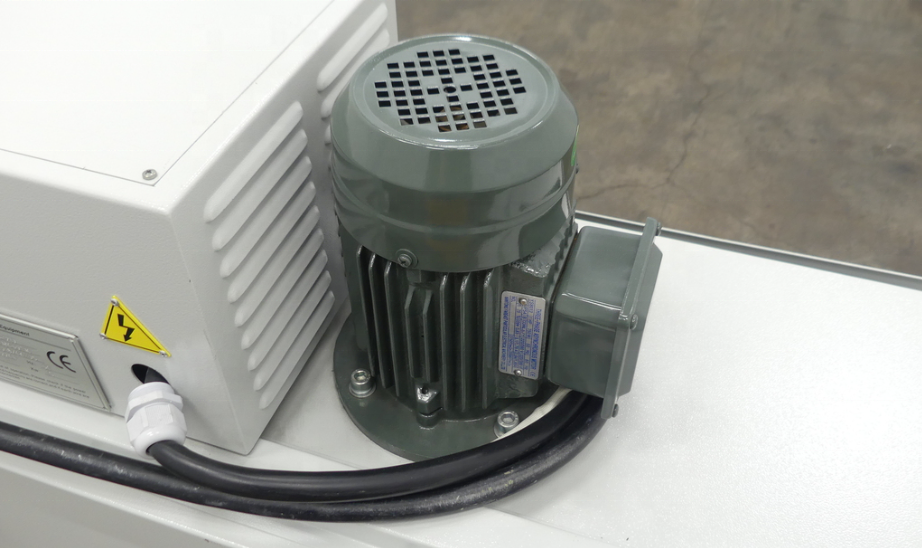

  • Dual blower motors efficiently disperse heat evenly throughout the chamber.
  • Maximum supported package height is 280mm.

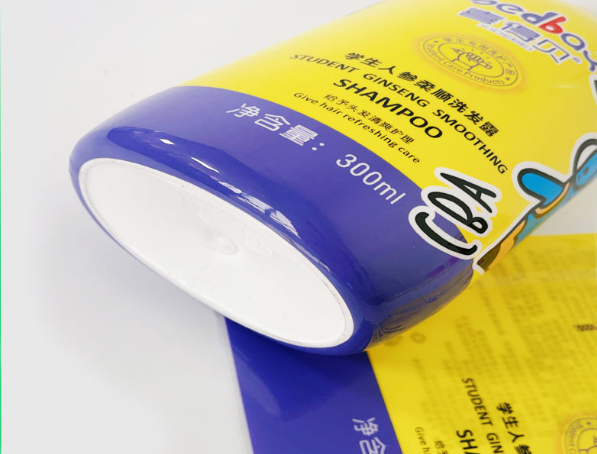

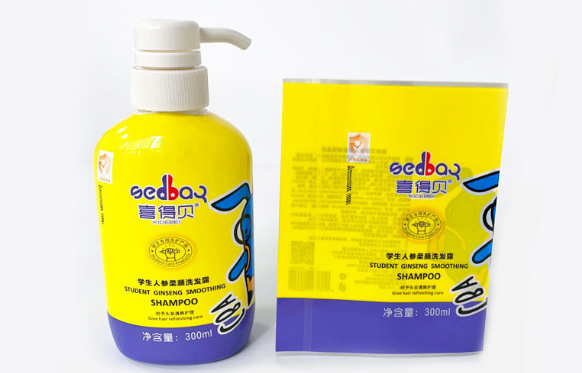

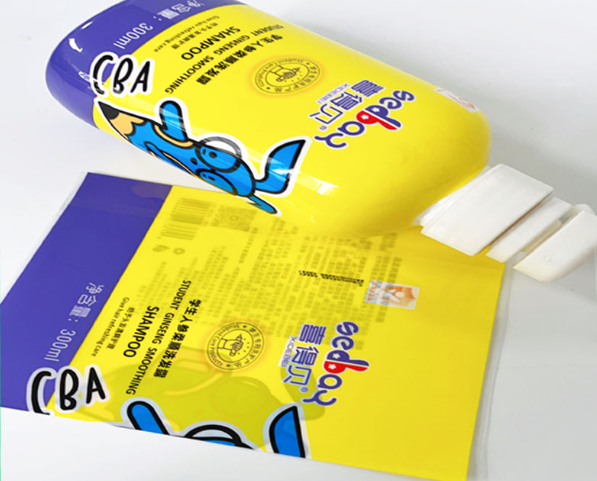

Tunnel System Detail 1 Tunnel System Detail 2 Tunnel System Detail 3
Specification
Video link www.youtube.com/watch?v=5SQel0jRtYg
Product Label Heat Shrink Tunnel
Application Full bottle
Model SM-1230
Tunnel dimension L1500*W120*H300mm
Max shrinking size Dia 100mm, H 280mm
Conveyor speed 0-15m/min adjustable
Label material PVC/PET/POF
Power 15kw 50/60Hz
Volts 220-415V 3Phase
Machine dimension L1804xW600xH1560mm
Machine weight 210kg
Products Display

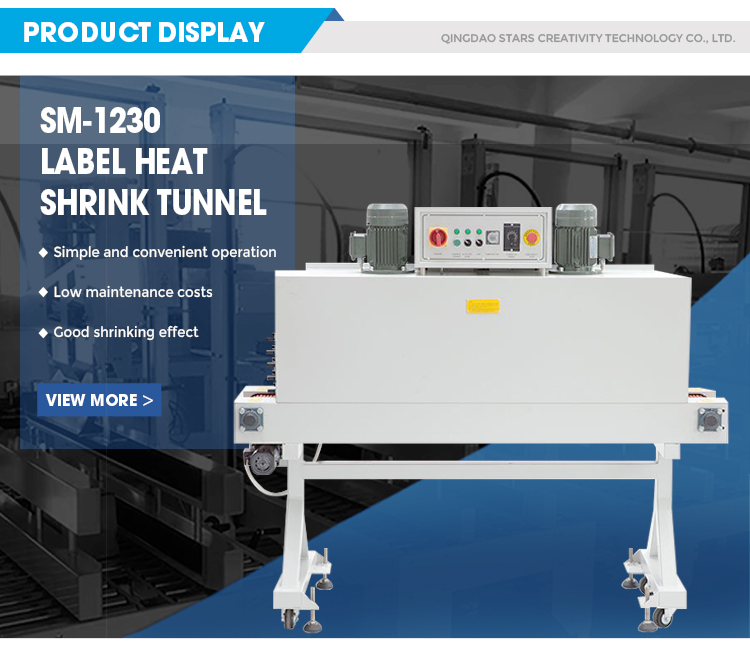

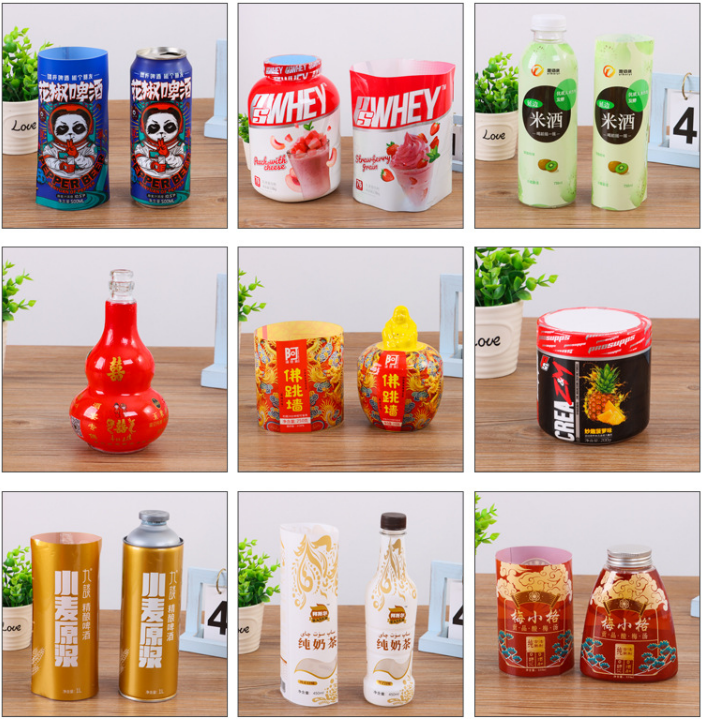

Product Display 1 Product Display 2
Product Details

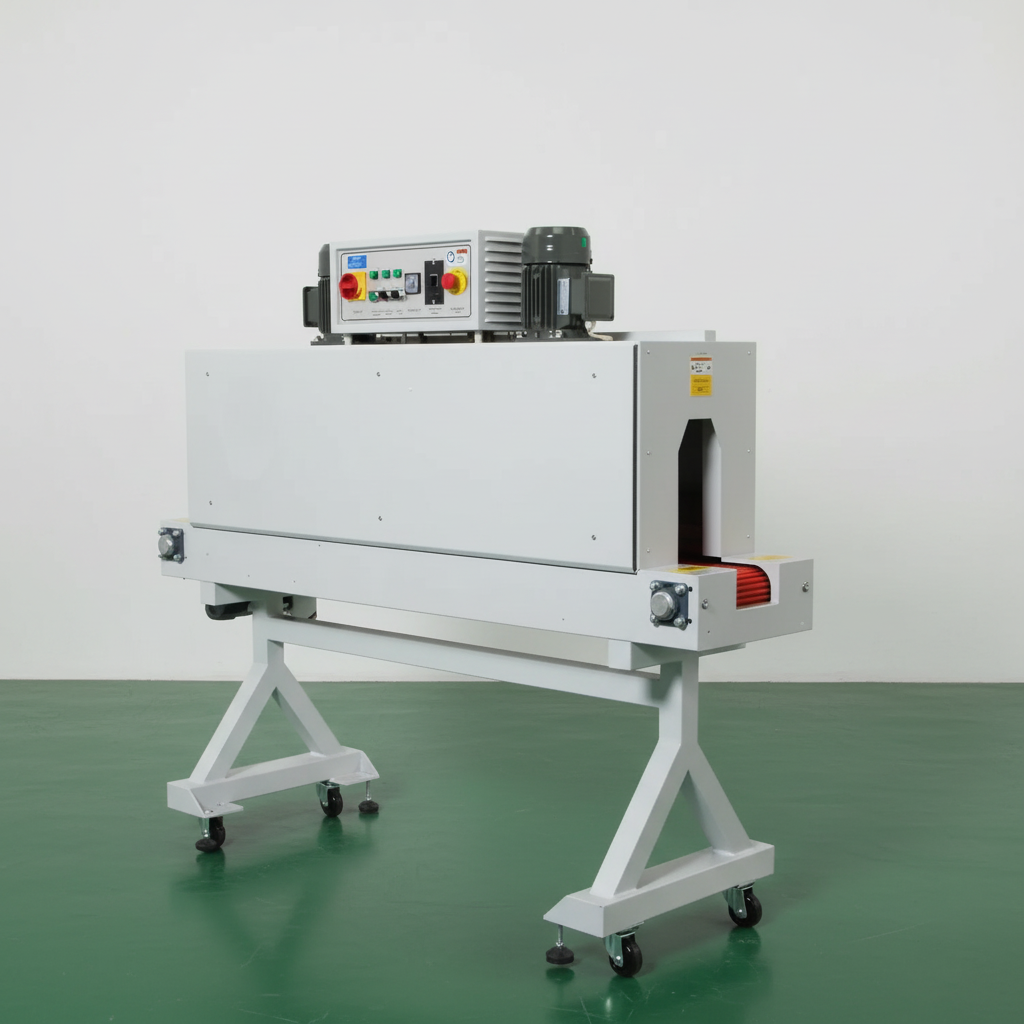

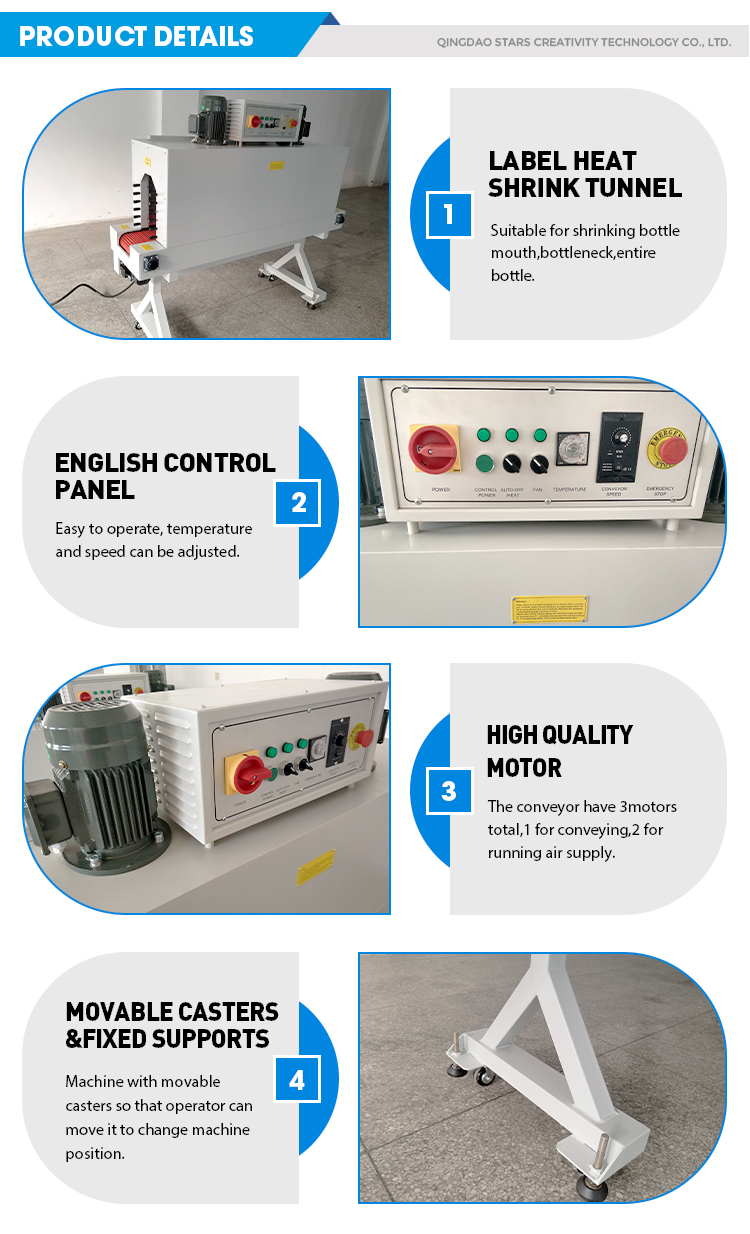

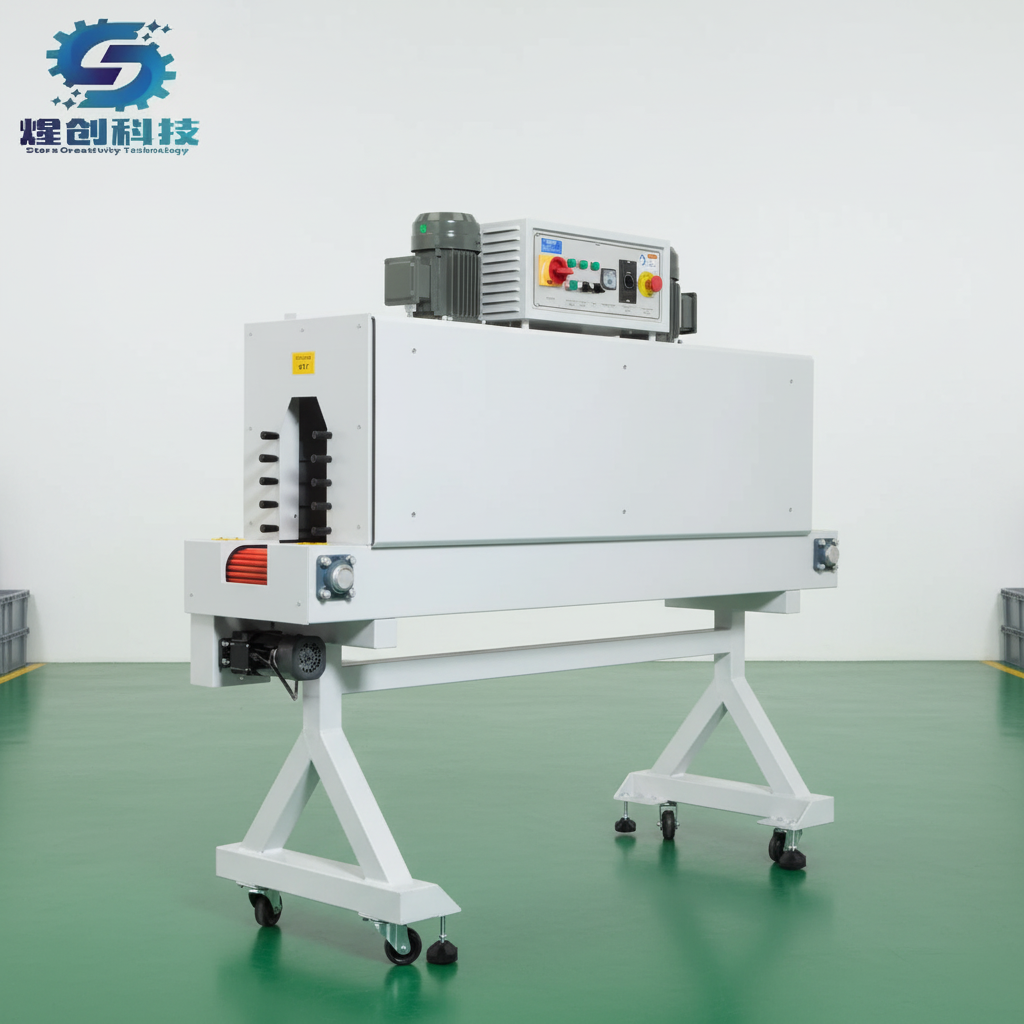

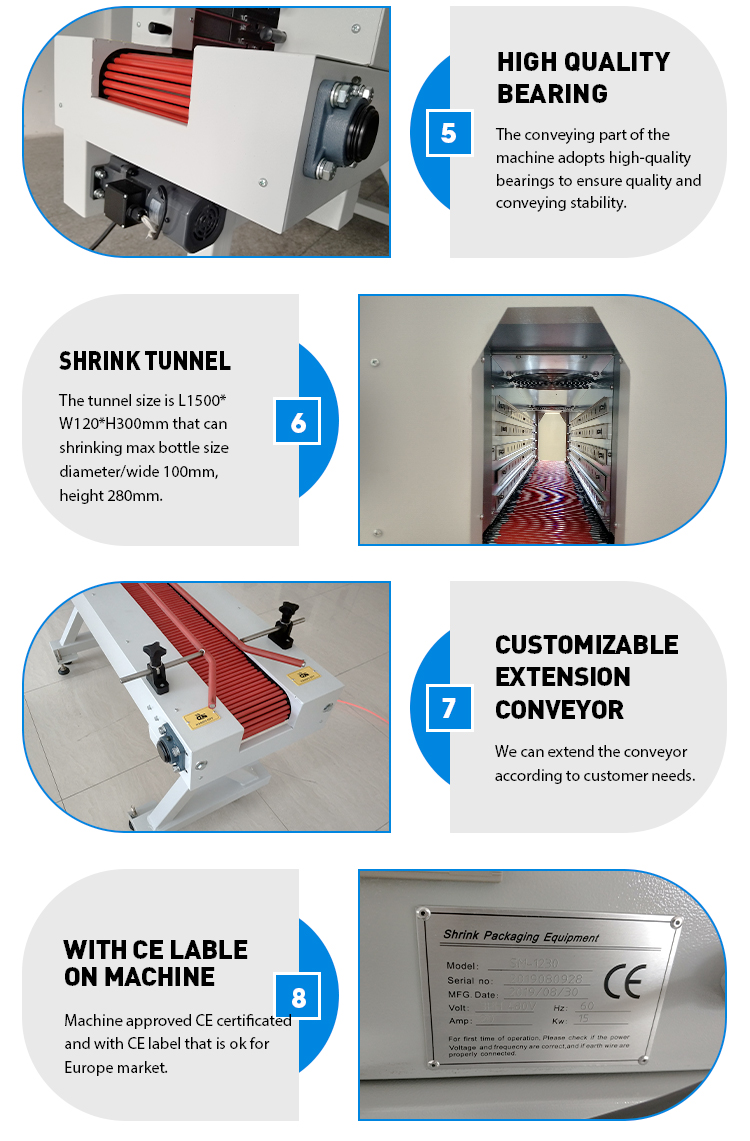

Product Detail View 1 Product Detail View 2 Product Detail View 3 Product Detail View 4
Related Products
Related Machine Category 1 Related Machine Category 2 Related Machine Category 3
Related Product Detail 1 Related Product Detail 2 Related Product Detail 3
Packing & Delivery
Package Prep Wooden Case Packaging Delivery Process
Frequently Asked Questions
Q1: What are the voltage requirements for this machine?
It will be use three phase (220-415V 3Phase) for power supply.
Q2: What is the service life of the machine?
Almost no need to replace spare parts for 2-3 years, and there will be no problems after 5 years of use.
Q3: What's the lead time for 1 unit standard machine?
It will take 10-15 workdays after receiving the payment.
Q4: How to fix the machine once it gets a problem in operation?
Take video and picture to us first. We will forward it to our technical team to get a solution.
Q5: Has the machine passed CE certification?
Yes, CE is available.
Q6: What label material can be used?
PET / PVC available.
