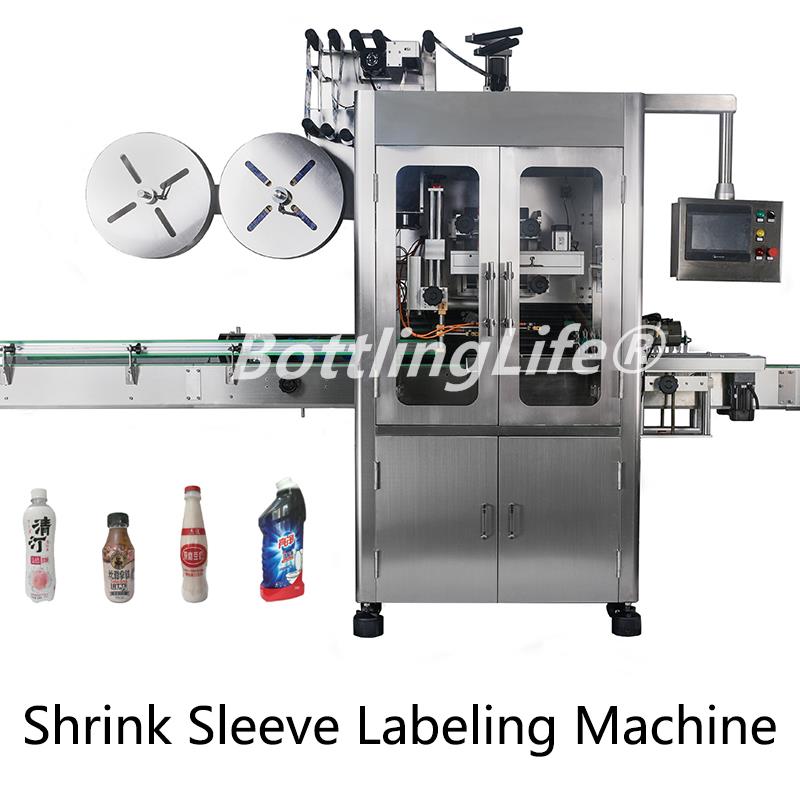

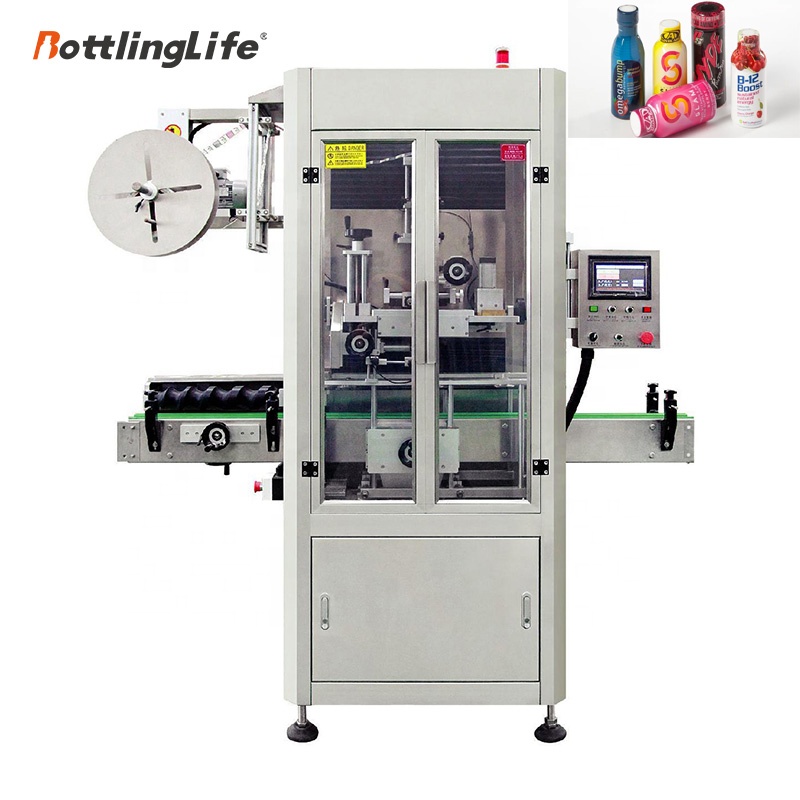

High Performance Bottle Banding Solution

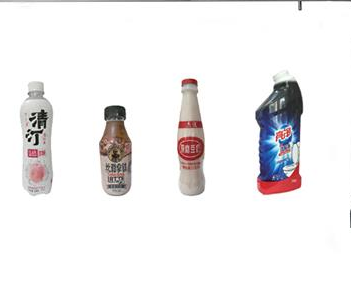

This machine adopts international advanced technology to apply the circle sleeve label onto PET bottles, followed by hot shrinking to secure the label precisely onto the designated bottle body position.
Designed with a compact structure, it is highly suitable for production lines operating at different directions and heights. The machinery components feature modular design, ensuring structural stability and reliability.

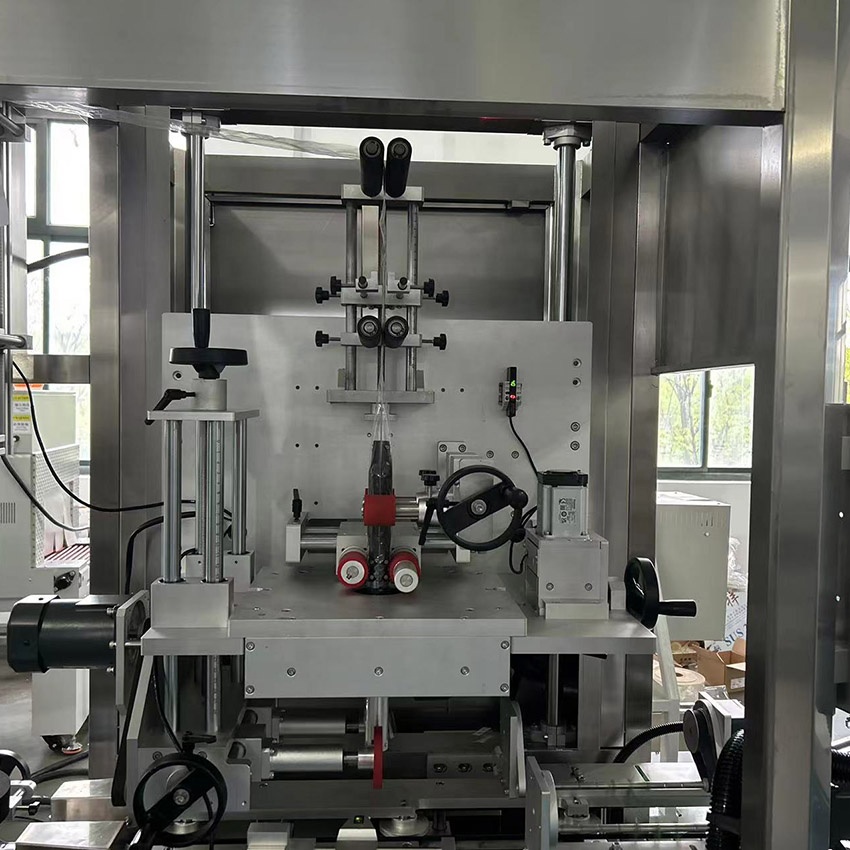

Height adjustment is motor-driven, making material changes simple and efficient. The specialized cutter head design ensures precision and reliable sleeve cutting.
Detailed parameters and sizing details
| Description | Automatic Wrap Shrink Bottle Body Banding Machine |
| Power | 220V, 50HZ |
| Air pressure | 0.6Mpa |
| Labeling Speed | 100 bottle/min |
| Labeling Accuracy | 99% |
| Object Size | 30-200 mm (H), 30-100 mm (W) |
| Label Size | 25-300 mm (L), 20-180 mm (W) |
| Dimension | 2800 (L) × 1600 (W) × 1500 (H) mm |
Fully covered stainless steel frame ensures operator safety. Corrosion-resistant and water-proof structures prolong equipment lifespan under demanding industrial setups.

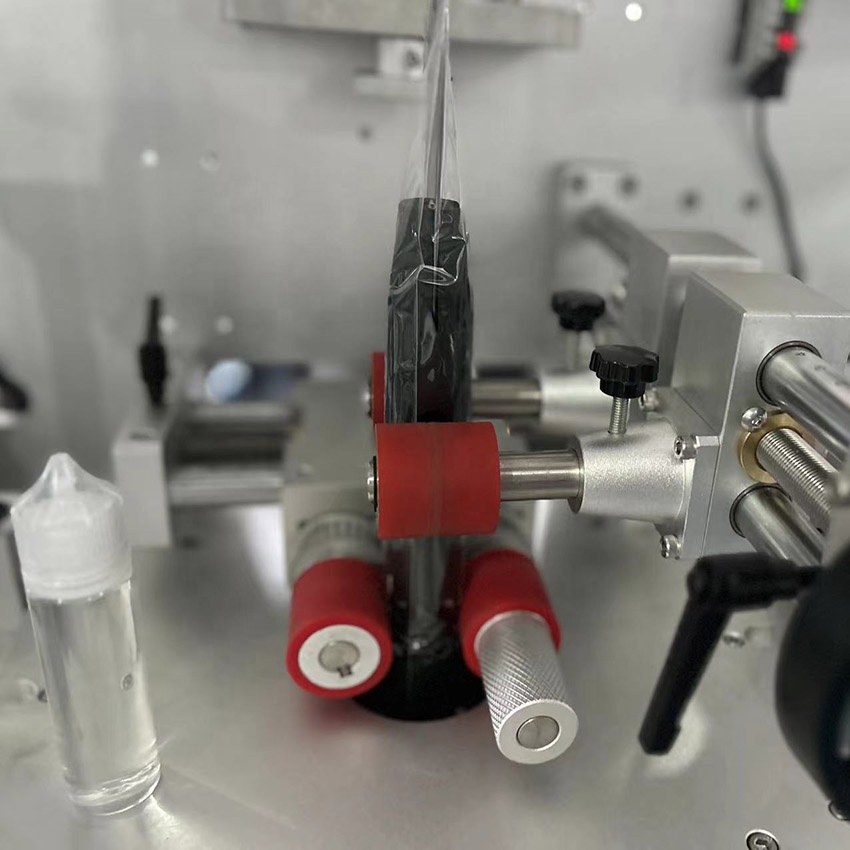

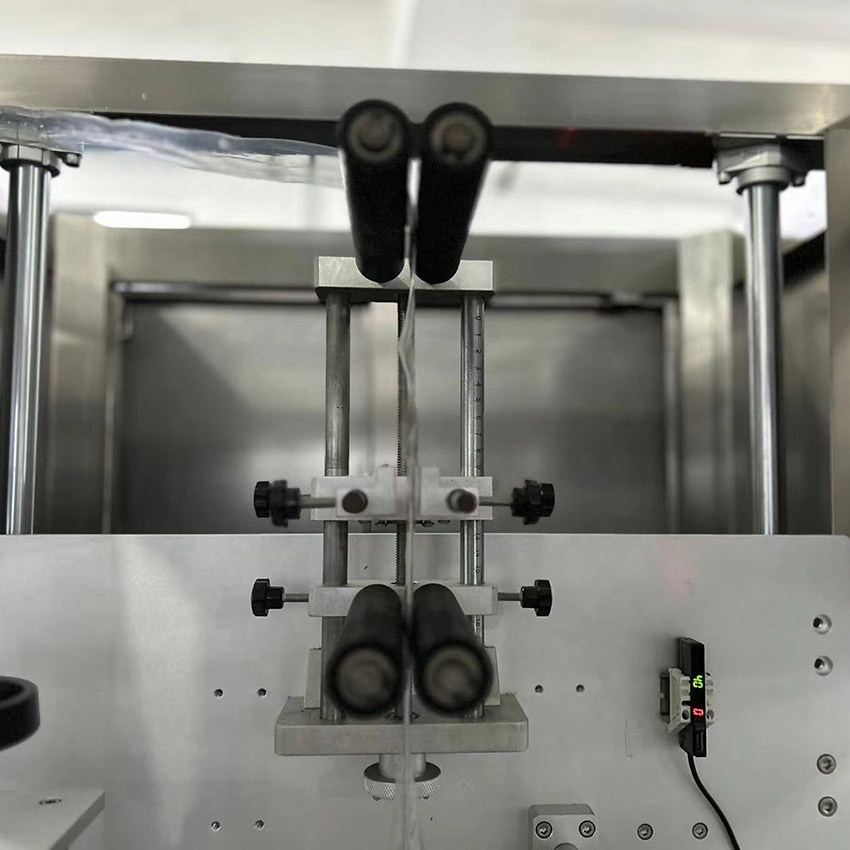

Featuring a double-blade rotary cutting assembly. Ensures clean, vertical sleeve separation for consistent down-line packaging results.
Visual breakdown of machine design and operations
How long is the equipment warranty period?
The warranty is one year, which includes easy-wear components for replacement at no charge.
What is the production and delivery lead time?
Because all machinery is customized based on specific bottle sizing and properties, production takes approximately 30 to 40 days after receiving bottle samples and deposit.
What are the power requirements of this machine?
The machine operational power consumption ranges between approximately 2 kW and 5 kW.
What support and resources are provided for installation and setup?
We supply complete technical support resources including operation manuals, installation video support, and on-site engineering setup assistance when requested.
Can I send bottle and cap samples to be tested?
Yes, machinery configurations are tailored precisely to your sizes. Once the machine is prepared, we will film and send testing videos using your samples. We typically require about 100 bottles and 200 caps per size.
How is the machinery tested prior to shipment?
We perform continuous 48-hour testing runs on the machine prior to delivery and send you diagnostic test footage. Remote Factory Acceptance Testing (FAT) options are also available.
