Automatic Sleeve Sealer Shrink Wrapping Machine PE Film Heat Tunnel for Bottle Can Packaging Line
Automatic Sleeve Sealer Shrink Wrapping Machine PE Film Heat Tunnel for Bottle Can Packaging Line
Automatic Sleeve Sealer Shrink Wrapping Machine PE Film Heat Tunnel for Bottle Can Packaging Line
Automatic Sleeve Sealer Shrink Wrapping Machine PE Film Heat Tunnel for Bottle Can Packaging Line
Automatic Sleeve Sealer Shrink Wrapping Machine PE Film Heat Tunnel for Bottle Can Packaging Line
1 / 5
Automatic Sleeve Sealer Shrink Wrapping Machine PE Film Heat Tunnel for Bottle Can Packaging Line
Automatic Sleeve Sealer Shrink Wrapping Machine PE Film Heat Tunnel for Bottle Can Packaging Line
Automatic Sleeve Sealer Shrink Wrapping Machine PE Film Heat Tunnel for Bottle Can Packaging Line
Automatic Sleeve Sealer Shrink Wrapping Machine PE Film Heat Tunnel for Bottle Can Packaging Line
Automatic Sleeve Sealer Shrink Wrapping Machine PE Film Heat Tunnel for Bottle Can Packaging Line

Automatic Sleeve Sealer Shrink Wrapping Machine PE Film Heat Tunnel for Bottle Can Packaging Line

Send Inquiry

Product Description

Video Description

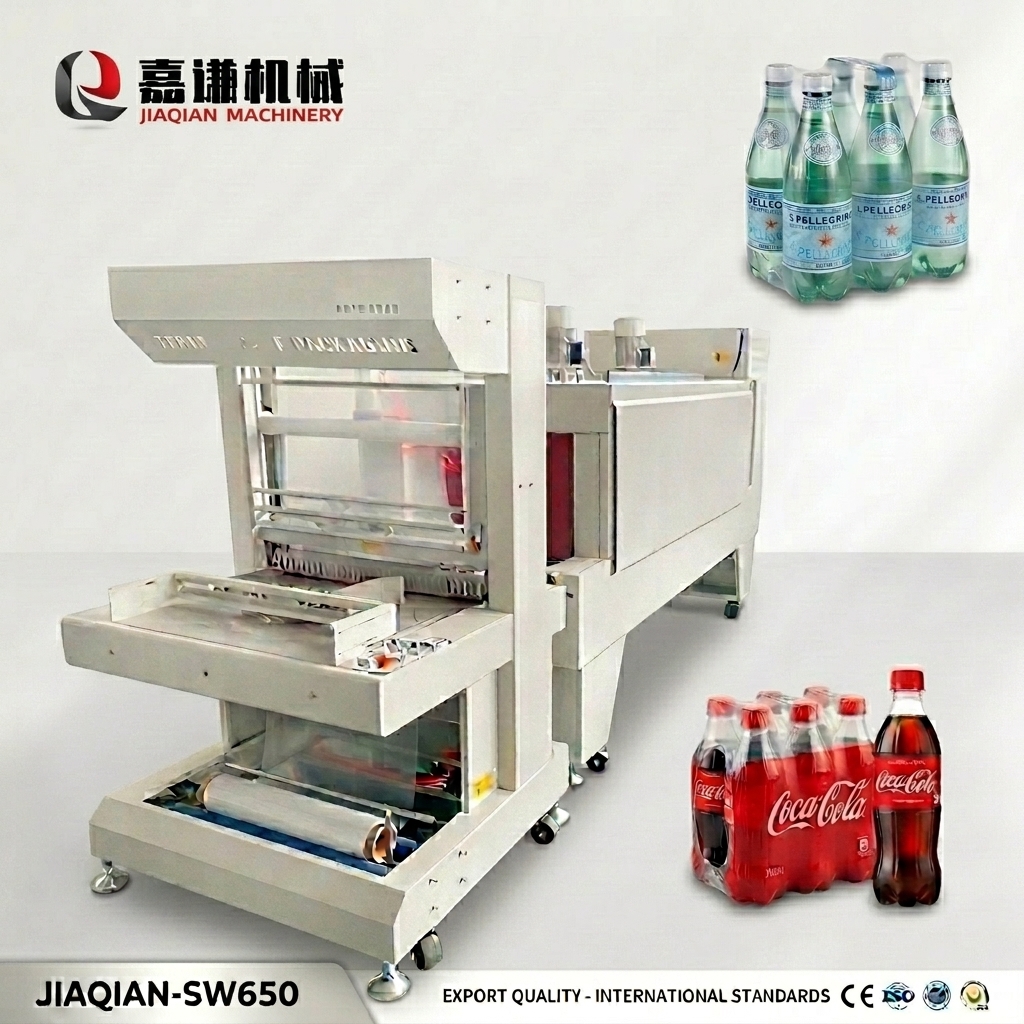

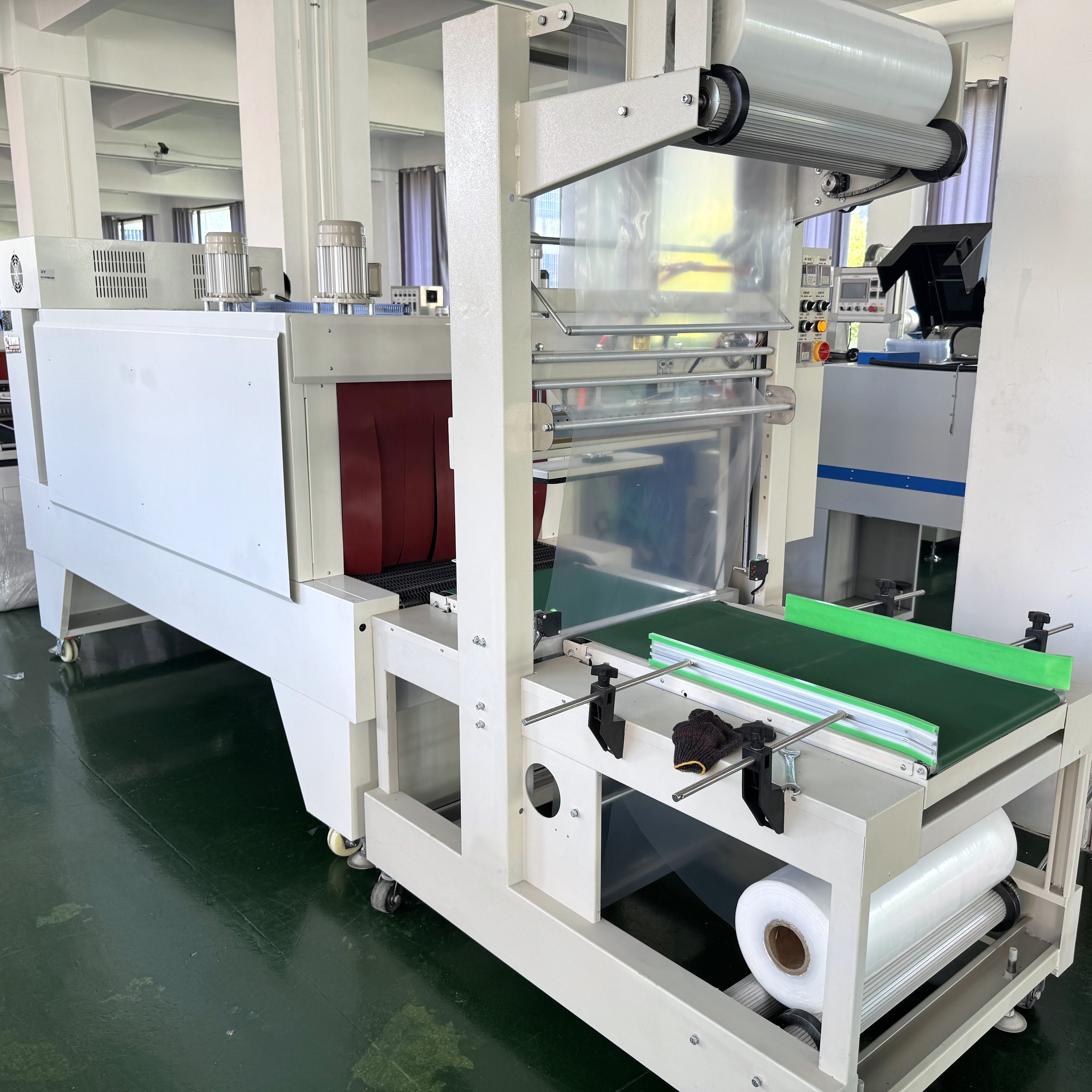

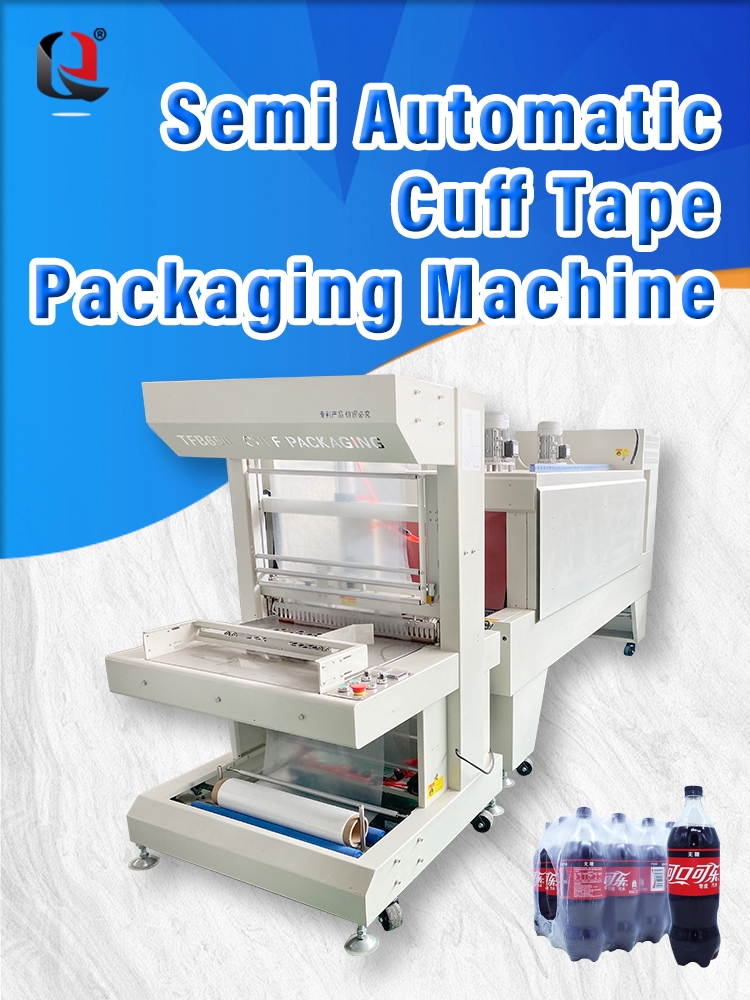

Shrink Wrapping Machine Overview

This machine is suitable for shrink wrapping the products like all kinds of bottles with group packaging (arrangements: 2*2, 2*3, 3*4, 4*6, etc); The infeed conveyor can be customized with multi rows feeding together, that means one pack one push, it can ensure the bottles be collated and packed with stable and fast.

Technical Specifications
Automatic Sealing Machine
Power supply 220V/380V: 1Phase/ 3Phase: 50-60Hz
Maximum Sealing Height 300mm
Maximum Packing Width 300mm
Maximum Packing Length 400mm
Packing Speed 10-20 packs per minute (Depends on product dimensions)
Film Type Single layer PE film
Maximum Film Roll Size Width 880mm * Outer diameter 280mm
Power Consumption 4.5kw
Control System PLC touch screen controlled
Shrink Tunnel
Power supply 220V/380V: 1Phase/ 3Phase; 50-60Hz
Tunnel Conveyor Chains with rotating silicon coated rods / Stainless steel net belt conveyor
Tunnel Oven Size L * W * H: 1500 * 600 * 400mm
Product Gallery
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Detail Image 7
Detail Image 8
Detail Image 9
Detail Image 10
Detail Image 11
Frequently Asked Questions (FAQ)
What products are suitable for this shrink wrapping machine?
This machine is ideal for shrink wrapping various group-packaged products, specifically all kinds of bottles in configurations such as 2*2, 2*3, 3*4, 4*6, and others.
What packaging speed can this machine achieve?
The machine achieves a speed of 10-20 packs per minute. The actual packaging speed depends on your specific product dimensions.
What type of film does the sealing machine require?
The sealing machine is designed to work with single layer PE film.
Can the infeed conveyor be customized?
Yes, the infeed conveyor can be customized with multi-row feeding, featuring a one-pack, one-push system. This ensures the bottles are collated and packed stably and quickly.

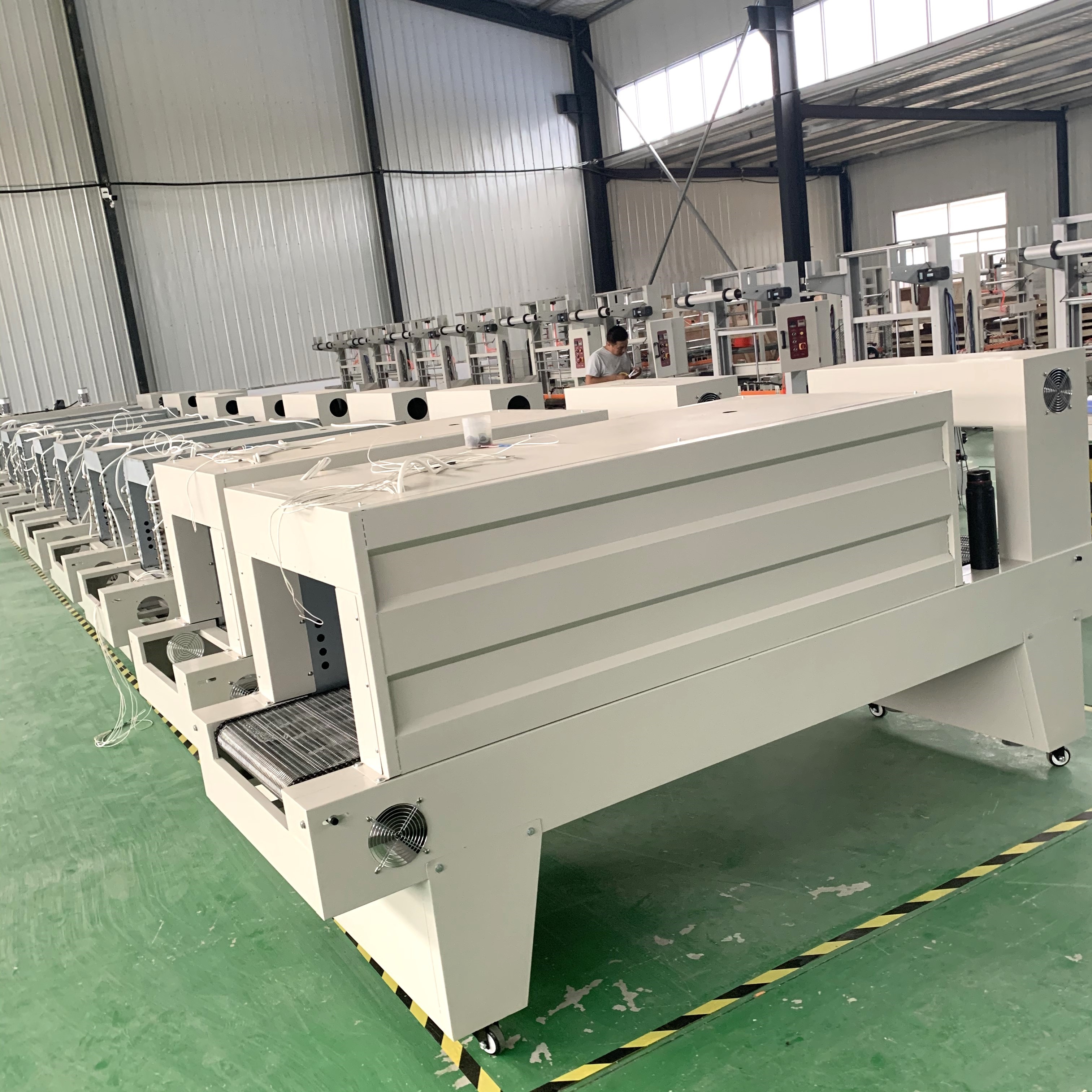

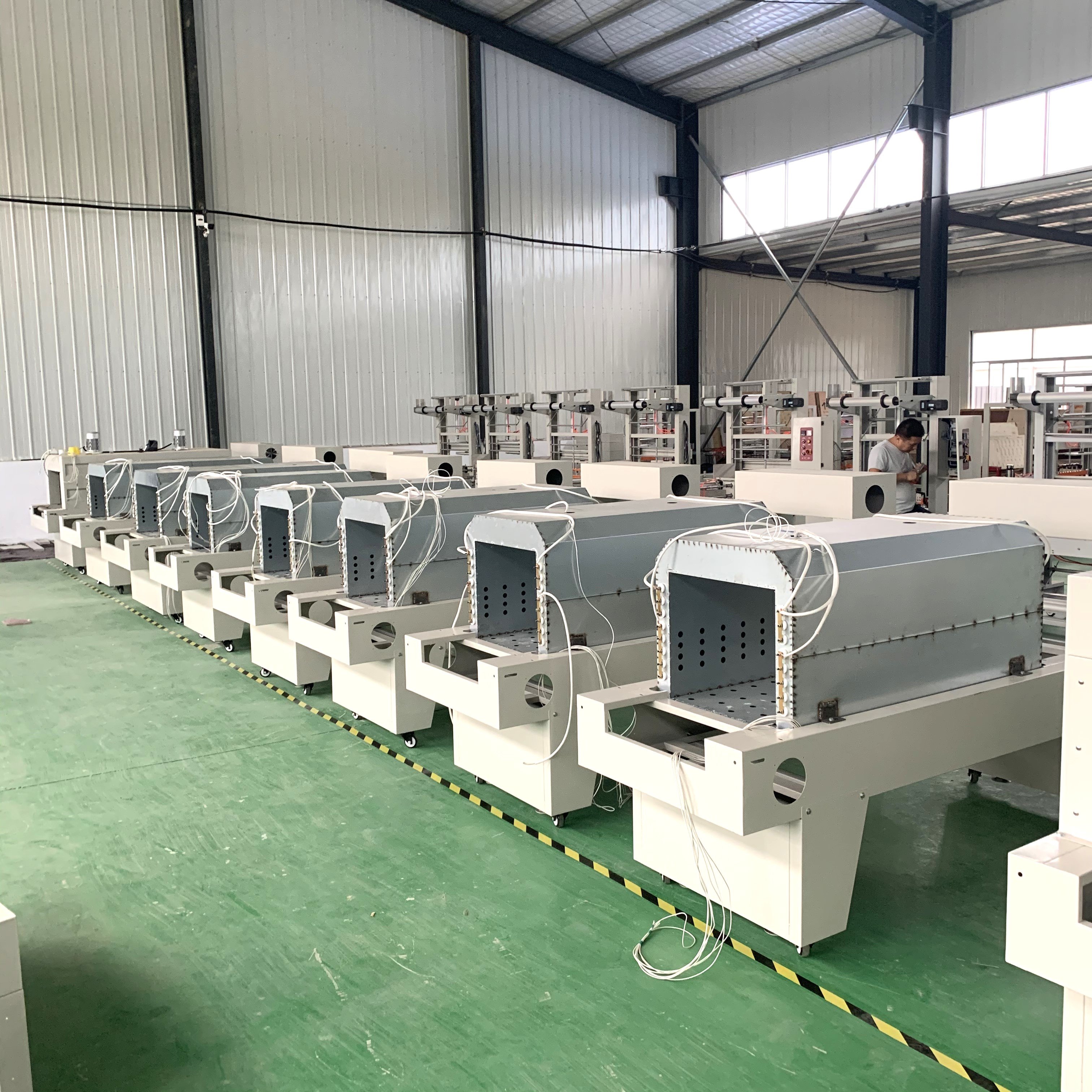

What are the dimensions and conveyor options for the shrink tunnel?
The shrink tunnel oven size is L 1500mm * W 600mm * H 400mm. The conveyor can be configured with either chains with rotating silicon coated rods or a stainless steel net belt conveyor.
How is the automatic sealing machine controlled?
The machine is operated via an integrated, easy-to-use PLC touch screen control system.
