Basic Info.
Automatic Grade
Automatic
Manner of Packing
Both Ends Open
Adjust Speed
Electronic Speed Control
Type
PE Shrink Film Machine
Heating Mode
Quartz Heating Tube
Product Name
Shrink Wrapping Machine
Capacity
0-25 Package/Min
Max Package Size
600*400*350mm
Sealing/Cutting Time
0.5-1.5 Sec
Sealing/Cutting Temp.
160-260 Degrees
Package Type
Wooden Package
Transport Package
Wooden Package
Production Capacity
30sets/Month
Packaging & Delivery
Package Size
12500.00cm * 1800.00cm * 2300.00cm
Package Gross Weight
11500.000kg

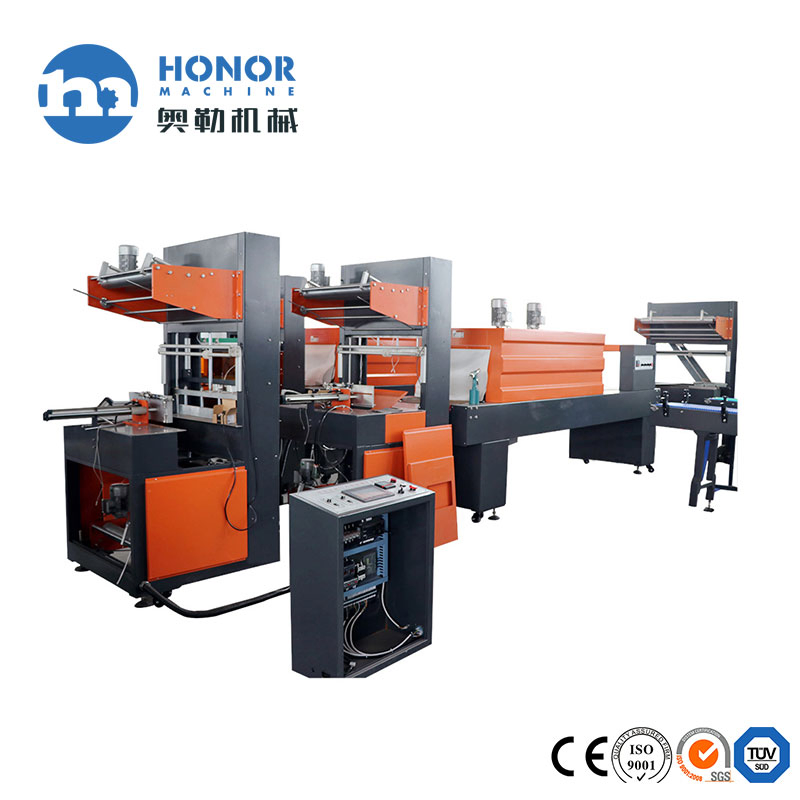

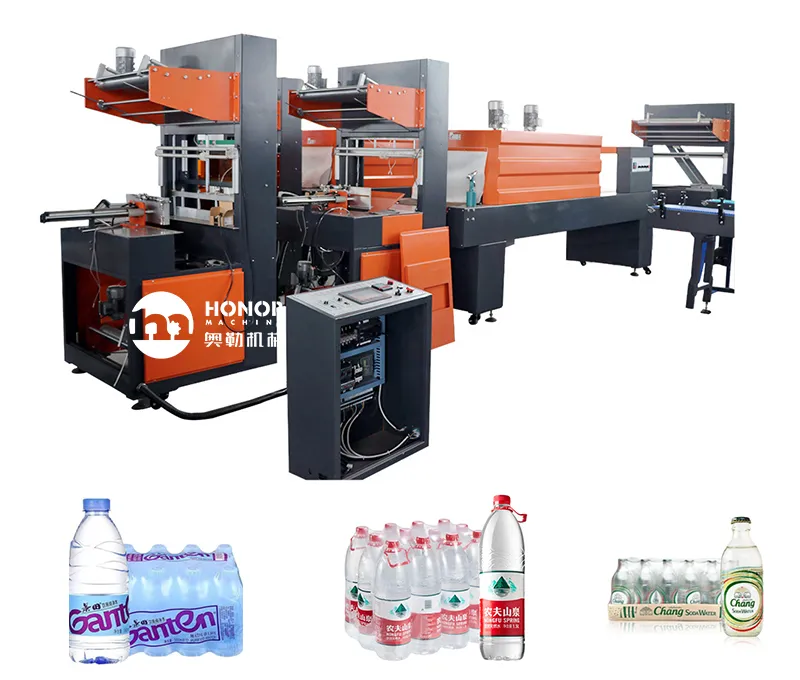

Product Description
Specially designed for beverages, pure water, fruit juice, wine and other drinks. With full automatic functions of bottle transfer and arrange, film wrapping, sealing and cutting, shrinkage, cooling and other qualities. It adopts the world's advanced film thermostatic sealing technology, and the sealing is firmly cleaned. The PLC program is used for automatic circulation control, and the performance is stable and reliable. Three-layer heat insulation, good heat preservation performance, fast heating, energy saving.
Key Structural & Performance Features

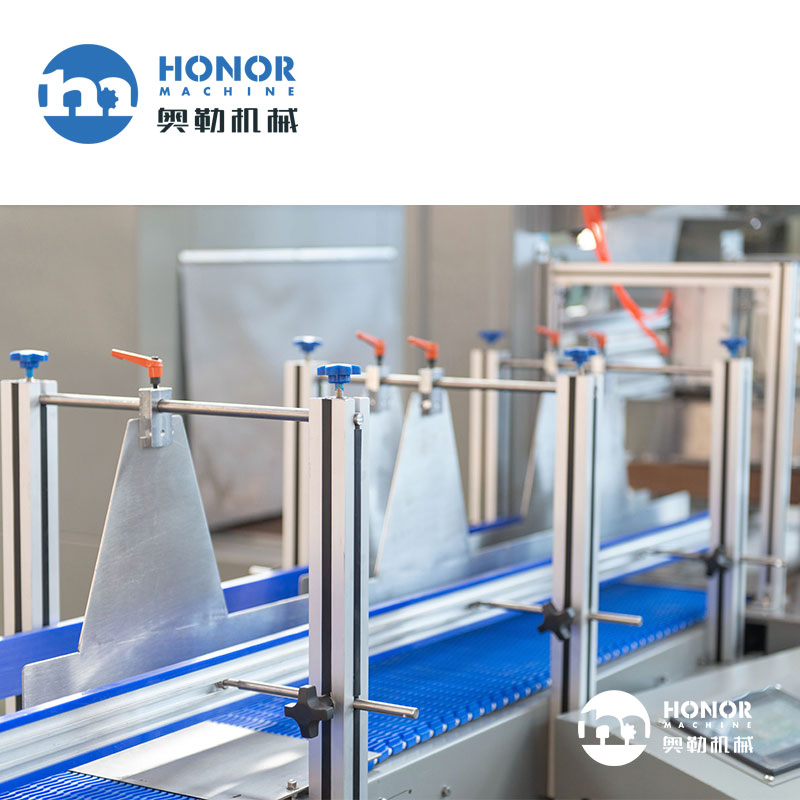

- Frequency converter speed adjust, two segment convey device.

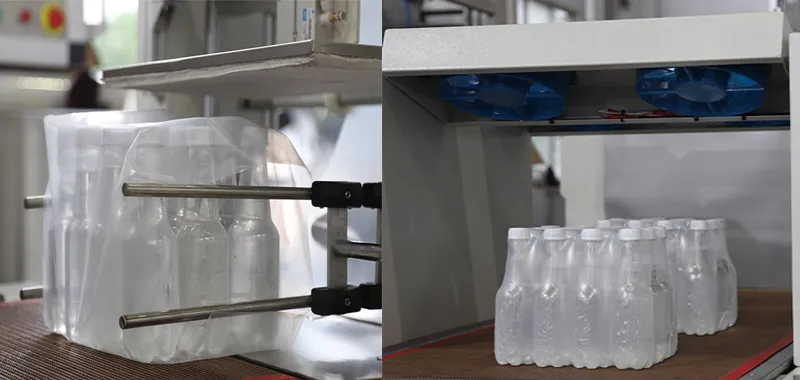

- Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.

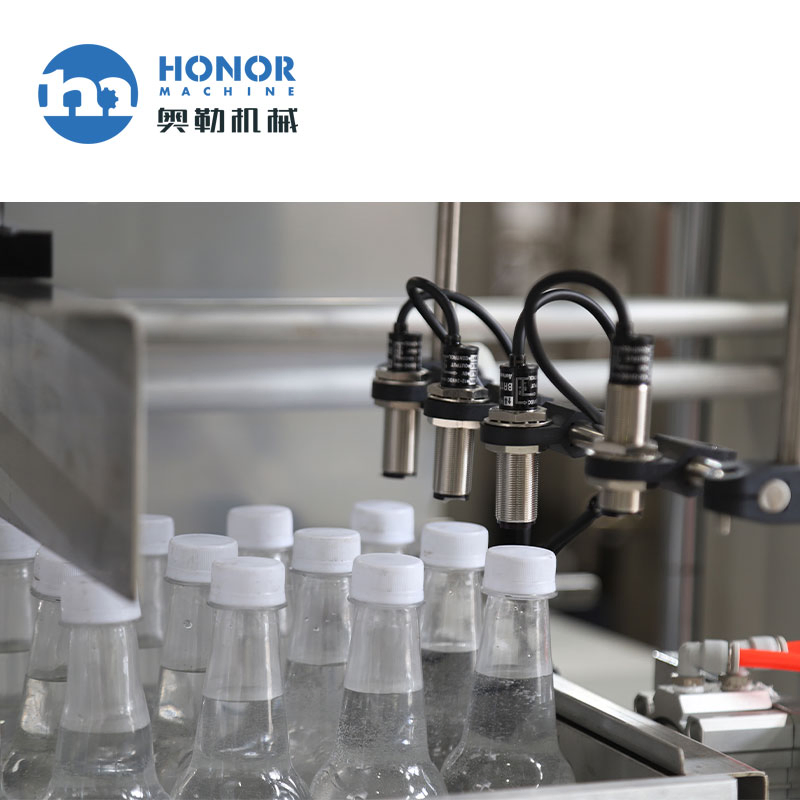

- Proximity switch control film length.
- Touch screen, PLC system greatly increase facility movement reliability.

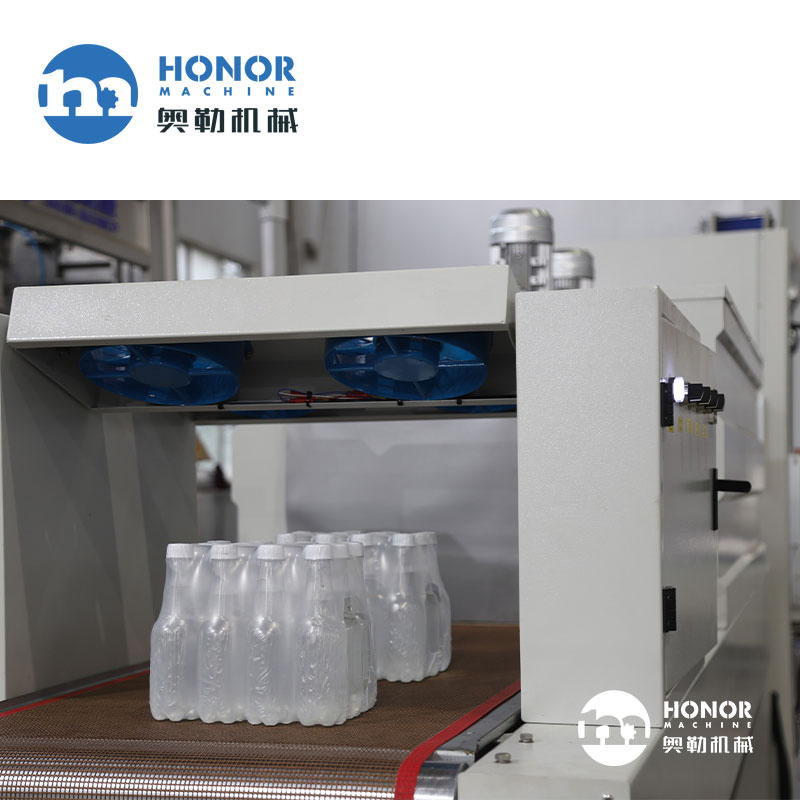

- Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
- Super big wind-volume cooling system, ensure quickly get into shape.
- Anti-high temperature customized convey belt, convey steadily, high-strength anti-abrasion.
- Frequency limitless speed adjust convey belt frame.
- Convey belt height can make according client requirement, adjust range: ± 100mm.
- Wing stainless steel heating system, endurance.
- Meet with product instant stop requirement product-bearing rack device ensure production line consistency.
Technical Parameter
| Model |
WD-150A |
WD-250A |
| Machine type |
L type |
Linear type |
| Capacity (package/min) |
0-12 |
15-25 |
| Transfer belt width (mm) |
304 |
550 |
| Sealing and cutting time/temperature |
0.5-1.5s / 160-260ºC |
0.5-1s / 180-260ºC |
| Max package size (mm) |
600*400*350 |
600*400*350 |
| Thermal shrinkage passage size (mm) |
1800*650*400 |
2400*650*450 |
| Overall dimension (mm) |
6500*3200*2100 |
13840*1100*2100 |
| Air pressure (Mpa) |
0.6-0.8 |
0.6-0.8 |
| Working power (kw) |
30 |
24 |
| Weight (kg) |
1.2 |
1.6 |
We provide the wide range of liquid filling capabilities and industry experience while delivering the lower cost of ownership for our customers. We are not only a filling equipment manufacturer, but also design and build factories, equipment layout, circuit layout and equipment operation schemes. Our equipment is designed carefully, easy to use and easy to manage. Whether you need a single machine or a complete filling and packaging system, we have rich experience to ensure the successful completion of your project.
Frequently Asked Questions
What types of beverages is this automatic shrink wrapping machine designed for?
The machine is specifically designed for beverages, pure water, fruit juice, wine, and other drink bottles. It is compatible with both round and square bottle configurations.
What control and automation systems are integrated into the machine?
It features a robust PLC system for automatic circulation control, a responsive touch screen interface for reliable facility movement, and proximity switches for precise film length control.
How does the cooling system work to ensure packaging quality?
The equipment integrates a three-wind recycle fan system to maintain even temperatures inside the shrinkage tunnel, and a high-volume cooling system at the output to instantly and securely set the package shape.
Do you offer technical support for overseas machine installation?
Yes. We have a professional team of engineers with extensive installation, debugging, and training experience abroad, who are fully available to service machinery overseas.
What kind of warranty comes with this shrink wrap machine?
We offer a 2-year quality guarantee on our machines alongside life-long technical support. Please contact us through our customer service channels if you require technical assistance.
What are the main packaging speed options between the models?
The capacity varies by configuration: the L-type (WD-150A) offers a capacity of 0-12 packages per minute, while the Linear-type (WD-250A) delivers a higher capacity of 15-25 packages per minute.
