Automatic Sleeve Wrappe&Tunnel Wrapping Machine
Automatic Sleeve Wrappe&Tunnel Wrapping Machine
Automatic Sleeve Wrappe&Tunnel Wrapping Machine
Automatic Sleeve Wrappe&Tunnel Wrapping Machine
Automatic Sleeve Wrappe&Tunnel Wrapping Machine
1 / 5
Automatic Sleeve Wrappe&Tunnel Wrapping Machine
Automatic Sleeve Wrappe&Tunnel Wrapping Machine
Automatic Sleeve Wrappe&Tunnel Wrapping Machine
Automatic Sleeve Wrappe&Tunnel Wrapping Machine
Automatic Sleeve Wrappe&Tunnel Wrapping Machine

Automatic Sleeve Wrappe&Tunnel Wrapping Machine

Customization: Available
After-sales Service: 12 Hour Response
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info.
Model NO.
QS-40A
Applicable Goods
Cartons
Type
Automatic Wrapping Machine
Driven Type
Electric
Application
Beverage, Food, Electrical, Hardware, Software, Food etc.
Automatic Grade
Automatic
Inclusion Degree
Fully Wrapped Winding Machine
Structure
Pallet Wrapping Machine
Film Frame Structure
Tensile Resistance
Series
T Series - Pallet Wrapping Machine
Brand Name
Wrapping Machine
Model
QS-40A
Power
3kw
Motor
50kg
Transport Package
Wooden Case
Specification
ISO, GMP
Trademark
SUPM
Origin
China
Production Capacity
200sets/Year
Product Description

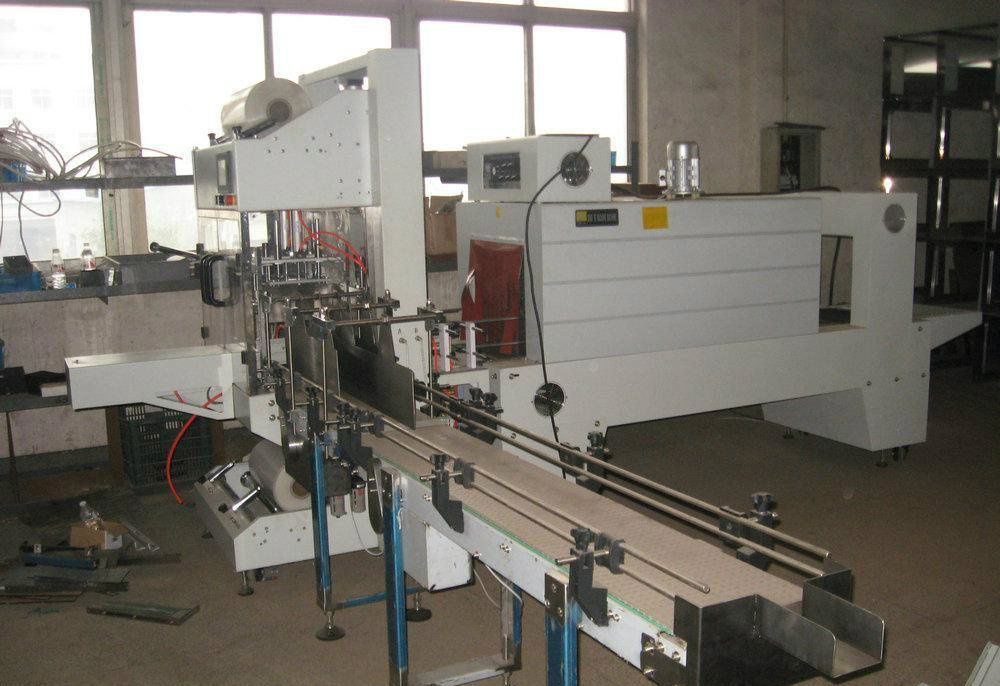

Automatic Sleeve Wrapper & Tunnel Wrapping Machine

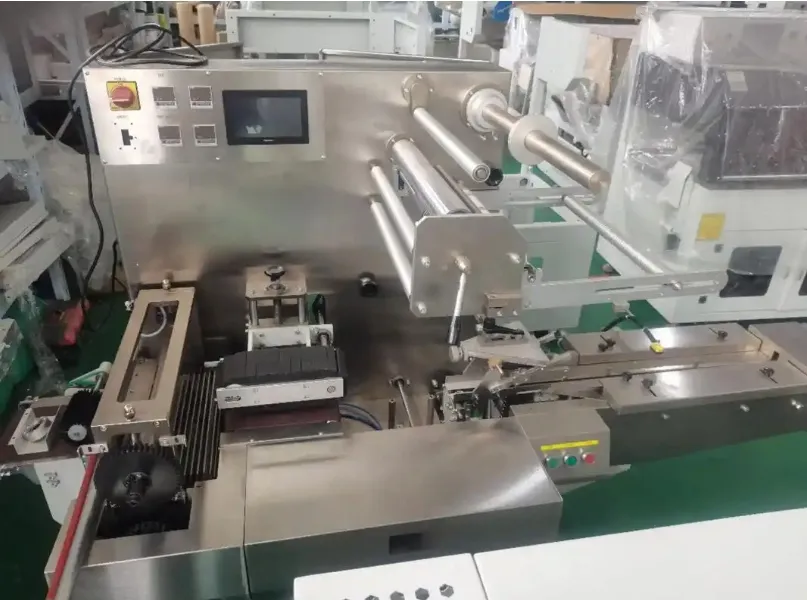

Automatic Sleeve Wrapper & Tunnel Wrapping Machine Front View
Automatic Sleeve Wrapper Details

Summary:

QS-40A automatic sleeve wrapper is suitable for wrapping products such as pop-cans, bottles, etc., with bottom-tray or without bottom-tray, working with BSE-40A jet PE-film shrink tunnel or other PE shrink tunnel.

Characteristics:

  • The Machine adopts the advanced touch screen which makes operation easier, 'Omron' programmable logic controller (PLC) and AC contactor, 'AirTAC' cylinder, and all the rest parts adopt international famous brand.
  • Upper and down electromagnetic switch prevents sealing mistakes, and protect operator.
  • Automatic alarm security system protects machine and operator.
  • Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
  • Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.
  • Super cooling system cools the packing and makes the figuration perfectly.
Specification
Model Parameter QS-40A Value Model Parameter BSE-40A Value
Model QS-40A Model BSE-40A
Power source 3phase 380V 50HZ Power source 3phase 380V 50HZ
Power 3KW Heater power 20KW
Capacity 0-10 packs/min Conveyer speed 0-10m/minute
Working air pressure 0.4 -0.6 MPa Tunnel size(L*W*H) 1500*500*460mm
Width/thickness of the film Max. 590mm/0.03 - 0.25mm Conveyer loading 50KGS Max.
Max. packing dimension(L*W*H) 420*300*350mm Machine size(L*W*H) 2500*820*1680mm
Min. packing dimension(L*W*H) 250*50*100mm Machine weight 470KGS
Conveyor size (L*W*H) 900(L)*410(W)*400(H)mm Shrink film PE, POF, PVC, PP
Weight of film roller ≤30kg - -
Motor loading 50 kg - -
Structure View 1
Structure View 2
Structure View 3
Structure View 4
Frequently Asked Questions
What products can the QS-40A automatic sleeve wrapper handle?
It is ideal for wrapping a variety of products such as pop-cans and bottles. It supports packaging configurations both with and without bottom-trays.
Which shrink tunnels are compatible with this sleeve wrapper?
The QS-40A wrapper works seamlessly with the BSE-40A jet PE-film shrink tunnel as well as other standard PE shrink tunnels.
What safety mechanisms are built into the machine?
It is equipped with upper and down electromagnetic switches to prevent sealing errors, alongside an automatic safety alarm system designed to protect both the operator and the machine.
What types of shrink films can be used with this system?
The system is compatible with a wide range of shrink films including PE, POF, PVC, and PP.
How does the cooling system work on this machine?
It features a super cooling system that rapidly cools the wrapped package immediately after shrinking to ensure a perfect and stable final shape.
What is the production capacity of the QS-40A wrapping machine?
The wrapper has a production capacity of 0 to 10 packs per minute, with a conveyor speed of up to 10 meters per minute when paired with the BSE-40A shrink tunnel.
