| Model | GH-450LV | SF-5030LG |
|---|---|---|
| Power | 3.2kw | 21kw |
| Power Supply | AC 380V 3PH 50Hz | AC 380V 3PH 50Hz |
| Tunnel Chamber Size LxWxH | / | 2000x500x300 mm |
| Max Packing Size L×W×H | L+H ≤ 400mm, W+H ≤ 300mm; H ≤ 100mm/120mm | W400 × H200 mm |
| Efficient Sealing Size | L450 × W350 mm | / |
| Packing Speed | 0-35 m/min. | 0~25 m/min. |
| External Air Source | 6-8 kg/cm2 | / |
| Shrink Film | POF | POF |

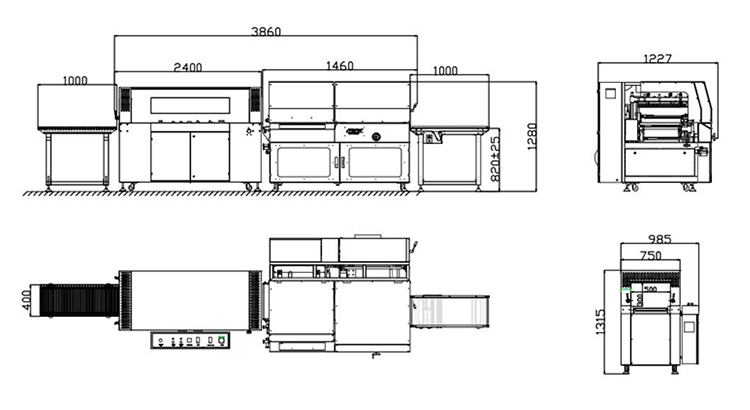

| Machine Size L×W×H | 1580 × 1386 × 1300 mm | 1800 × 985 × 1265 mm |
| Wooden Box Size L×W×H | 1650 × 1350 × 1480 mm | 1860 × 1010 × 1440 mm |
| G./N. Weight | 825/700 kgs | 560/540 Kg |

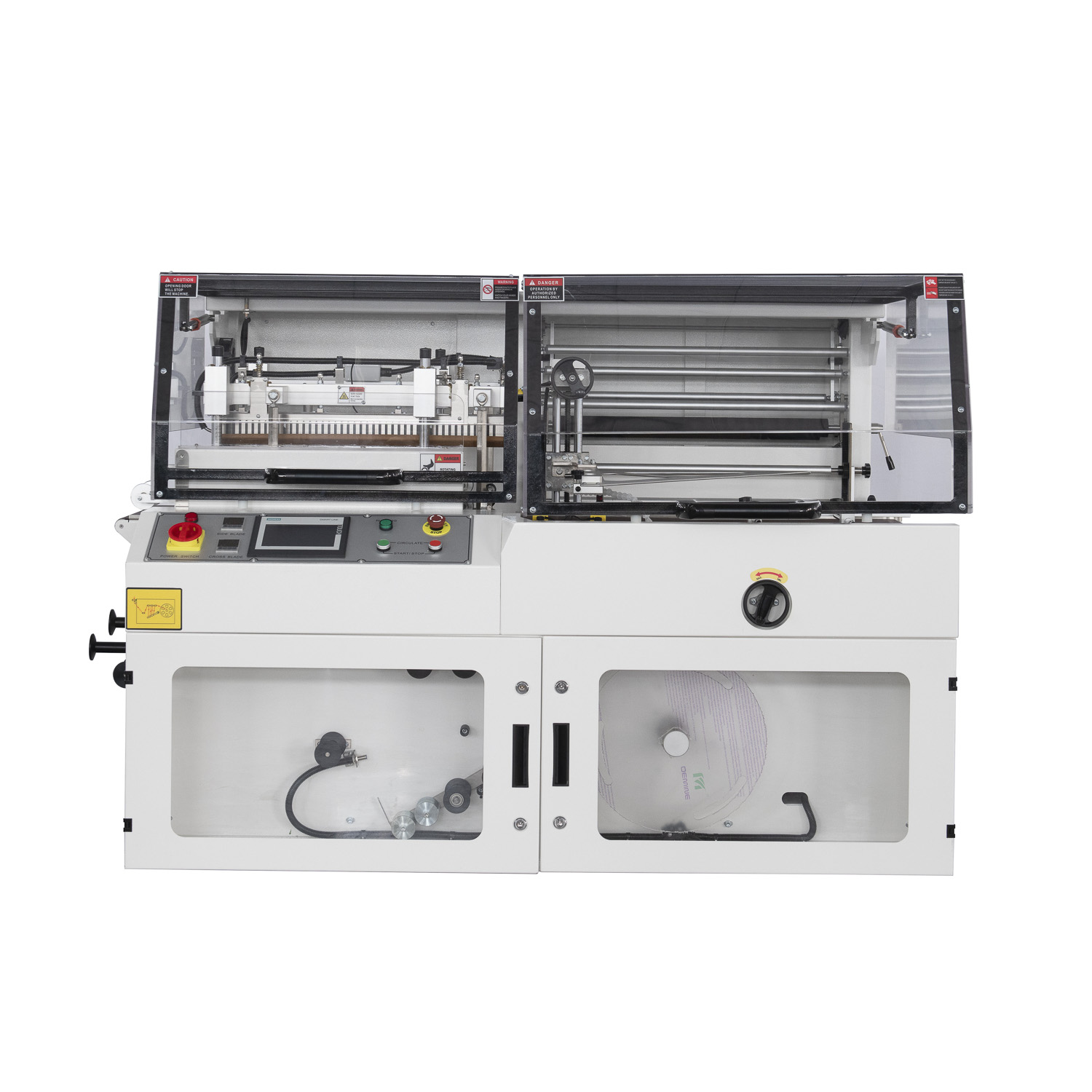

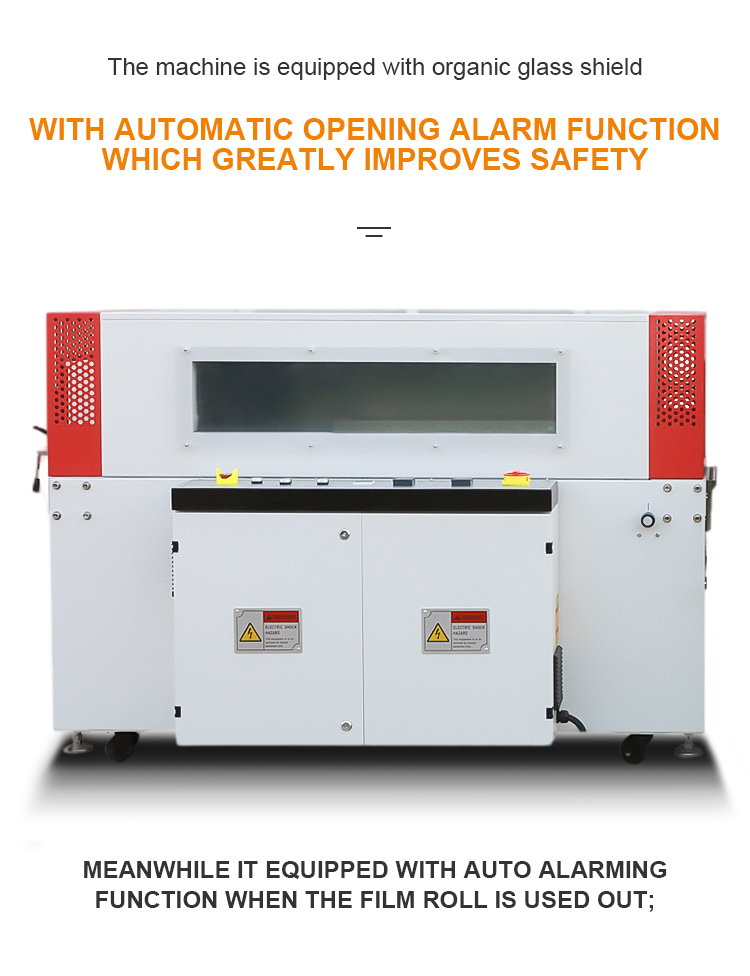

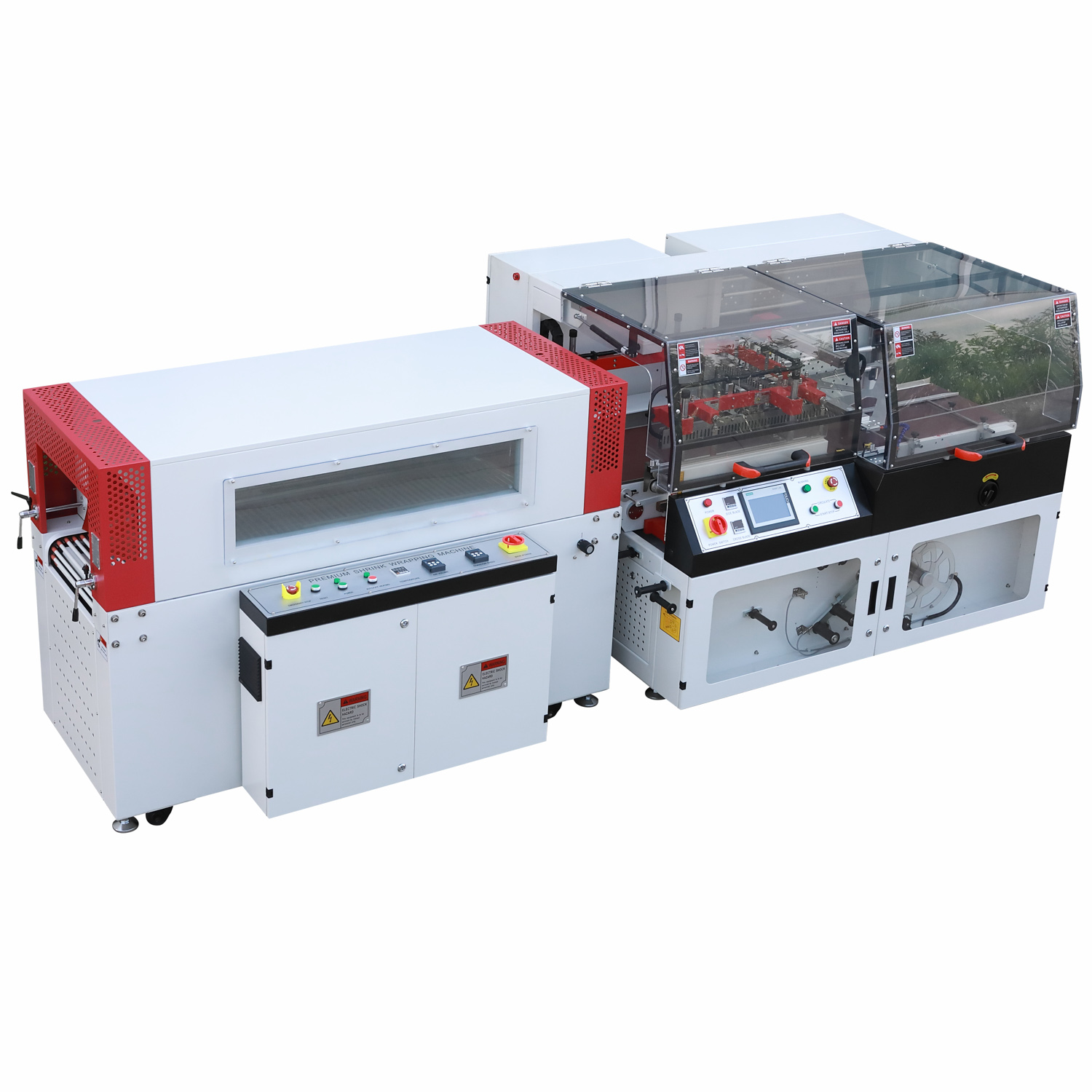

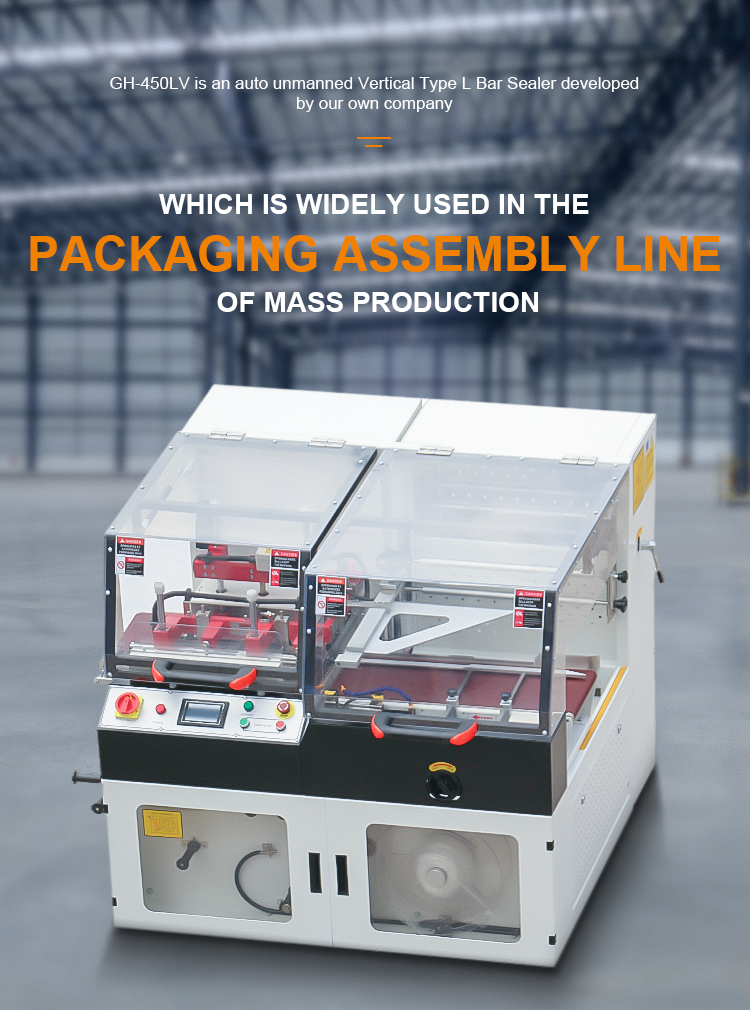

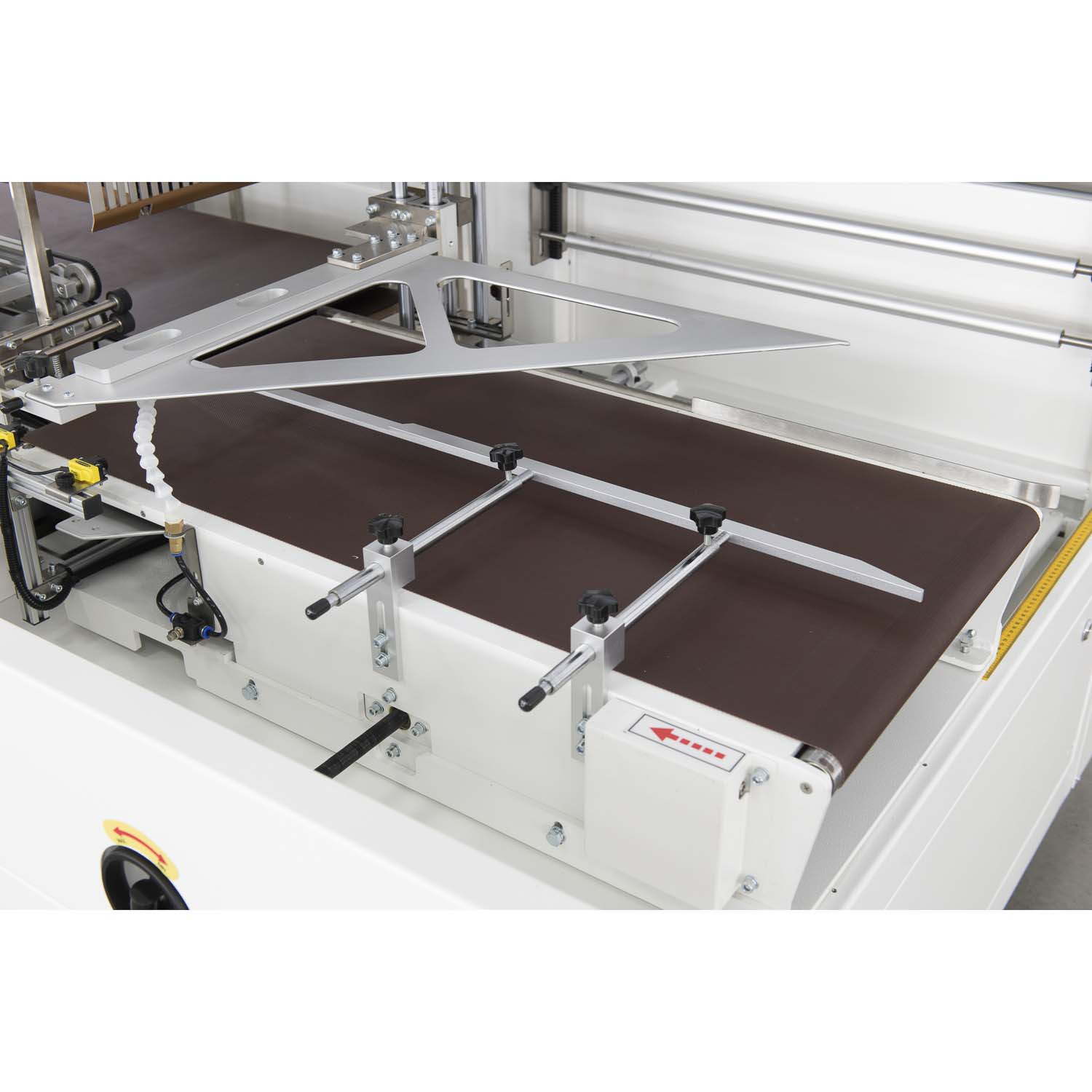

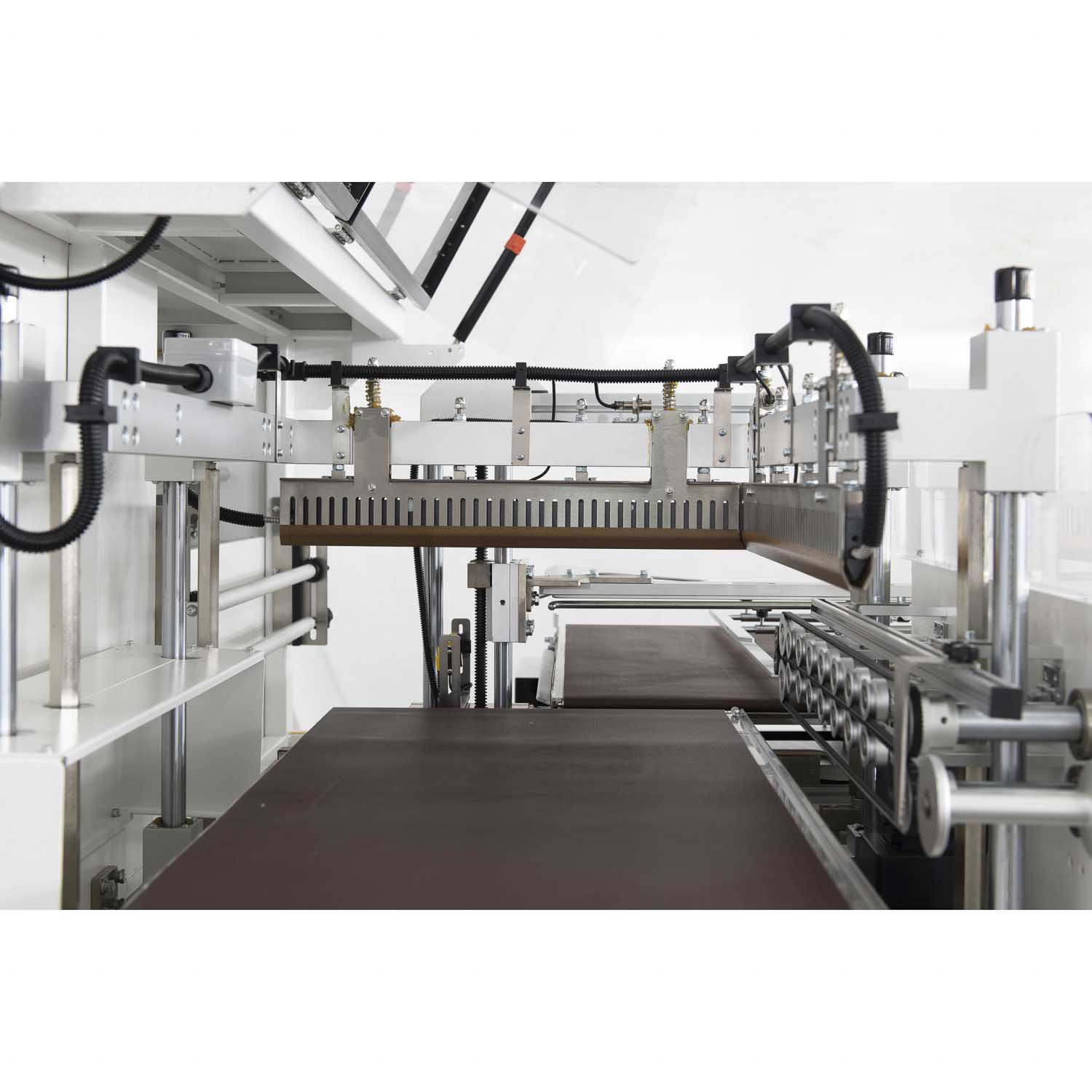

The GH-450LV functions as the automatic vertical L-bar sealing component which cleanly cuts and seals the wrapping film around the product. The SF-5030LG acts as the subsequent heat shrink tunnel that applies heat to tightly shrink the film around the packaged item.
Both units are optimized to work with POF (Polyolefin) shrink film, which is widely recognized for its high clarity, strong sealing capabilities, and durability during shipping.
For the GH-450LV sealer, the maximum package dimensions must meet the formulas: Length + Height ≤ 400mm, and Width + Height ≤ 300mm, with a maximum product height limit of 100mm to 120mm. The SF-5030LG shrink tunnel can accommodate products up to 400mm Wide and 200mm High.
Yes, the GH-450LV automatic L-bar sealer requires an external pneumatic air source with a pressure capacity of 6-8 kg/cm² to drive the mechanical sealing jaw assemblies.
The GH-450LV sealer conveyor features a variable speed adjustment from 0 to 35 meters per minute, while the SF-5030LG shrink tunnel features a variable speed adjustment from 0 to 25 meters per minute, allowing configuration for optimal line speed.
