DFQA450 Electric Semi Automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel
DFQA450 Electric Semi Automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel
DFQA450 Electric Semi Automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel
DFQA450 Electric Semi Automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel
DFQA450 Electric Semi Automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel
1 / 5
DFQA450 Electric Semi Automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel
DFQA450 Electric Semi Automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel
DFQA450 Electric Semi Automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel
DFQA450 Electric Semi Automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel
DFQA450 Electric Semi Automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel

DFQA450 Electric Semi Automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel

Send Inquiry

Product Description

Introduction of DFQA450 Electric Semi-automatic POF PVC Plastic Film L-bar Sealing and Cutting Machine With Shrink Tunnel

DFQA450 semi-auto L-type sealer and BS-A450 shrink tunnel are suitable for packing boxes, toys, electronic bricks, and so on. The two machines can pack the products with a layer of plastic film, which makes the packaging more beautiful and firm.

Key Characteristics

  • The machine adopts heating and stickiness-free seal knife, which ensures the machine running well and without smoke.

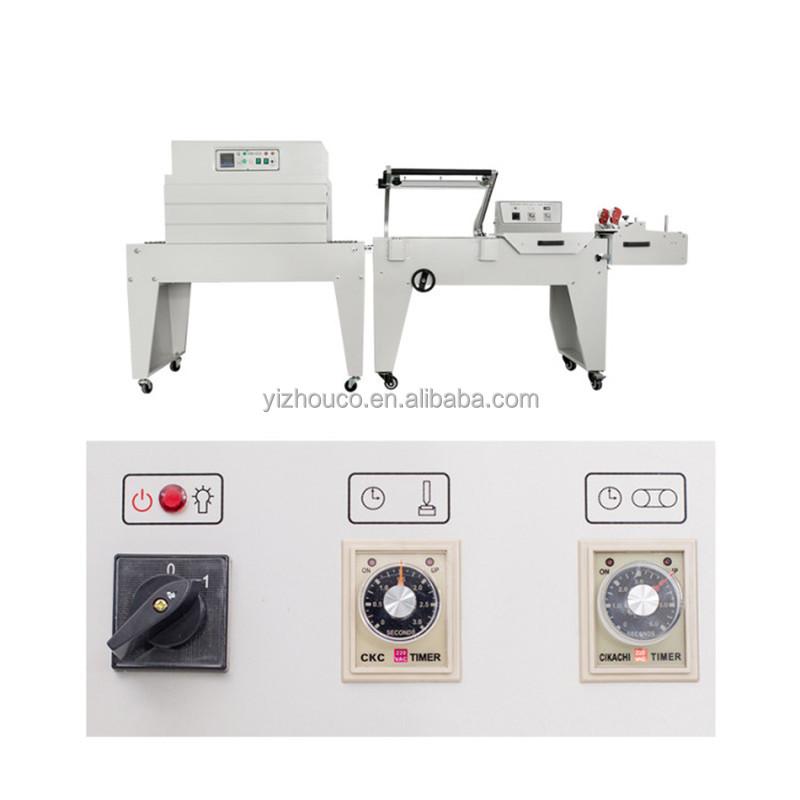

  • The time, transferring the products to the tunnel after sealing and cutting, is adjustable.
  • Working with shrink tunnel, high efficiency, and more convenient.

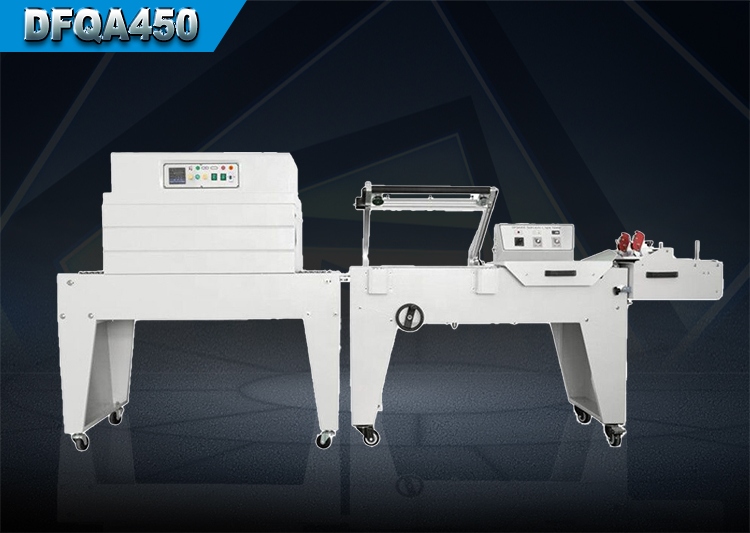

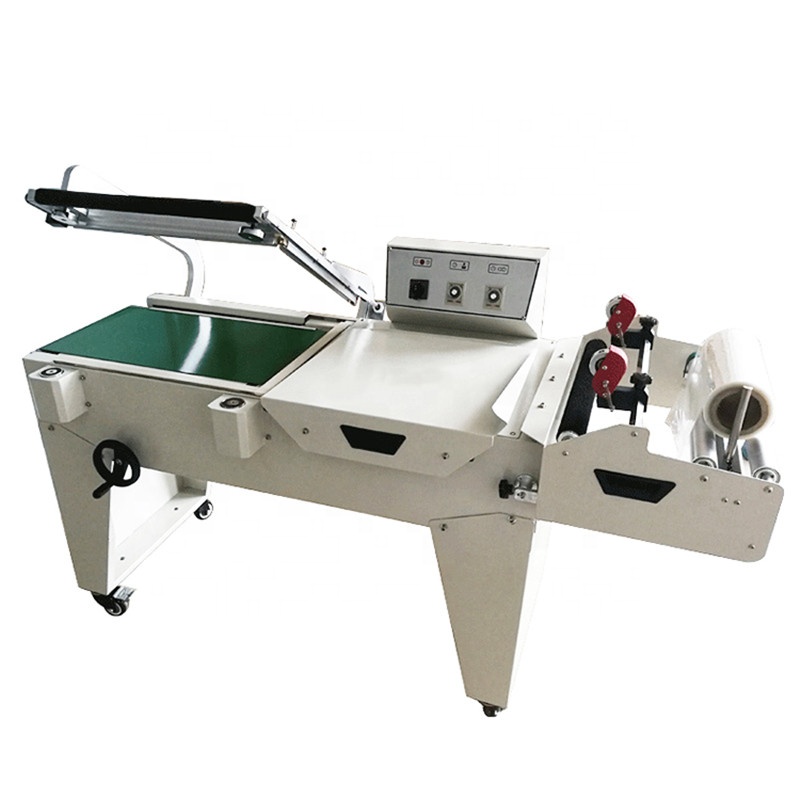

DFQA450 Electric Semi automatic POF PVC Plastic Film L bar Sealing and Cutting Machine

BS-A450 series semi-automatic cutting shrink heat shrink machine with adjustable film feeding system and adjustable conveyor table, can meet the different requirements of different products.

DFQA450 Electric Semi automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel Specifications

Model DFQA450 (L-type Sealer) Model BS-A450 (Shrink Tunnel)
Commodity L-type sealer Commodity Thermal shrink tunnel
Voltage AC220-240V/50-60Hz Voltage 220-240V/50-60HZ
Heater power 1200W Heater Power 9kW
Conveyor speed 0-10m/min Conveyor speed 0-10m/min
Max sealing size(L*W) 500*450mm Workroom size(L*W*H) 800*450*250mm
Max conveyor loading 25kg Max conveyor loading 15kg
Machine size(L*W*H) 1720*730*1050mm Machine weight 100kg
Machine weight 150kg Packing size 1310 x 720 x 880mm
Cutting film POF, PVC Shrink film POF, PVC, PP

Photos of DFQA450 Electric Semi automatic POF PVC Plastic Film L bar Sealing and Cutting Machine With Shrink Tunnel

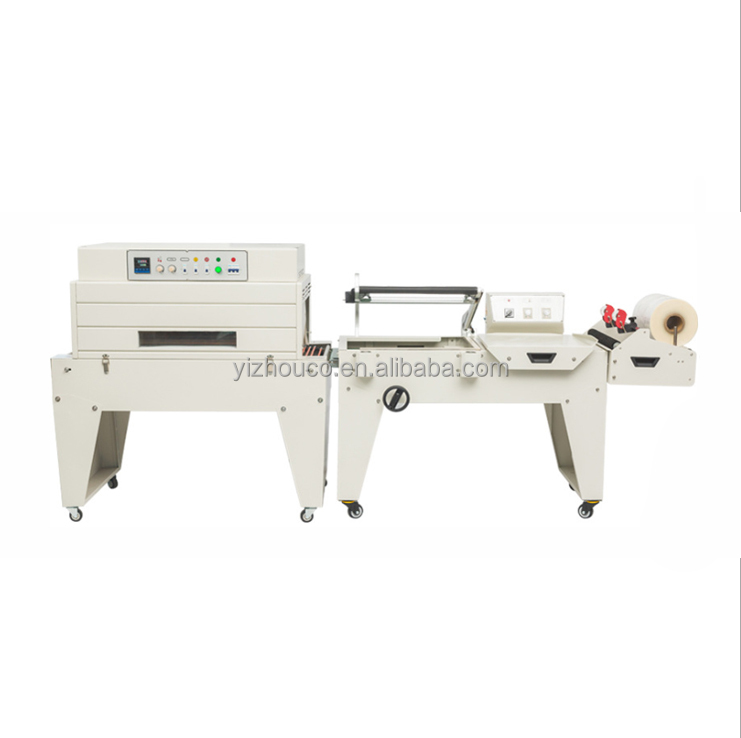

Machine Photo Detail 1
Machine Photo Detail 2

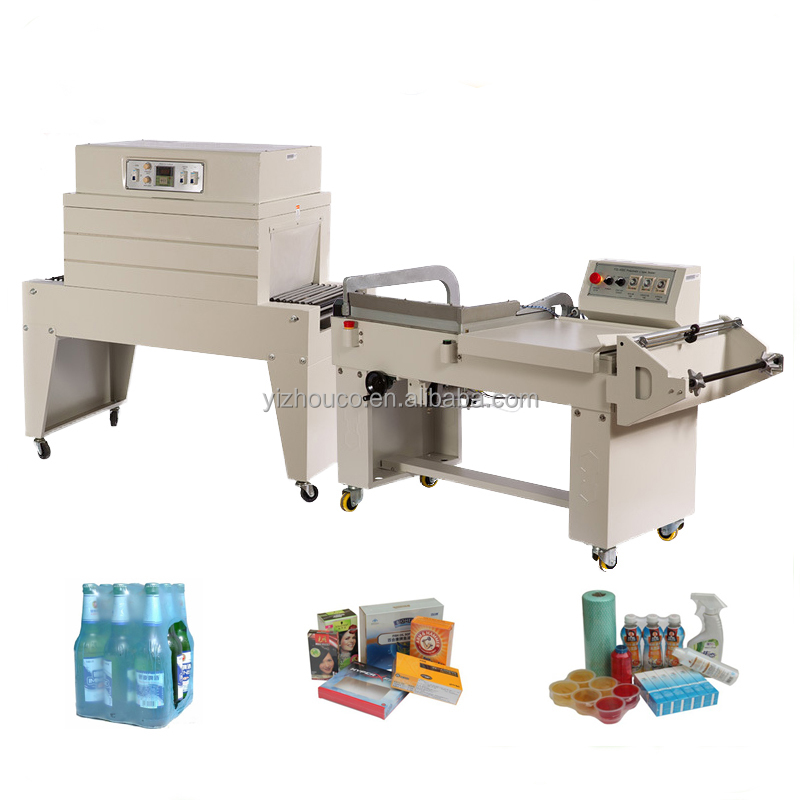

Machine Photo Detail 3

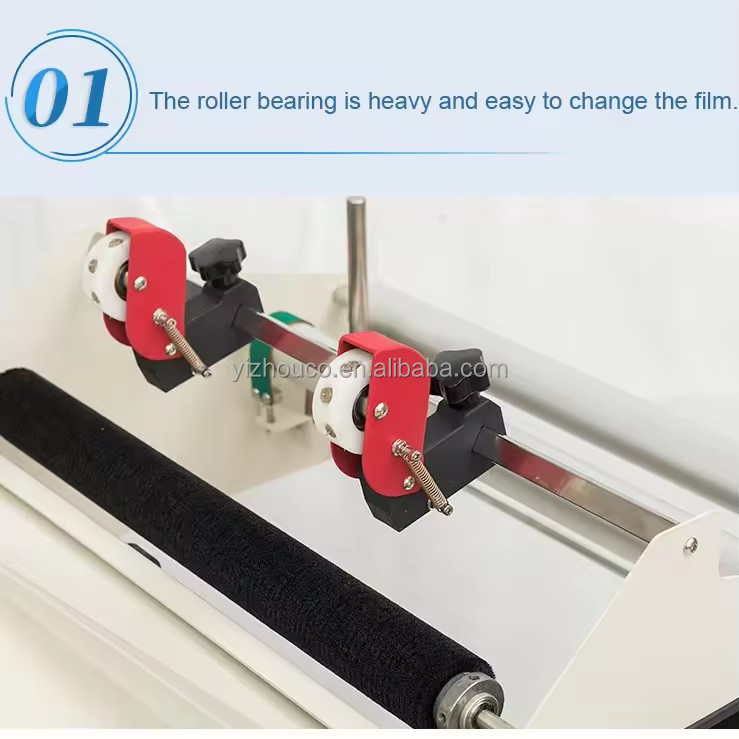

Machine Structural Setup 1

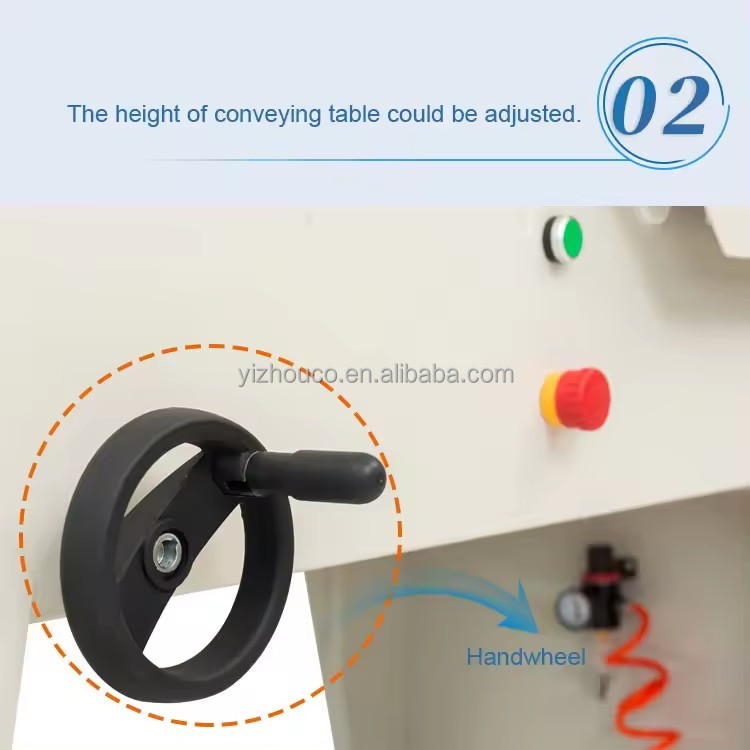

Machine Structural Setup 2
Shrink tunnel inlet details
Shrink tunnel outlet details
Operation and Control Panel
Internal Sealing components
Heating elements assembly
Detail View 7
Detail View 8
Detail View 9
Full assembly view

Frequently Asked Questions (FAQ)

Q: Which types of plastic films are compatible with the DFQA450 L-type sealer?
A: The DFQA450 sealer is designed to cut and seal POF and PVC films seamlessly.
Q: What is the maximum product dimension that can be sealed?
A: The maximum sealing frame size is 500*450mm, allowing you to wrap a wide variety of box shapes and dimensions.
Q: Does the BS-A450 shrink tunnel support different film types?
A: Yes, the BS-A450 shrink tunnel is versatile and supports shrink films made of POF, PVC, and PP.
Q: How does the stickiness-free seal knife benefit the operation?
A: The specially coated stickiness-free heated seal knife ensures smoke-free operations and prevents messy residue buildup on the blade.
Q: Is the conveyor speed adjustable for both machines?
A: Yes, the conveyor system speeds are fully adjustable ranging from 0-10m/min to optimize packaging flow and output quality.
Q: Can the timing between sealing and conveying to the tunnel be customized?
A: Absolutely. The transition time between sealing/cutting and moving the packaged item into the shrink tunnel is fully adjustable to meet different operation paces.
