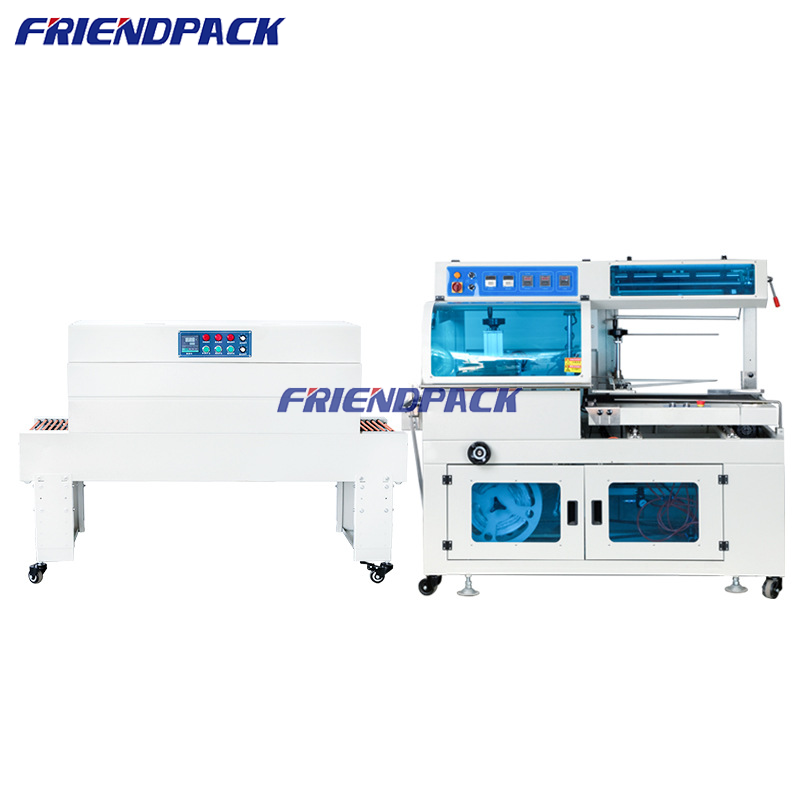

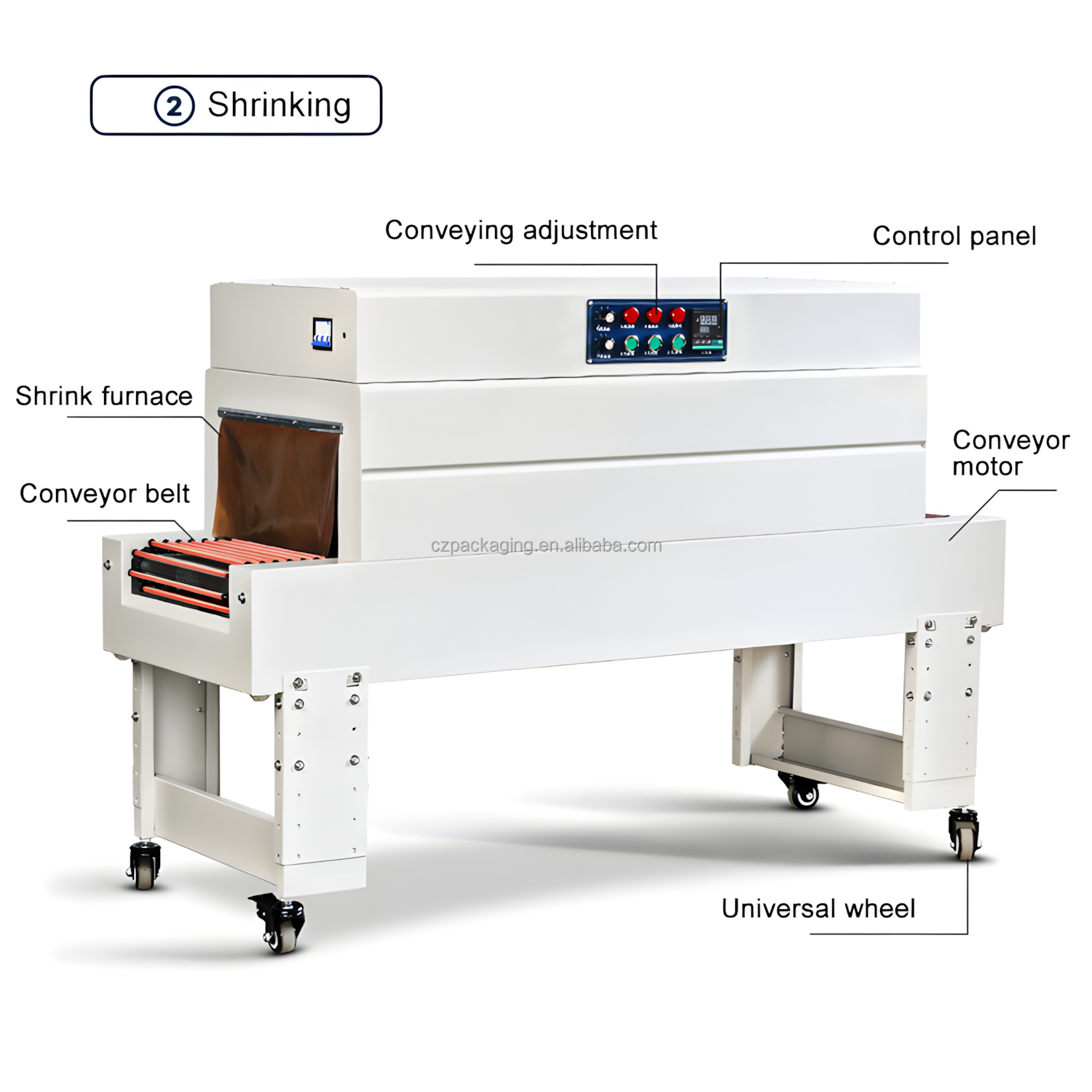

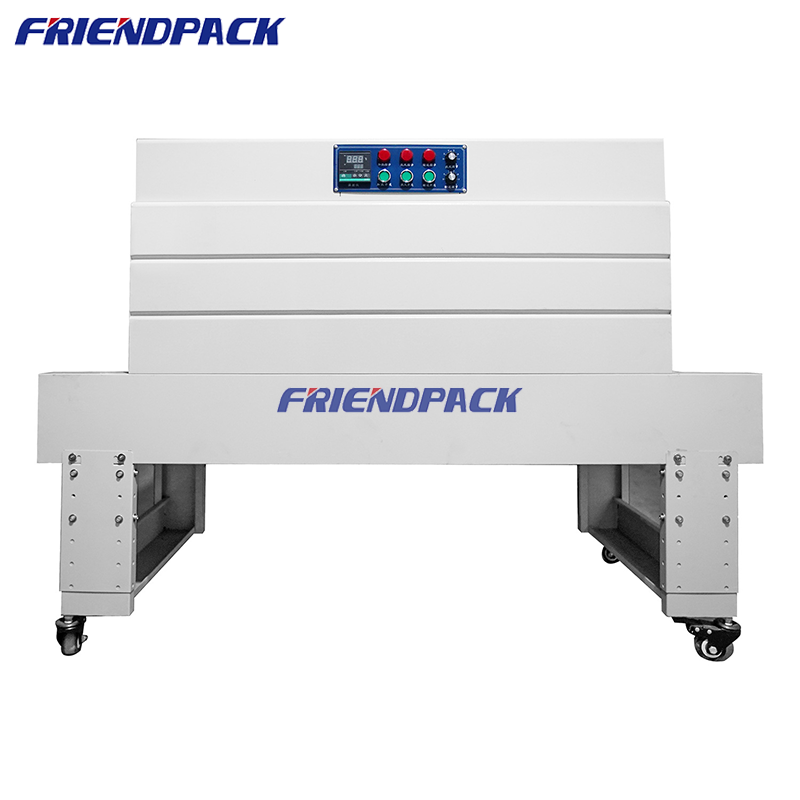

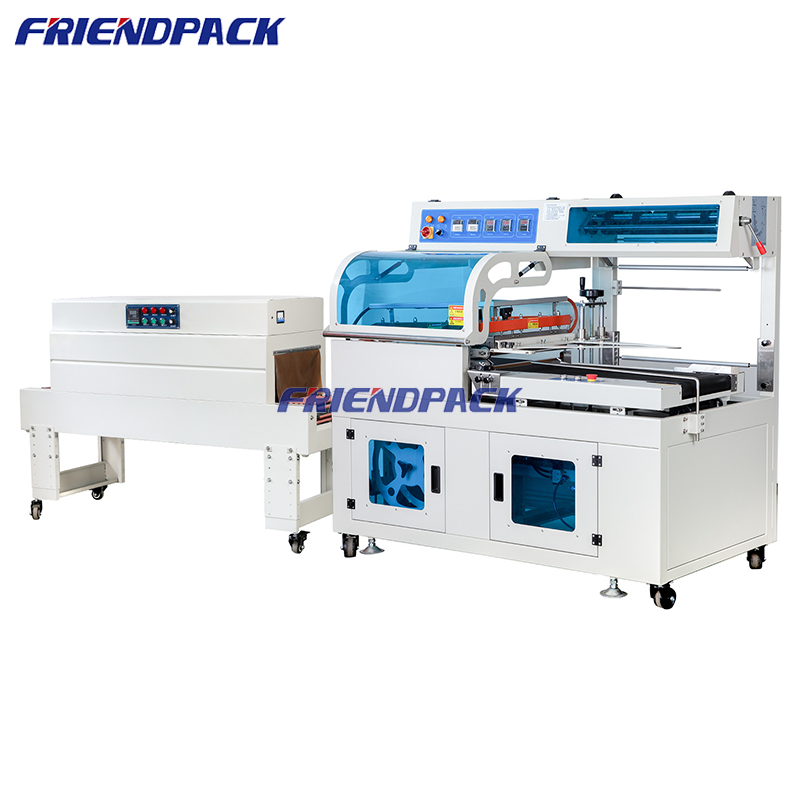

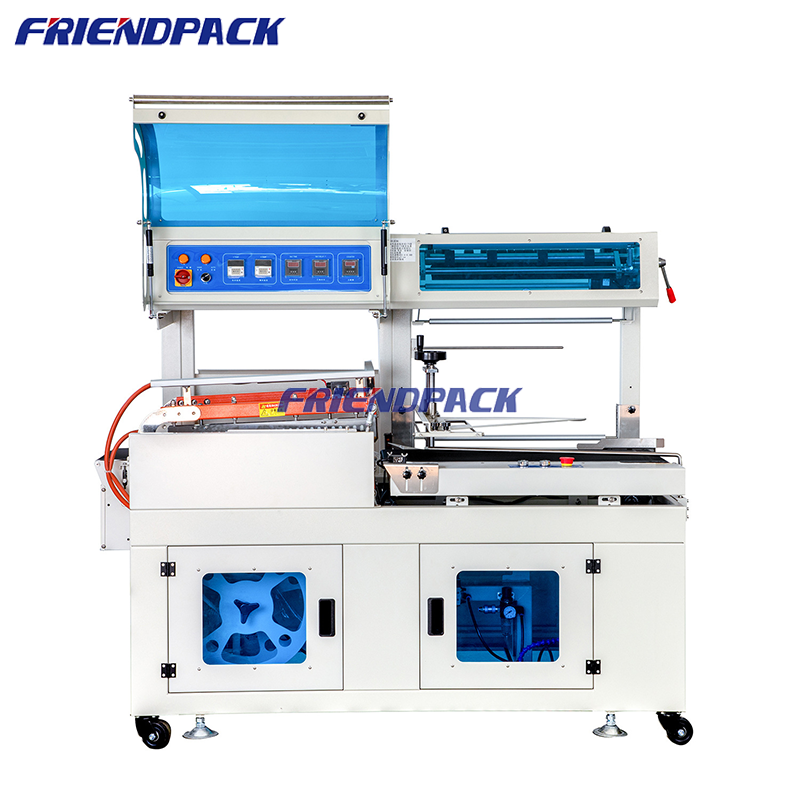

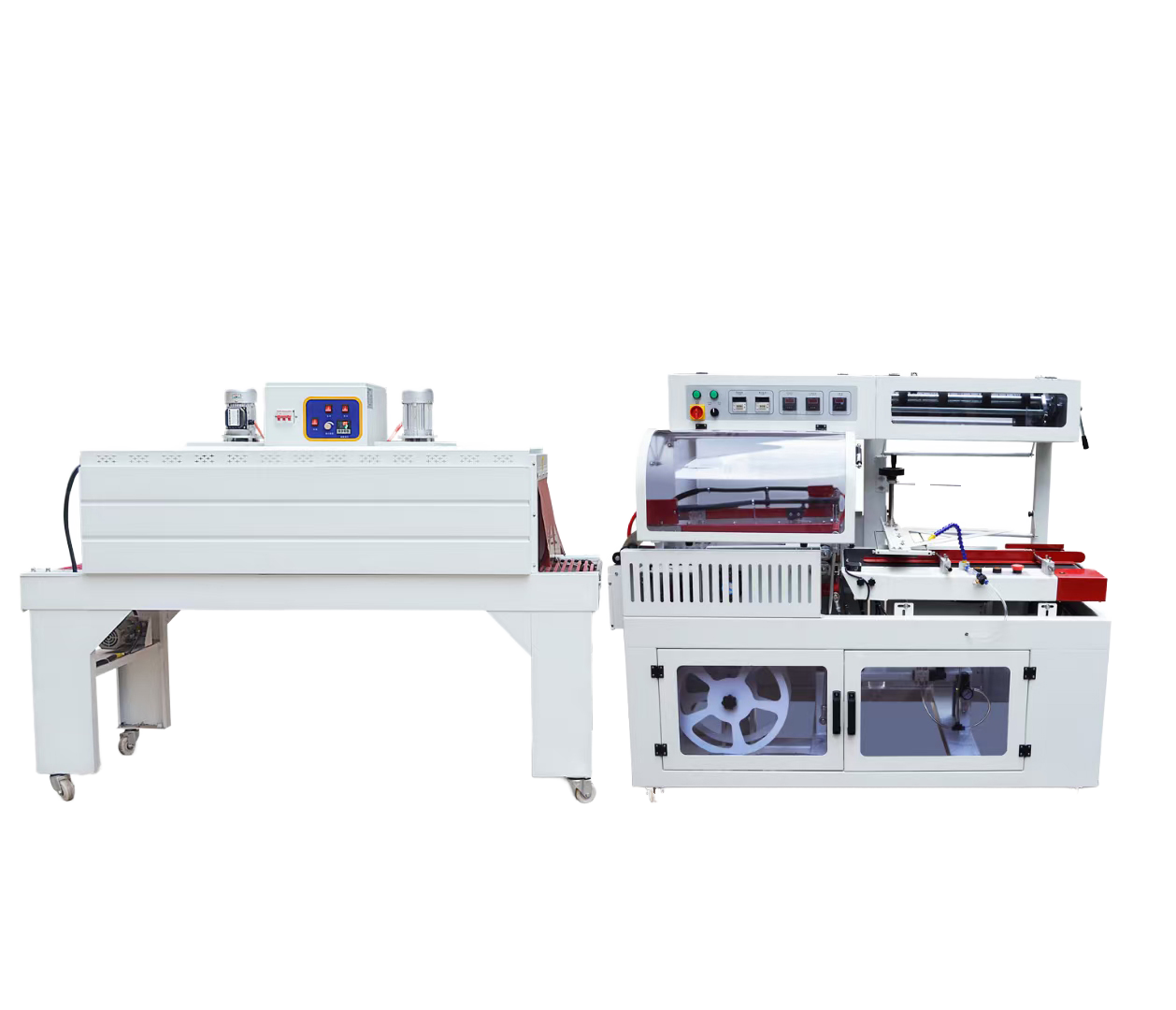

| Film Cutting Machine (FQL450 L Sealer) | Shrinking Machine (BSN4020C Shrink Machine) | ||
|---|---|---|---|
| Power Voltage | 220V/50-60HZ | Power Voltage | 380v 50-60HZ/220V 50Hz |
| Gas source | 5-7kg/cm³ | Power | 9 KW |
| Power | 1.5KW | Heat shrink Box (L*W*H) | 1200*400*200mm |
| Packing Speed | 15-30bags/min | Produce Size (W*H) | 350x150mm |
| L+H (H < 150) | < 500mm | Conveyor Speed | 0-15m/min |
| W+H (H < 150) | < 400MM | Conveyor material | roller chain |
| Max Height | < 150mm | Roller Chain | Several Spare pieces |

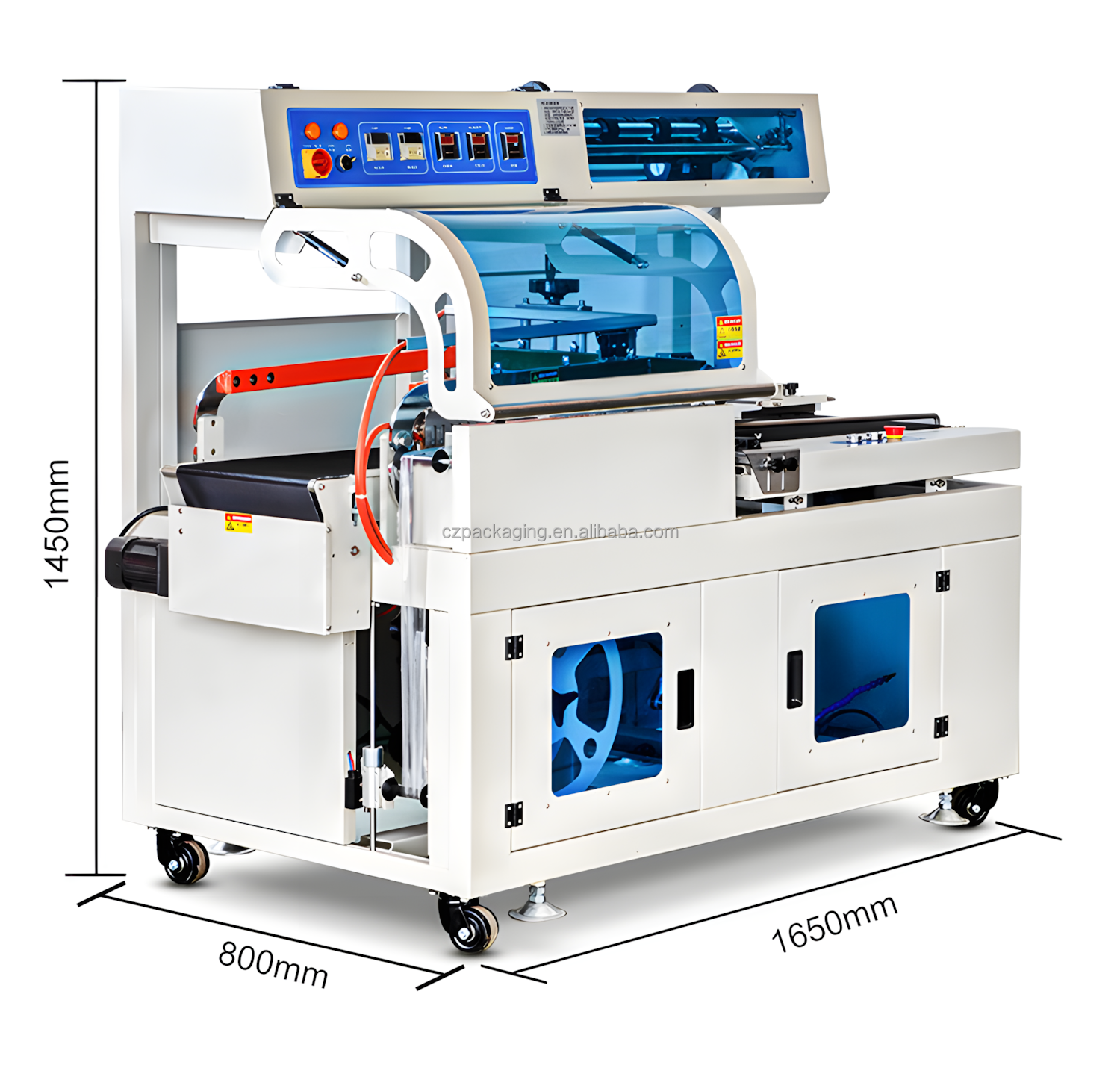

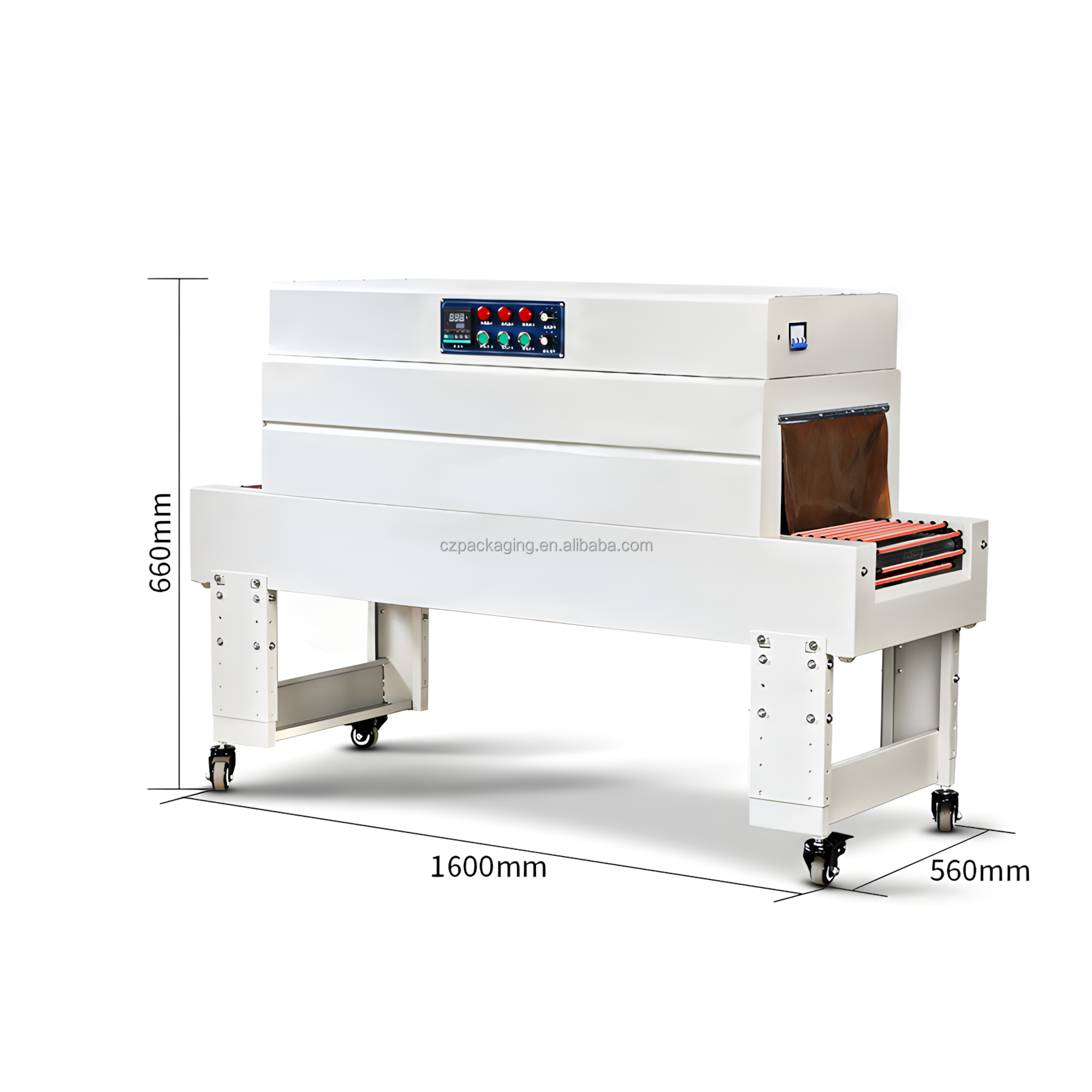

| External Dimensions | 1650x800x1450mm | Machine Size (L*W*H) | 1400x560x660mm |
| Weight of Machine | 350kg | Weight of Machine | 100kg |
| Applicable Film | POF/PE | Applicable Film | POF.PVC.PP |
| Wooden Case Package | 2100*1050*1570mm | Wooden Case Package | 1700*820*820mm |
| Main Parts Configuration (List 1) | ||
|---|---|---|
| Name | Qty | Parts Original Manufacturer |
| cylinder | 1 | AIRTAC |
| Motor | 1 | Maili China |

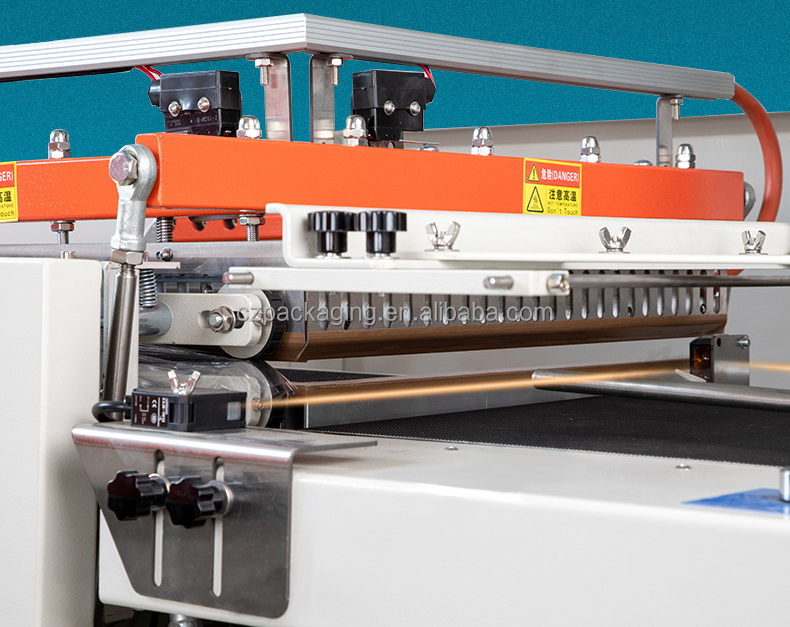

| Photoelectric switch | 1 | Omron |
| Intermediate relay | 1 | Omron |

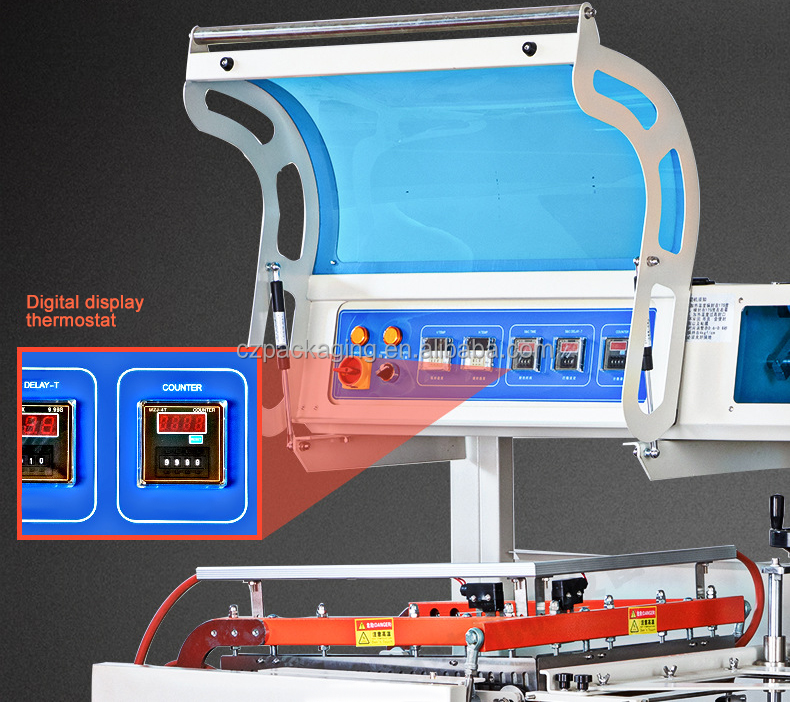

| Digital display (temperature controller) | 1 | Xinpu China |
| Time Relay | 1 | C-Lin |
| Indicator light other small electrical switch | 5 | Shuangke |

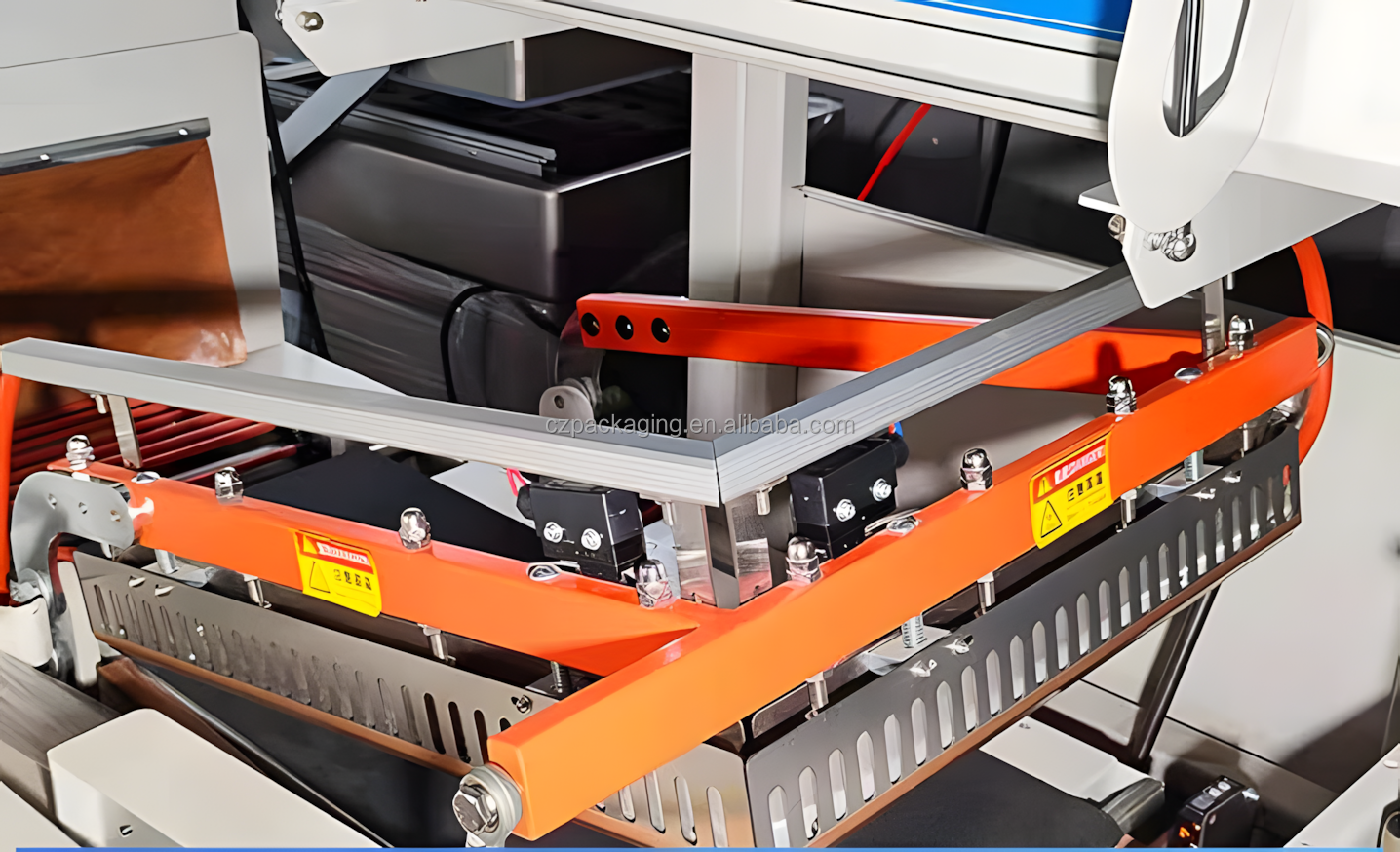

| Micro Switch | 1 | Omron |
| Main Parts Configuration (List 2) | ||
|---|---|---|
| Name of Parts | Qty | Original Manufacturer |
| Non-sequencing carrier | 1 | CHINT |
| AC contactor | 1 | CHINT |
| Intermediate power supply | 1 | CHINT |
| Fixed electric device | 3 | C-Lin |
| Power Switch | 1 | CHINT |
| Intelligent temperature controller | 1 | Yuhe |
| Indication Light | 3 | GOCHENG |
| power switch button | 3 | Shanghai Jiangda |
| Three-phase motor | 1 | SULIN Moter |
