| The Main Technical Parameters - Model FQL550 | |
|---|---|
| Model | FQL550 |
| Power Supply | 220V/50-60Hz |
| Compressed Air | 6-8 bar |
| Power | 1.5KW |
| Packing Speed | 15-30 bags/min |
| Maximum Packaging Size L+H (H < 150mm) | < 600mm (Customizable) |
| Maximum Packaging Size W+H (H < 150mm) | < 500mm (Customizable) |
| Sealing Cutter Size L*W (mm) | 650 × 550 |
| Machine Size (L*W*H) | 1900 x 930 x 1450 mm |
| Whole Machine Weight | 350kg |
| Applicable Shrink Film | POF, PE |
| Technical Parameters - Model BSN5030 | |
|---|---|
| Model | BSN5030 |
| Input Voltage | 220V-380V 50-60Hz |
| Power | 9KW |
| Packing Speed | 0-20m/min |
| Tunnel Size (L*W*H) | 1200 * 500 * 300 mm |
| Product Size (W*H) | 500 * 300 mm |
| Conveyor Material | Chain Net / Chain Roller / Teflon |
| Conveying Load | 30kg |
| Machine Size (L*W*H) | 1600 * 660 * 1200 mm |
| Weight | 70kg |
| Heat Shrink Films | POF, PE, PVC |
We produce a variety of automatic sealing machines, heat shrinking packing machines, sleeve wrap machines, vacuum sealing machines, pillow packing machines, automatic packing lines, and more.
All equipment comes with a 100% quality guarantee and a 1-year warranty. All accessories, parts, components, operational training, and technical support are freely provided at any time.
First, our packing equipment is practical, durable, multi-functional, modern in design, and simple to operate and install. High-quality packing adds value to your products. Second, we have a complete post-sales customer service system to satisfy each customer, and as a professional factory, we provide the best competitive prices.
All of our machines have successfully passed the CE authorization. In addition, we hold numerous patents and are recognized as a local technology leader.
The FQL550 model is fully compatible with POF and PE shrink films, offering versatile wrapping options depending on your packaging requirements.

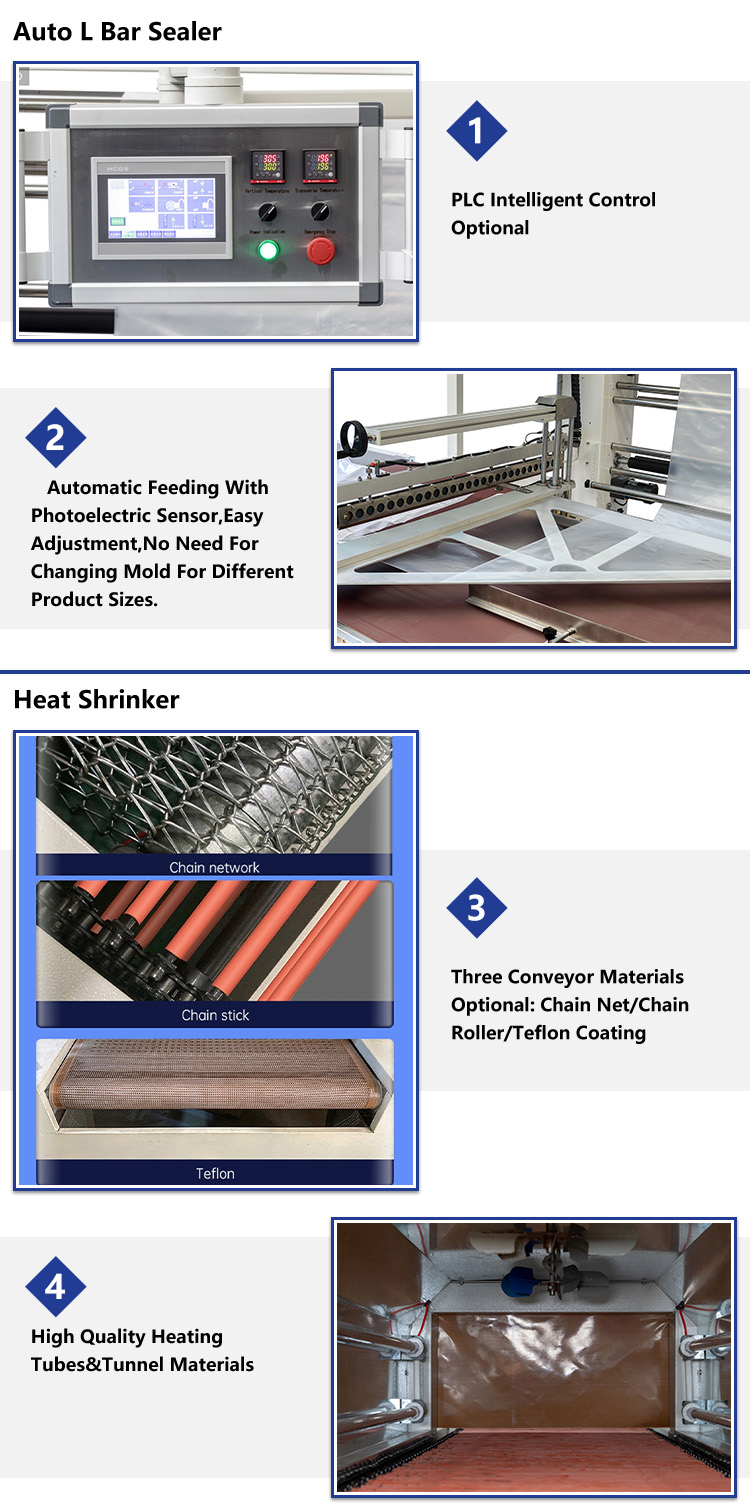

The BSN5030 shrink tunnel offers Chain Net, Chain Roller, or Teflon conveyor materials, and has a robust conveying load capacity of up to 30kg.
