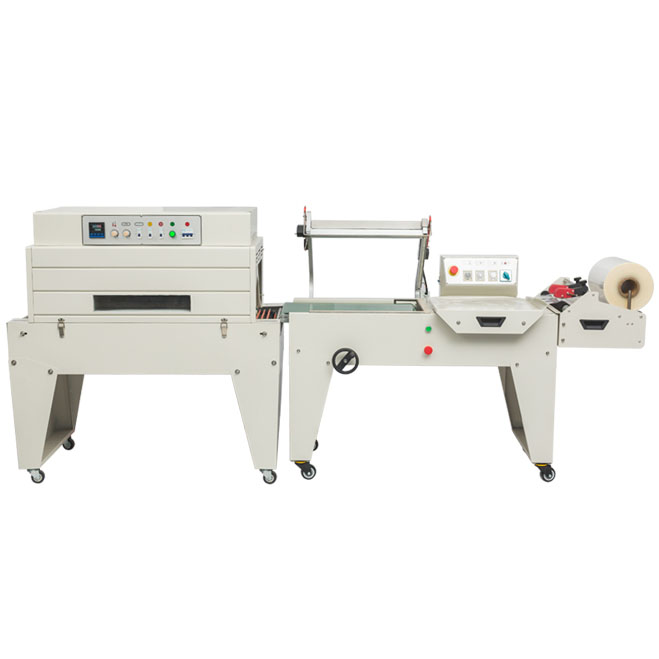

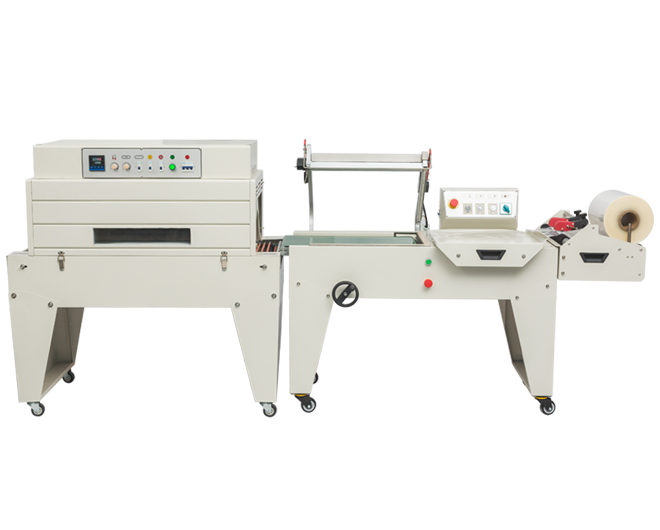

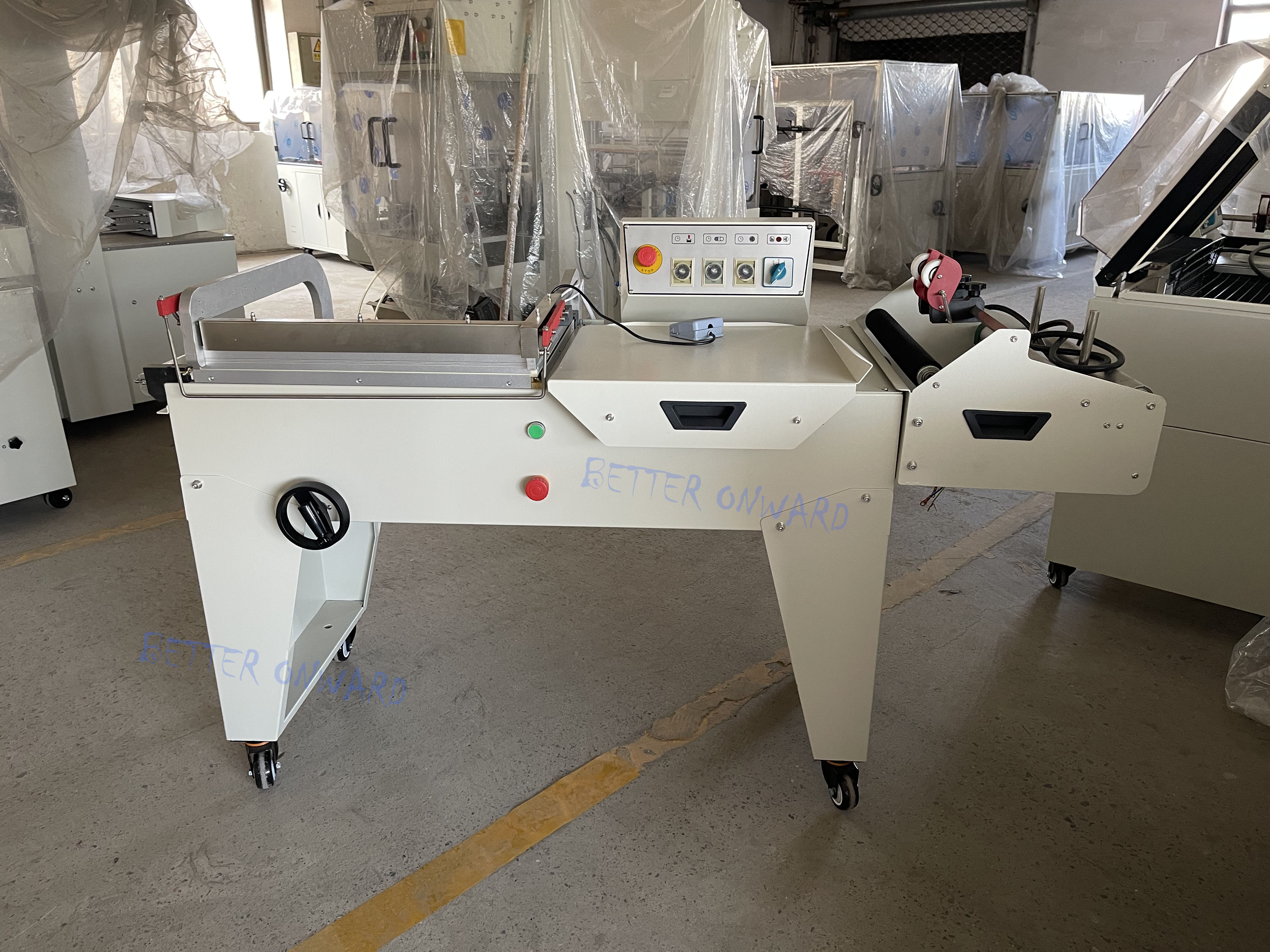

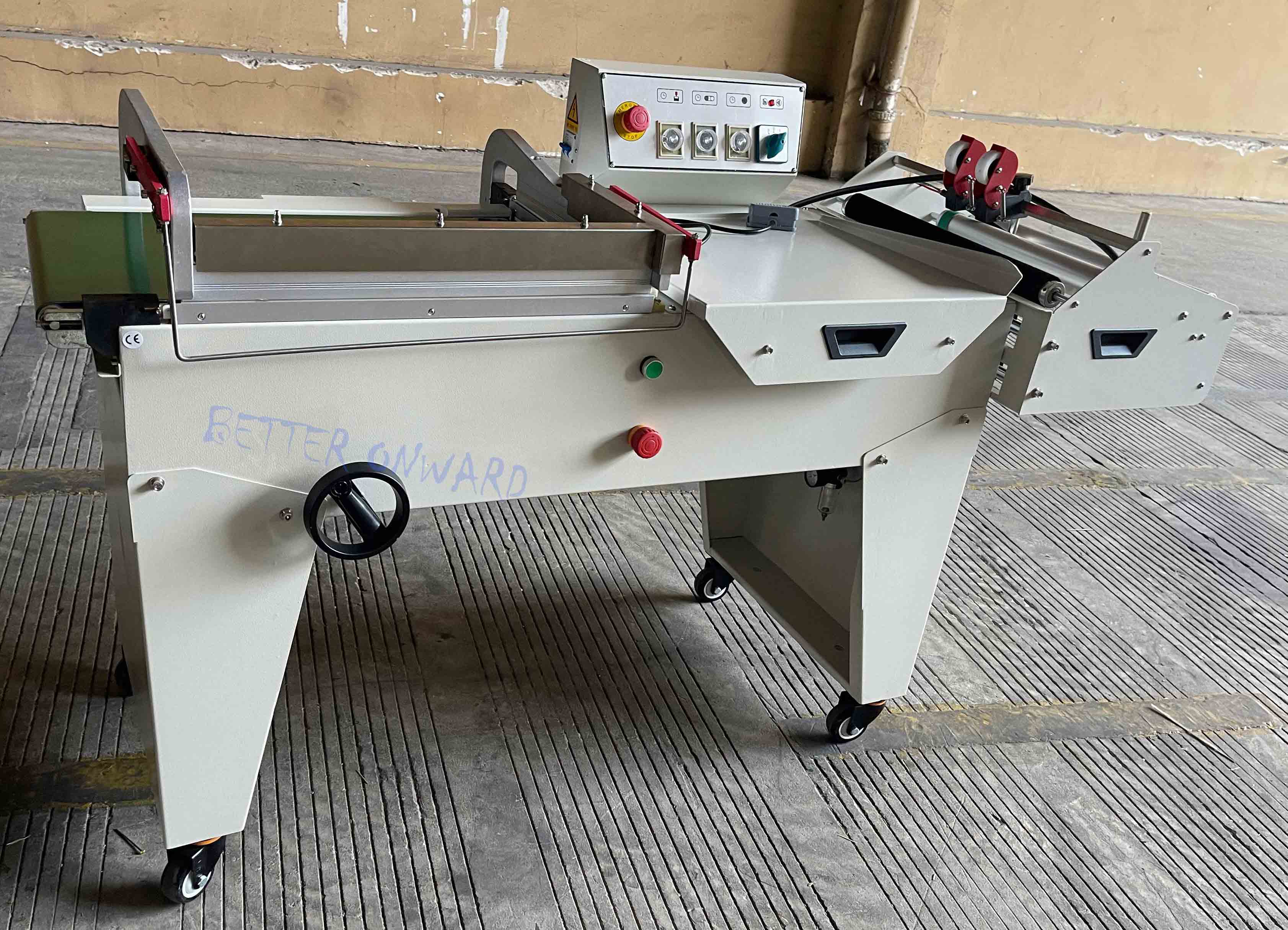

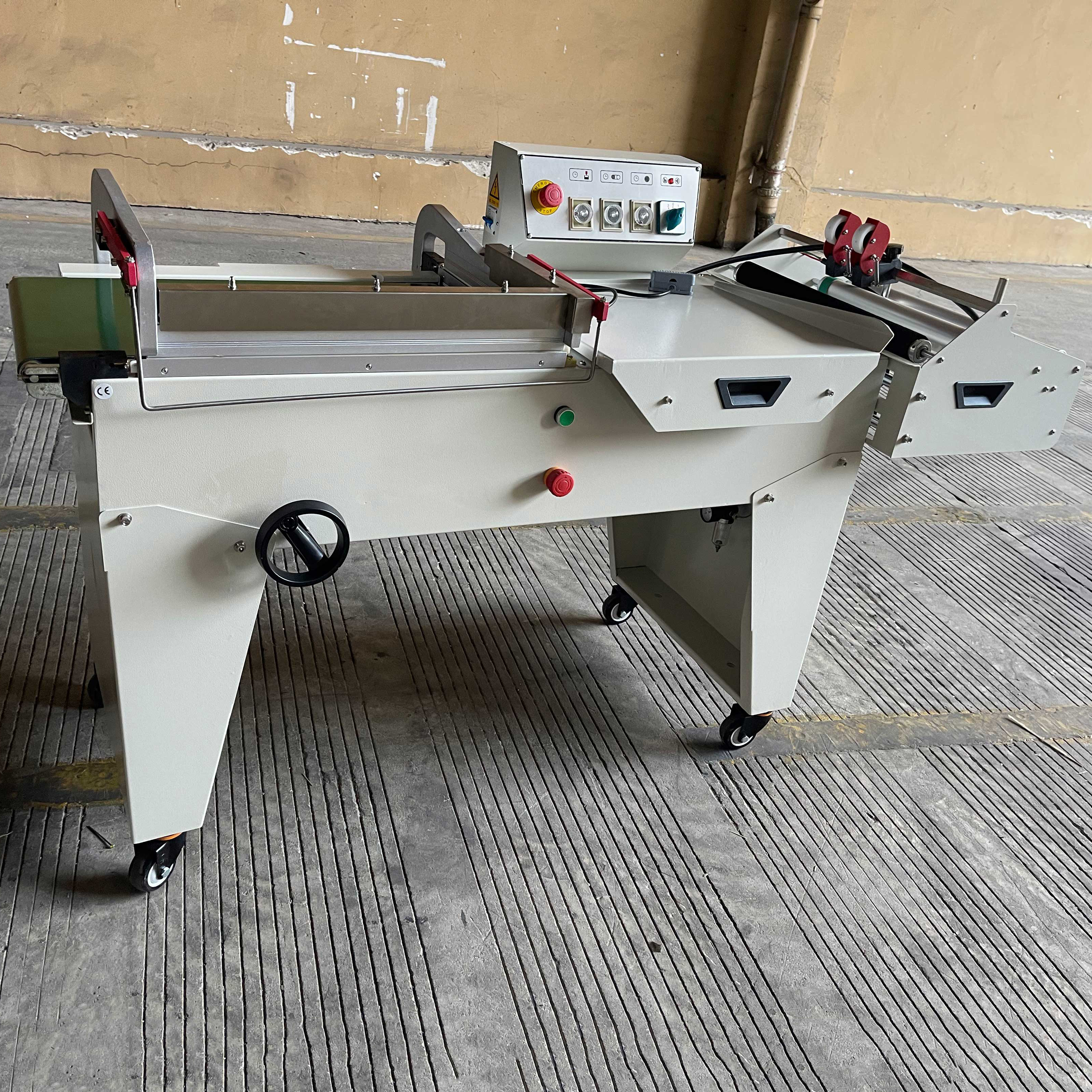

Sealing and Cutting first, then shrinking.
These two machines can pack the products with the plastic film, after heat shrinking, the plastic film will wrap the products tightly, to fully display the appearance of goods, which makes the packaging more beautiful and firm.
Our these two combination machines are widely used in the products packaging for food, beverage, cosmetics, printing, hardware and other industries.
| Model | DFQC450 |
| Voltage | AC220V 50-60HZ |
| Power | 1KW |
| Production capacity | 400-600packs/hour |
| Max. sealing size(L*W) | 550*450mm |
| Machine size(L*W*H) | 1720*730*1050mm |
| Machine weight | 128kg |
| Cutting film | POF,PVC |

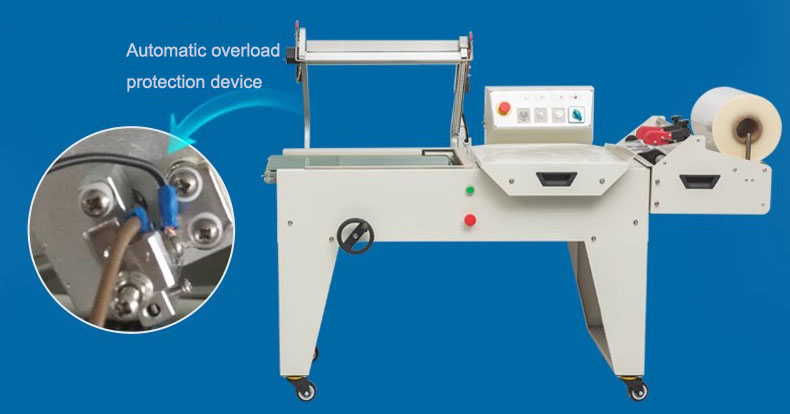

The automatic overload protection device is provided to prevent the heat sealing and cutting components from overheating due to operator errors or other causes, thereby extending the life of the entire machine.
| Model | DSA4525 |
| Voltage | 380V 50Hz |
| Power | 8.65KW |
| Conveyor speed | 0-10m/min |
| Tunnel size(L*W*H) | 1000*450*250mm |
| Conveyor load capacity | 5kg |
| Machine size (L*W*H) | 1260*670*1290mm |
| Applicable film | POF PVC |
After heat shrinking, the plastic film to wrap the products will be tight, will fully display the appearance of the products.
The packaged goods after sealing, it is moisture-proof, anti-pollution. And it could prevent splashing when the goods are broken.

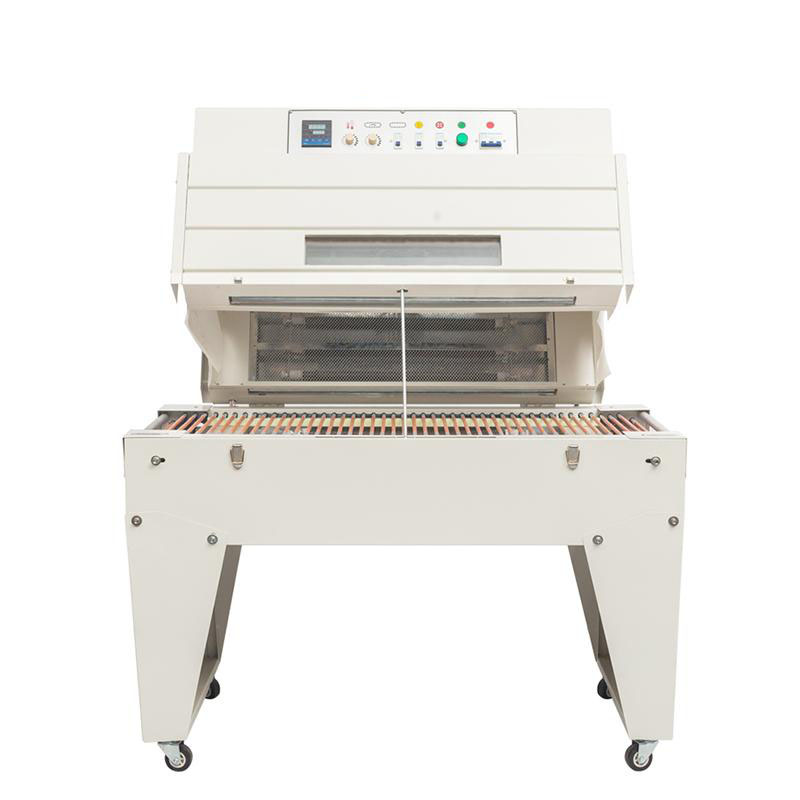

The shrink packaging machine can be lifted up, and supported by a bracing bar, making it easy to replace parts and maintain.
Heating evenly, with good shrinkage effect.

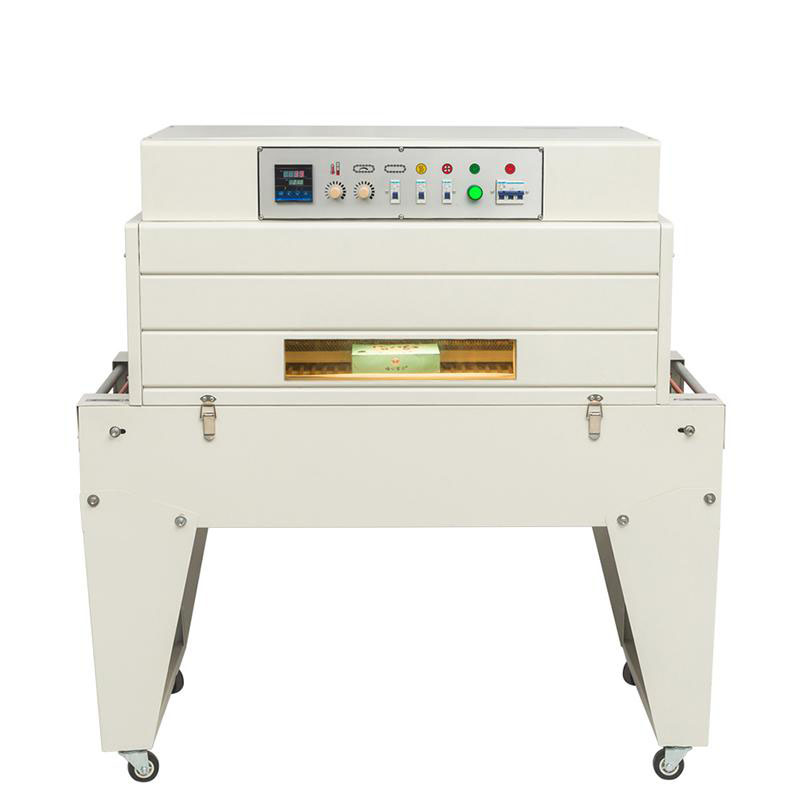

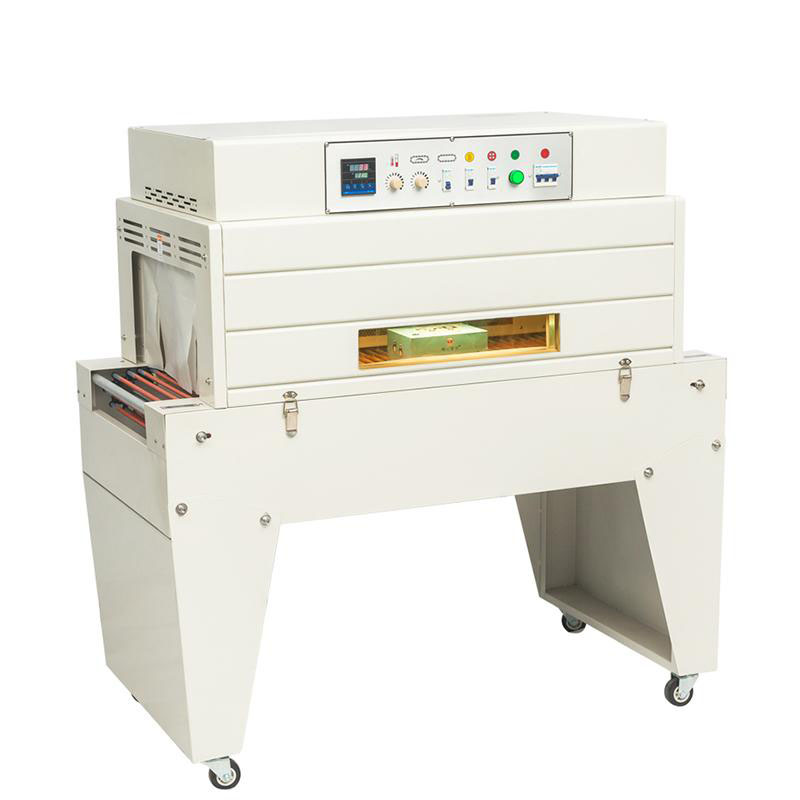

We design the observation window, it is more convenient to see the shrinking process.

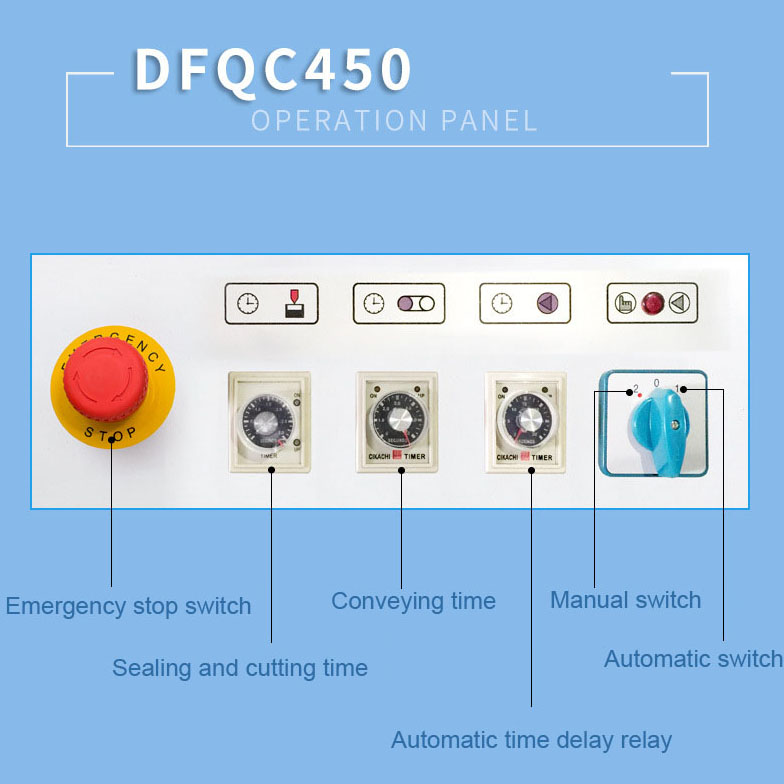

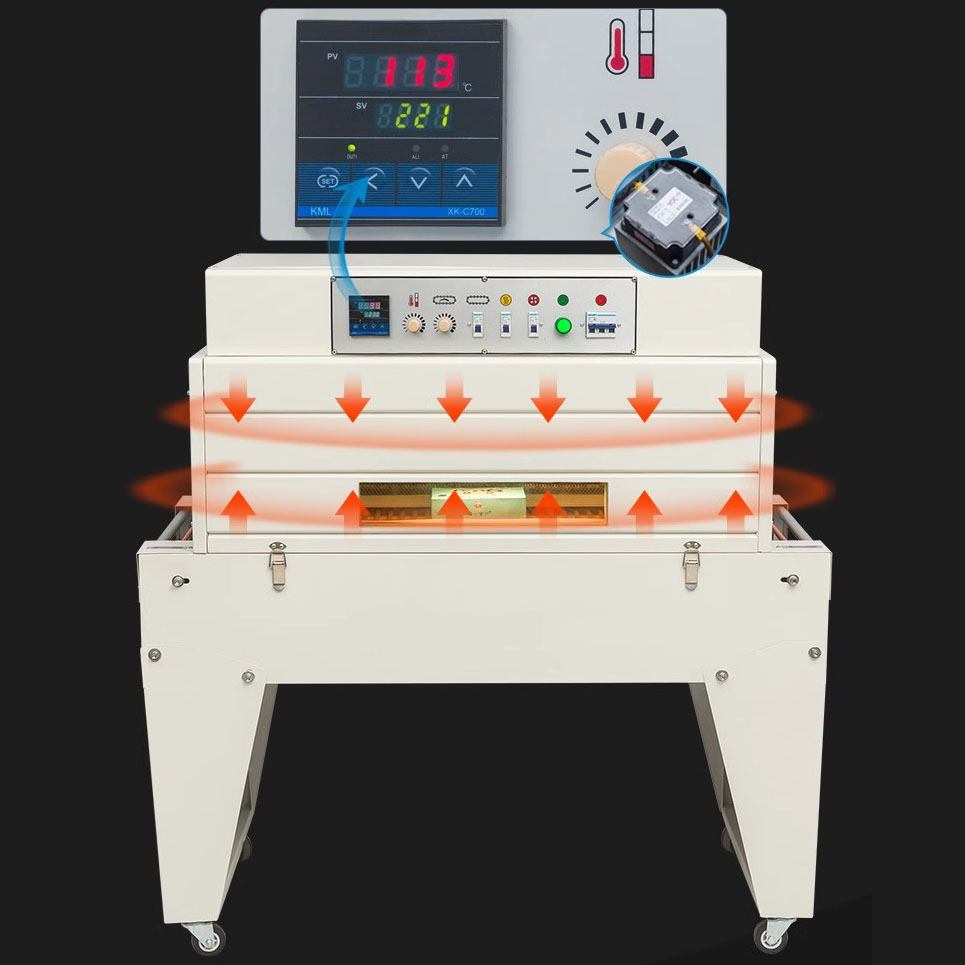

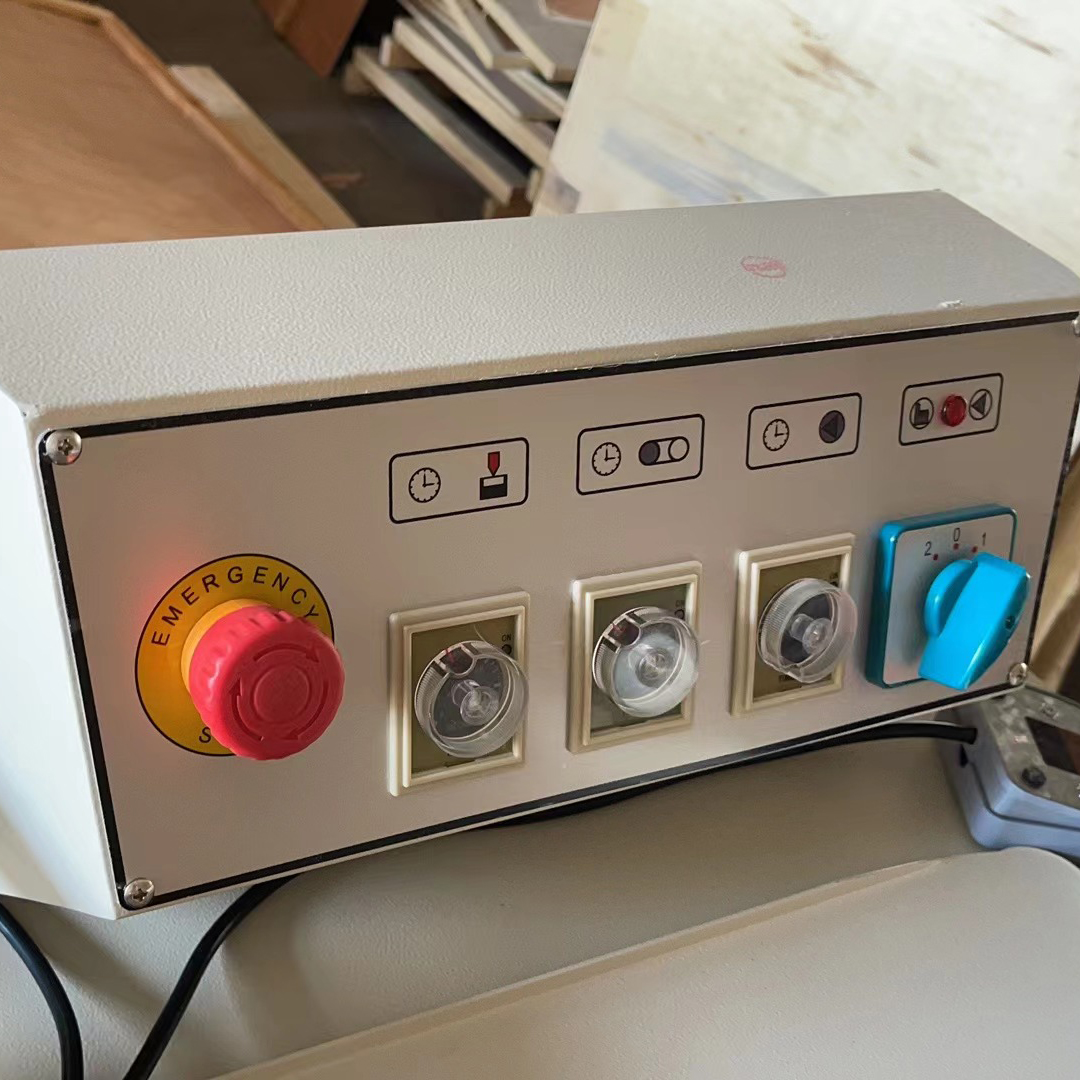

The operation panel is simple and beautiful, could control the temperature and conveying speed.
The intelligent digital display temperature controller, could control the temperature precisely.
New solid state voltage regulator, to control the temperature more precise, when the shrink tunnel temperature reaches the setting temperature, the machine will stop heating automatically.
The shrink tunnel temperature is stable and energy-saving, power-saving.

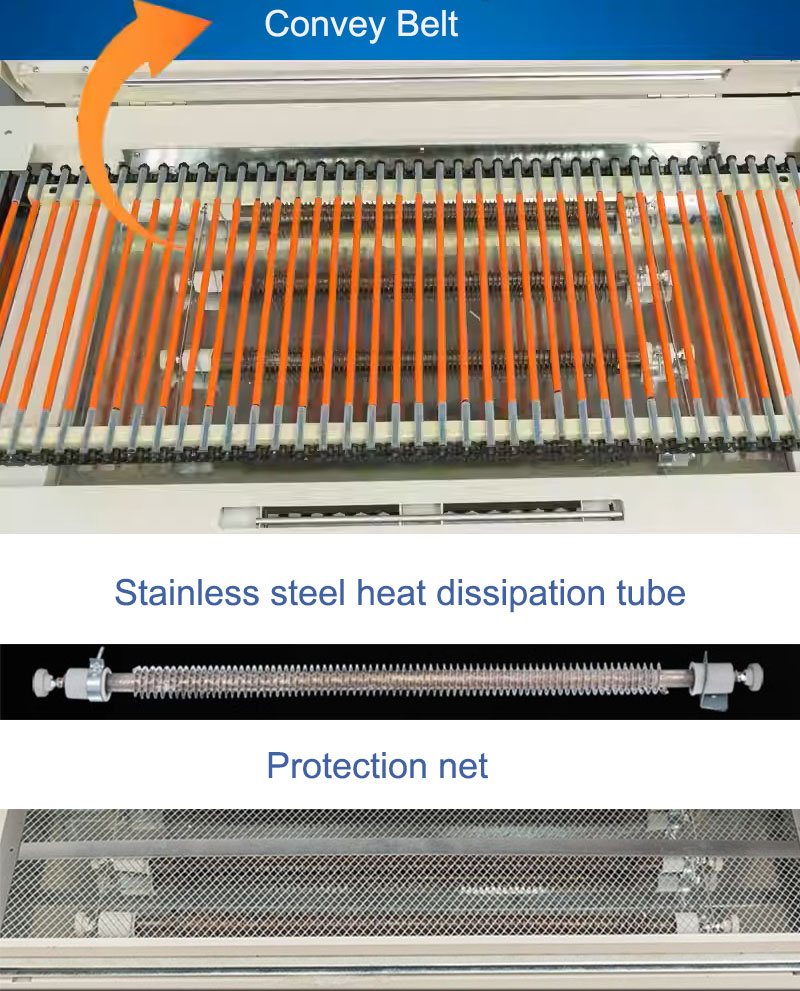

Chain conveying belt, red silicone tube and PTFE tube. It has the higher load capacity, the longer service life and the more stable transmission. It could protect the products more better.
Stainless steel heat dissipation tubes. It has large heat dissipation area, can reach the setting temperature faster.
We install the protective net, it could prevent packaged goods to touch the heating tubes when the machine is working, thus avoiding the packaged goods from being burned.

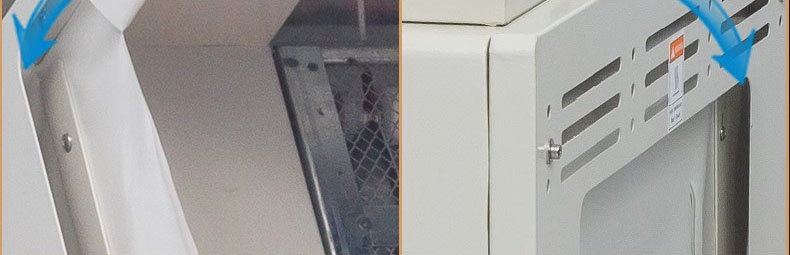

We install the heat insulation board in the two sides of the shrink tunnel, is more safe.

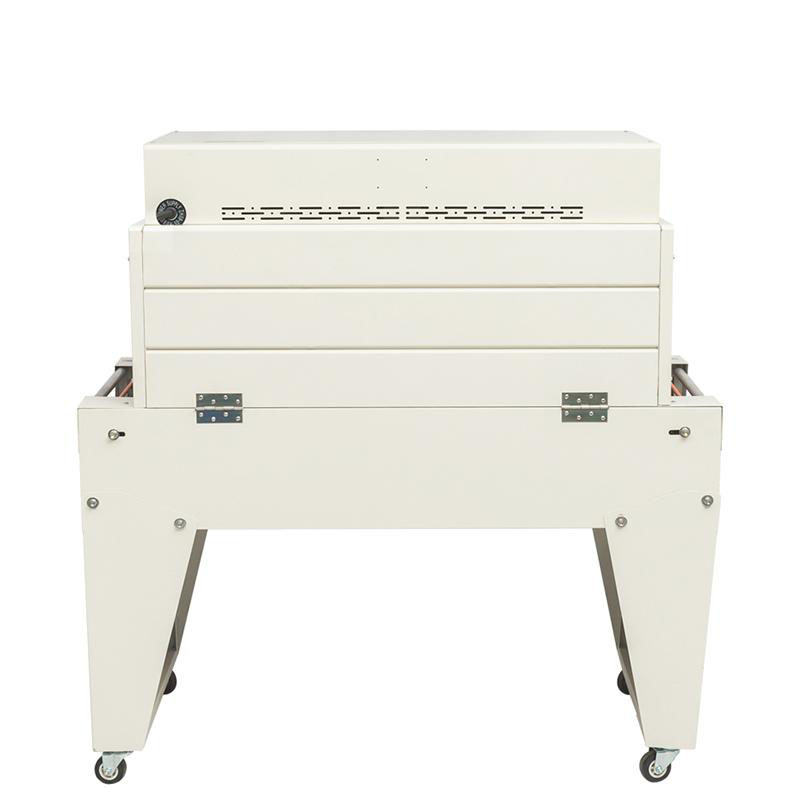

Mobile Casters, higher load capacity, more durable, and convenient to move.
To better ensure the safety of goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

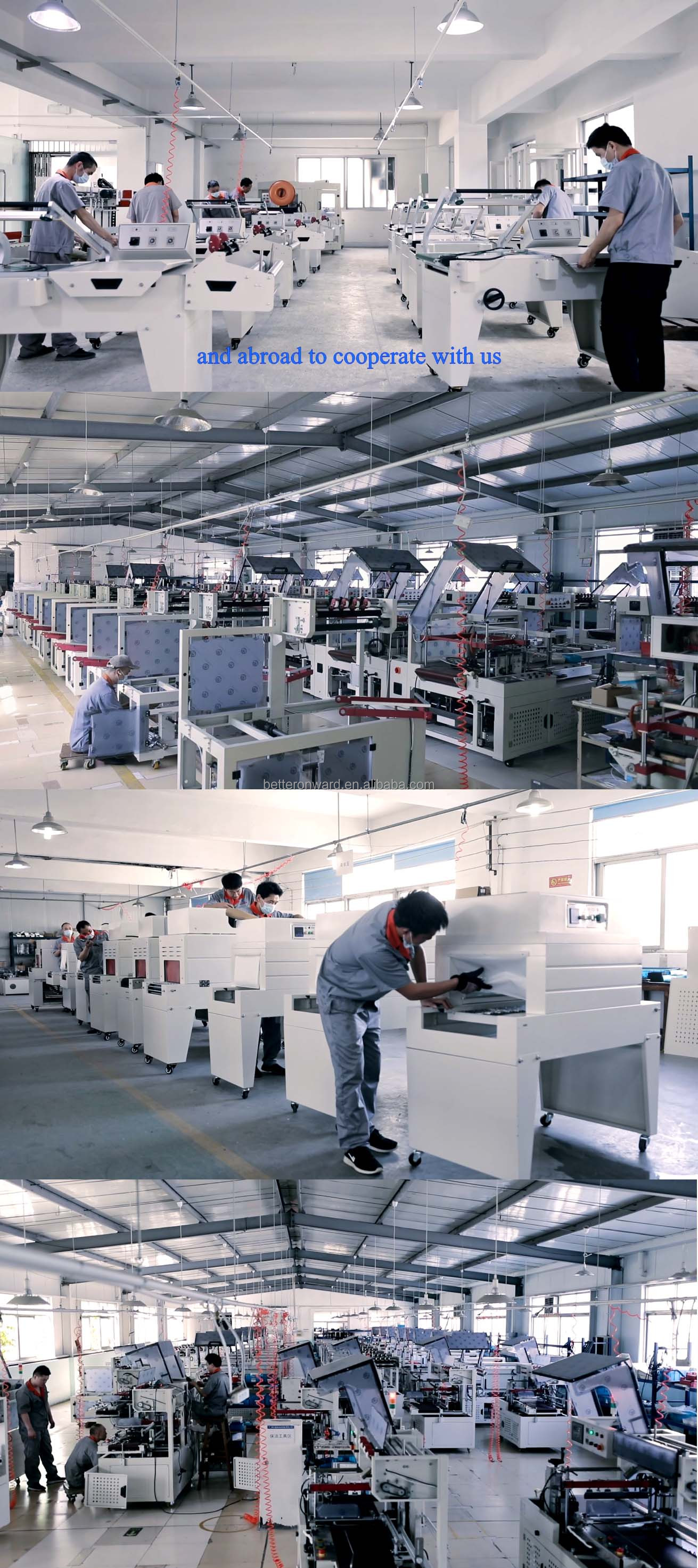

We have more than 20 years' experience in production and exporting, will provide more professional service and better price for you. We have our own Quality inspection department to guarantee our all the exported machine quality is superior. Our company will focus on production development and innovation, will create maximum values for customers at home and aboard. We are onward to better.
