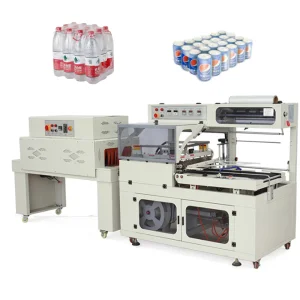

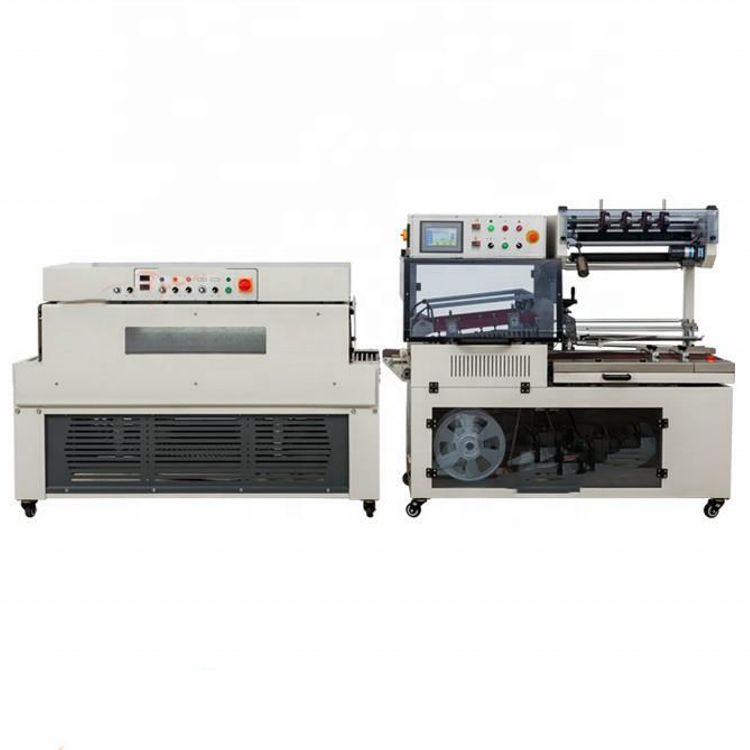

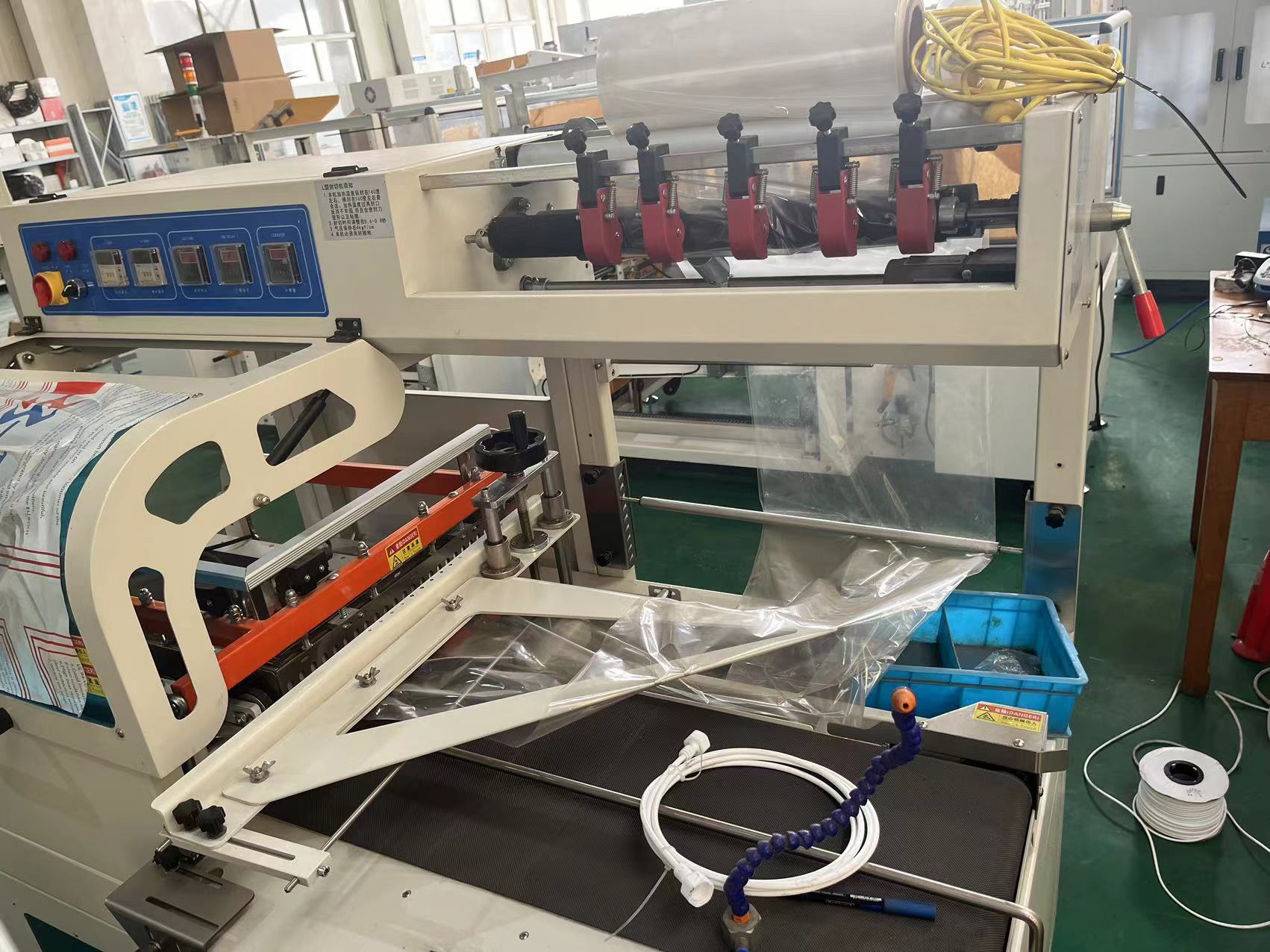

Widely used in shoes and clothing, e-commerce, pharmaceutical, cosmetics, flooring, beverages, hardware and other large-scale shrink packaging industries. With the development of Taobao e-commerce, this packaging machine is not only for packaging products, but also for the most part in the e-commerce industry, it is used to automatically cover the film instead of manually covering the express bag. (gray and black film can be used for packaging) improve work efficiency and reduce the packaging cost of enterprises.
| No | MODEL NO. | XY-D4525 |
| 1 | FILM TYPE | POF/PE |
| 2 | OUTPUT | 20-85pcs/min |
| 3 | Product Packaging size | W < 400mm, H < 250mm, W + H < 480mm |
| 4 | Knife size oven cavity size | L: 1500mm, W: 500mm, H: 300mm |
| 5 | Max temperature | 200°C |
| 6 | Single/3Phase voltage Frequency | 220V/380V, 50-60HZ, 3Phase |
| 7 | power | 16KW |
| 8 | Rated Power | 25A |
| 9 | Table height | 850±30mm |
| 10 | Machine weight | 650KG |
| 11 | Machine size | 1850*1095*1325 |

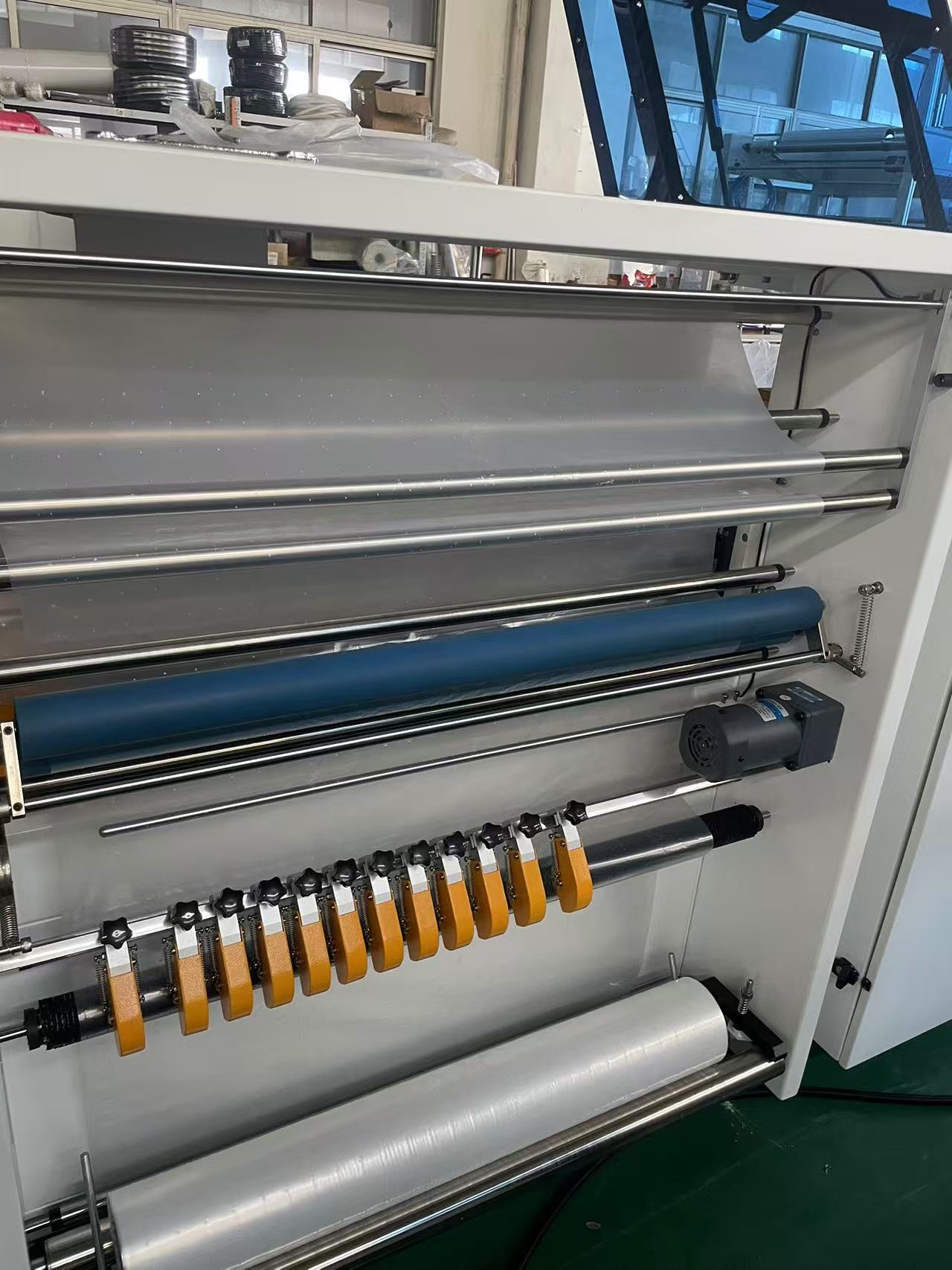

This packaging machine is fully compatible with both POF and PE films. It can efficiently process transparent, gray, and black films, making it ideal for e-commerce privacy packaging.
The machine features a high-speed output ranging from 20 to 85 pieces per minute, significantly boosting packing efficiency compared to manual operations.
The machine accommodates products with a maximum width under 400mm, a maximum height under 250mm, and a combined width and height (W+H) under 480mm.
It is widely used across e-commerce logistics, footwear, apparel, cosmetics, pharmaceuticals, flooring, beverages, and hardware sectors for automated shrink packaging.
The system runs on a 220V/380V, 50-60HZ 3-phase voltage with a total power output of 16KW and a rated current demand of 25A.
