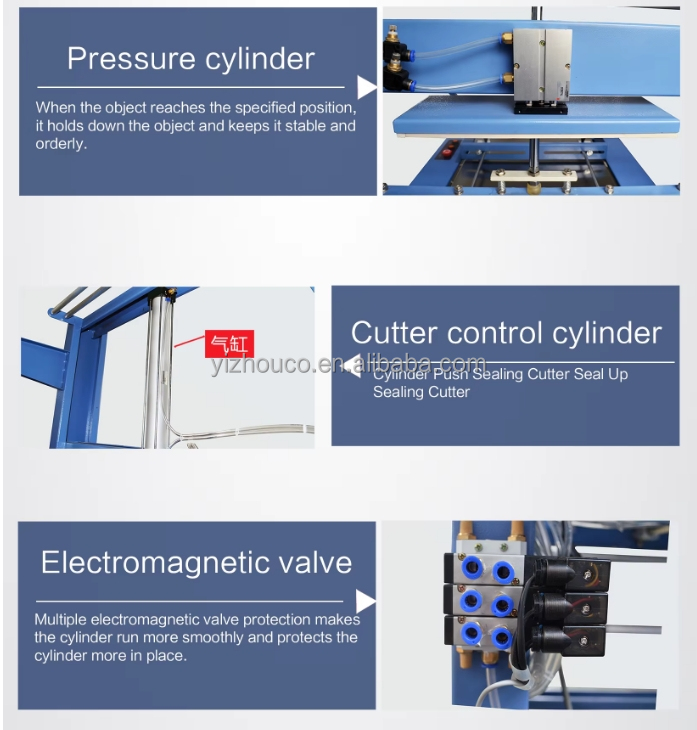

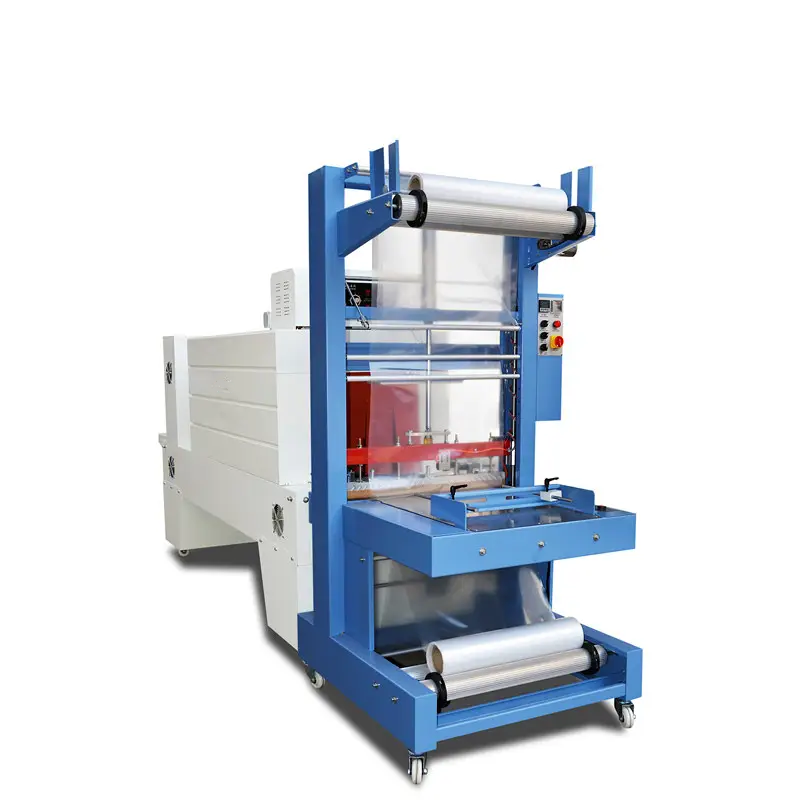

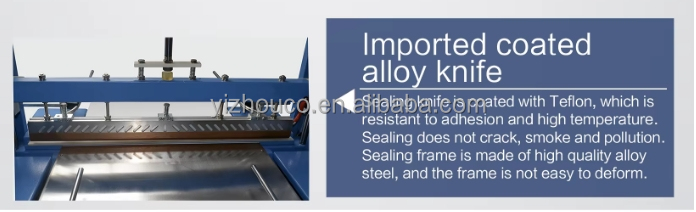

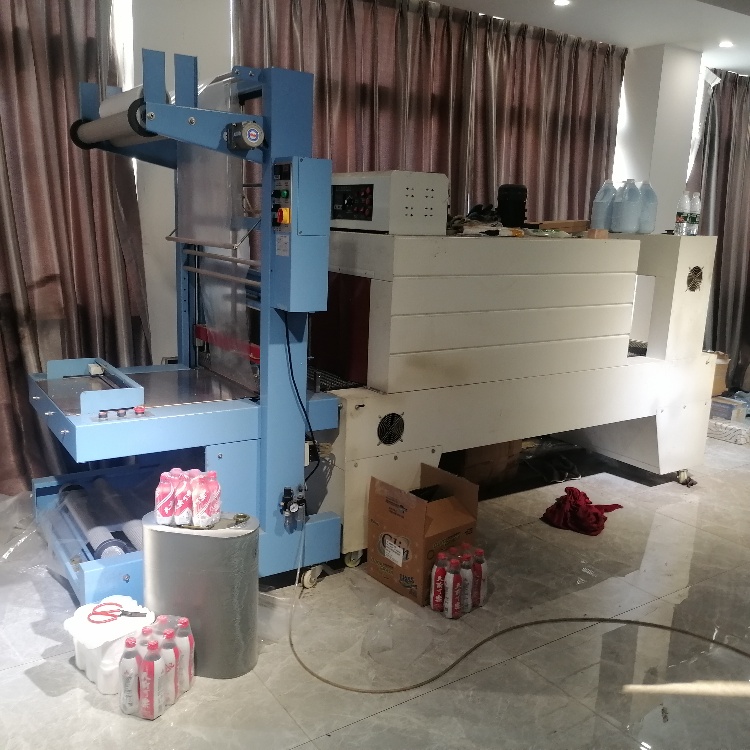

Upper and down electromagnetic switch prevent sealing mistakes, and protect operator.
Every simply and easy to adjust machine to match different packing size.
Simple operation and maintenance with high packing efficiency.

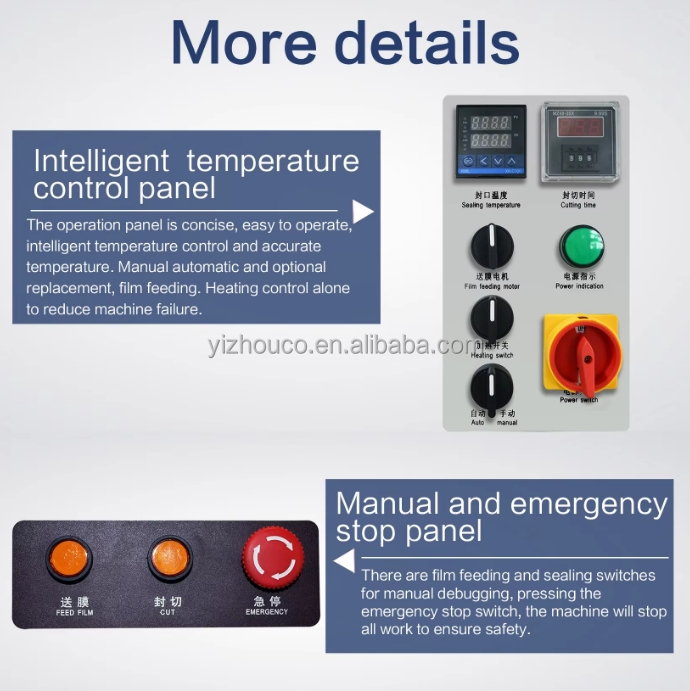

‘Schneider’ AC contractor, and Intelligent temperature controller performs stable.
Automatic alarm security system protects machine and operator.
Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.

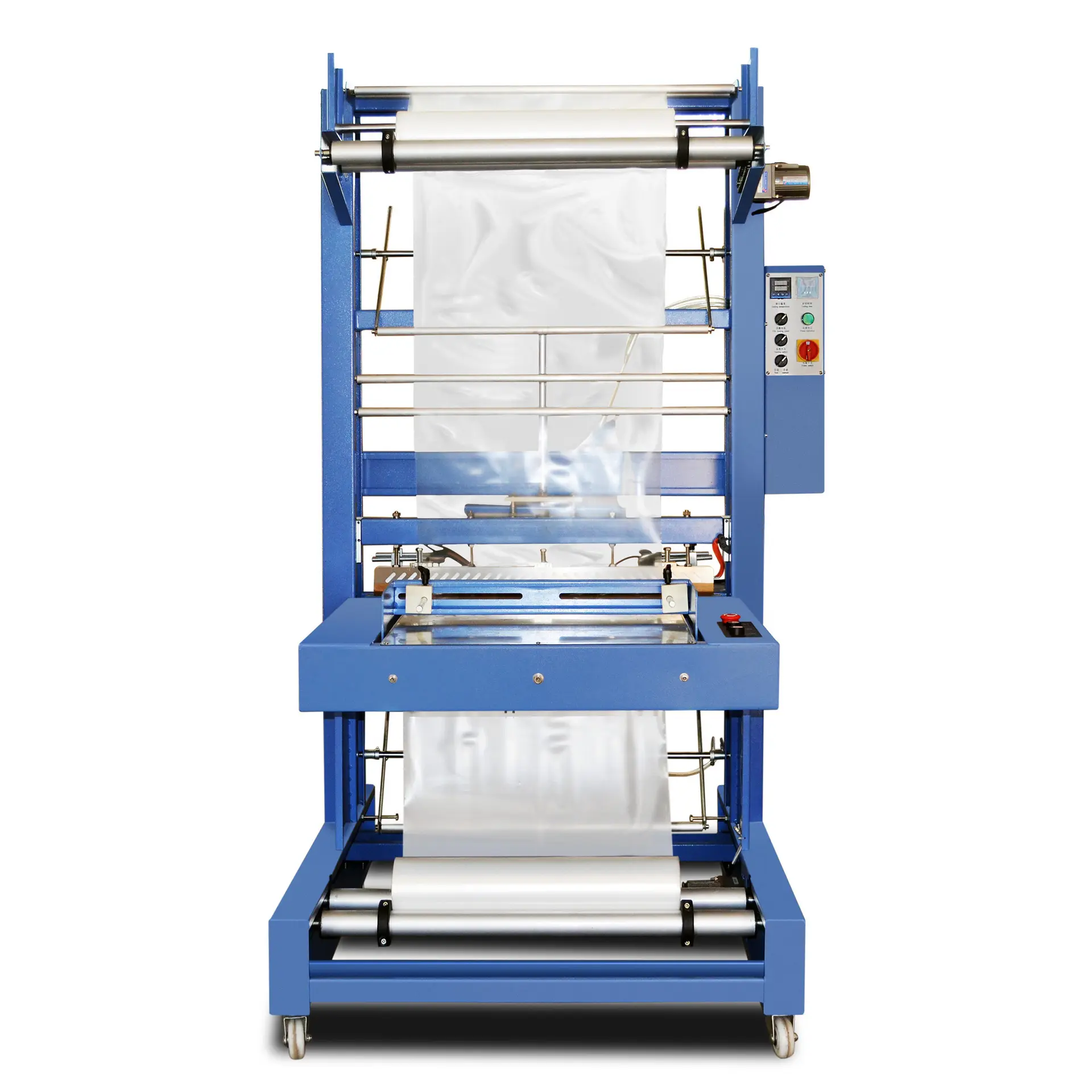

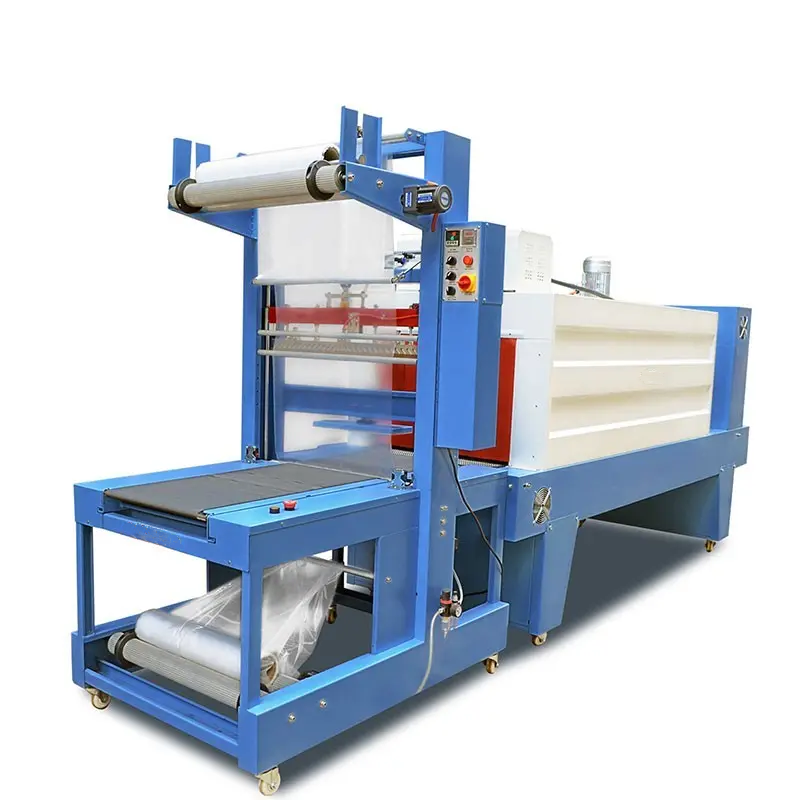

| Sleeve Wrapper Specs | Shrink Tunnel Specs | ||
|---|---|---|---|
| Model | Sleeve Wrapper | Model | Shrink Tunnel |
| Voltage (V/Hz) | AC 110-220V / 50-60Hz | Voltage (V/Hz) | 3-Phase 220V/380-460V, 50-60Hz |
| Packing Speed | 5-8 bags/min | Power | 24KW Adjuster |
| Air Pressure (kg/cm³) | 5-7 | Conveyor Speed | 0-10 m/minute |
| Power (KW) | 1.5 | Tunnel Size (L×W×H) (mm) | 1500 × 500 × 400 |
| Max Film Width (mm) | 650 | Loading Capacity | 30kg Max |
| Max Sealing Size (L×H) (mm) | 650 | Shrink Film | PE, POF, PVC, PP |
| Weight (kg) | 300 | Weight | 470kg |
| Dimensions (L×W×H) (mm) | 9250 × 980 × 1920 | Dimensions (L×W×H) (mm) | 2500 × 750 × 1680 |
Q1: Which types of shrink films are compatible with this sleeve packaging machine?
A: This machine works seamlessly with a variety of shrink films, including PE, POF, PVC, and PP. You can configure and adjust the temperature controls to suit the properties of the film you select.
Q2: How does the electromagnetic switch safety feature protect the operator?
A: The machine is designed with integrated upper and lower electromagnetic switches. These switches prevent accidental sealing activation and shut down sealing actions instantly if an obstruction is detected, eliminating common operation hazards.
Q3: Can this system handle different sizes of product packaging?
A: Yes. The sleeve wrapper and shrink tunnel are designed for easy, tool-free mechanical adjustments. It can quickly scale settings to feed and wrap products of different heights, lengths, and widths within the maximum sealing size limits.
Q4: How does the conveyor system regulate output speed?
A: The shrink tunnel conveyor is equipped with a high-power motor governed by a stepless speed regulating system. This allows operators to easily fine-tune production speeds anywhere from 0 to 10 meters per minute for consistent thermal wrapping.
Q5: What makes the heat shrink tunnel ensure an even shrink effect?
A: It features two heavy-duty circulating fans within the heating tunnel. This ensures that the hot air is distributed completely evenly across the entire surface of the product, resulting in a smooth, uniform seal in a single pass.
Q6: What is the maximum load weight allowed on the conveyor line?
A: The conveyor system of the shrink tunnel is engineered for heavy industrial tasks, supporting a maximum loading capacity of up to 30 kg comfortably while maintaining steady feed speeds.
