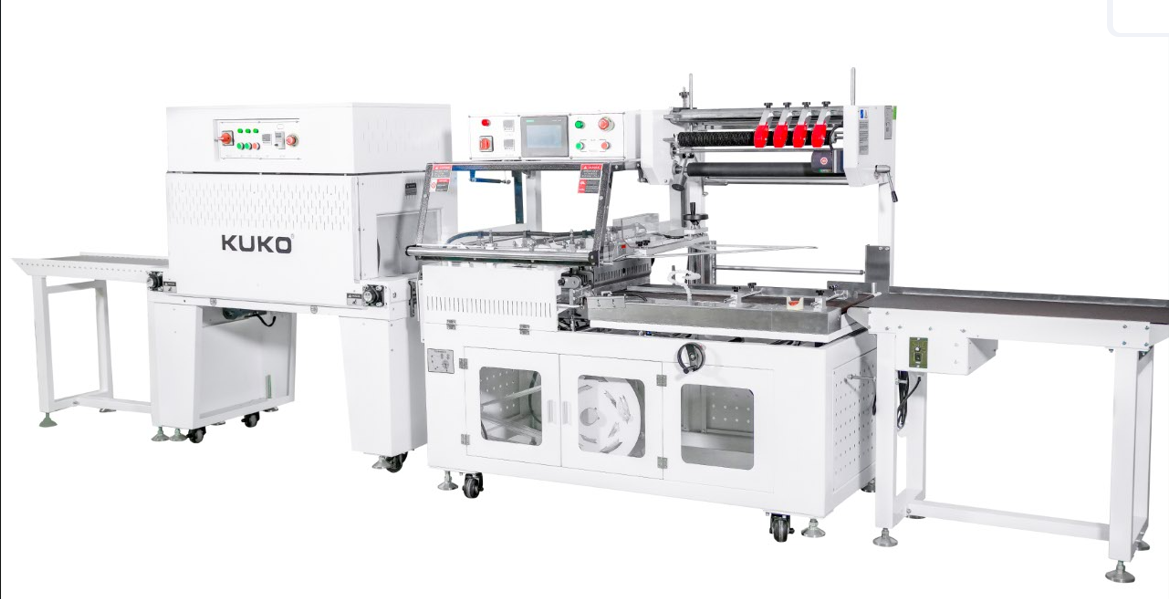

KUKO SF-400LA+SF-4525 Automatic Thermal Shrink Packaging Machine
KUKO SF-400LA+SF-4525 Automatic Thermal Shrink Packaging Machine
KUKO SF-400LA+SF-4525 Automatic Thermal Shrink Packaging Machine
KUKO SF-400LA+SF-4525 Automatic Thermal Shrink Packaging Machine
KUKO SF-400LA+SF-4525 Automatic Thermal Shrink Packaging Machine
1 / 5
KUKO SF-400LA+SF-4525 Automatic Thermal Shrink Packaging Machine
KUKO SF-400LA+SF-4525 Automatic Thermal Shrink Packaging Machine
KUKO SF-400LA+SF-4525 Automatic Thermal Shrink Packaging Machine
KUKO SF-400LA+SF-4525 Automatic Thermal Shrink Packaging Machine
KUKO SF-400LA+SF-4525 Automatic Thermal Shrink Packaging Machine

KUKO SF-400LA+SF-4525 Automatic Thermal Shrink Packaging Machine

Send Inquiry

Product Description

Automatic Thermal Shrink Packaging Machine Side View
Automatic Thermal Shrink Packaging Machine Banner
Automatic Thermal Shrink Packaging Machine Technical Diagram

Technical Specifications

Model SF-400LA SF-4525
Power 2.0kw 9kw
Power Supply AC220V 1/3PH 50/60HZ AC220/380V 3PH 50/60HZ
L-bar Blade Size 500 x 450mm /
Packing Size L+H<=530mm W+H<=430mm H<=135mm W300 x H200mm
Speed 15m/min. 15m/min.
External Air Source 5~8 bar /
Shrink Film POF POF
Machine Size 1785 x 850 x 1450mm 1300 x 720 x 1500mm
Crate Size 1890 x 950 x 1700mm 1700 x 800 x 1250mm
G.N. Weight 480/450kgs 315/245kgs

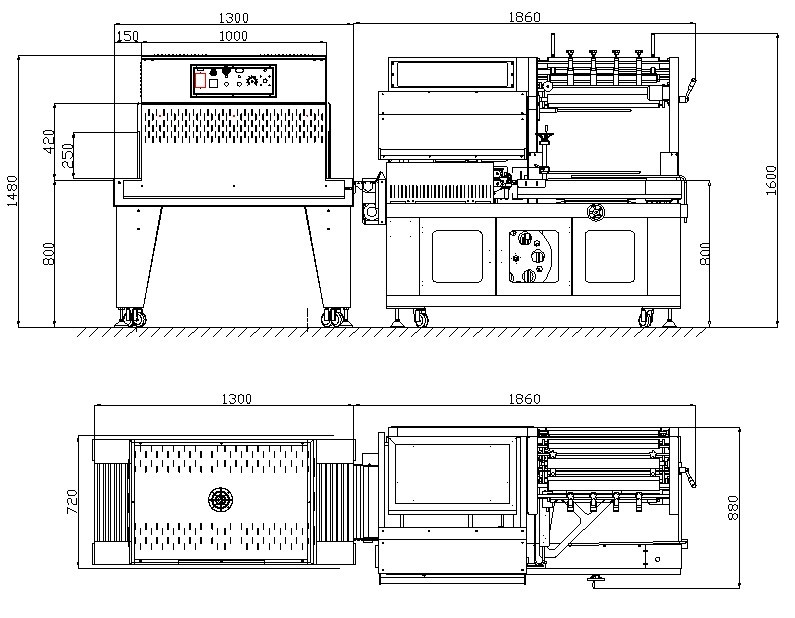

Automatic Thermal Shrink Packaging Machine Dimensional Drawing
Thermal Shrink Packaging Machine Front View
Thermal Shrink Packaging Machine Operation Section

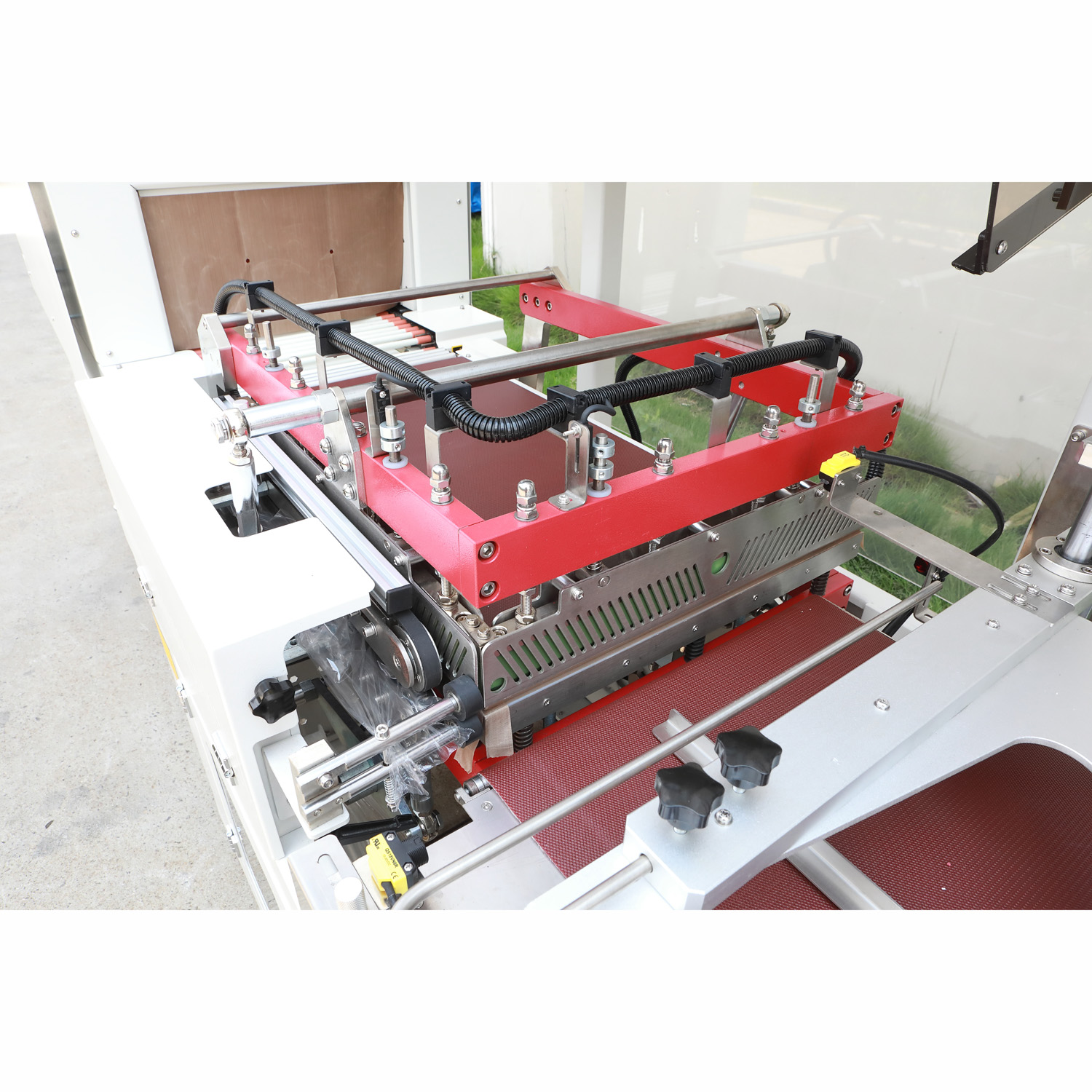

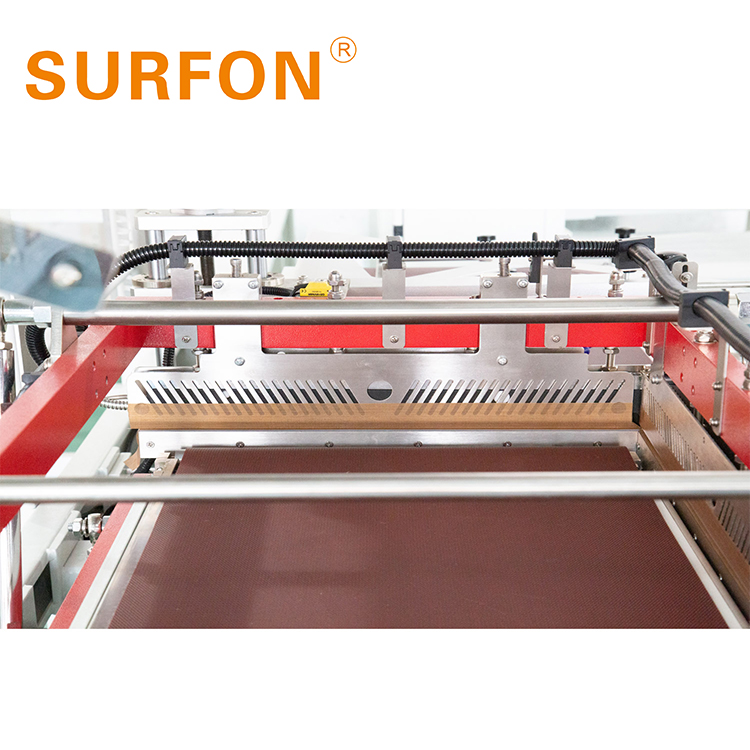

Thermal Shrink Packaging Machine Sealing Area
Automatic Thermal Shrink Packaging Machine Interior Detail
Automatic Thermal Shrink Packaging Machine Full Assembly
Thermal Shrink Packaging Machine Film Dispenser
Automatic Thermal Shrink Packaging Machine Conveyor System

Frequently Asked Questions

What are the power supply requirements for models SF-400LA and SF-4525?
The SF-400LA model operates on an AC220V 1/3PH 50/60HZ power supply with a power of 2.0kw. The SF-4525 model operates on an AC220/380V 3PH 50/60HZ power supply with a power of 9kw.
What is the maximum packing size that can be accommodated by these machines?
For the SF-400LA, the maximum packaging size limits are L+H <= 530mm, W+H <= 430mm, and H <= 135mm. For the SF-4525, the packing dimensions are W300 x H200mm.
What type of shrink film is recommended for these thermal packaging systems?
Both the SF-400LA and SF-4525 thermal shrink packaging machines are designed to work optimally with POF (Polyolefin) shrink film.
What is the operating speed of the SF-400LA and SF-4525 machines?
Both models have a consistent operating conveyor speed of 15 meters per minute (15m/min).
Is an external air source required for operations?
Yes, the SF-400LA requires an external air source with a pressure range of 5 to 8 bar. The SF-4525 does not require an external air source.
What are the physical dimensions and weights of the machinery?
The SF-400LA measures 1785 x 850 x 1450mm with a gross/net weight of 480/450kgs. The SF-4525 measures 1300 x 720 x 1500mm with a gross/net weight of 315/245kgs.
