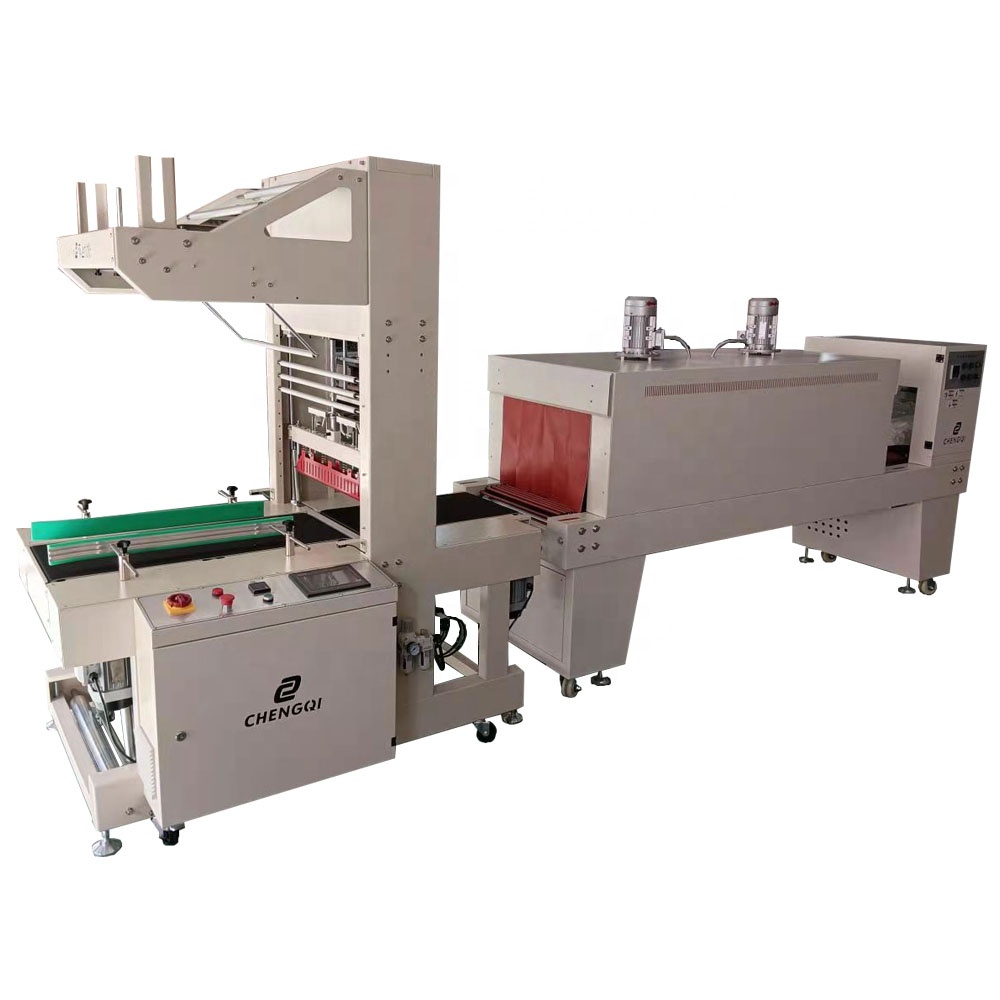

PE film heat oven tunnel thermal water bottles shrink wrap packing machine wrapping machines
- TFZ6540 Straight Feeding Sleeve Sealer: Adopts straight into and out design. Especially suitable for carton or larger items collection or single shrink wrapping.

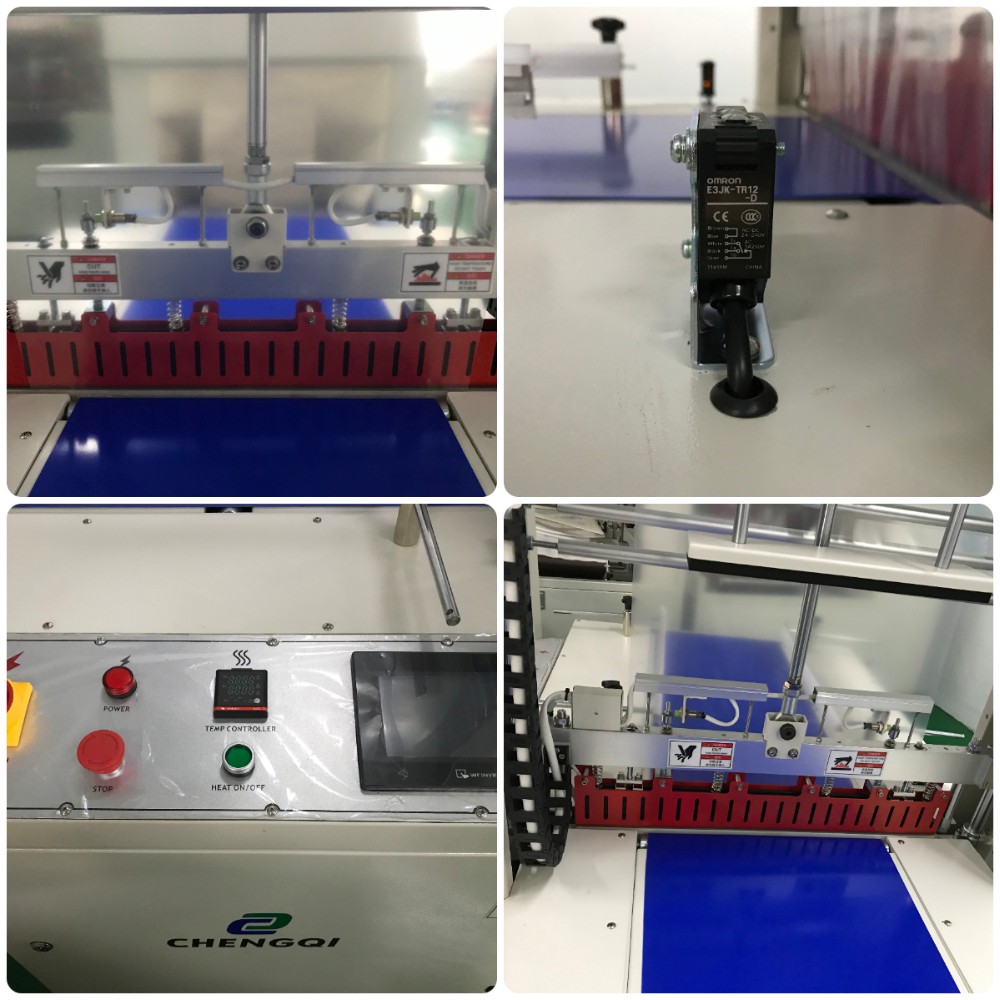

- Daikin Teflon Sealing Knife: Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. The sealing will not have cracking, coking and smoking.
- Photoelectric Sensor: Imported photoelectric sensor, positioning accuracy, fast response.
- Panasonic PLC Control: Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation.
- User-Friendly Control Box: Makes the operation much easier.
- Pressure Device: Equipped with pressure device makes sure the position is stable even for the light product during the procession.
- Automatic Protection Function: The sealing blade itself is also equipped with automatic protection function which effectively prevent from accidental cutting.
- Unmanned Operation: The entire machine realizes unmanned operation with the production line connecting.
- Dual Operation Modes: Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.
- BS6040PE Heat Shrink Tunnel: Adopts hot air circulation motor makes the hot air in the tunnel is even, constant temperature.
- Chain Conveyor: Made of solid steel covered with imported durable silicone tube.
- Cold Wind Equipment: Plays an effective role in cooling the product after heat shrinking.
| Model |
TFZ-6040 |
| Power supply |
220/380V/50-60Hz |
| Power |
1.8KW |
| Packing Size |
(W)≤550mm;(H)≤380mm |
| Sealing Size |
(W)650mm |
| Table height |
800±50mm |
| Packaging speed |
10-15pcs/min (depend on product size) |
| Air source |
6kgf/cm2 |
| Shrink film |
PE single film |
| Shrink film size |
(W)≤650mm;(D)≤250mm;(weight)≤35KG |
| Sealing form |
sleeve type |
| Overall dimension |
L1700×W1200×H2030mm |
| Package size |
L1750×W1350×H2180mm |
| G./N. Weight |
450/350kg |
| Model |
BS6040PE |
| Power Supply |
220/380V 3PH 50/60Hz |
| Power |
22KW |
| Table Height |
800±50mm |
| Conveying Load |
40KG |
| Conveyor Speed |
0-15m/min |
| Tunnel Size |
L1500×W600×H400mm |
| Machine Size |
L2500×W850×H1400mm |
| Package Size |
L2600×W950×H1550mm |
| G./N. Weight |
460/370Kg |

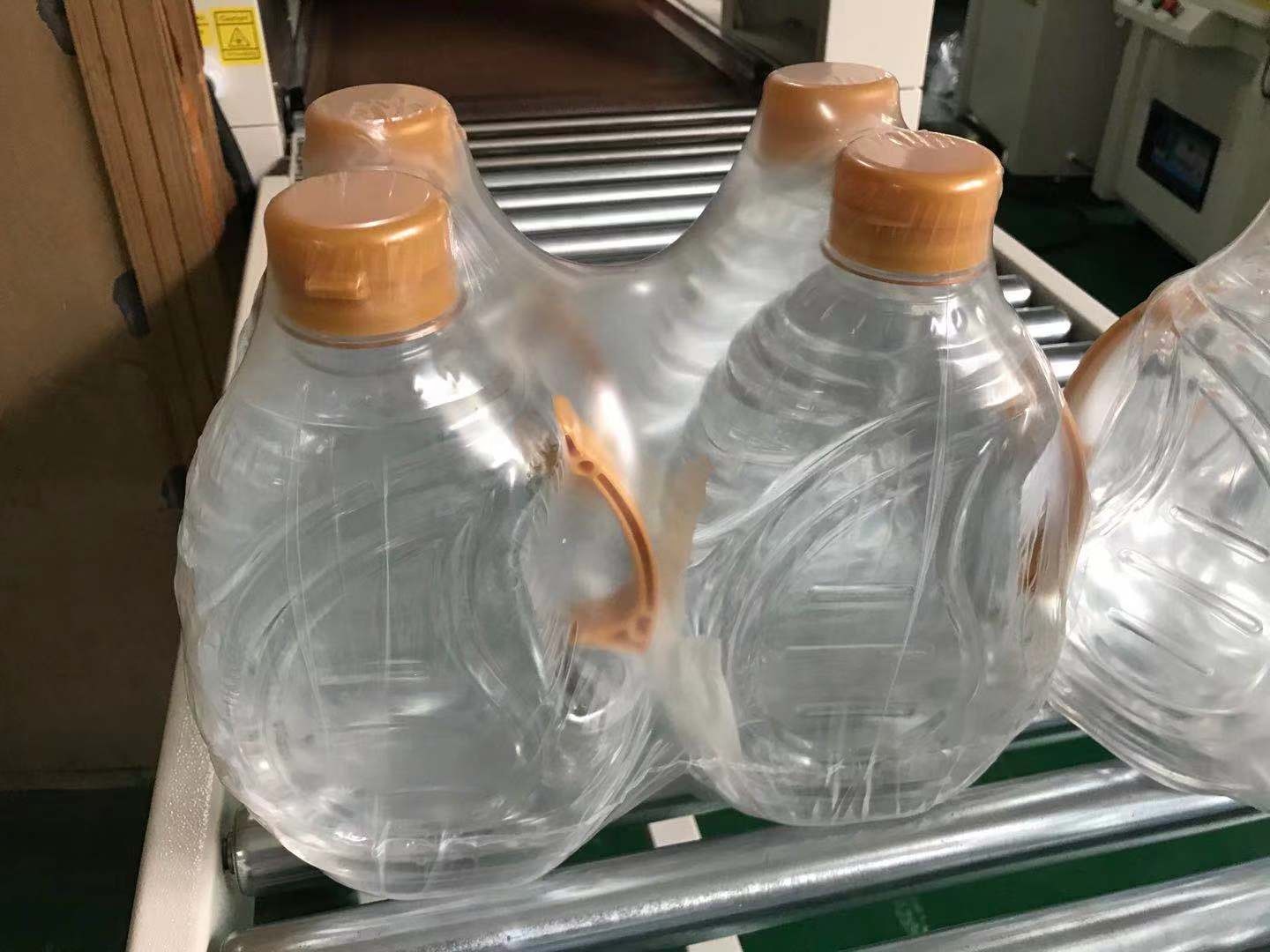

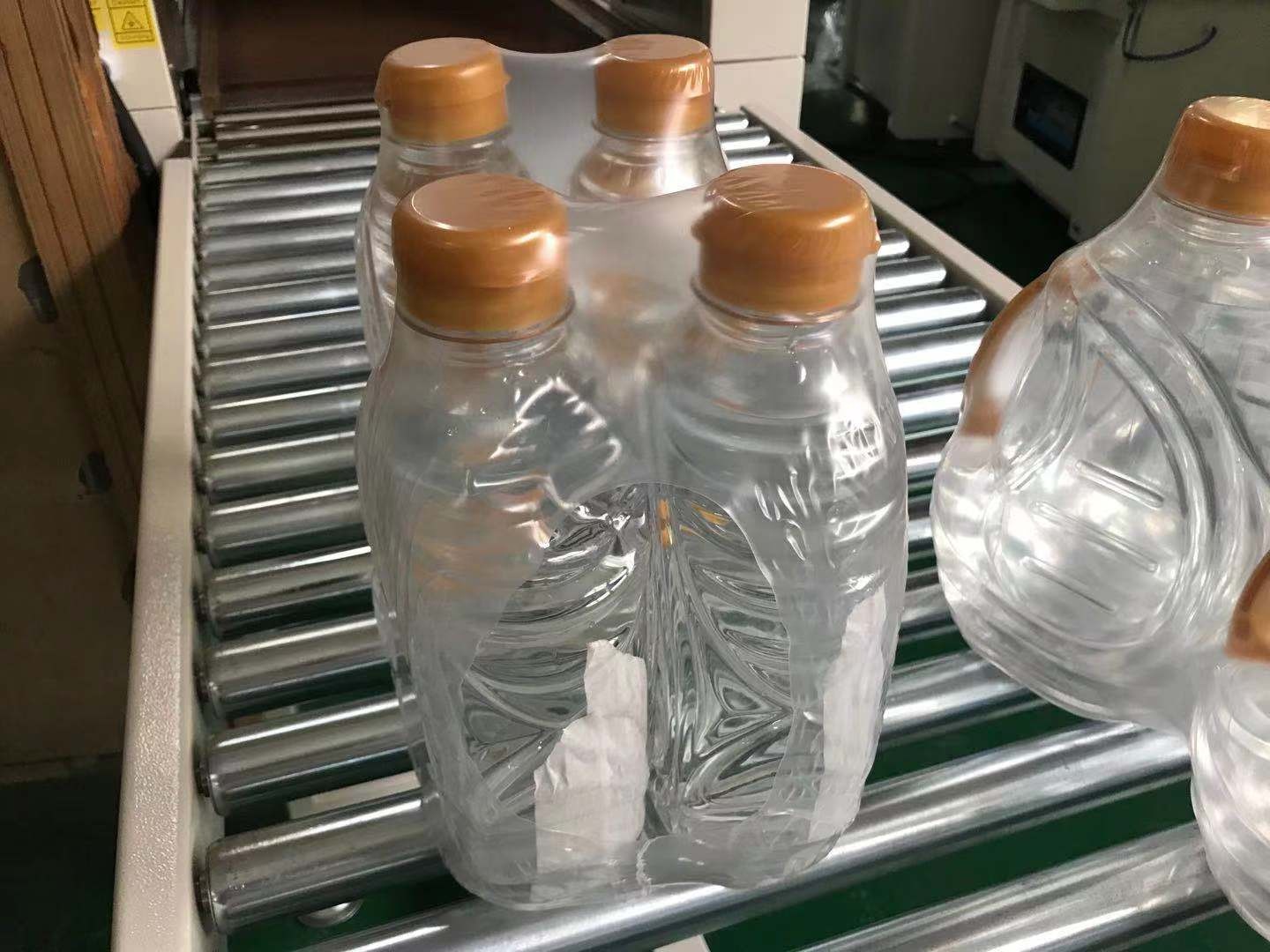

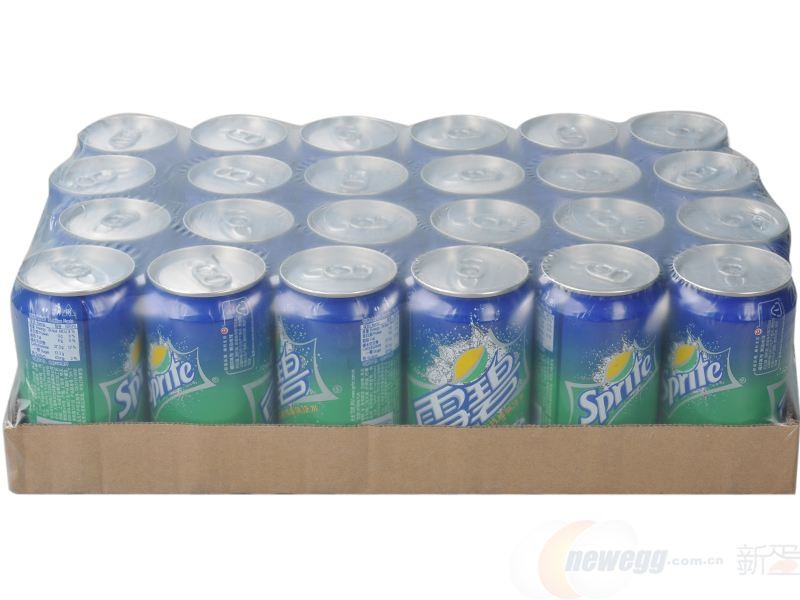

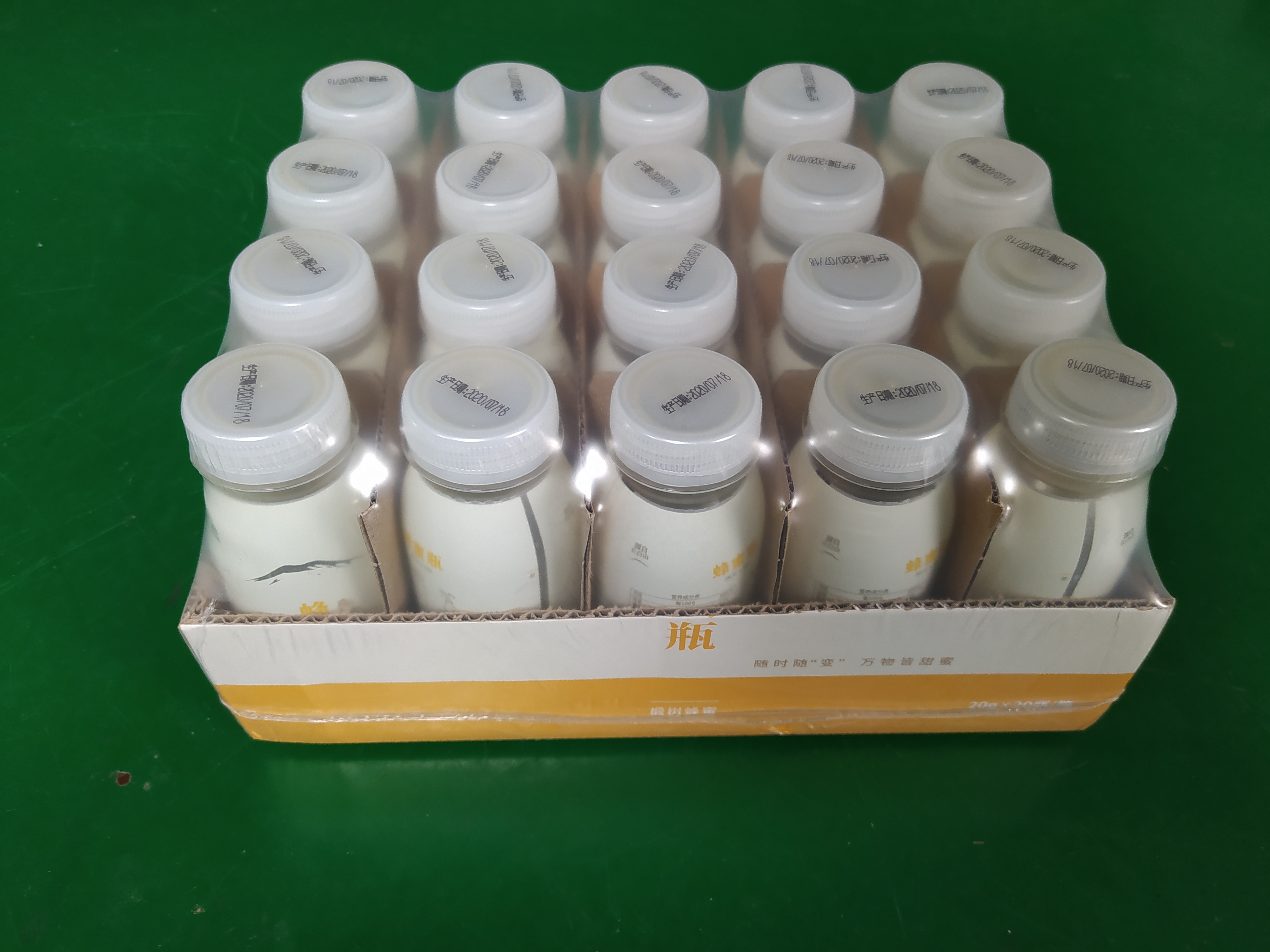

Mainly for beverage, daily necessities, food, ceramics and other large objects, especially for large cartons packaging.
Packaging Details: Standard Export Wooden Box
Delivery Detail: Common specifications are available in stock
- We can customize machine according to your requirements and your products.
- One year Warranty. We will replace the spare parts for free within one year which are non-man made damage except the wearing parts. After the guarantee, we will offer you the most favorable lifelong spare parts.
How do we test your machine?
When the machine manufacture is complete, we will send a testing video for you to check. You can also come to our factory to test and learn how to operate it in person.
What information shall I provide when I need your offer?
Normally, please tell us what product you plan to pack and provide your product's dimensions (Length * Width * Height) and weight, so we can quote exactly what you need.
Can the machine be customized to fit specific product dimensions?
Yes, we customize our packing machines according to your specific requirements and product specifications.
What is the warranty policy and after-sales support?
We offer a one-year warranty. We replace non-man-made damaged parts for free within the first year (excluding wear parts). Lifelong support and favorable pricing on spare parts are provided after the warranty.
What types of shrink films are compatible with this machine?
This machine is specifically designed for PE single film packaging. The maximum film width should be ≤650mm, depth ≤250mm, and weight ≤35KG.
How does the sealing knife prevent cracking and smoking?
The sealing knife is made of special steel coated with Daikin Teflon, which is anti-stick and anti-high temperature. This design ensures clean sealing without cracking, coking, or smoking.
