Model NO.150a
ApplicationFood, Textile, Chemical
PackagingCartons
Automatic GradeAutomatic
Driven TypeElectric
Manner of PackingBoth Ends Open
Adjust SpeedFrequency Conversion Speed Regulation
TypePE Shrink Film Machine
Heating ModeStainless Steel Heating
Packaging MaterialFilm
Tunnel BeltSUS304 Instead of Te-Flon Belt
CylinderSMC
Electricity BrandFull Set Siemens
CertificateISO SGS CE
Delivery Time30-60day
Pack Specification2*3, 2*2, 3*4, 4*5, 4*6, 5*6, 5*8
Each Pack Bottle Quantity6bottle, 8bottle, 12bottle, 16bottle, 20bottle
Required Pack FilmPE Film 0.01mm
After Sale ServiceEngineer Go Local Install, Train Buyer Use
Transport PackageWooden Case
Specification150a
OriginZhangjiagang
HS Code84224000
Production Capacity200set/Year
Product Description

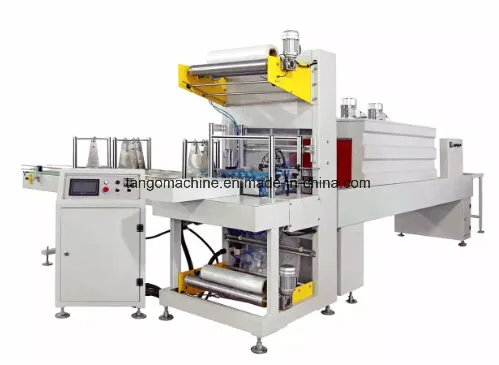

Auto PE film glass Bottle sleeve shrink wrapping packing Machine

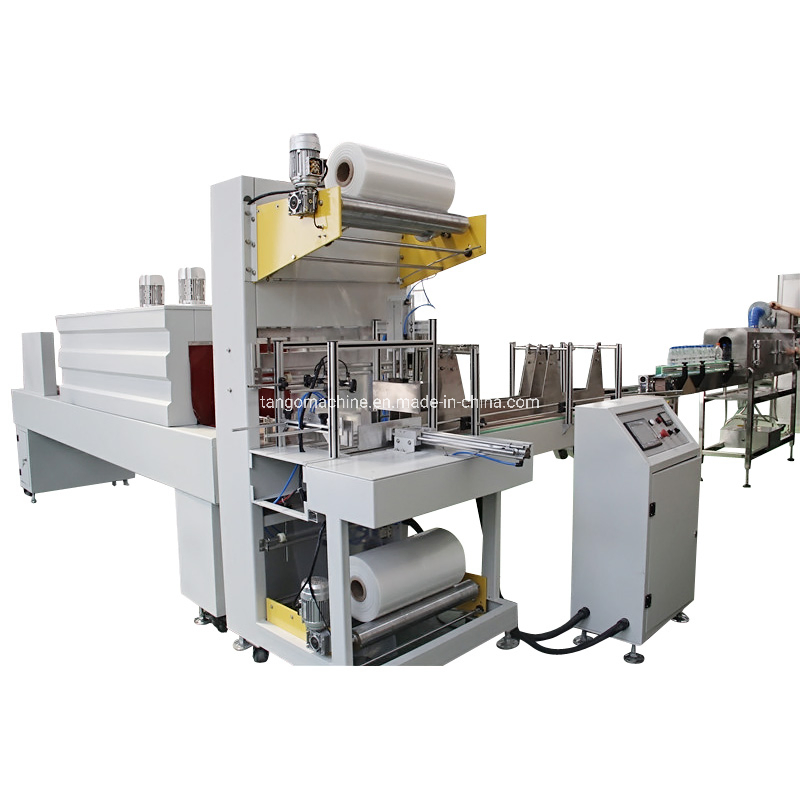

Bottle Shrink Wrap Sleeve Machines for Cans
Specially designed for packaging production line of beer, beverage, pure water, fruit juice, dairy products, etc. With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping, etc. Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal. The quick seal cooling structure guarantee that the seal has a higher strength even if under high speed production condition. Adopt with PLC automatic program circulation control with stable and reliable performance. The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss. All the transfer system is controlled by frequency changing devices. With stable and smooth transfer speed. Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.
Parameters
| Parameter Name |
Specification Details |
| Dimension for the whole unit |
L6500mm*W3200mm*H2100mm |
| Thermal shrinkage passage dimension |
L1800mm*W650mm*H400mm |
| Max package dimension |
L600mm*W400mm*H350mm |
| Packaging speed |
10-12Pcs/minute |
| Transfer belt width |
304mm |
| Sealing and cutting time/temperature |
0.5-1.5s 140°C-160°C |
| Operating power supply/power |
380V 24kw |
| Operating air pressure |
0.6-0.8Mpa |

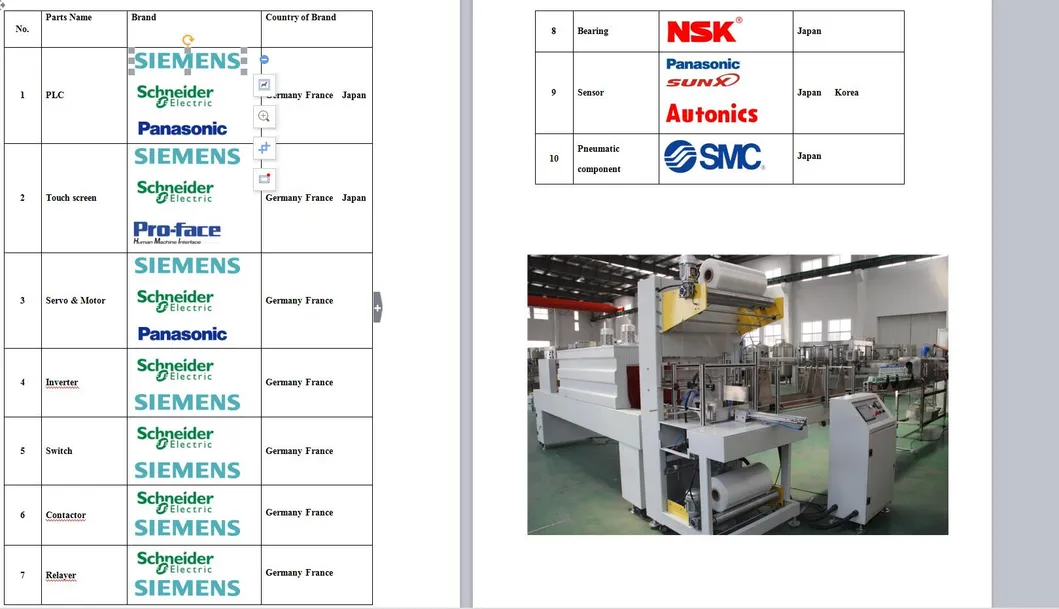

Electrical Parts Standard
Electrical Component System Configuration
20pack/m capacity type

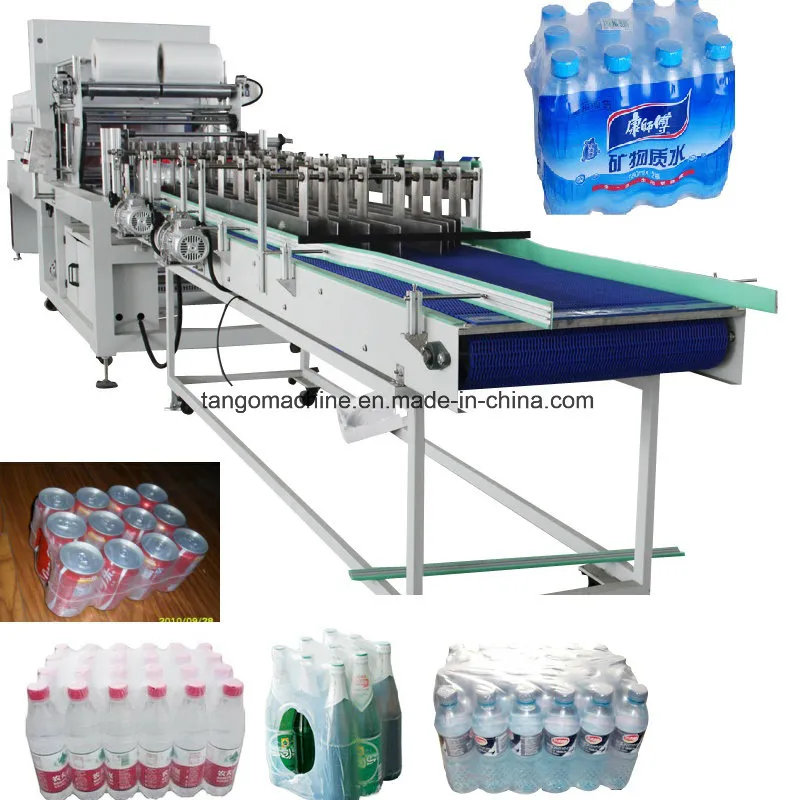

20 Packs Per Minute High Capacity Shrink Wrapping System
Technical Parameters (20pack/m Type)
✓Facility overall size: L12000*W1100*H2100mm
✓Main equipment size: L12000× W1100× H2100mm
✓Shrinkage machine size: 4200× 1100× 1700mm
✓Wrap max size: L240× W650× H450mm
✓Shrinkage film material: PE (Thickness: 0.03-0.15mm)
✓Thermo shrinkage tunnel max temperature: 160 - 260° (Adjustable)
✓Max output per minute: 20 pack/minute
✓Facility power: 25Kw (Actual power: 20Kw/h)
Facility Basic Collocation
⚙OMRON: PLC controlling system
⚙WEINVIEW: Touch Screen
⚙Taiwan Airtac pneumatic component (1 set)
⚙Taiwan Telta transducer (2 set)
⚙Stainless steel wing heating tube (12 PCS)
⚙China-USA cooperation Te-flon convey belt
⚙Shanghai HEMEI motor and Zhenjiang Taili worm derailleur
⚙South Korea Autonics photoelectrical switch, approach switch
⚙Thermo sealing knife aluminum casting heating board (even temperature, long usage life)
⚙Whole machine appearance plastic spray, high-quality carbonated steel machine rack, main parts adopt stainless steel
⚙Wooden case and wrap film separate package
Technical Requirements
▶Package type:
-350/500/550/600ml big bag: 4*6, 4*5; Small bag: 3×4, 3×5 (Four package configurations)
-1L/1.5L/2L/2.5L big bag: 3*3, 3*4; Small bag: 2×2, 2×3 (Four package configurations)
▶For cans, it is recommended to adopt packages with tray for stable packaging.
▶Package speed: 16-20 bags/min
▶Pre-treatment filling speed compatibility:
-350/500/550/600ml: Big bag (24000-29000b/h), Small bag (15000-18000b/h)
-1L/1.5L/2L: Big bag (10000-14000b/h), Small bag (5000-7000b/h)
▶Package material: PE thermo shrinkage film width (200-600mm), Thickness (0.03-0.12mm)
Main Component Detail List
| NO. |
Name |
Specification |
Number |
Brand |
| 1 |
Board production component |
- |
- |
- |
| 2 |
Plant metal component |
- |
- |
- |
| 3 |
Pneumatic component |
- |
1 |
SMC |
| Electric controlling component and accessory |
| - |
Photoelectric switch |
- |
1 |
South Korea Autonics |
| - |
Proximity switch |
- |
4 |
South Korea Autonics |
| - |
PLC |
- |
1 |
OMRON |
| - |
Touch screen |
- |
1 |
WEINVIEW |
| - |
Frequency converter |
- |
2 |
Taiwan Telta |
| - |
AC contactor |
- |
9 |
France Schneider |
| - |
Mid-relay |
- |
12 |
France Schneider |
Loading List
| NO. |
Name |
Model |
Number |
Remark |
| 1 |
Automatic film wrappage machine |
- |
1 set |
- |
| 2 |
Bottle convey machine |
- |
1 set |
- |
| 3 |
Thermo shrinkage package machine |
- |
1 set |
- |
| 4 |
Convey machine rack |
- |
1 set |
- |
| 5 |
Wing heating tube |
Stainless iron |
2 piece |
- |
| 6 |
Thermo-sealing cutting |
- |
1 unit |
- |
| 7 |
Pressed rubber |
- |
1 set |
- |
| 8 |
AC contactor |
- |
1 unit |
- |
| 9 |
Middle relay |
- |
2 units |
- |
| 10 |
High temperature fabric |
- |
1 piece |
Stainless steel |
| 11 |
Film for machine testing |
- |
2 rolls |
- |
| 12 |
Thermo-couple |
- |
1 piece |
- |
| 13 |
Tools |
- |
1 set |
- |
| 14 |
Temperature control meter instruction |
- |
- |
- |
| 15 |
Frequency converter instruction |
- |
1 piece |
- |
| 16 |
Operation use instruction |
- |
1 piece |
- |

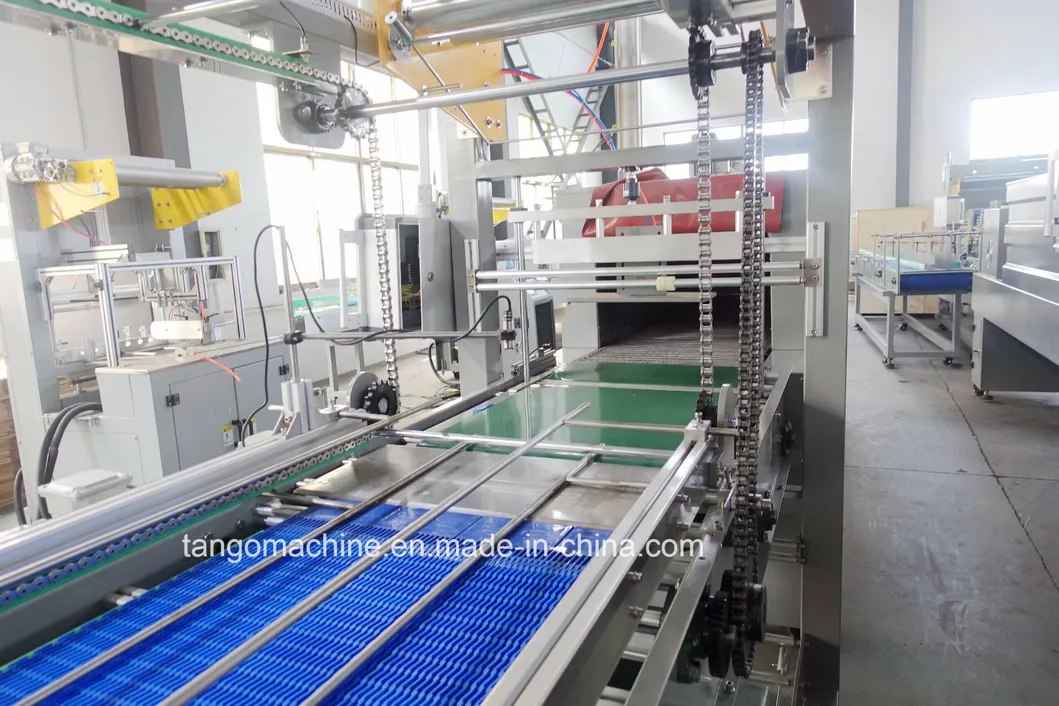

20pack/minute type linear wrapping machine with pad feeding

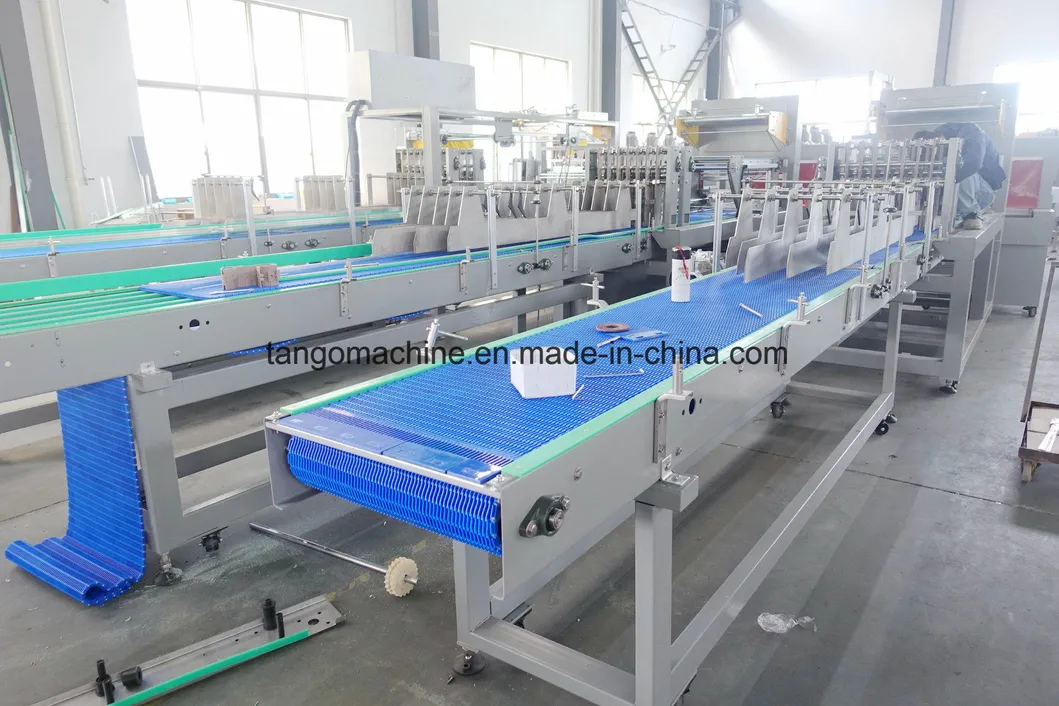

Container loading and secure dispatch preparation

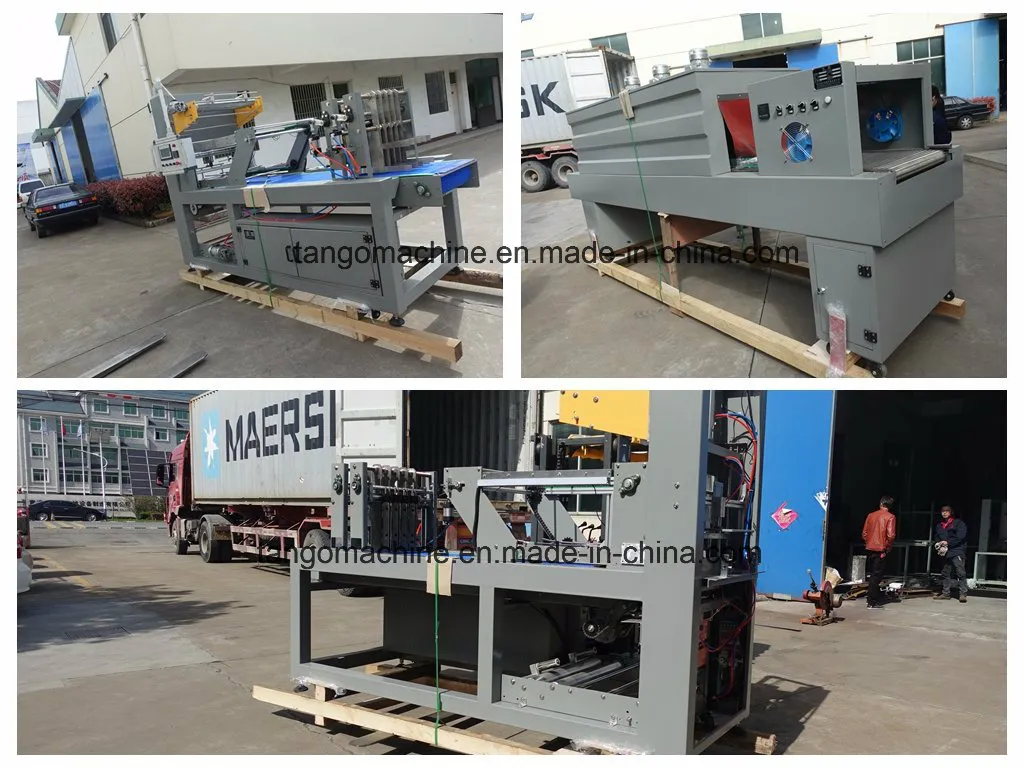

Carton film wrapping process and bend roll conveyor setup
