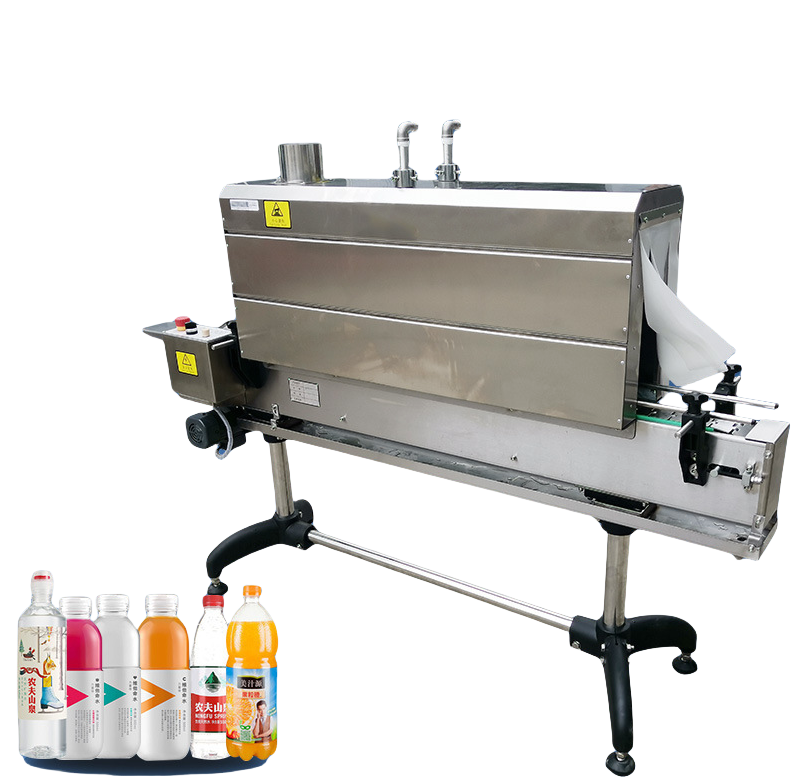

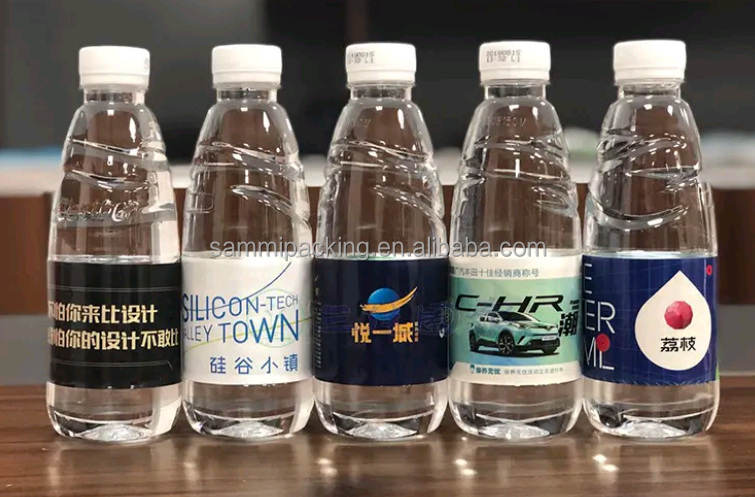

It is mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup. The label either on the top, in the middle, at bottom of bottom or wrapping the whole bottle is able to be shrank with different type model. It is widely applied in the industry of food, medicine, cosmetic and pesticide, etc.
| Parameter | Specification Value |
|---|---|
| Model | BS-1135 |
| Volt | 220V 50/60Hz |
| Shrink Tunnel Width | 110mm |
| Max Suitable Width | 100mm |
| Max Suitable Height | 29cm |
| Speed | 5000-7500BPH |
| Steam Pressure | 0.1Mpa |
| Steam Consumption | 8kg/H |
| Shrink Temperature | 75-85°C |
| Suitable Material | PVC PP PE POF |

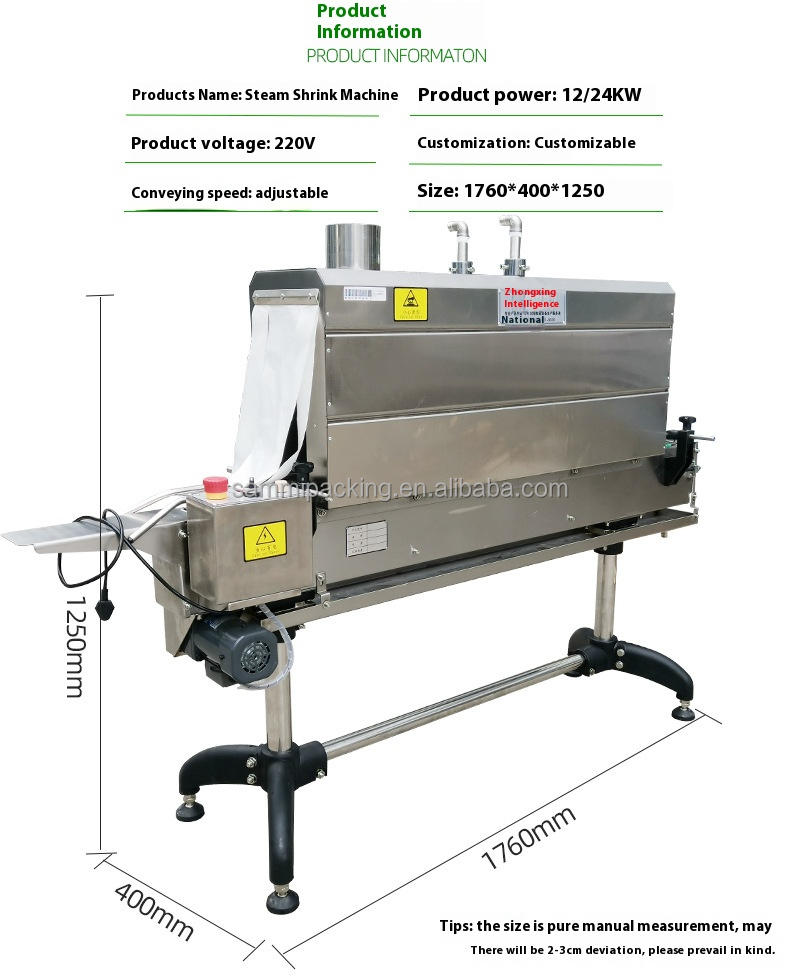

| Machine Size | 1760x450x125mm |
| Weight | 168kg |
A: It is mainly used to shrink labels on products shaped like bottles, cans, or barrels. It works perfectly with glass bottles, plastic bottles, or paper cups.
A: This machine is highly compatible with common shrinkable packaging film materials, including PVC, PP, PE, and POF.

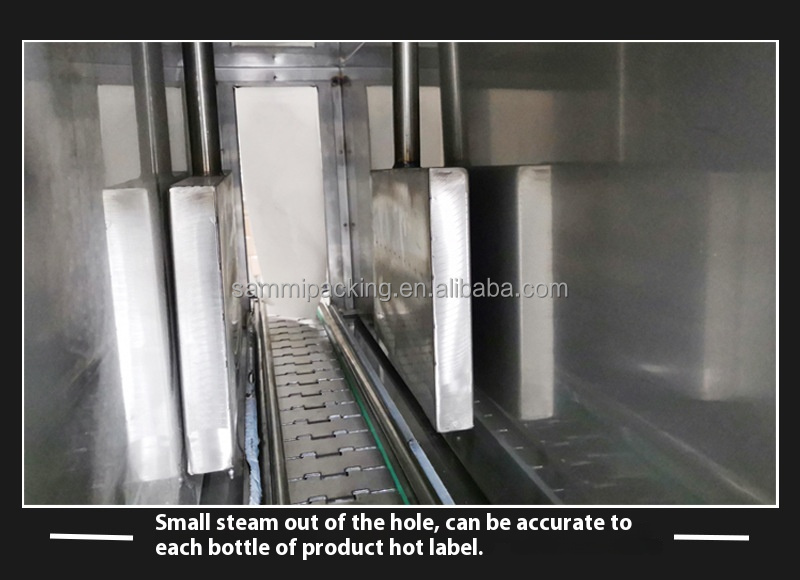

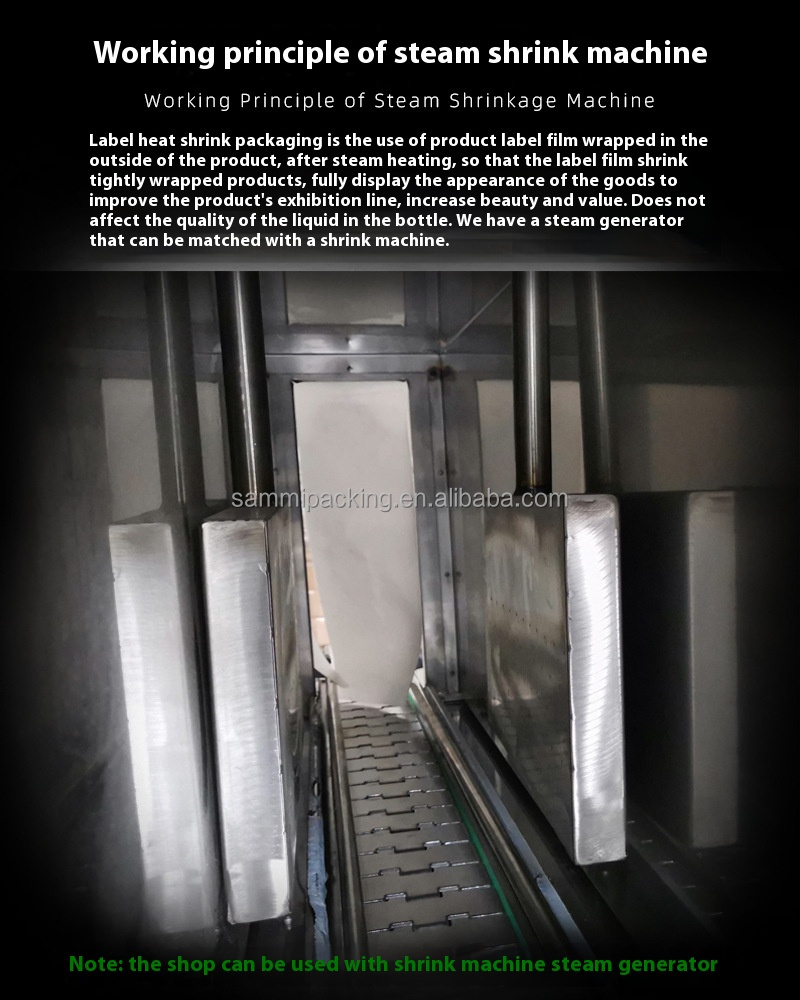

A: Steam provides highly even heating, resulting in a perfect shrink effect with no wrinkles. It is also energy-saving, operates at high speeds, and allows for adjustable steam power levels.

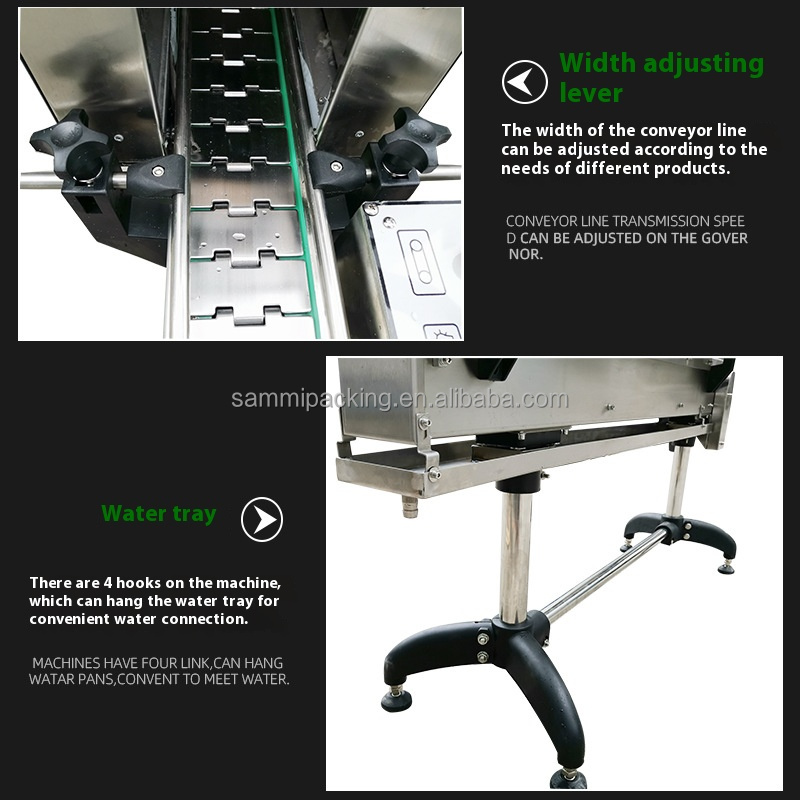

A: The whole machine features a water-proof design, and a stainless steel (S/S) water receiver is mounted at the bottom of the tunnel to safely collect condensed water.
A: Yes. Depending on the settings and configuration, it can shrink labels on the top, middle, or bottom of the container, as well as wrap the entire bottle.
A: The BS-1135 features a speed capacity of 5000 to 7500 Bottles Per Hour (BPH) and operates efficiently within a shrinking temperature range of 75°C to 85°C.
